EER43x15 inverter welding welder drive transformer without CT Wire

Product Overview

Description

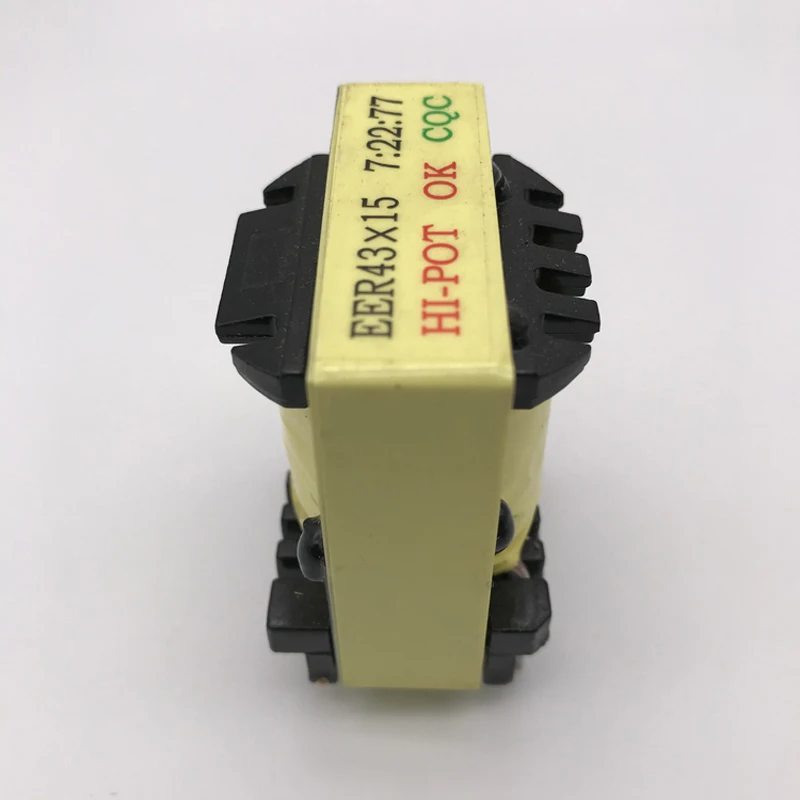

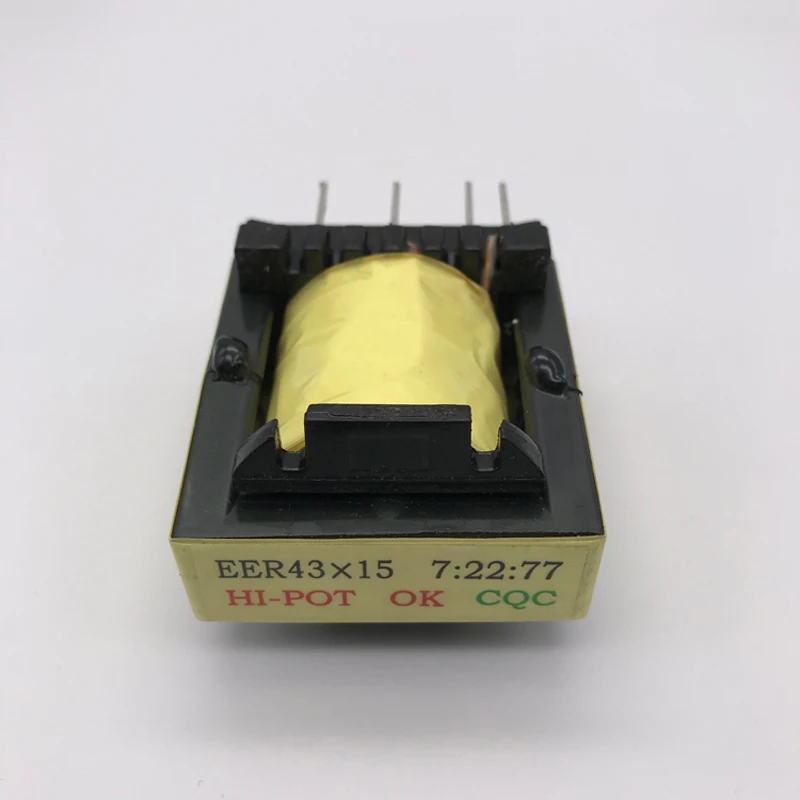

EER43x15 7:22:77 Welding transformer without CT Wire for welding machine.

Different turn ratio is available.

EER43 7:22:1

EER43 7:22:70

EER43 7:24:70

EER43 7:45:70

EER43 7:22:80

EER43 8:24:5

EER43 8:24:70

EER43 8:24:80

EER43 8:42:1

EER43 8:45:6

EER43 8:45:3

EER43 120:11:17:10

EER43 140:20:11:10

EER43 7:20:11:17

EER43 7:20:11:17:10

EER43 140:20:11:17:10

EER43 70:20:11:10

EER43 8:45:80

EER43 8:45:90

EER43 8:45:90

EER43 8:45:2

EER43 7:22:77

EER4310:45:90



Features:
1. High efficiency of over 95%
2. High frequency range 10kHz-1MHz
3. High isolation strength
4. Lower profile and weight
5. High power density
6. High-temperature resistant
7. Operating temperature -40°C to +125°C
8. Power range 5w-50w
9. Custom designs available



Applications
1. VCRS, Copy machine, Audio equipment, Game machines.
2. TV sets, Microcomputer equipment, printers, Terminals
3. Communications control equipment
4. Switching power supply, chargers, alarm system
5. UPS, VCD/DVD players, audio and visual equipment
6. OA machines, inverters, chargers, alarm system



Specifications:
1. Low magnetic leakage, low loss
2. Small distributed capacity
3. Fine tuning inductance

Certification
