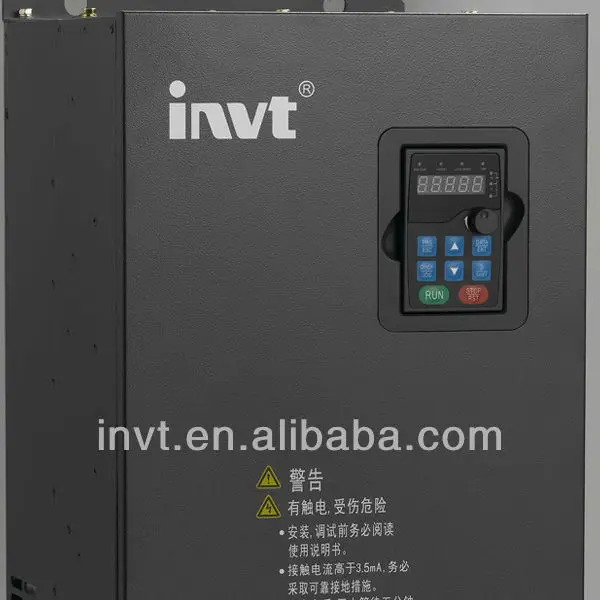

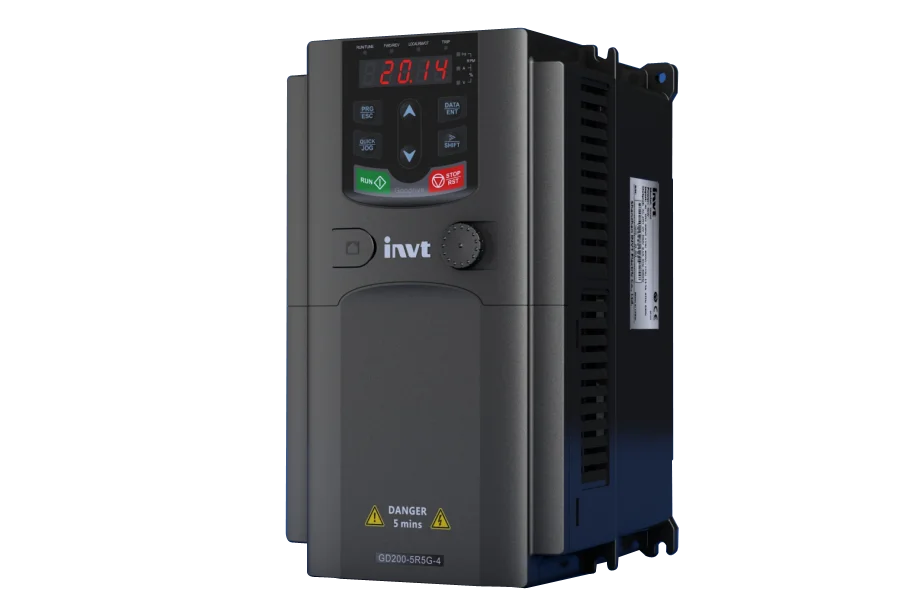

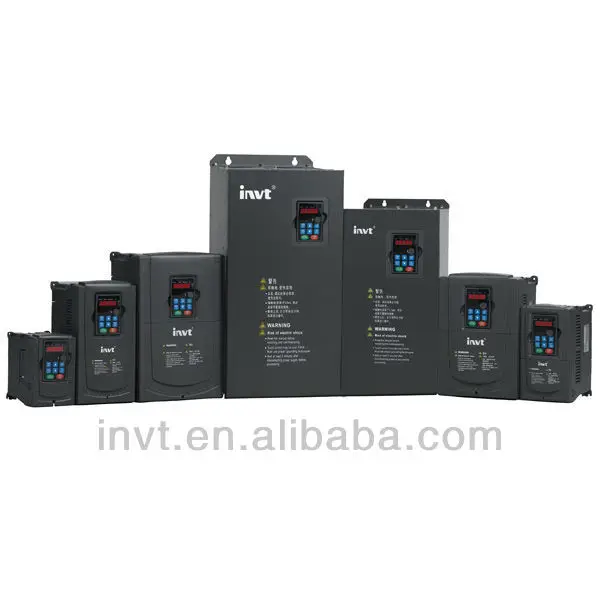

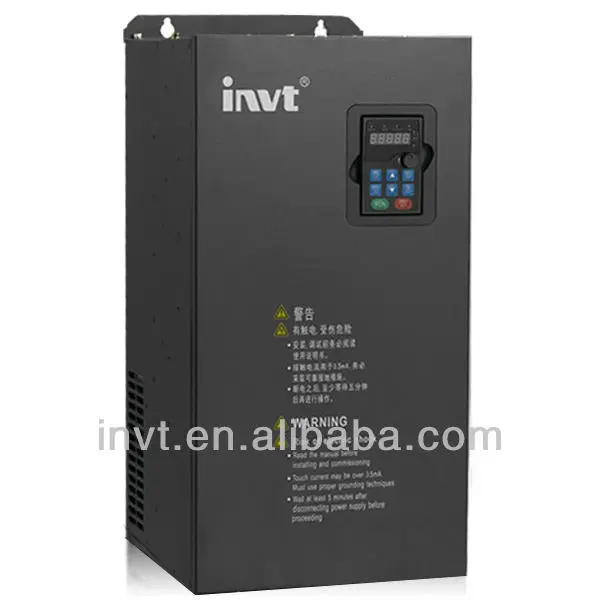

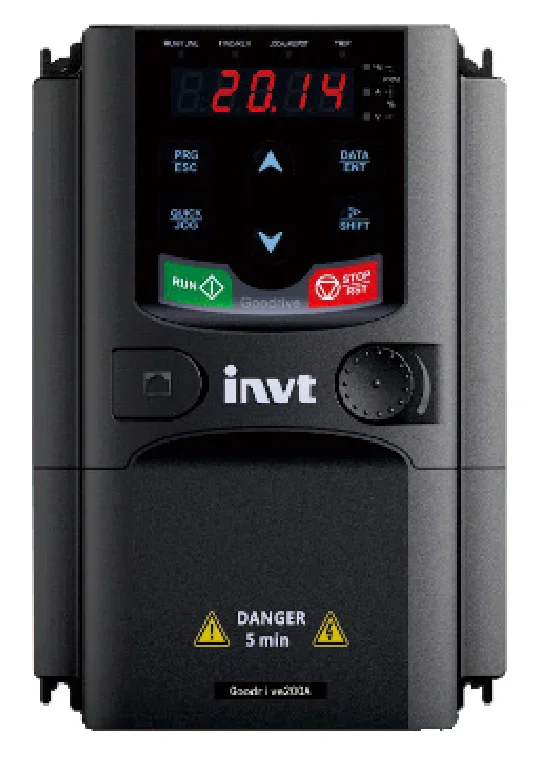

Goodrive200 series AC Variable Frequency Converter
- Category: >>>
- Supplier: Shenzhen Invt Electric Co. Ltd.
Share on (1421182135):
Product Overview
Description
Description
Goodrive200 series AC variable frequency drives are newly-designed by our company for controlling asynchronous AC inductance motors and water pumps. Applying the most advanced SVPWM vector control technology, DSP control system, and our product enhances its reliability to meet the adaptability to the environment, customized and industrialized design with more optimized functions, more flexible application and more stable performance.Features
1. Accurate parameter autotuning and superior motor drive;
2. Rivet design with built-in C3 filter;
3. 1.5~30KW built-in braking unit, standard high performance keypad and pluggable control terminals;
4. Support common DC bus and DC power supply and provides the DC, dynamic and flux braking;
5. Compact structure, independent air duct, flange and floor installation and more stable and reliable operation.
Applications

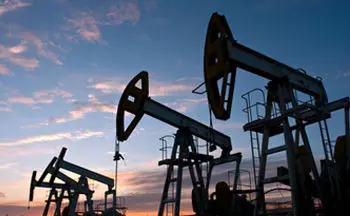

Petroleum |  |

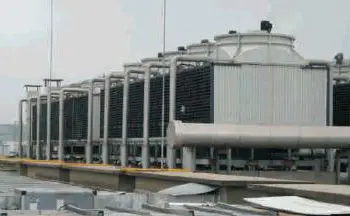

 | Hvac and water supply |

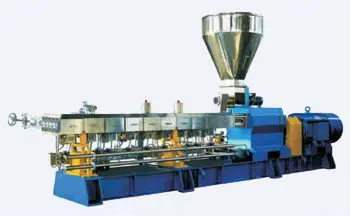

Plastic machinery |  |

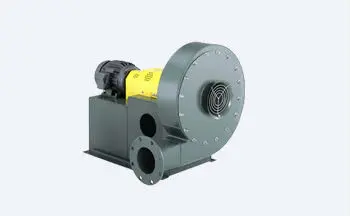

 | Fan and water pumps |

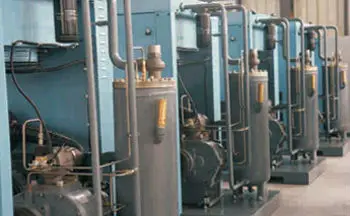

Air compressors |  |

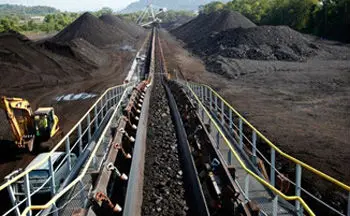

 | Mining |
Specifications
| Function | Specification | |
| Input | Input Voltage(V) | AC 3PH 380V(-15%)~440V(+10%) |
| Input Frequency(Hz) | 50Hz or 60Hz Allowed range :47~63Hz | |
| Output | Output Voltage(V) | 0~input voltage |
| Output Frequency(Hz) | 0~400Hz | |
| Technical Control Feature | Contorl Mode | SVPWM |
| Motor Type | Asynchronous Motor | |
| Speed-adjusting Ratio | Asynchronous Motor:1:100 | |
| Starting Torque | Asynchronous Motor:0.5Hz/150% | |
| Overload Capability | G Type: 150% of rated current :1 minute 180% of rated current: 10 seconds 200% of rated current: 1 second P Type: 120% of rated current:60 Seconds | |
| Running Control Feature | Frequency Setting | Digital setting,analog setting, pulse frequency setting,multi-step speed running setting,simple PLC setting, PID setting, MODBUS commucation setting. Realize the shifting between the set combination and set channel. |
| Auto Voltage Adjustment | Keep a stable voltage automatically when the grid voltage fluctuates | |
| Fault Protection | Provide over 30 fault protection functions:overcurrent, overvoltage,undervoltage,overheating,phase failure and overload, etc. | |
| Speed Tracking | Restart the rotating motor smoothly | |
