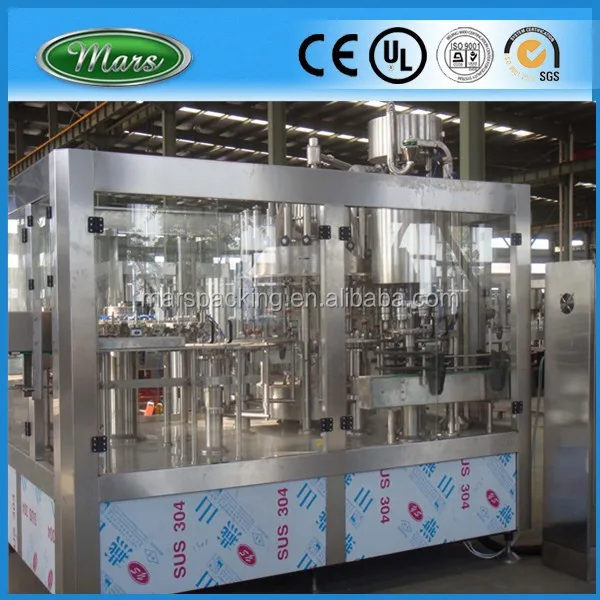

Small Automatic Green Tea Lemonade Filling Bottling Production Line

Product Overview

Description

Small Automatic Green Tea Lemonade Filling Bottling Production Line



1:The tea drink production line is used in production of  fruit juice/tea hot drink packed in polyester bottles. Washing, filling and capping are integrated in one machine.



2:The most advantaged technology from Japan and Germany is employed in the design. The gravity fixed liquid surface filling is fast, the amount of liquid is accurately controlled and the dropping and leakage are avoided.

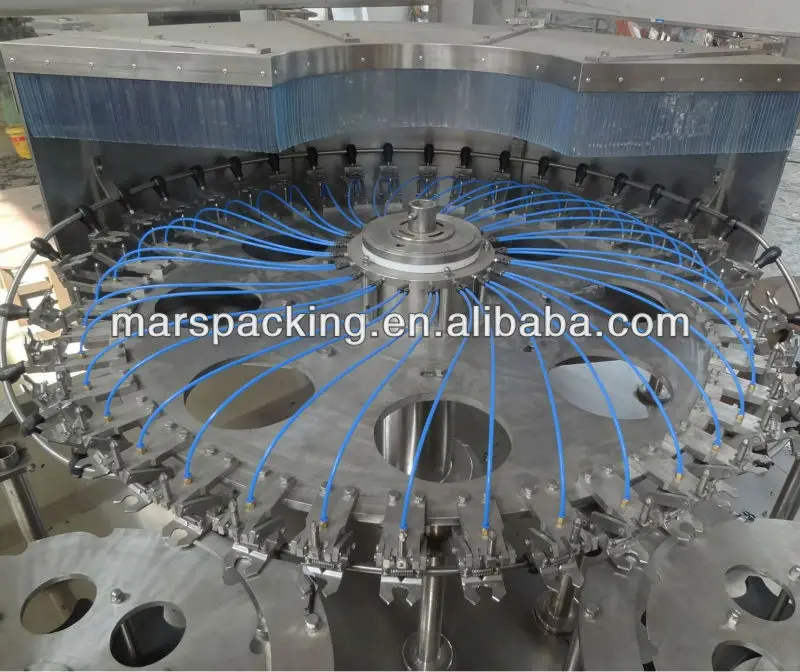

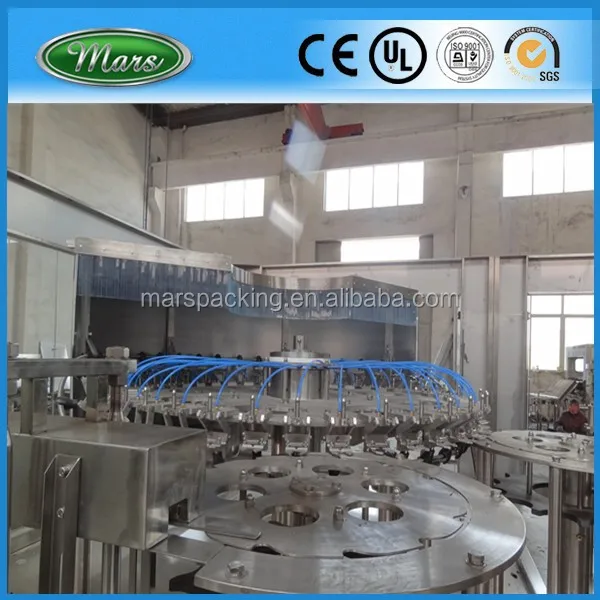

Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180º along the conveying rail. There are two times of internal and external washing. The efficiency of bottle washing is high.





3:The magnetic torque is used for screw capping. The power of screw capping can be adjusted without steps. The power of the screw capping can also be fixed, and the caps will not be damaged, the capping is reliable.



4:The tea drink production line is controlled by PLC with touch-screen as the human-machine interface. The amount of the drinks in the storage tank can be controlled automatically. The filling and capping will stopped automatically when there is no bottle. When bottles are cramped wrongly or when caps are not available. The machine can be stopped automatically.



5:The frequency changing technology is used to adjust the operation speed. The production capacity can be displayed digitally and can be adjusted conveniently

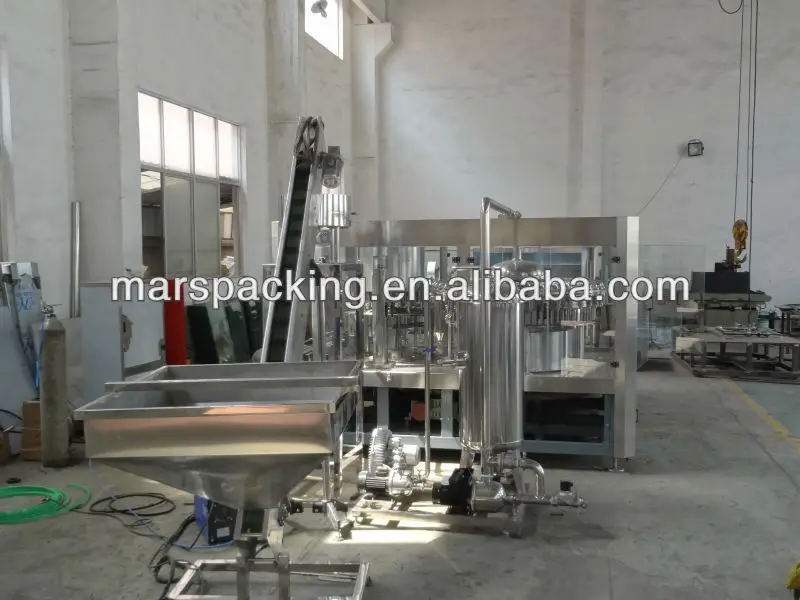

Whole Green tea production line

Main Technology Data
Model	RCGF24-24-8
Production capacity (500ml)(b/h)	12000B/H
Way of filling	Gravity filling
Filling percision	±5mm
Feedback consumption	≤8mm
Suitable cap shape	Plastic
Gas sourse pressure (M/pa)	0.3
Total power(kw)	2.2
Total weight(kg)	5000
Dimension(L*W*Hmm)	2460*1720*2650







Tea Production Line
