industrial spice blender

Product Overview

Description





Main Usage:

This mixer is suitable for the mixing of dry granule materials for pharmacy or other relative industries



Working Priciple:

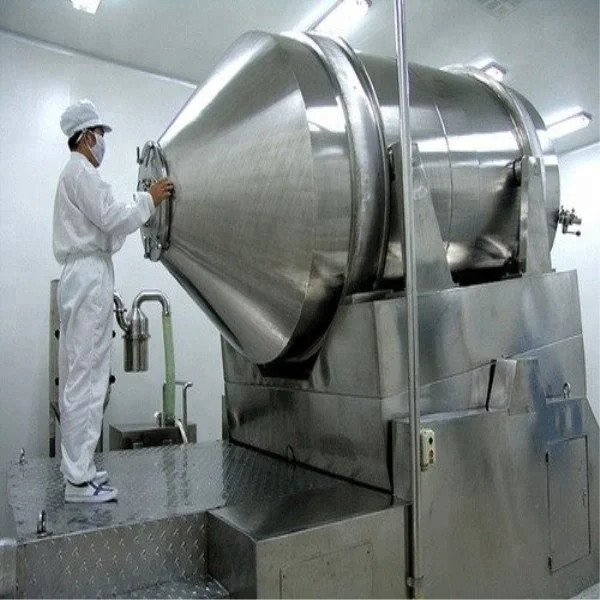

This machine mainly consists of three big parts, rotating cylinder, swing rack and frame

The rotating cylinder lies on the swing rack , supported by four wheels and its axial fixation is done by two stop wheels two of four wheels are driven by roating system to make the cylinder rotate, the swing rack is driven by a set of crandshaft swing



Technical Data:



Model	YGH-150	YGH-300	YGH-600	YGH-1000A	YGH-2000A	YGH-3000A	YGH-5000A
Volume of mixing barrel(L)	150	300	600	1000	2000	3000	5000
Max.loading volume(L)	75	150	300	500	1000	1500	2500
Max. loading weight(kg)	50	75	150	250	500	750	1250
Rotay motor power(kw)	0.37	0.37	1.1	1.5	3	3	3
Vibrating motor power(kw)	0.75	0.75	1.5	1.5	4	4	4
Overall size (L×W×H)(mm)	978×1156 ×1454	1010×1378 ×1550	1250×1880 ×1915	2850×1465 ×1880	3565×1675 ×2300	3620×1880 ×2650	4485×2110 ×2880
Weight (kg)	250	400	1300	2400	3010	3800	4300
