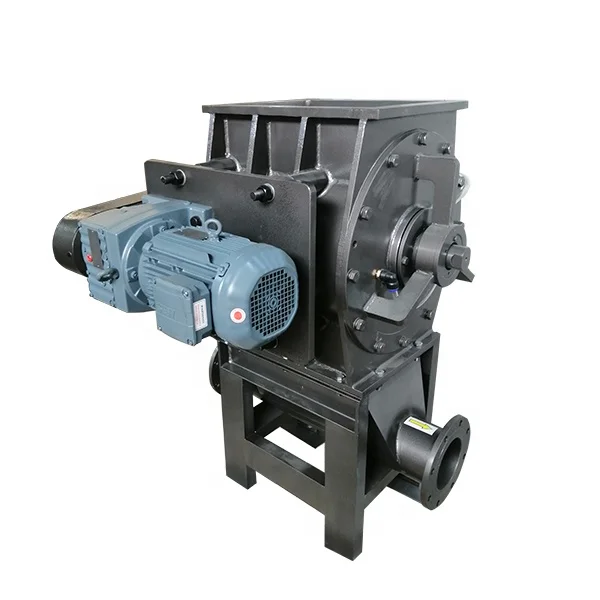

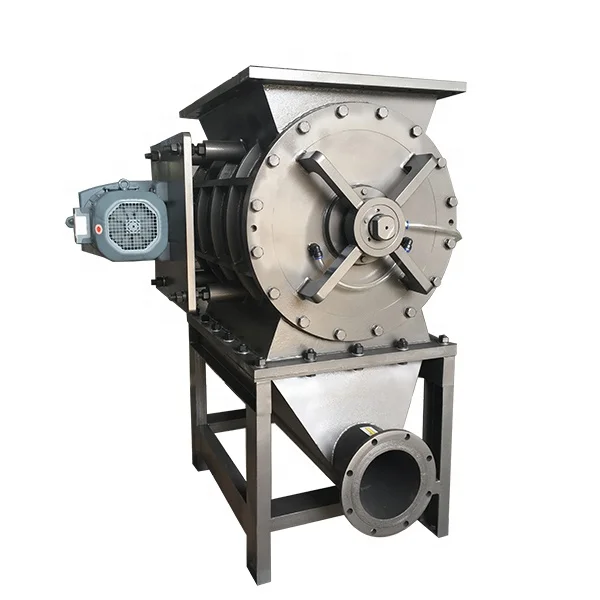

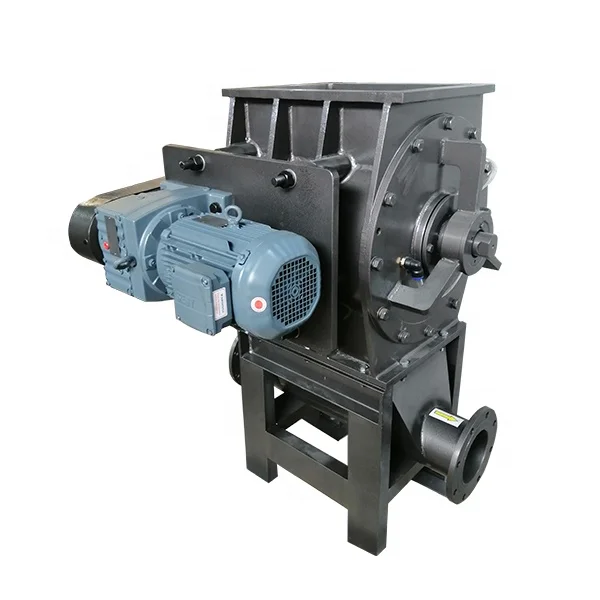

The Drop thru rotary airlock valve for corn grinding mills
- Category: >>>
- Supplier: Chengdu Cheegers Machinery Company Limited
Share on (1424046567):
Product Overview
Description
Product Description
The Drop Through Rotary Airlock valve is the standard unit and used in most applications. Suitable for granular materials to gravity flow of materials, such as plastic pellets, feed. Equipment at the bottom of the accelerating chamber can improve transport efficiency and prevents clogging .
Drop through rotary airlocks are heavy duty design with high quality material, thick blade rotors with oversized shafts, outboard strong bearings and lifelong shaft seals .
Numerous rotor options are available such as: open end, fixed blades, adjustable blades, quick release, abrasion resistant tips, flexible polyurethane tips, etc.
Used in pneumatic conveying pipeline conveying material by high pressure.Drop-through are precision machined for tight tolerances, as with all of our rotary airlocks, to insure minimal air leakage.

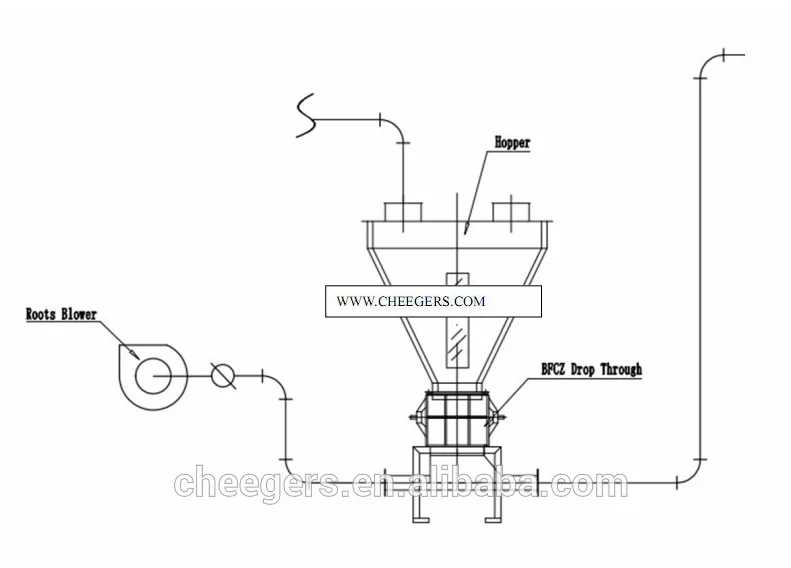

System craft flow:

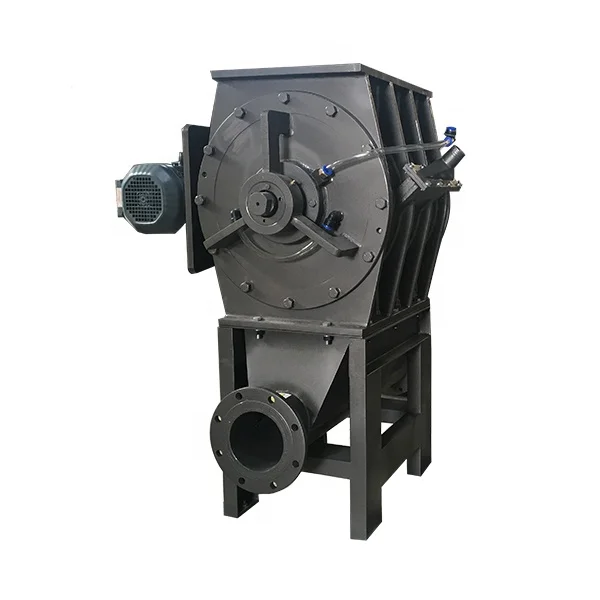

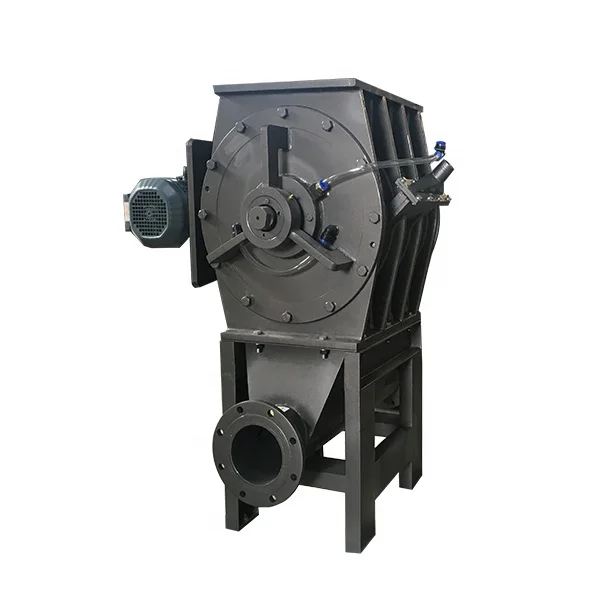

Detailed Images
Explosion Drawing
| Model | L | W | H | H0 | H1 | E | E0 | E1 | E2 | E3 | F | F0 | F1 | F2 | F3 | N | D | DN |
| BFCZ2.5 | 455 | ~490 | 570 | 150 | 280 | 210 | 130 | 180 | 80 | 210 | 210 | 130 | 180 | 100 | 152 | 8 | 10 | 50 |
| BFCZ5.5 | 580 | ~580 | 690 | 205 | 340 | 280 | 200 | 250 | 150 | 250 | 250 | 170 | 220 | 120 | 220 | 8 | 12 | 65 |
| BFCZ8.5 | 635 | ~640 | 810 | 245 | 400 | 330 | 250 | 300 | 180 | 330 | 330 | 250 | 300 | 180 | 270 | 8 | 12 | 100 |
| BFCZ13.5 | 660 | ~660 | 850 | 245 | 420 | 360 | 270 | 330 | 200 | 340 | 340 | 240 | 300 | 180 | 296 | 8 | 14 | 100 |
| BFCZ28 | 800 | ~800 | 1050 | 320 | 520 | 450 | 350 | 415 | 150 | 350 | 350 | 250 | 315 | 180 | 376 | 10 | 14 | 125 |
| BFCZ56 | 870 | ~870 | 1180 | 320 | 650 | 510 | 410 | 475 | 180 | 410 | 410 | 310 | 375 | 200 | 446 | 10 | 14 | 150 |

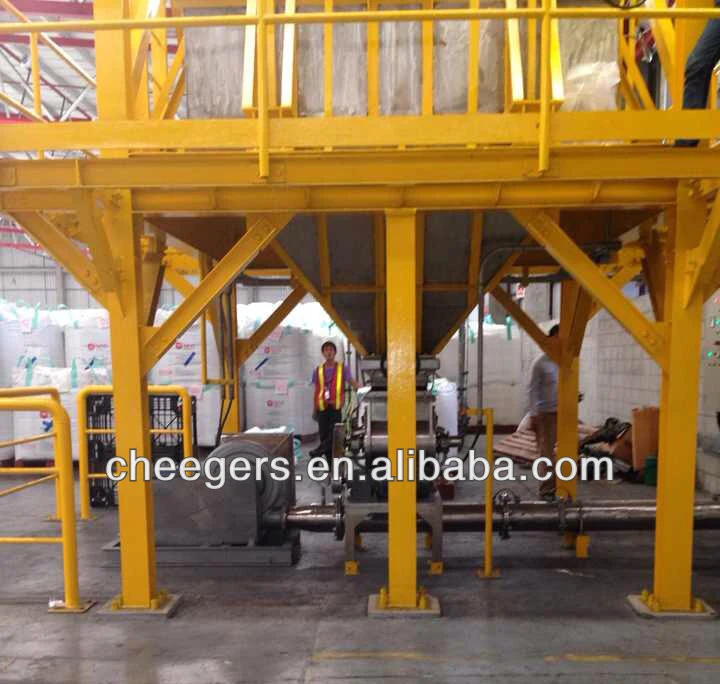

Applications
With small size, elegant appearance, compact structure, convenient operation etc, it is widely used in grain, food, feed, grease, chemicals, electric power, port and wharf, storage and transportation industries etc.
Our products advantages:
1. Small energy-consumption
2. Our motors are SEW motors
3. High quality & Competitive price
4. Single spray paint reduce the waste residue
5. The materials are used after aging treatment
6. The products processed by professional workers
Our company advantage:
CE,ISO9001:2008
Professional engineer’s team
Standard project management
Timely delivery & Best service
Prompt reply (replies and offers the price in 24 hours)
63 years' experience on producing rotary airlock valve

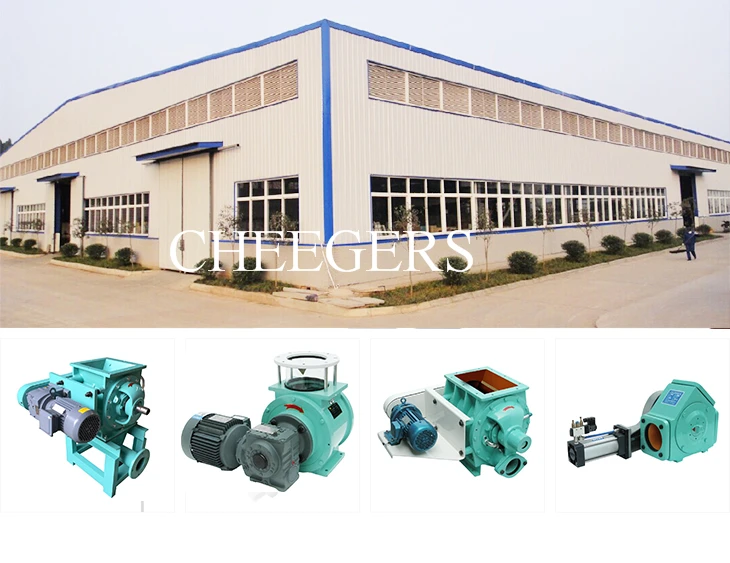

Company Information
Chengdu Cheegers Machinery Co., Ltd is rebuilt in 2003 from the revolution of China government factory CHIQI which was built in 1958. With continuous development and innovation, Cheegers has been the expert in producing mill feeding rotary valve, pneumatic distribution valve, diverter valve(two way valve), slide gate valve, and magnetic separator. Through long-term cooperation and communication with overseas manufacturer and clients, combining years of market experience, we offers solutions to solve and meet various bulk solids conveying demands for customers domestic and abroad.
Packaging & Shipping
Packaging: Wooden box (optional)
Delivery term: FOB
Payment term: 30% T/T in advanced
Port: Shenzhen, Guangzhou, Shanghai
FAQ
How to specify your need? Welcome special customizations.
1. What's your handling material?
2. What's the required throughput? (tons/H or m3/H)
3. What's the air pressure upon and below the rotary valve?
4. What’s the material of rotary valve you want?
Any questions, please do contact me!
Address: Sichuan Chengdu chenghuaqu longtansi chenghong road no.68
CHEEGERS AIRLOCK FACTORY , EXPERT ON AIR LOCK
