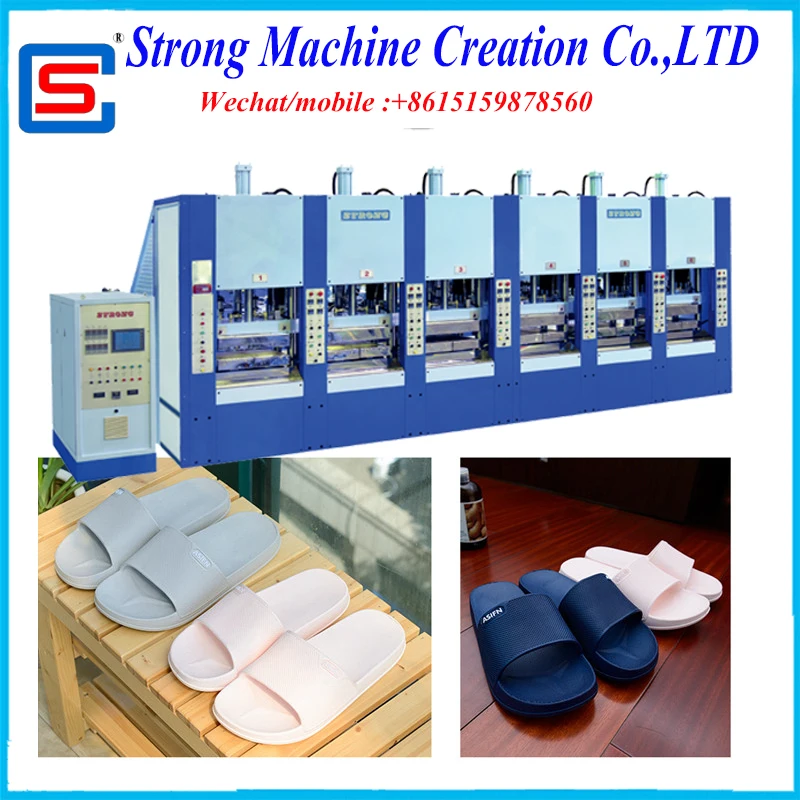

foam eva injection molding machine

Product Overview

Description

eva injection molding shoes machine

Model	Unit	SC901L1	SC902L1	SC903L1	SC904L2	SC906L2
Material		EVA	EVA	EVA	EVA	EVA
Work stations	station	1	2	4	4	6
Mould-Close Pressure	Ton	180	180	180	180	180
mould space	Mm	285*520*2	285*550*2	285*520*2	285*520*2	285*520*2
diameter of mould-opening	mm	360	360	360	360	360
diameter of screw	mm	60/65	60/65	60/65	60/65	60/65
Injection Cap.(Max)	G	920/1050	920/1050	920/1050	920/1050	920/1050
Injection Pressure	Kg/cm2	1000	1000	1000	1000	1000
Injection Speed	cm/sel	10	10	10	10	10
Rotating Speed of Screw	R.P.M	0-165	0-165	0-165	0-165	0-165
Temperature Control	Station	4	4	4	4	4
Heater of Barrel	Kw	13	13	13	13	13
heter board of mould	kw	12.8	25.6	37.5	75	88
Total Electricity	Kw	45	60	97	118	142
oil tank size	l	1000	1000	1000	1000	1000
Dimension L*W*H	MM	1000*5000*2700	1900*5000*2700	3800*5000*2700	3800*5000*2700	6150*5000*2700
Machine Weight	Kg	9500	13000	16000	16000	23000
