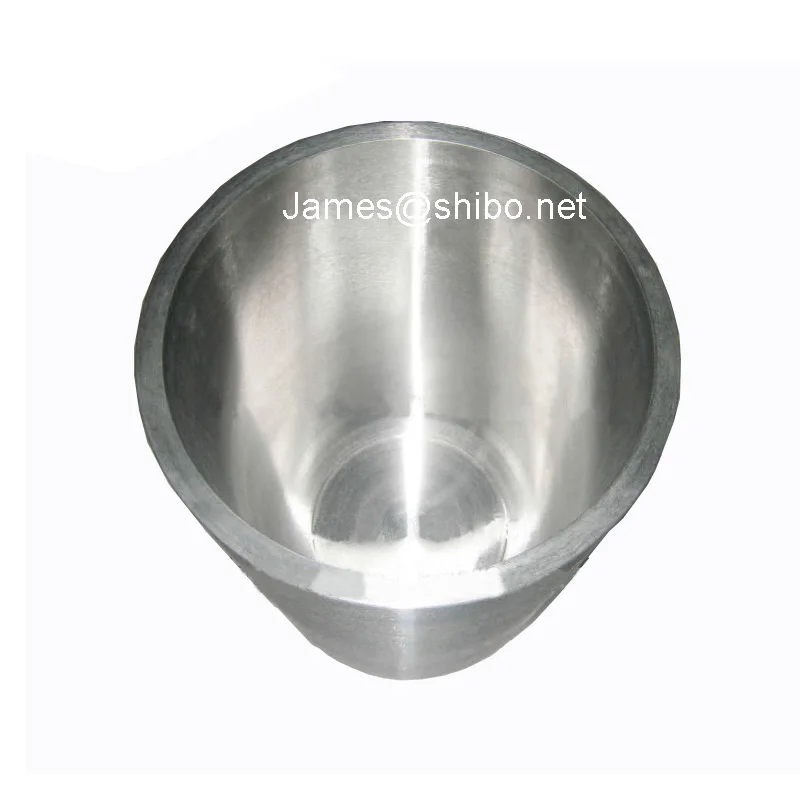

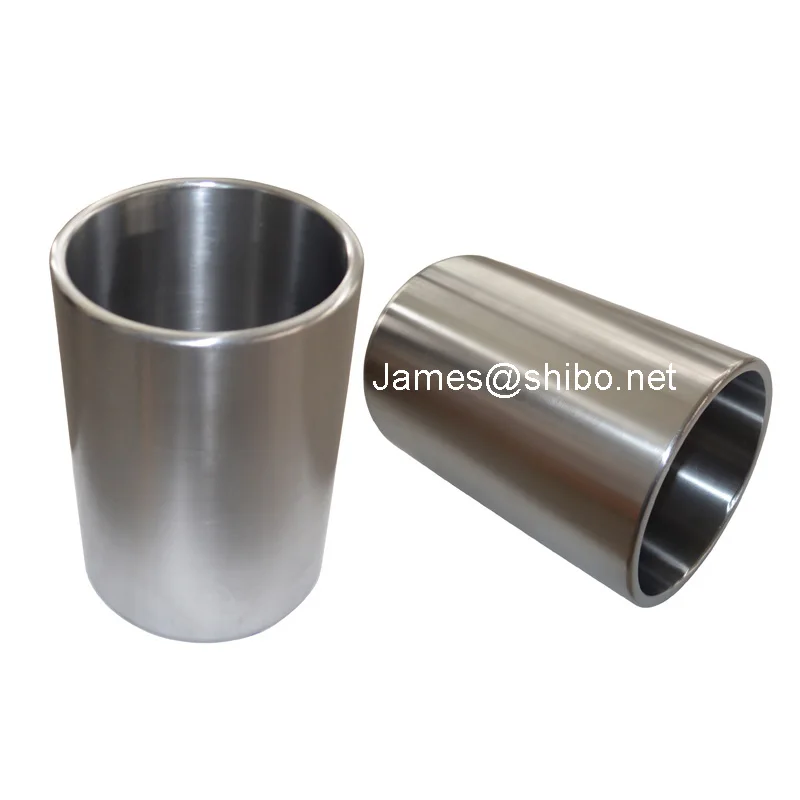

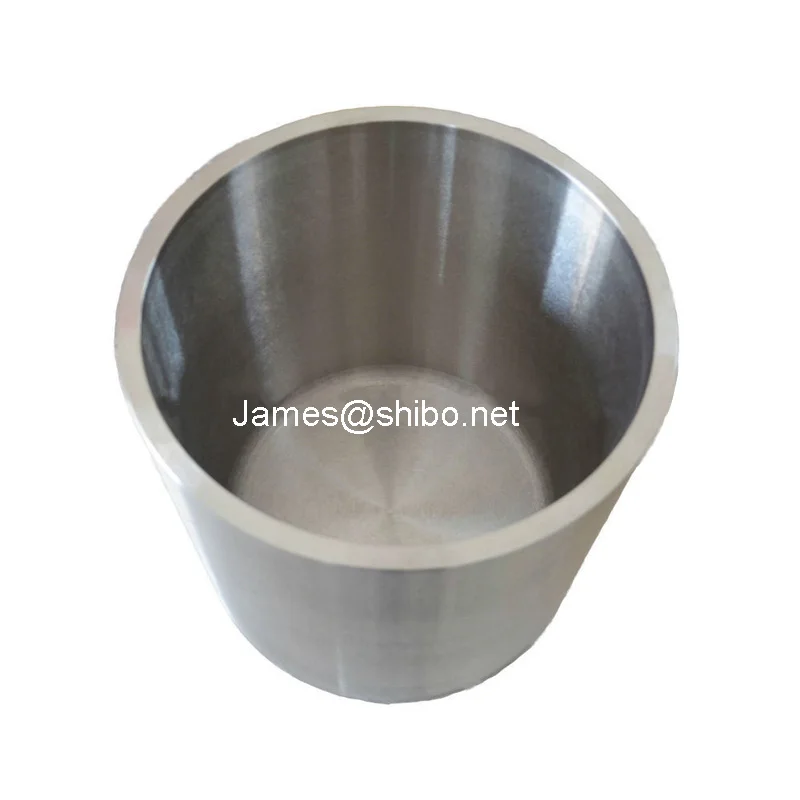

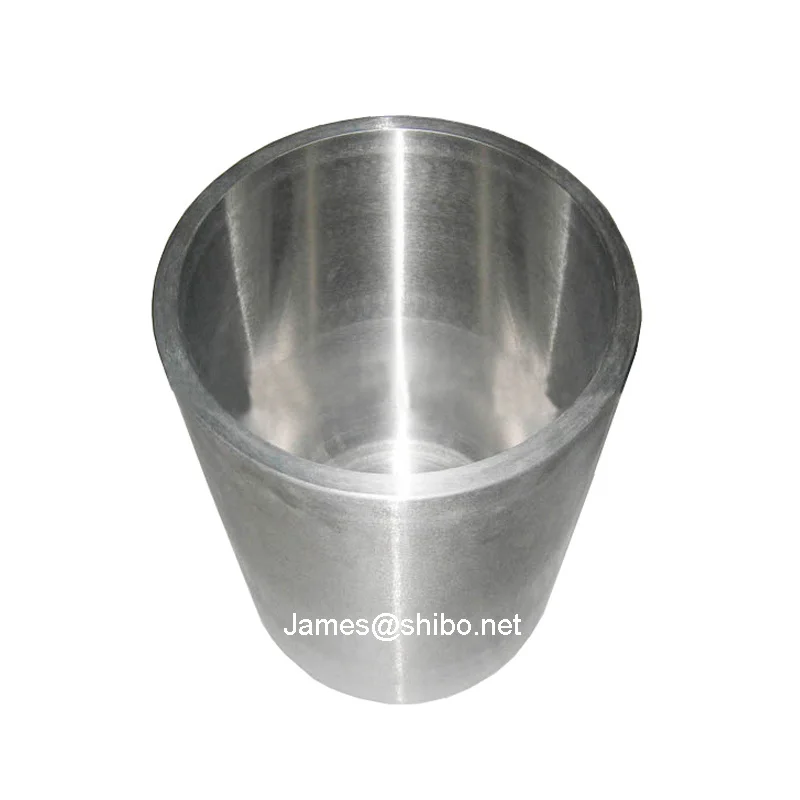

High purity molybdenum crucibles for sapphire crystal furnace
- Category: >>>
- Supplier: Zhengzhou Shibo Nonferrous Metals Products Co. Ltd.
Share on (1424568744):
Product Overview
Description
Product Description
99.95% press-sintered Molybdenum Crucibles,
We provides molybdenum crucible manufactured by two processes. One is sintered crucible, the density is 9.8 ~ 10 g/cm3, by which way crucible is sintered directly after molding. The other one is forging, density for forged crucible can reach 10.2g/cm3. Small moly crucibles are machined from forged rods & ingots.
Mo-La alloy (Lanthanum oxide doped molybdenum) is also used to make high temperature crucible, Mo-La alloy crucible can tolerate higher temperature than pure moly crucible.
Specification:
| Products | Molybdehum crucibles |
| Name of material | Molybdenum ( Pure): Mo>=99.95% TZM: 0.5% Ti / 0.08% Zr / 0.01-0.04 C Molybdenum lanthanum alloy: 0.3% - 0.6% La2O3 |
| Density at 20 degree | 9.8 ~ 10 g/cm3 ( sintered moly crucibles ) 10.2 g/cm3 ( forged moly crucibles ) |
| Size | 10-500mm OD x 10-750mm H |
| Surface | Machined, Polished. |
| Application | Mainly used in the metallurgical industry, rare earth industry, monocrystalline silicon, solar energy, artificial crystals and mechanical processing industries. |
Size and tolerance:
| Condition | Size ( mm) | Tolerance ( mm ) | ||
| Diameter ( mm ) | Height ( mm ) | Diameter ( mm ) | Height ( mm ) | |
| Sintering | 10 - 500 | 10 - 750 | +/-5 | +/-5 |
| Forging | 10 - 130 | 10 - 200 | +/-1 | +/-1 |
| Sintering and Machining | 10 - 500 | 10 - 600 | +/-0.5 | +/-1 |
We can provide customized molybdenum crucibles according to customer's drawings, and manufacture a wide range of diameter, height, and thickness molybdenum crucibles to suit our customers' requirement.
Company Information

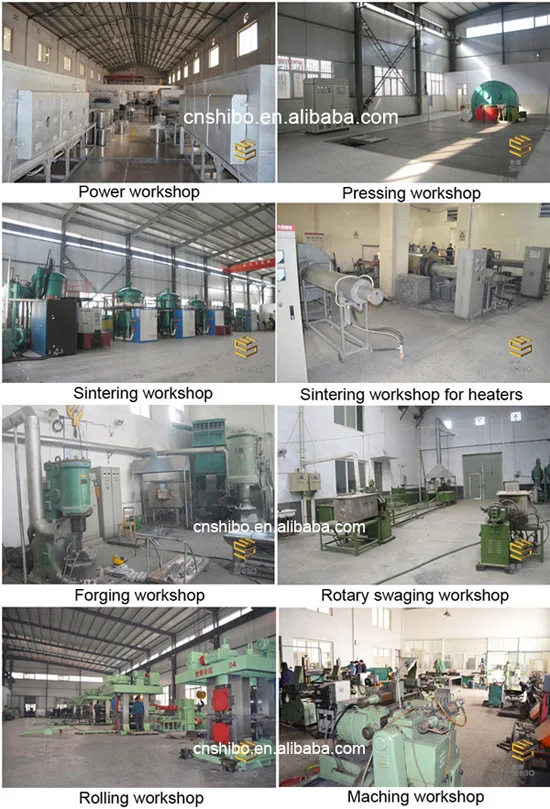

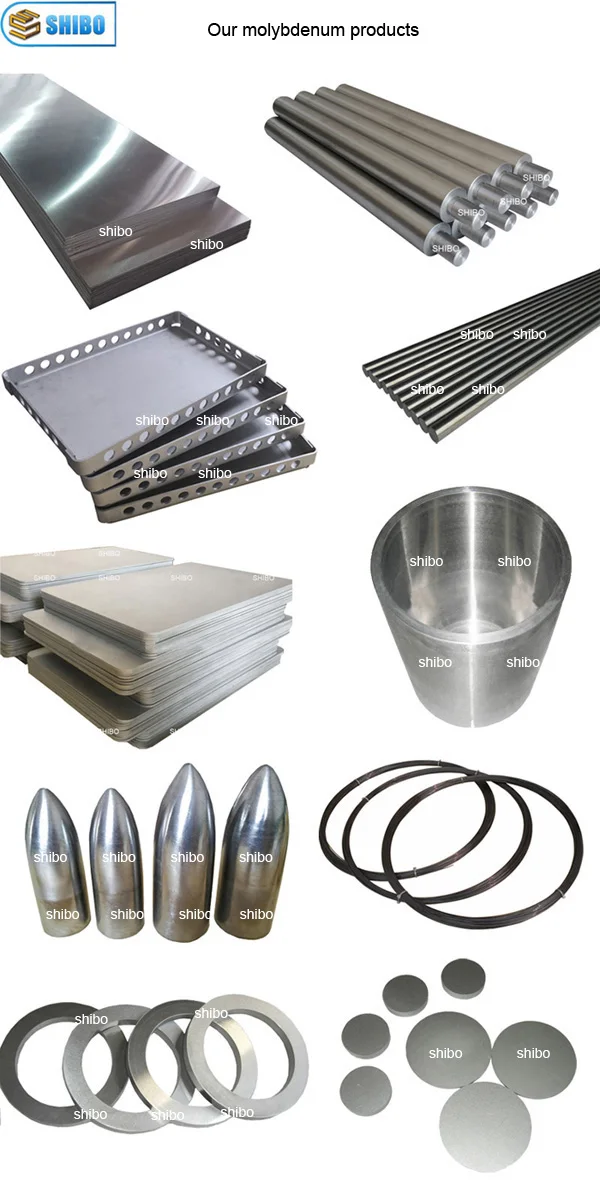

Zhengzhou Shibo Nonferrous Metals Products Co., Ltd, as a high technology enterprise was established in 2005, located in Zhengzhou City, Henan Province, China, with registered capital of RMB 20 million, covered an area of more than 6000 square meters and employee more than 100 peoples, we specialized in tungsten&molybdenum ( powder, sheets, rods wires, parts, etc ), MoSi2&SiC heating elements, high temperature lab muffle furnaces, tungsten copper alloy, including the development, production, and sales, we always provide our customers top quality products and best service.
FAQ
Q: Are you trading company or manufacturer ?
A: We are a factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 10 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? is it free or extra ?
A: Yes, we could privide free samples, but do not pay the cost of freight.
Q: What is your terms of payment ?
A: T/T, L/C, or Western Union.
If you have other question, please contact us as following:
