Automatic PLC Controlled Band Saw Machine KMT 540 OSA PLC

Product Overview

Description



Technical Features:

Cutting capacity
Round		0°	550 mm
Square		0°	550 mm
Rectangular		0°	540 x 650 mm
Main Motor			4 kw, ~1400 rpm
Coolant Motor			0,2 kw, ~2800 rpm
Hydraulic Motor			1.5 kw, ~1400 rpm
Feeding Motor			0.37 kw, ~900 rpm

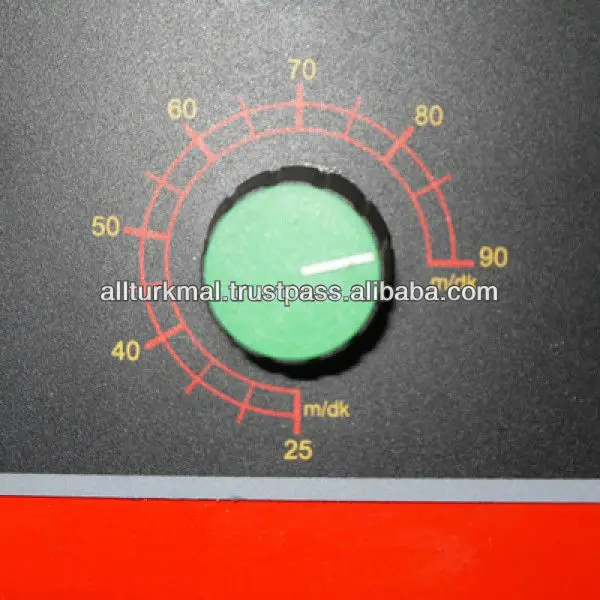

Cutting Speed			20~100 m/min
Blade Size			6540 x 54 x 1,27 mm.
Weight			~ 2800 kg.
Working Height			~ 730 mm.
Machine Dimensions			~ 1470 x 3185 x 2138 mm.
conveyor Motor			0.12 kw, ~1400 rpm
Brush Motor			0.12 kw, ~1400 rpm
