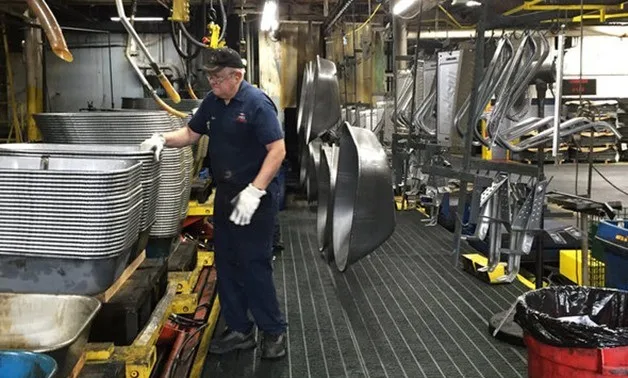

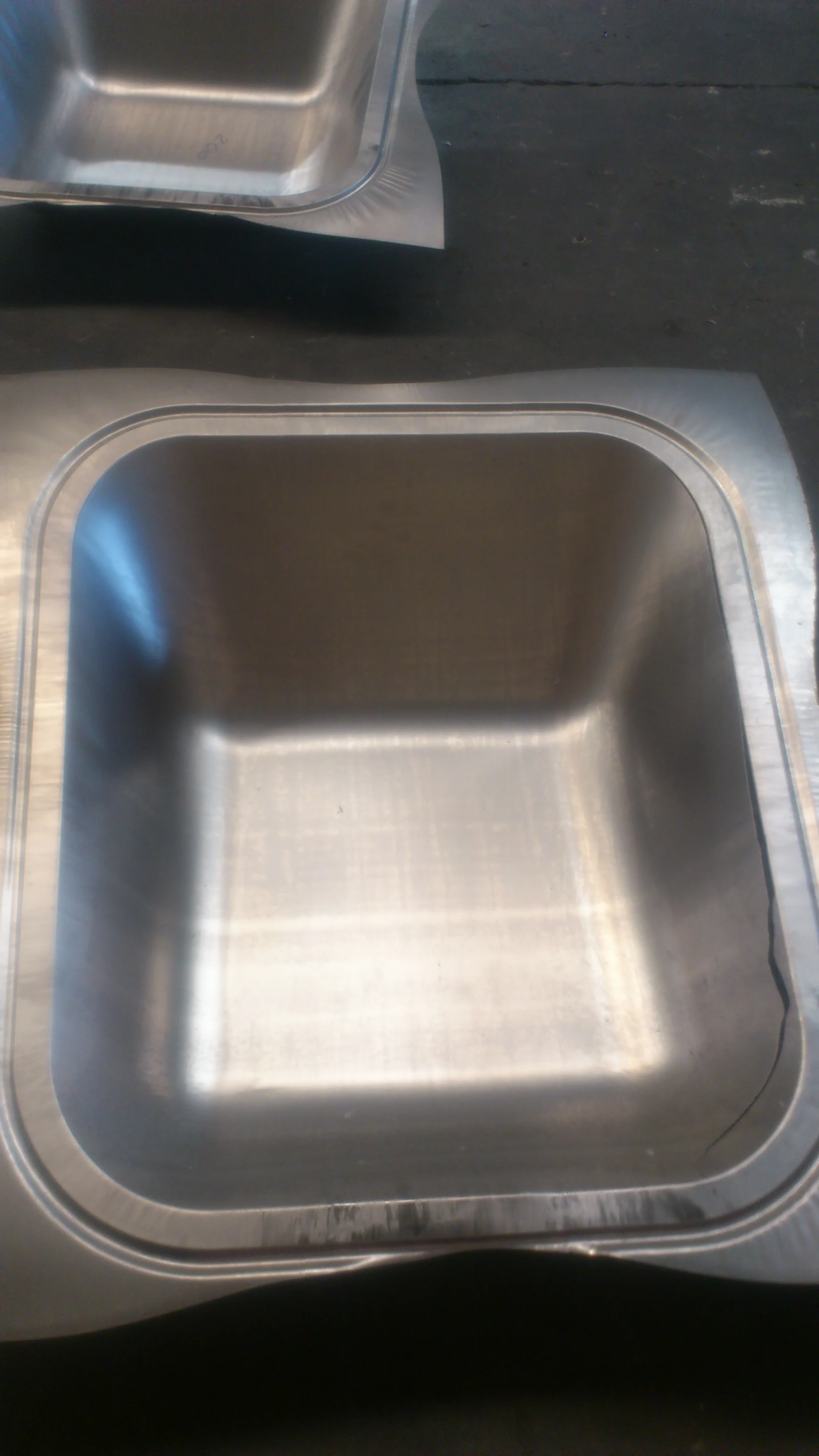

Wheelbarrow production Plant: A production line for wheelbarrow box.

Wheelbarrow production Plant
We provide all kinds of production equipments including for bucket, main leg, clamp, leg junction bar, bucket junction bar, wheel rim.
1. wheelbarrow production Plant include:
1.1. a sheet cutting line includes:
1.2.a de-coiler,
1.3.a straightening machine,
1.4. a feeding machine,
1.5. a hydraulic press and
1.6. a mechanical shear for recyling.
2. drawing line includes:
2.1. Hydraulic deep drawing press
2.3. Transport conveyers
2.4. 2x Roboters
3. a corner trimming and curving machine
4. a hole punching press for the screws
5. frame profile bending & punching maschine

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) Running in a high automatization and intellectualization,no pollution

Detailed Images

Machine Parts

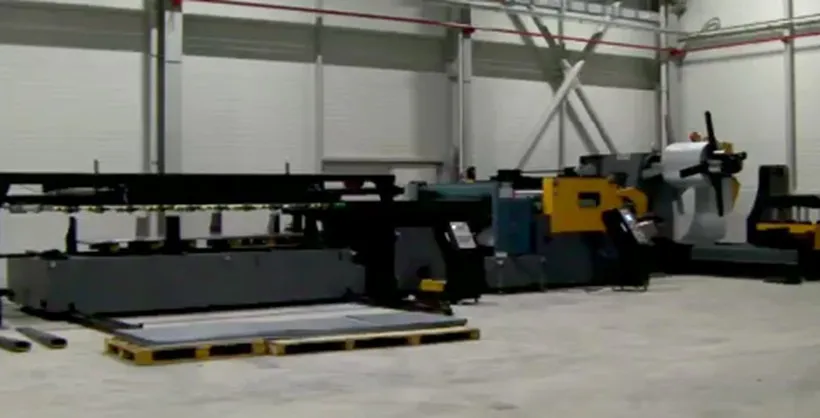

Name: Lengh cutting line

Brand: FESTO

Original: Germany

SCL100, Fully automated sheet metal cutting is manufactured in three different widths: 1050, 1250, or 1550 mm.For handling of the cut-off sheets SCL100 is supplied with stacking and transport systems for fully automatic continuous op eration.

Standard Equipment

Name: Decoiler, Straightening  and feeding unit
Brand: Servo Steel
Original: Germany/Turkey
Decoiler, Straightening and feeding unit (feeding speed 30 m/min with measuring accuracy +/- 0,3 mm/m)
Cutting unit – a mechanical shear in special execution (cutting speed max. 60 cuts/min.)
Stacking system

Machine Parts

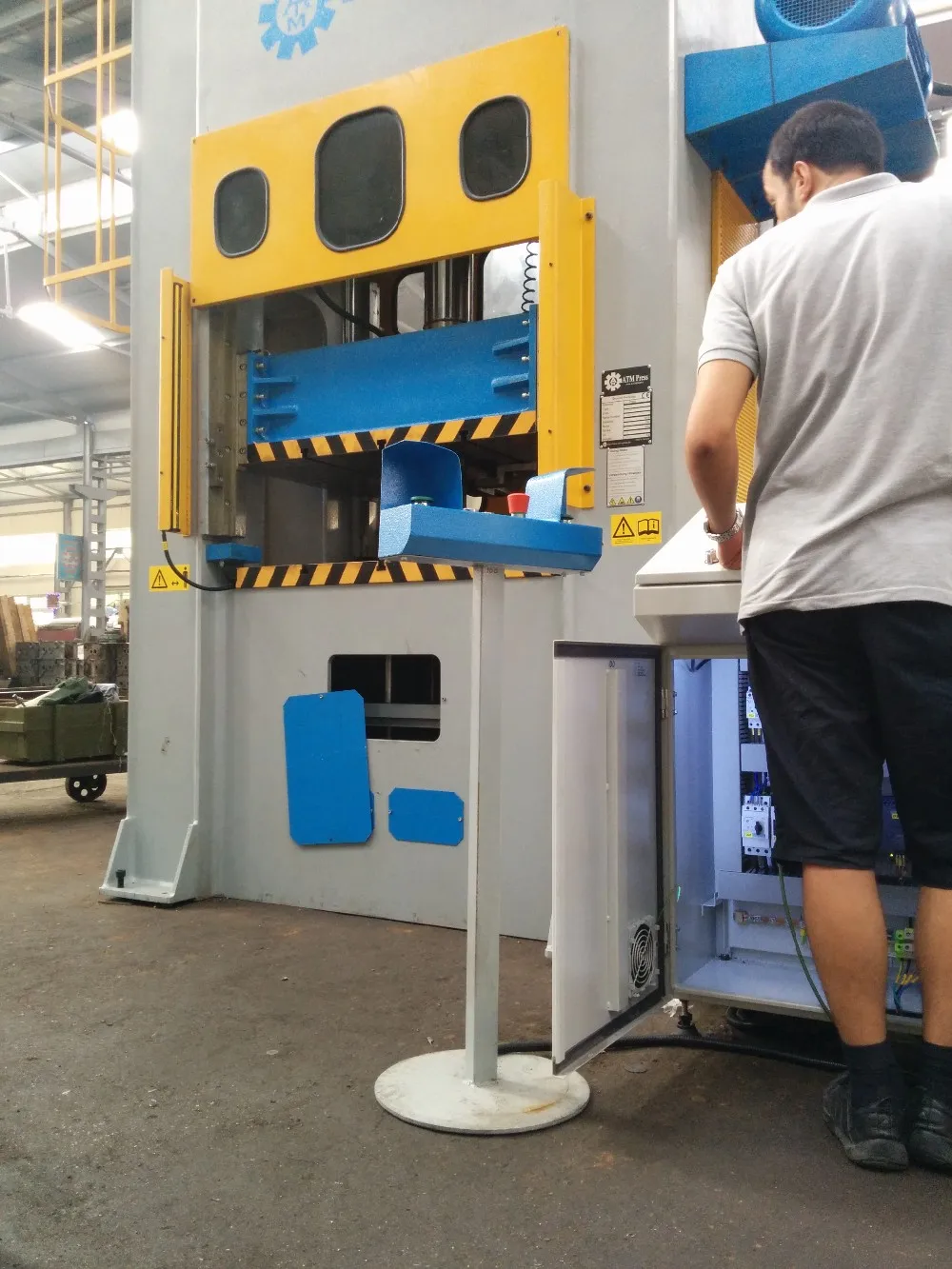

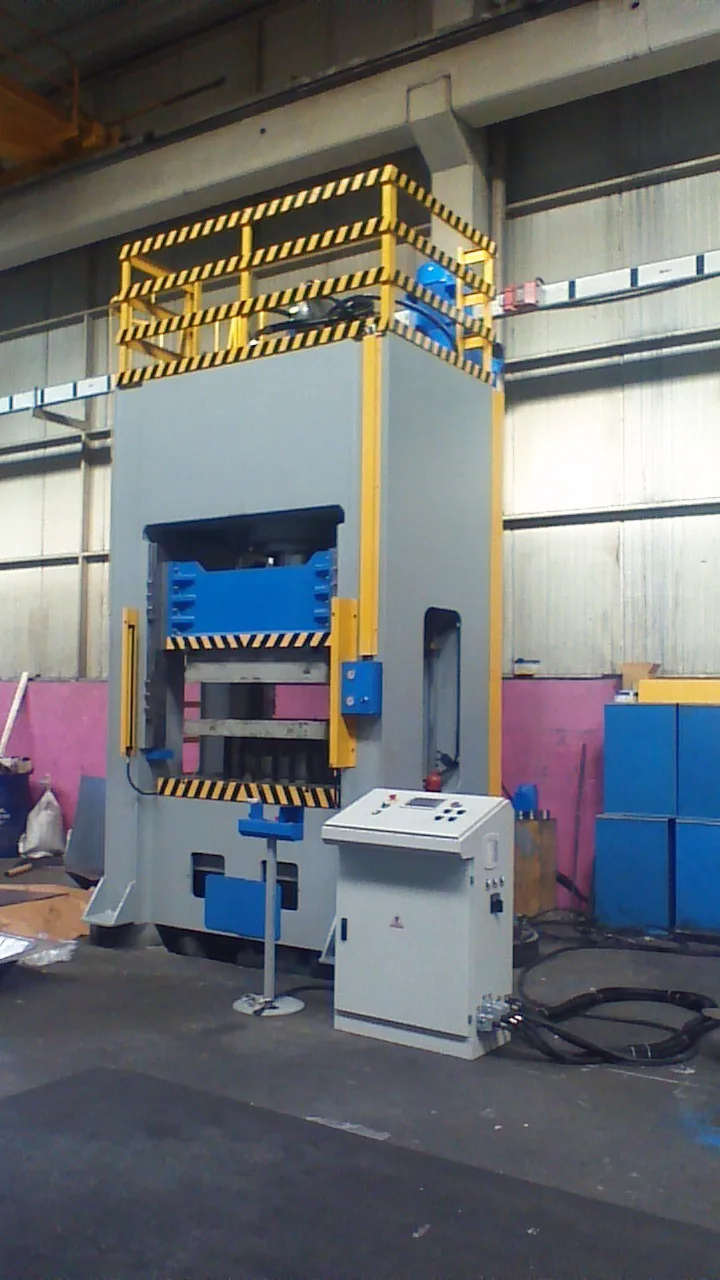

Name: Deep drawing press 500t
Brand: ATM
Original: Germany/Turkey
Domestic famous engines, strong driving force, low energy consumption, high economic benefits.

Main Features

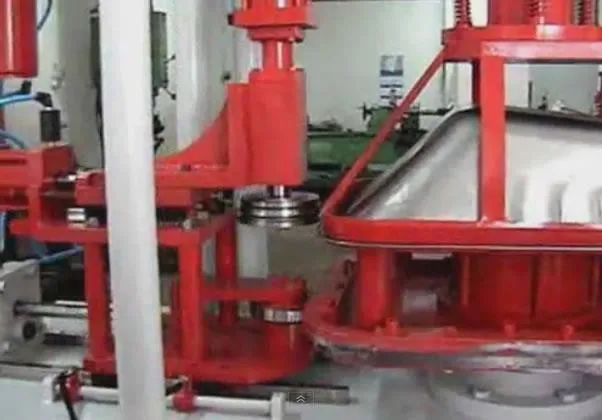

Name: Corner Trimming and Curving Machine
Brand: ELMALI
Original: Germany/Turkey
Domestic famous engines, strong driving force, low energy consumption, high economic benefits

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
