IVD reagent strips testing urine analyzer W 600
- Category: Clinical Analytical Instruments >>>
- Supplier: Changchun Wancheng Bio-Electron Co. Ltd.
Share on (1426071462):
Product Overview
Description

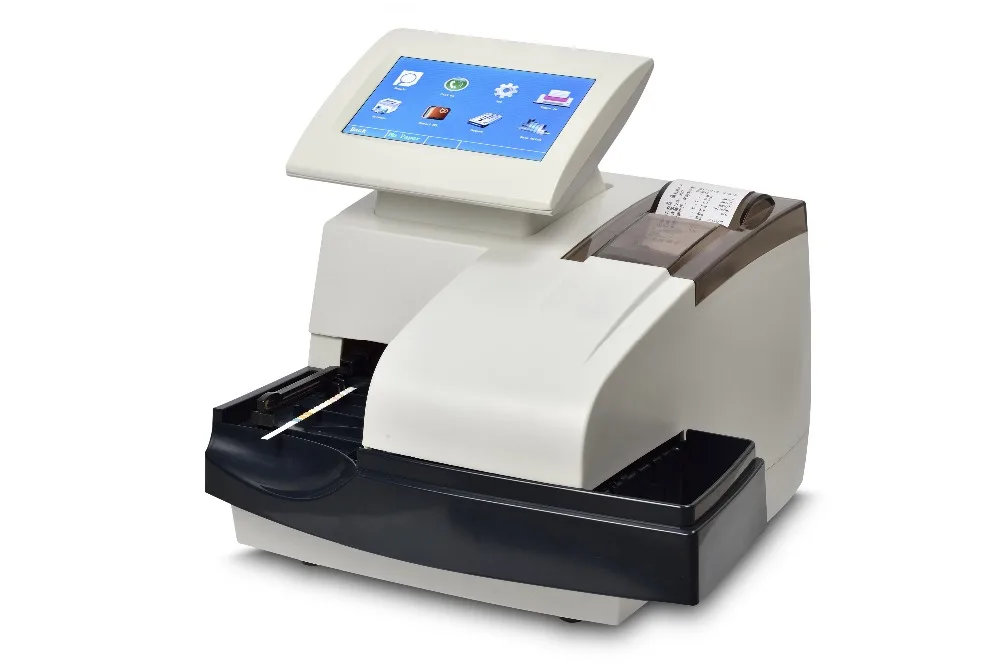

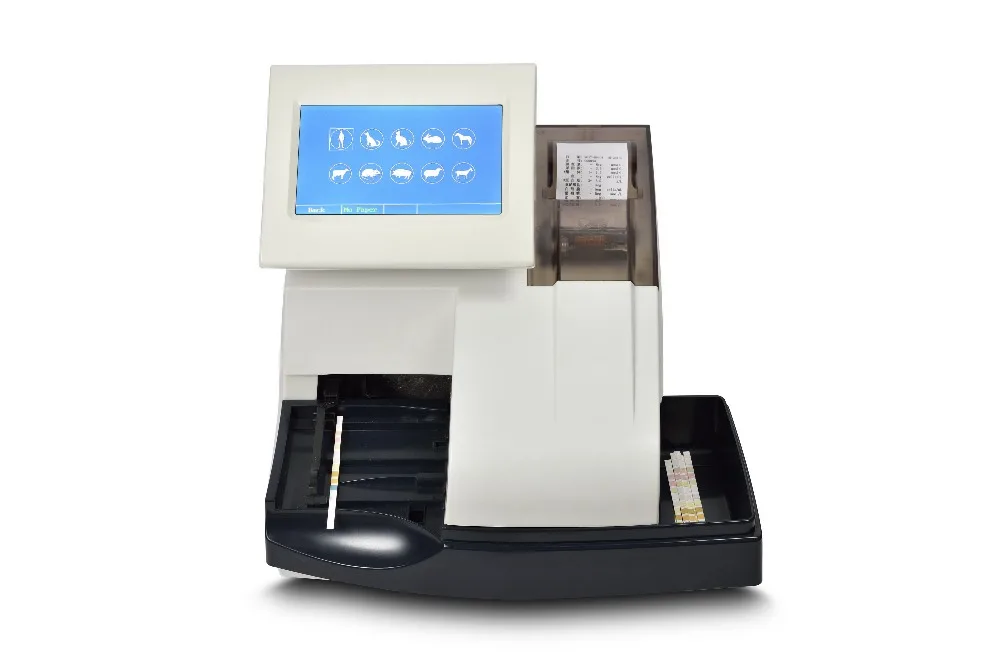

IVD reagent strips testing urine analyzer W-600
W-600 urine analyzer is another high performance, multi-function medical inspection instruments after Wancheng W-200 series and W-500 urine analyzer. Adopting the advanced “High luminosity cold light source reflection determination” technology and D pipeline architecture, the users put the test strips on the platform at any time and does not need to consider the reaction time. The instruments check the strips with the above sensor, and then transmit the strips to start testing, print the testing results automatically. The information exchange between users and instruments are through the touch screen and interactive programs.
Many models of urine strips which are produced by our factory can be used on this urine analyzer. It can finish testes on 12 kinds of biochemical components in urine within 6.9 seconds, such as Leucocyte, Nitrite, Urobilinogen, Protein, pH, Blood, Specific Gravity, Ascorbic Acid, Ketone, Bilirubin, Glucose, and Micro Albumin.

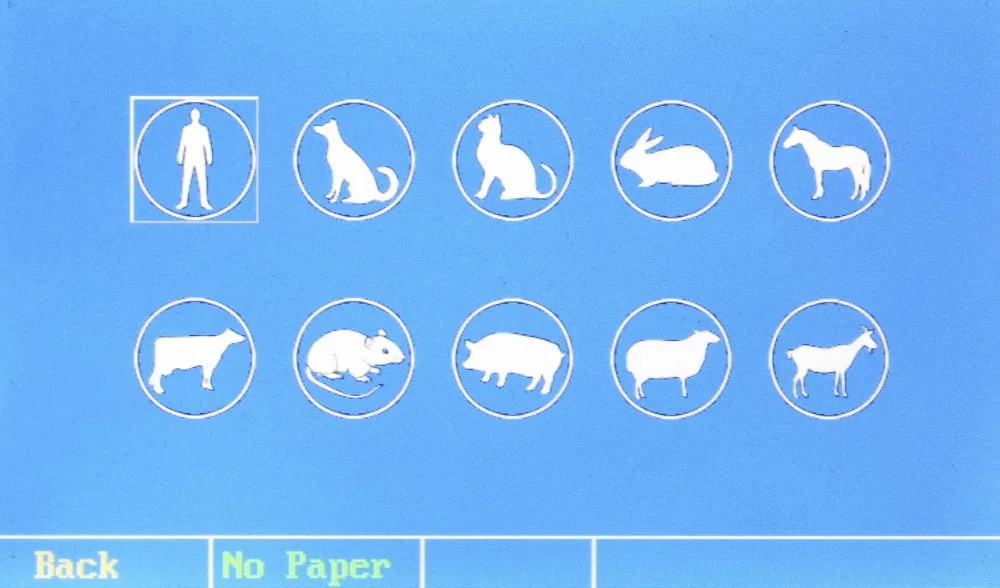

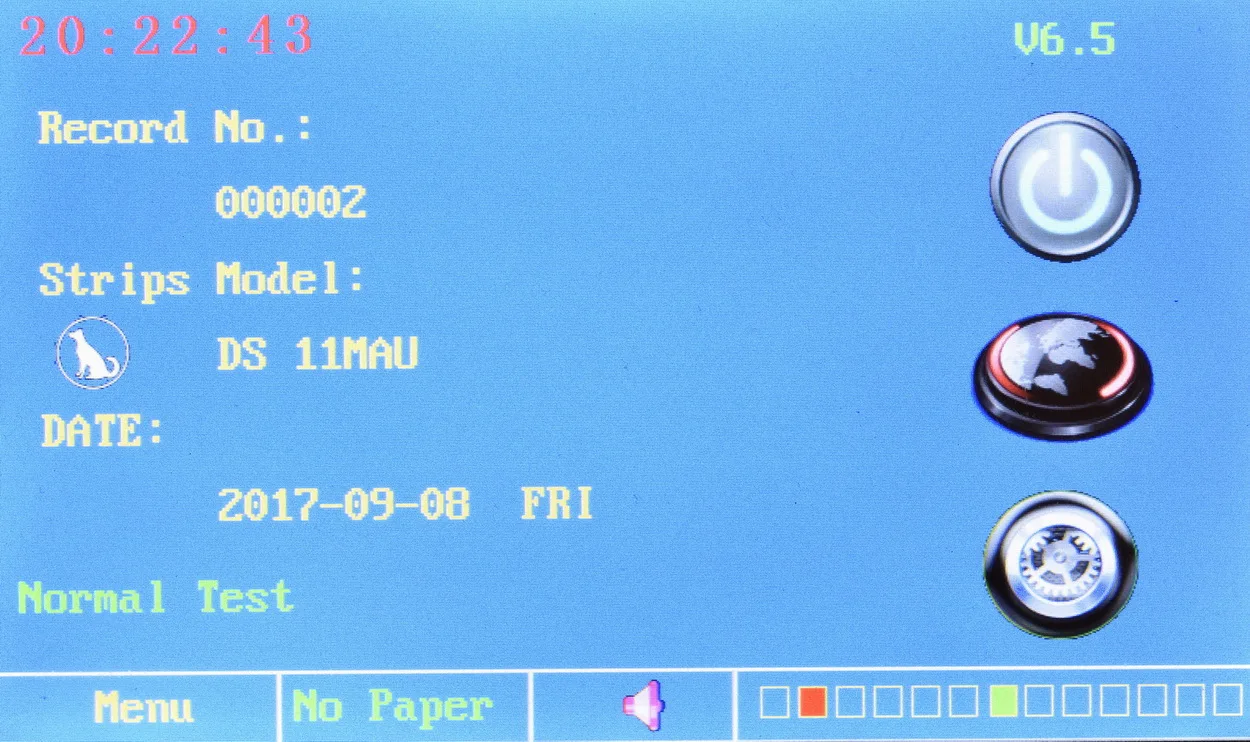

The core of the Urine Analyzer is controlling unit. The main functions are taking over, transmitting, storing, disposing and sending all kinds of signals, so that each part will run harmony. Photo electricity cell is to finish the sending and inception of the cold light resource, the collection and transition of the testing signal, and further more change the Optical signal into the electronic signal. Mechanism cell mainly carries and scans the strip by the order of the control cell. LCD and the keyboard mainly realize the comfortable interface for the users. As to the data output, the Urine Analyzer mounts the traditional thermal printer inside, besides outer stylus printer with 25 parallel interfaces, which realize the data memory permanently. The Urine Analyzers manage and control the data through RS232C port connected with computer.
Reaction principle | High luminosity cold light source reflection determination |
Wavelength | 400nm,520nm,560nm ,610nm,660nm,940 nm |
Test speed | 300-600, 522 specimens /hour (affected by human factors and software version) |
Data Memory | 1000 patient results |
Environment requirements | Temperature 10°C-30°C, optimal temperature 18 °C-25°C |
Relative humidity | ≤80% |
Communication interface | RS-232serial port, parallel printing interface |
Power supply | 220 VAC(±15%), 50/60Hz |
Fuse | 250V 2A |
Power | ≤60w |
Net weight | 7.5 kg |
Dimensions | 350mm×320mm×150mm |

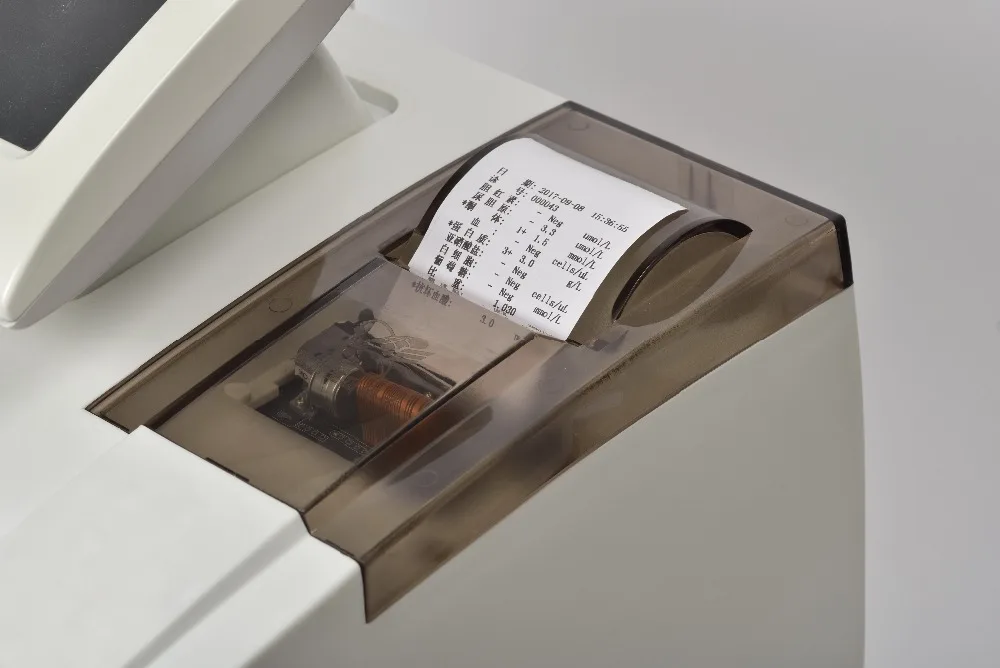

Printer | internal thermal printer, outer needle printer port |
Language | Chinese, English ( we can add other languages according to customer's demand) |
Standard RS232C output | port connect with computer |
screen display | True color screen, clearer and brighter |
Program memory | 8M+512K, |
RAM | 32M+96K |
Reaction principle | High luminosity cold light source reflection determination |
Test items | Leucocyte, Nitrite, Urobilinogen, Protein, pH, Blood, Specific Gravity, Ascorbic Acid, Ketone, Bilirubin, Glucose, Micro Albumin. |
Wavelength | 400nm,520nm,560nm ,610nm,660nm,940 nm |
Test speed | 300-600, 522 specimens /hour (affected by human factors and software version) |
Data Memory | 1000 patient results |
Environment requirements | Temperature 10°C-30°C, optimal temperature 18 °C-25°C |
Relative humidity | ≤80% |
Communication interface | RS-232serial port, parallel printing interface |
Baud rate | 9600bps |
Power supply | 220 VAC(±15%), 50/60Hz |
Fuse | 250V 2A |
Power | ≤60w |
Net weight | 7.5 kg |
Dimensions | 350mm×320mm×150mm |
Printer | internal thermal printer, outer needle printer port |
Language | Chinese, English ( we can add other languages) |
Standard RS232C output | port connect with computer |
screen display | True color screen, clearer and brighter, 6.1 -inch touched LCD screen |
Program memory | 8M+512K |
RAM | 32M+96K |
test system | using 6 wavelength cold light source, both sensitivity & veracity are improved, reduced the ambient light interference. |
auto correction ability | correct the influence which result from urine pH value, gravity and color |
