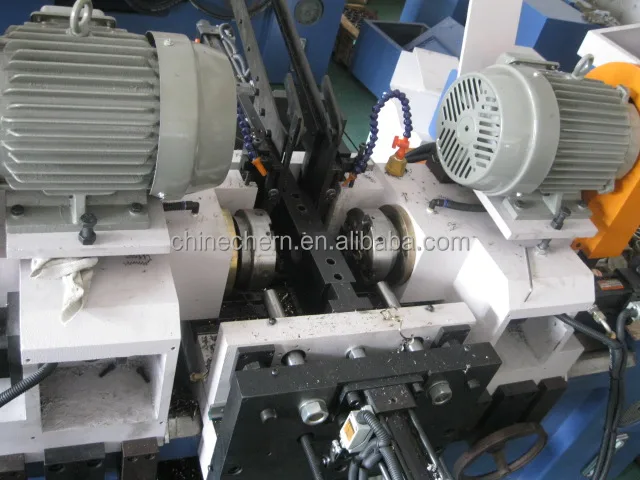

Full Automatic Hydraulic Double End Metal Pipe/Bar Chamfer Machine

Product Overview

Description

Full Automatic Hydraulic Double End Metal Pipe/Bar Chamfer Machine



Main Characteristics:







1.Manual feeding, Automatic clamping the pipe/bar; also can choose the feeding equipment,PLC control



 ATF ----Automatic feeding loader



 Vibration disk plate





2. Automatic advance of tool by hydrau-cylinder





3.It is suitable for chamfering steel pipe,Iron pipe,stainless steel pipe,aluminium pipe ,



Also can chamfer threaded rod





4. Chamfering angle can be changed by change the blades;





5. Automatic feeding of pipe;





6. Smooth and uniform bevel edge



7. Interior and exterior angle chamfering of pipe end and tube end,and the milling of the end face can be finished at a single time .



8. It adopts the variety of strap wheel to transform several rotating speed and guarantee the longest use life of blade according to different metal blade;



9. The pipe chamfering machine is easy to adjust slowness of speed to reach perfect process.

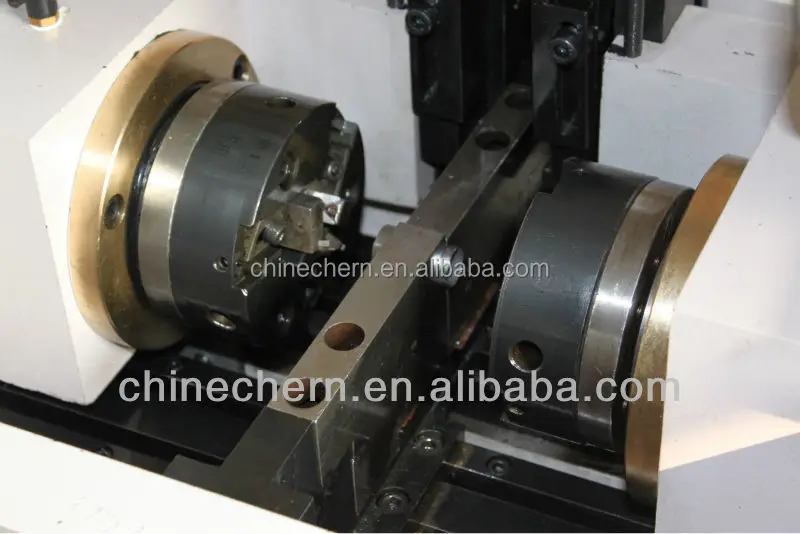

10. The special design of gripper die and blade surface makes sure that the processed object and centre line of blade surface maintain still;



11. The pipe chamfering machine is easy to adjust slowness of speed to reach perfect process.

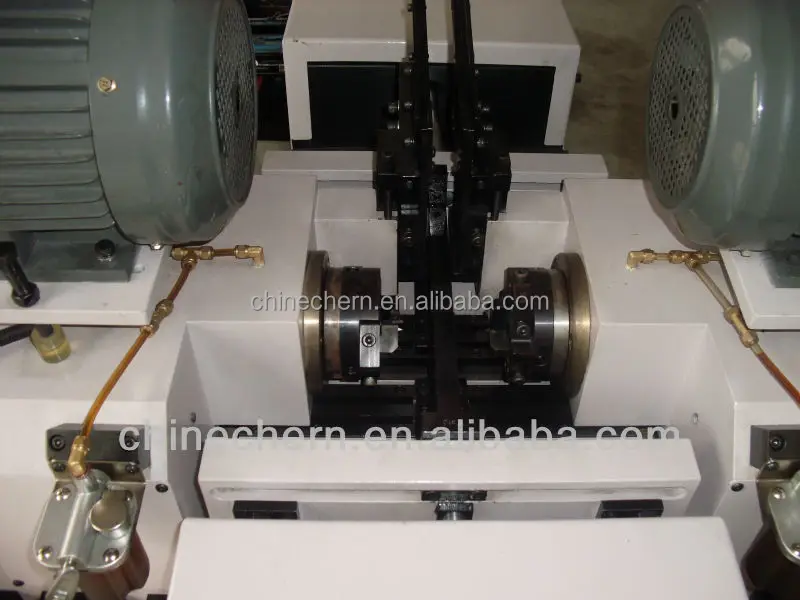

12.Die clamper and cutter head are special designed,Interior and exterior angle chamfering of tube and rod,Milling the end finish at one time.

13.rotate speed can be adjust according to the change of belt pulley, suit for all kinds of metal material pipes

14.It is easy to adjust the cutting feeding speed



Parameters:

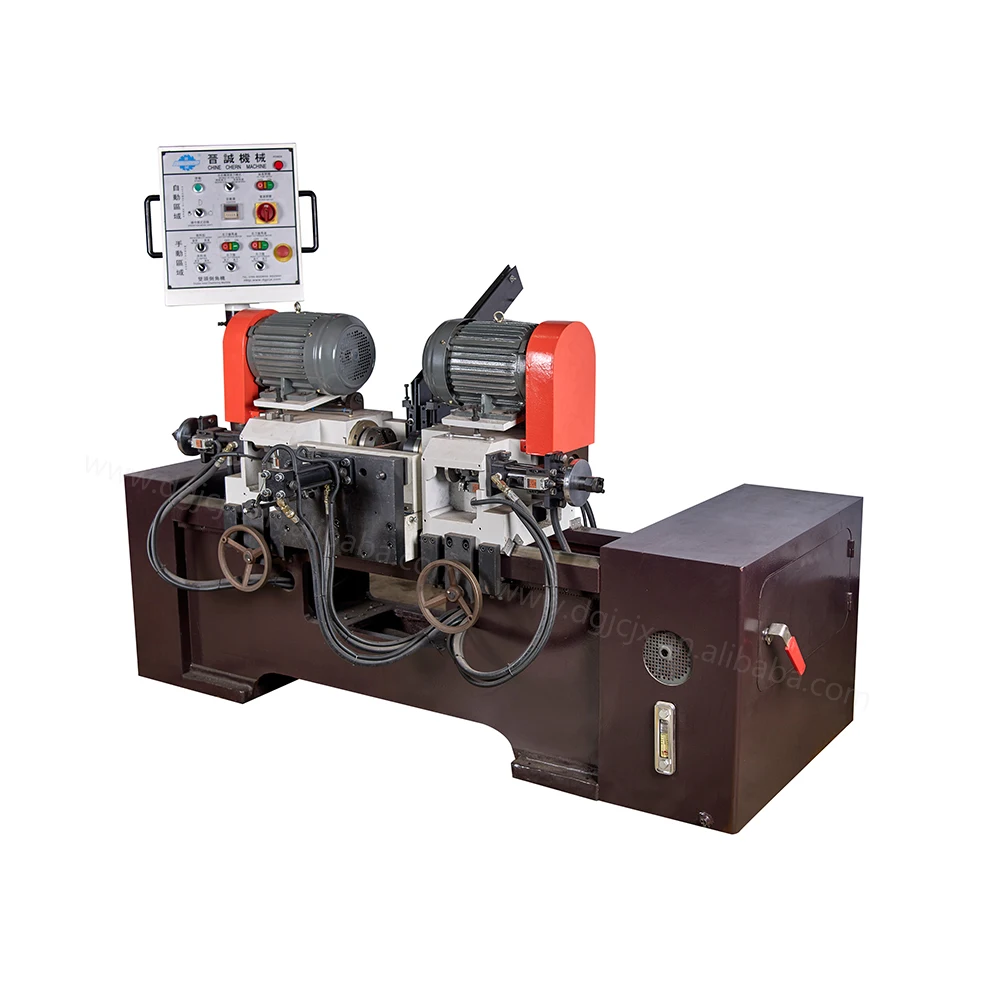

Model	NC-85A-300
Host motor	3HP/4P*2
Pipe diameter	¢6mm- ¢ 80mm
Length of pipe	25mm-300mm
Cutterhead	Standard cutterhead
Blade	Tungsten carbide throw-away blade
Hydraulic motor	0.75KW/20Lite pump,Work pressure 20-30KGS
Standard fittings	1.one set clamp 2.one set cutter and one set blade
Special fittings	1.clamps of different sizes.2,special cutter 3.automatic feeding system
Machine weight	2300kg
Machine Dimension	2100mm×1670mm×1660mm

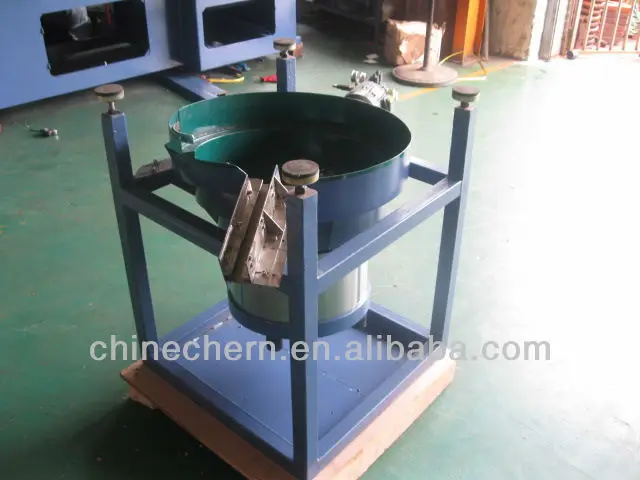

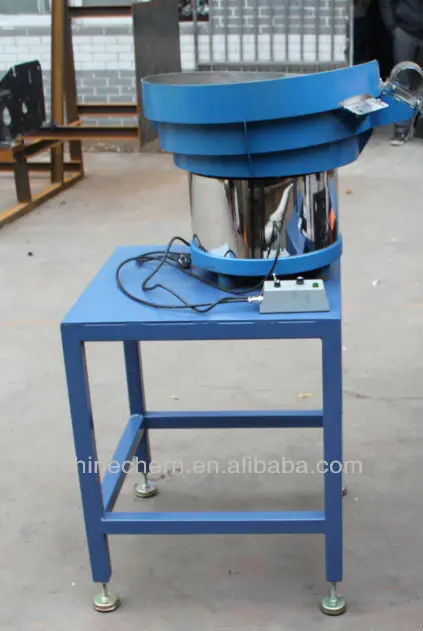

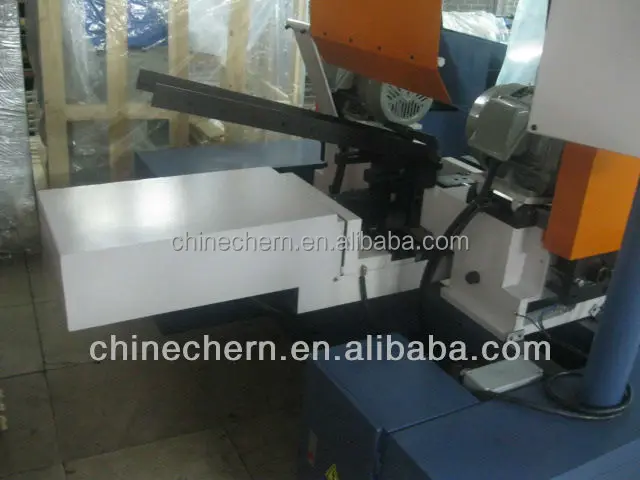

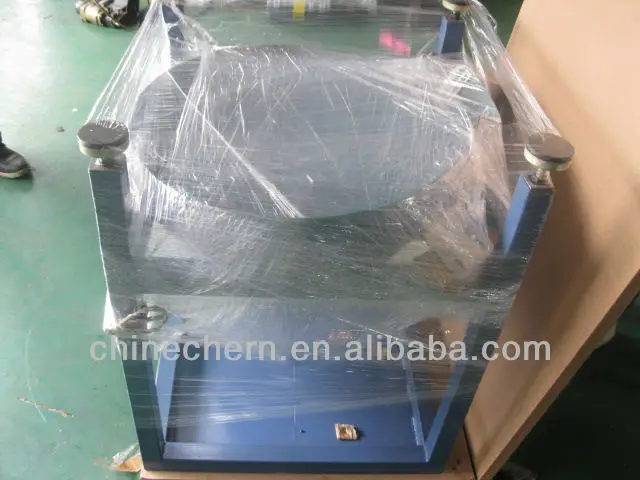

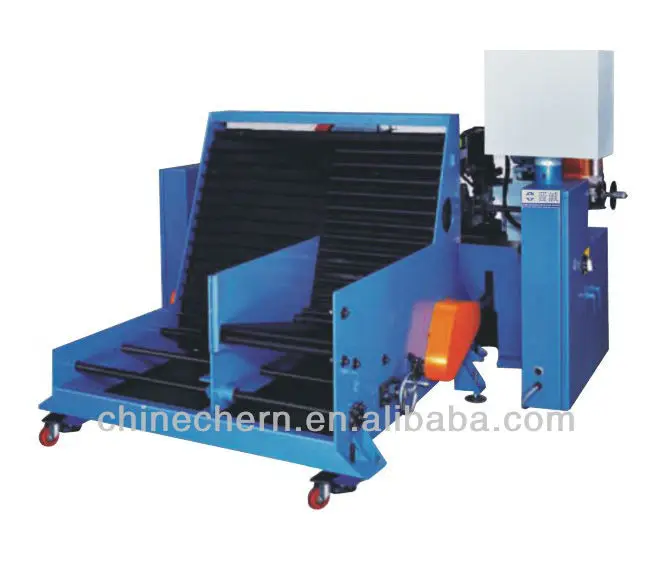

ATF   &  Vibration Disk Plate:

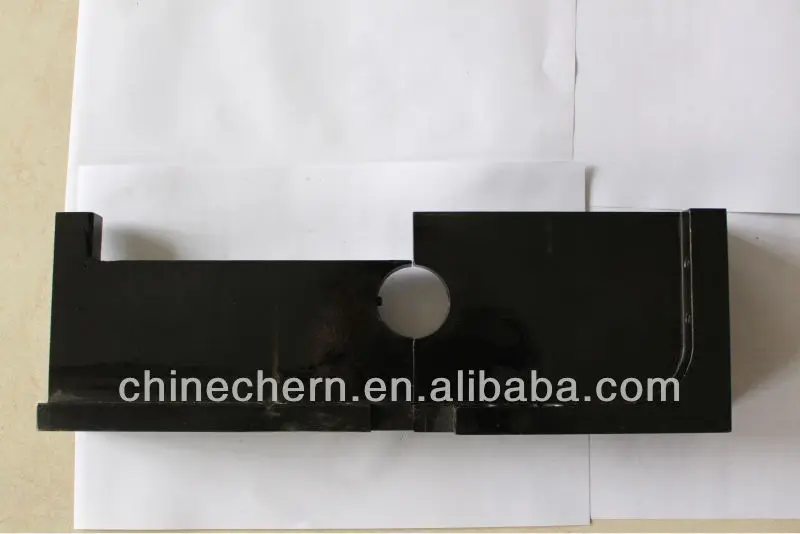

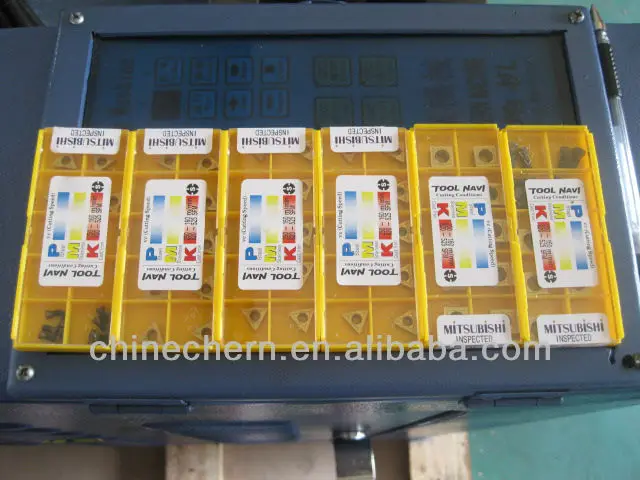

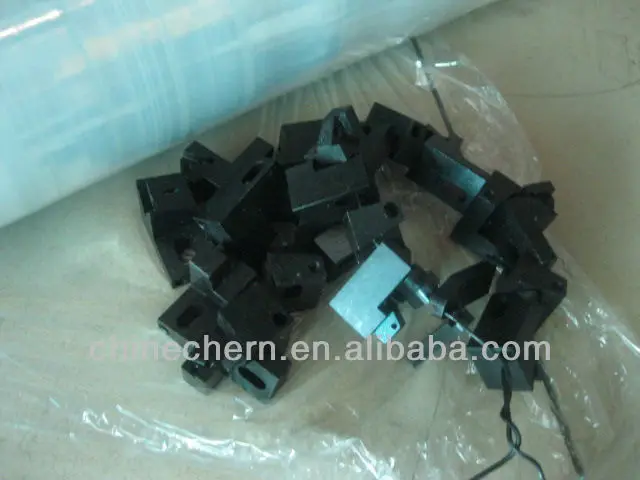

Spare Parts:

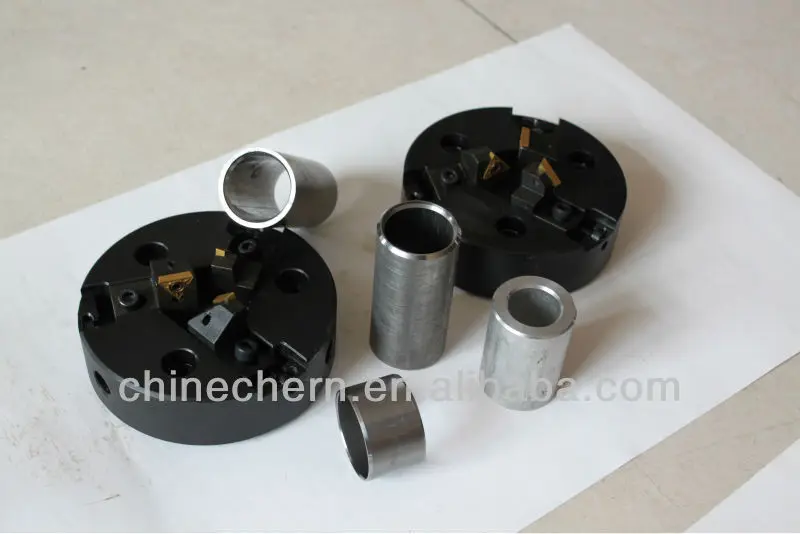

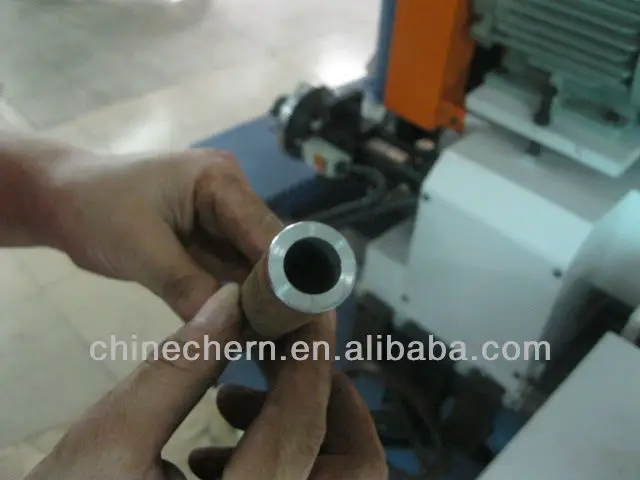

Samples

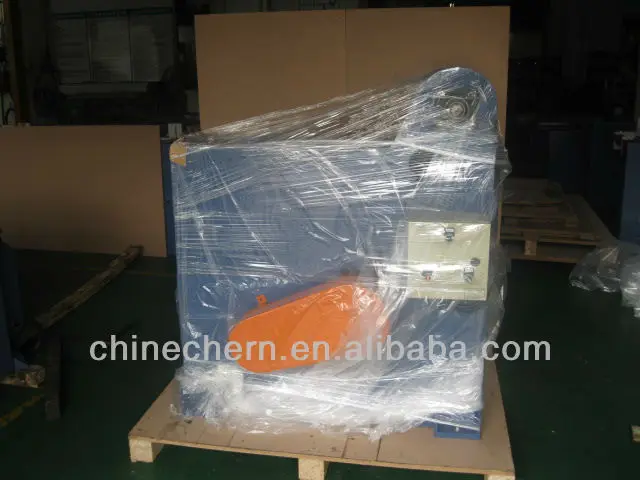

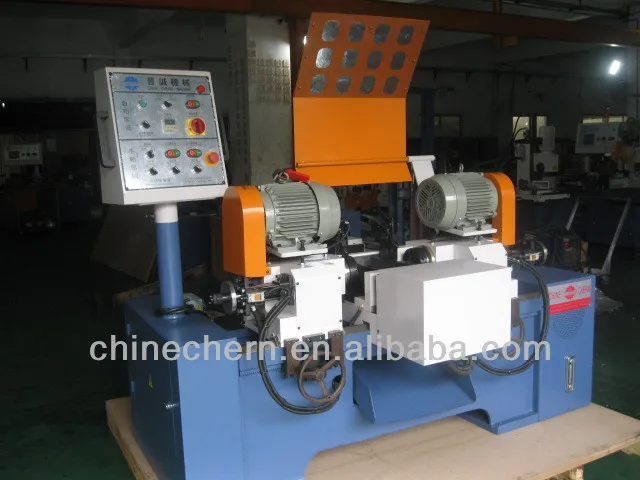

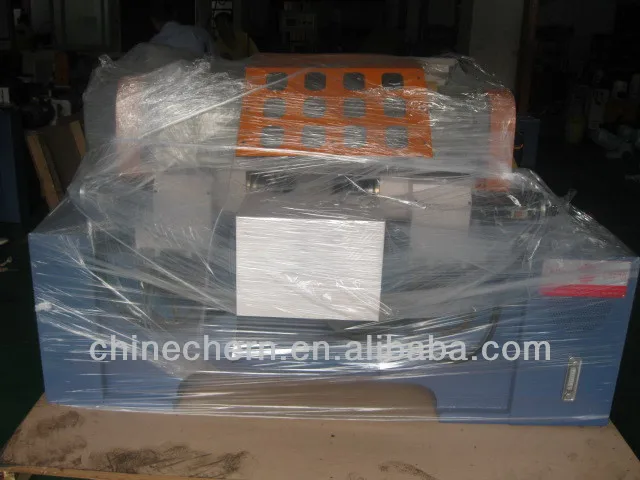

Machine Photo & Package
