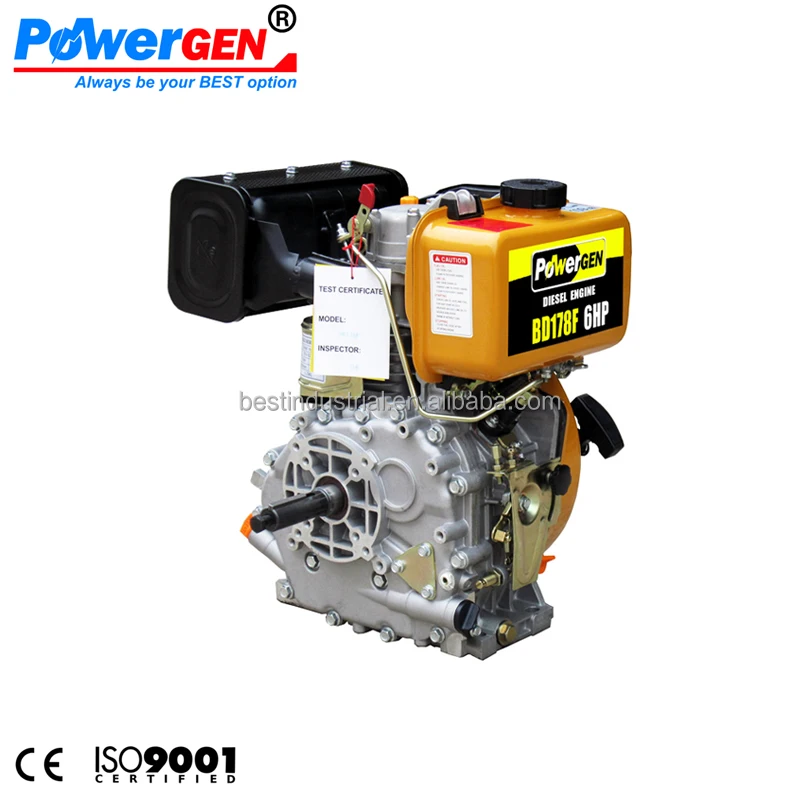

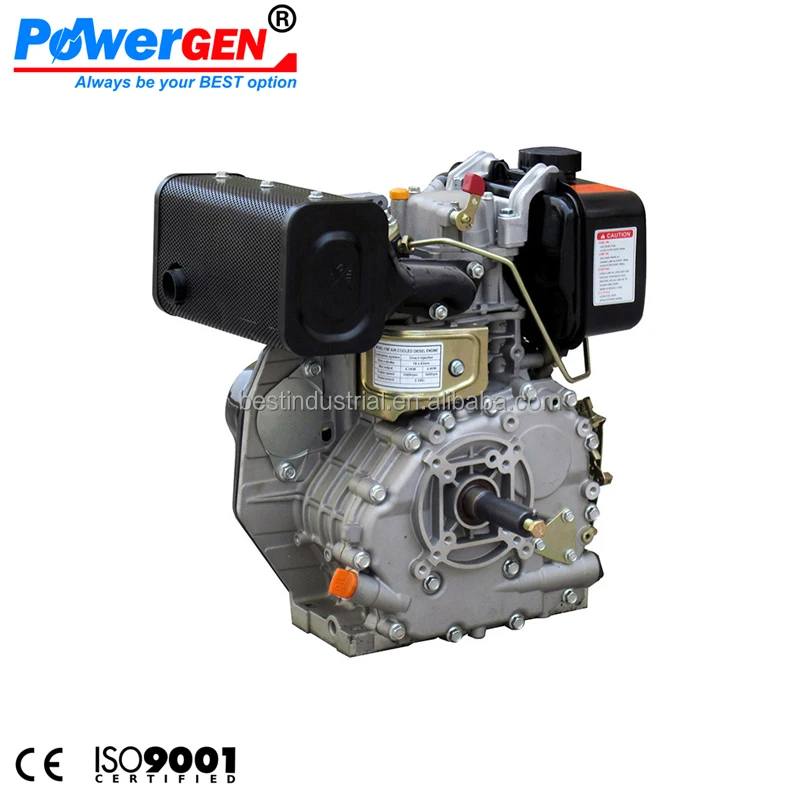

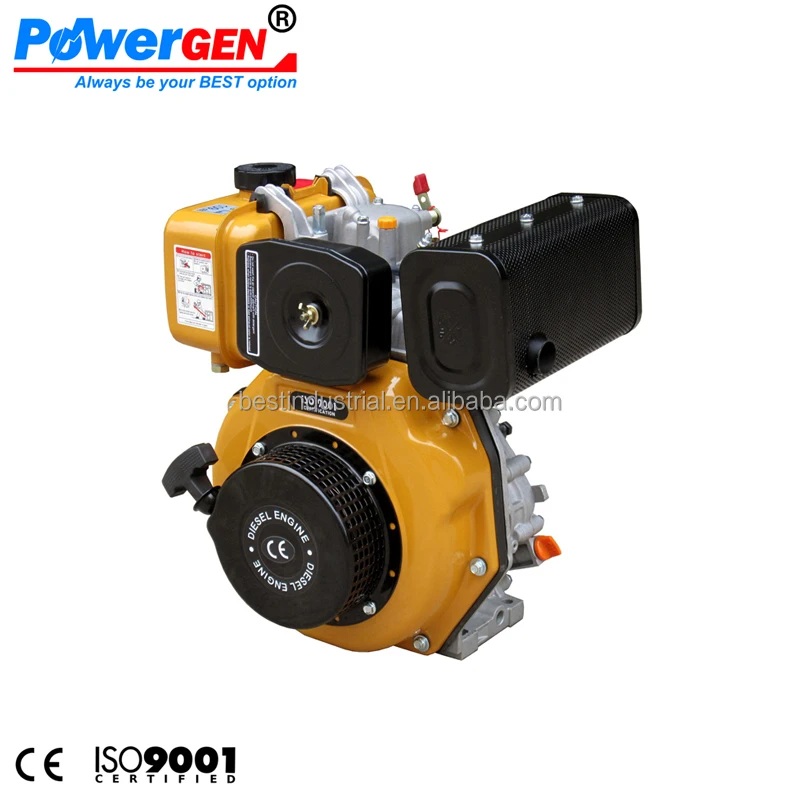

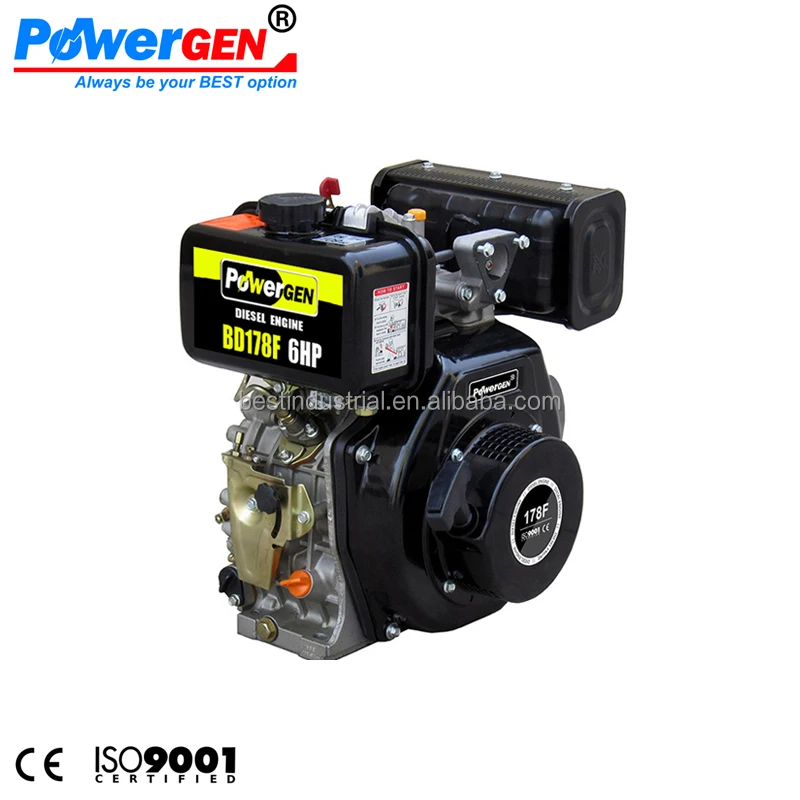

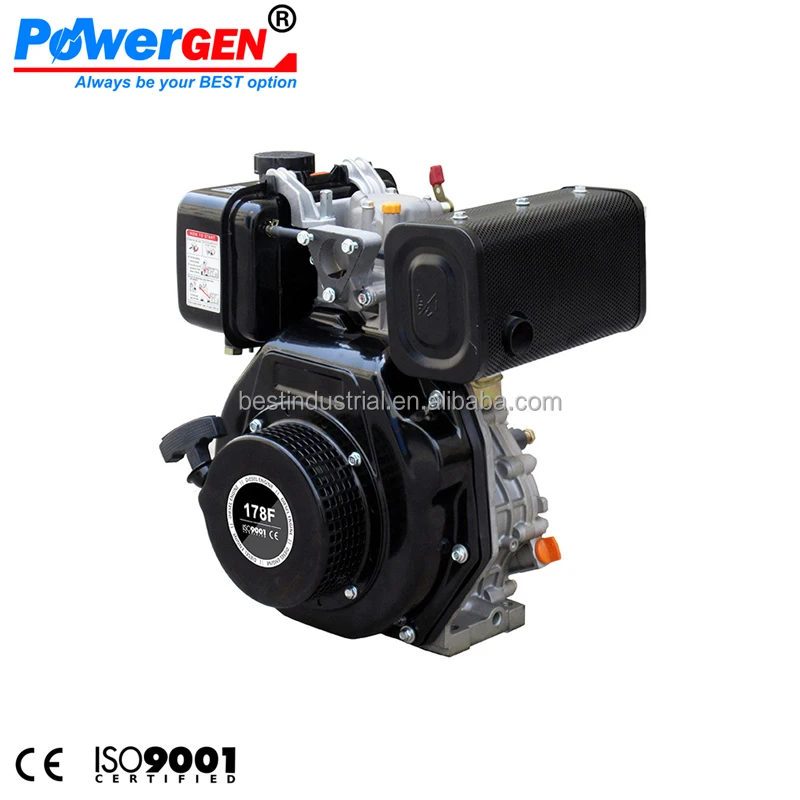

Hot Sale!!! POWERGEN 178F Recoil Start Air Cooled Single Cylinder 6HP Diesel Engine
Hot Sale!!! POWERGEN 178F Recoil Start Air Cooled Single Cylinder 6HP Diesel Engine
Hot Sale!!! POWERGEN 178F Recoil Start Air Cooled Single Cylinder 6HP Diesel Engine
Hot Sale!!! POWERGEN 178F Recoil Start Air Cooled Single Cylinder 6HP Diesel Engine
Hot Sale!!! POWERGEN 178F Recoil Start Air Cooled Single Cylinder 6HP Diesel Engine
Hot Sale!!! POWERGEN 178F Recoil Start Air Cooled Single Cylinder 6HP Diesel Engine
Hot Sale!!! POWERGEN 178F Recoil Start Air Cooled Single Cylinder 6HP Diesel Engine

Hot Sale!!! POWERGEN 178F Recoil Start Air Cooled Single Cylinder 6HP Diesel Engine

Share on (1428932960):


Price:

Quantity:


Product Overview

Description


Product Description

Product Application

The Single Cylinder Diesel Engine 6HP can work as engine for Generators, Water Pumps, Air compressors and Go karts.

\t
Specifications of Diesel Engine 6HP
\t
Model No.
\t
BD178F (E)
\t
Engine Type
\t
Air-cooled, 4-stroke, Single Cylinder, Direct Injection
\t
Bore x Stroke (mm)
\t
78x62
\t
Displacement (cc)
\t
296
\t
Compression Ratio
\t
20:1
\t
Peak Power (HP/RPM)
\t
6/3600
\t
Rotation (View from Flywheel)
\t
Clockwise
\t
Fuel Type
\t
0#, -10# diesel
\t
Fuel Tank Capacity (Liter)
\t
3.5
\t
Fuel Consumption (g/kW.H)
\t
320
\t
Lub. oil Type
\t
SAE10W30(Above CD grade)
\t
Lub Oil Capacity (Liter)
\t
1.1
\t
Starting System
\t
Recoil Start, Optional Electric Start
\t
Dimensions (LxWxH)mm
\t
383x 421 x 450
\t
Net weight (Kgs)
\t
Recoil start: 33Kg ; With electric starter: 38Kg

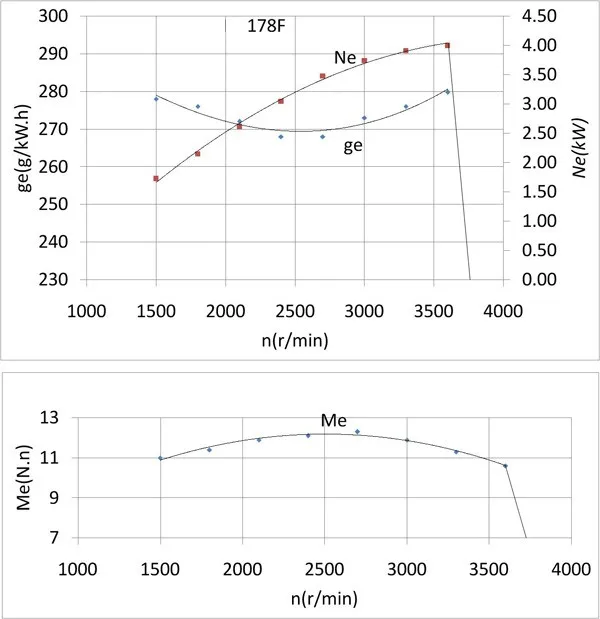

Diagram & Shaft

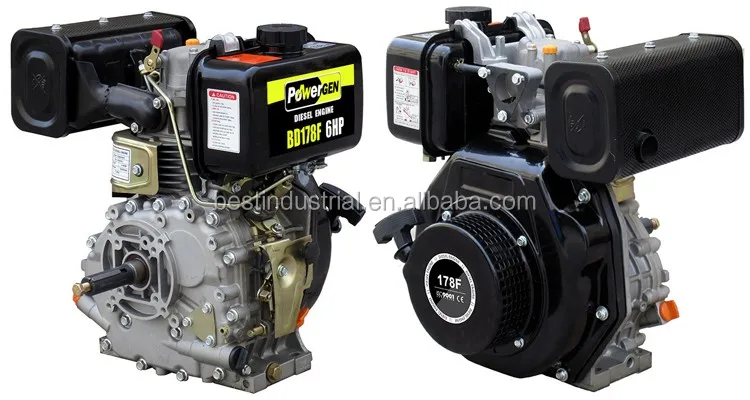

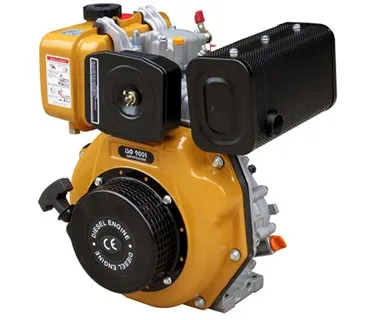

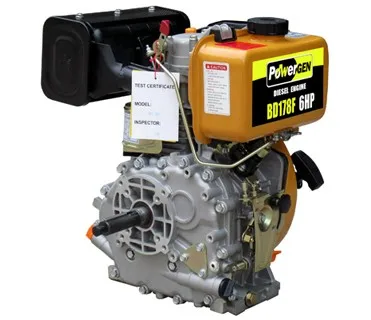

Complete Engine

* Internal 8 Amp alternator with regulator               * Internal counterbalance shaft

* Equipped with muffler and fuel tank                       * electric starter (optional, battery not included)

* Pull-recoil starter included                                        * Compression release lever
* Glow plug for cold weather starting                        * One year factory warranty on parts

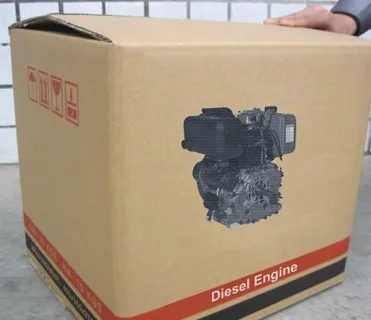

Packing
\t
Packaging
\t
Size (mm)
\t
480 (L) * 460 (W) * 520 (H)
\t
Gross Weight
\t
35Kg (Recoil Start)
\t



Packaging
Details
\t


1) Inner Packaging: Polybag & Foam
2) Outer Packaging: Carton
3) Wrapping tape
Applications

Diesel Generator 3KW

The diesel engine 6HP is an ideal engine for diesel generator 5KW.

Water Pump 3 inch

The diesel engine 6HP is powerful

enough to power the water pump

3 inch.

Construction Equipments

The diesel engine 178FE is ideal for the construction equipments such as

plate compactors and concrete mixers.

Assembly Line
Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
