Blue coating beautiful color printing ctcp plate
- Category: >>>
- Supplier: Henan Baotu Printing Material Co. Ltd.
Share on (1429737475):
Product Overview
Description

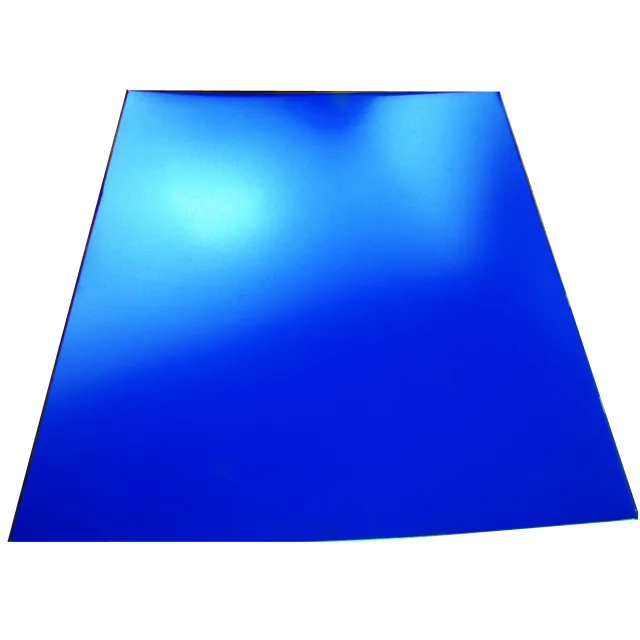

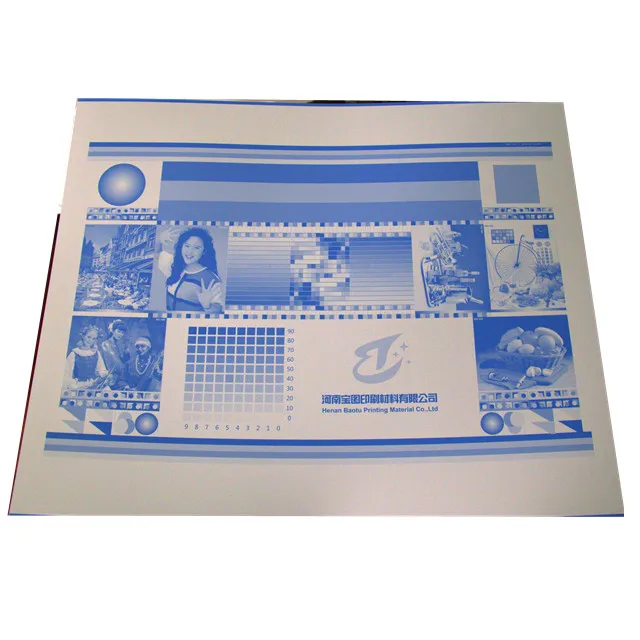

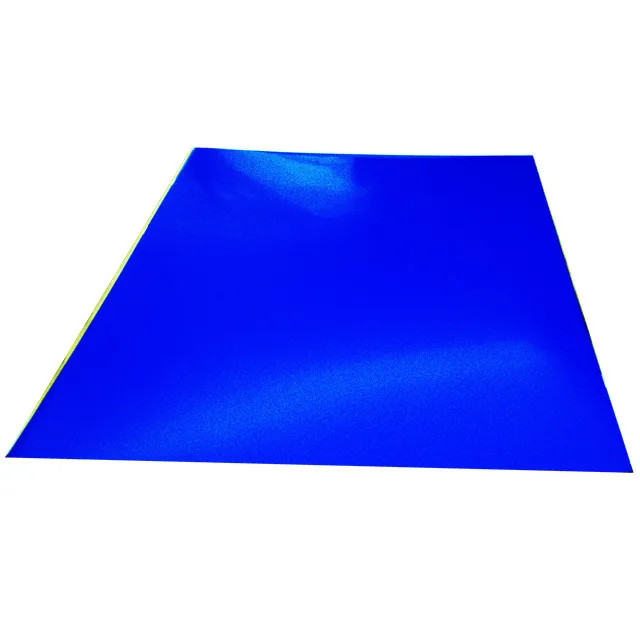

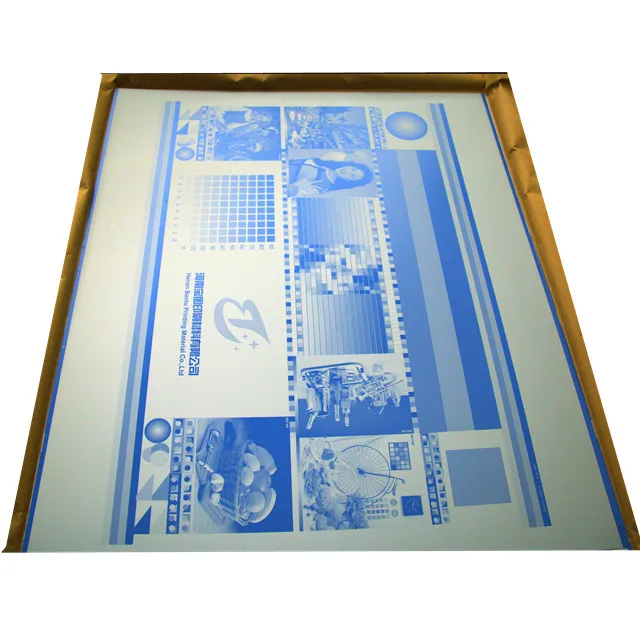

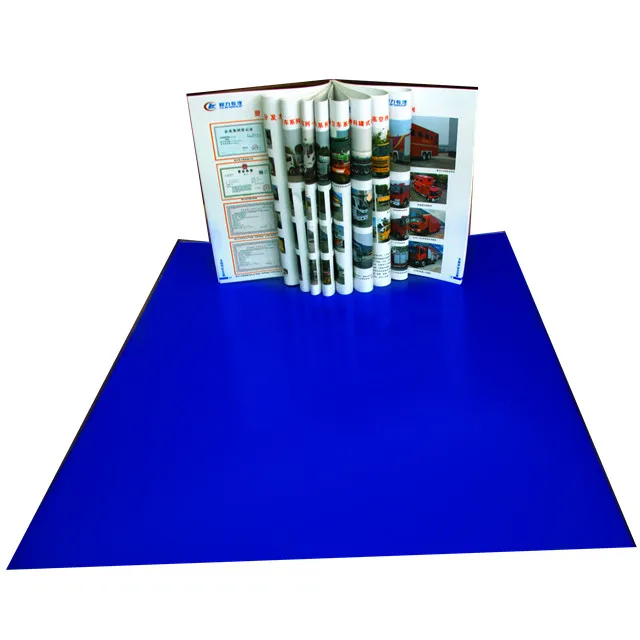

Blue coating offset printing ctcp
Features
First Class Aluminum Substrate - Excellent Long Run Length
The first class aluminum base of Baotu's CTCP plate maintains an even surface, exact dimension and all kinds of physics and mechanical capabilities.
Compound Halftone Frame and Oxidation Layer - Exact Dot Reproduction
The multi-layer compound halftone frame and close-grained oxidation layer on the surface ensures exact dot-reproduction and excellent endurance.
Hydrophilic Managing Substrate - Excellent Ink-water Balance on Printing
Baotu UV-CTP plates adopt hydrophilic managed substrate to not only ensure the firm combination between sensitive layer and substrate but also improve the balance between water and ink so that it prevent from scum when machine idle and during printing.
Excellent Coating Component - High Sensitive Speed
Baotu UV-CTP plates adopt excellent coating component to keep the plate well-proportioned coated, with high sensitive speed, fine dot-reproduction and long run length. These make Baotu CTCP plate fit for top grade commercial printing and newspaper printing.
Working Principle
Technical specification
Technical Data | Brand | Baotu |
Thickness | 0.15 - 0.40mm | |
Sensitive Wavelength | 410 nm | |
Photosensitivity | 45-55mj/cm2 | |
Dot Reproduction | 2% - 98% at 200 lpi | |
Degree of surface roughness | 0.40-0.60um | |
Oxide layer of mass | 2.5-3.50g/m2 | |
The photosensitive | 1.90-2.00g/m2 | |
Run Length | 50,000 - 80,000 actual run length may vary according to press, ink and paper condition. | |
Plate Developing Condition | Recommend Developer | Baotu developer or any other type of positive conventional plate developer |
Developer Concentration | powder to liquid =1:4 (automatic) powder to liquid =1:6 (manual) | |
Developing Temperature | 23 - 25 degree Celsius | |
Developing Time | 30 - 40s | |
Plate Baking Condition | Baking Temperature | 230 - 250 degree Celsius |
Baking Time | 5 - 8 min | |
Run Length after Baking | 150,000 - 250,000 | |
Detailed Information | Safe Light | yellow |
Shelf Life | 18 months under recommended storage conditions (10 - 30 degree Celsius, relative humidity: 40% - 60%, stacking height less than 1.5 meters) | |
Package | 0.15mm - 100 sheets per carton 0.30mm - 50 sheets per carton |
QC Dept.
Our corporation has the strict Quality Control System. We have excellent engineers,professional and advanced testing equipment . So,we have reason to promise that every product is qualified for the clients. The following pictures are our staff who are doing experiments and testing the quality of plates.
Our package:
The carton's structure is wood frame, and the wood is high quality. This ensure the more stable transport.
There is a piece of paper between the plates. It provents the plates scratching. The plates are wrapped with waterproof paper. This ensure the better moisture resistance, moisture resistance is especially important in long distance transport.
The carton is fixed with belts.
The cartons are wrapped with multi-layer plastic film.
All the details are in order to ensure cargo safely delivery to destination.
Certifications
Why Choose Us?
- We have more than 7 years' experience.So the plate quality is more stable.
- Our market has spread to most provinces and municipalities in our country and also been sold to overseas market like in Southeast Asia,Africa and Mid East etc.
- Passed ISO 9001:2008 and won "Gold Supplier" certified by Bureau Veritas .
- Conventional logistic system make the delivery time short.
For Clients' Information
- All the size can produced as your requirement with the thickness from 0.15mm-0.40mm in short delivery time.
- With two internationally advanced prduction line,our output can reach 500,000 square meters per month.
- All the plates are used first-grade aluminum substrate.
- Factory direct export,the price is more competitive.
- When you received the plates,if you have any questions,just contact with us.We support you the operational manual.
