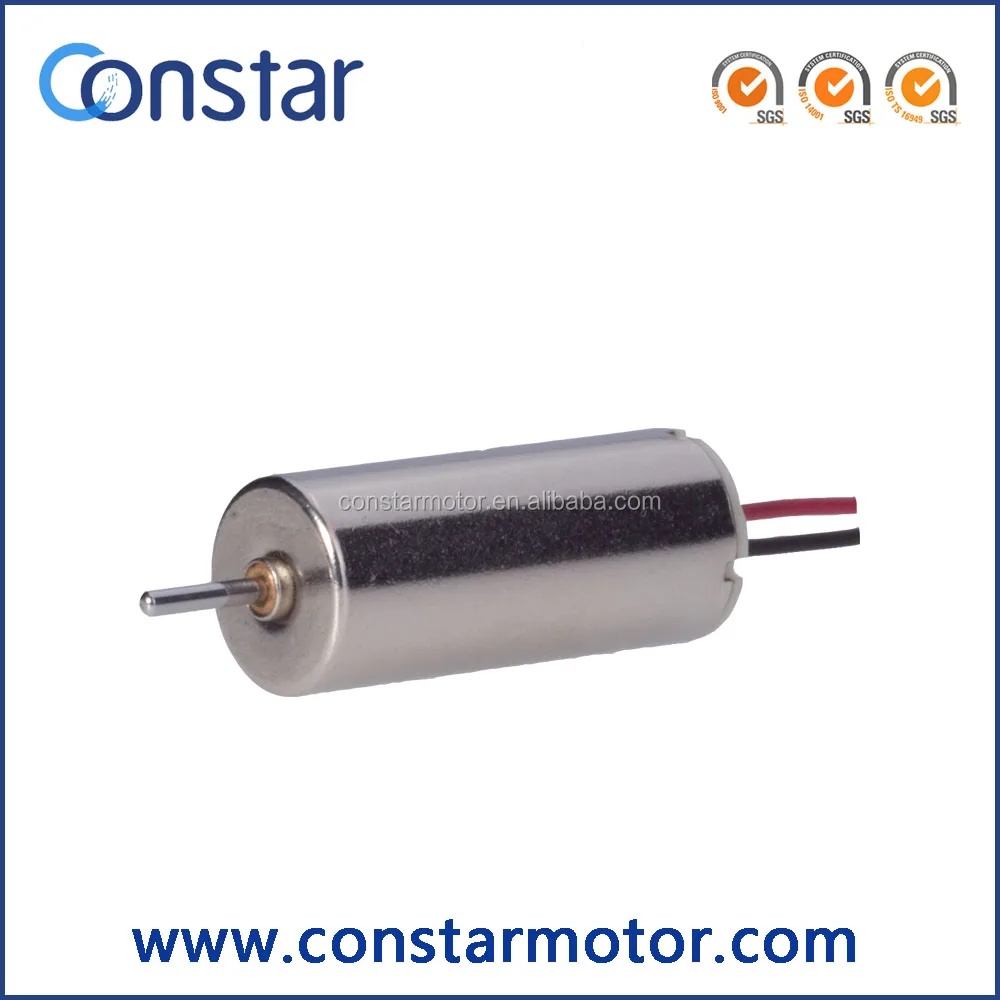

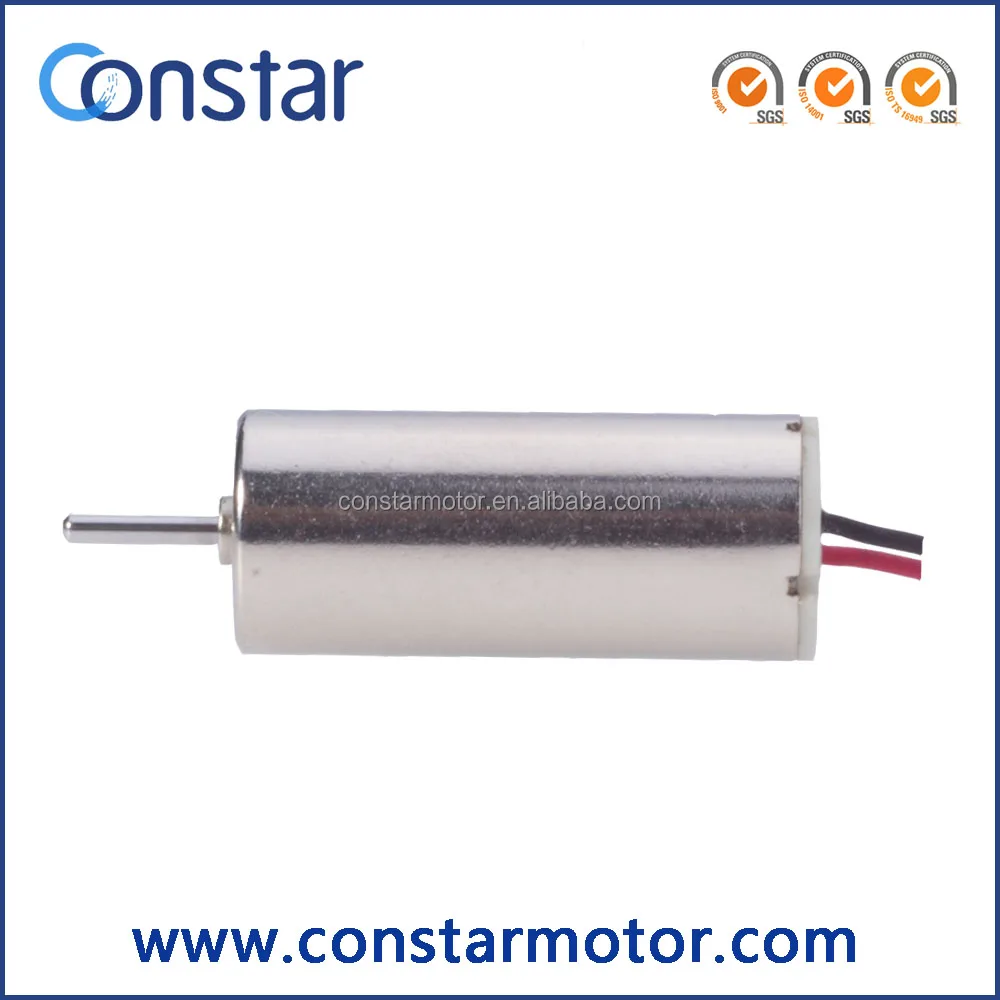

small electric toy motors,6mm precision coreless motor
- Category: >>>
- Supplier: Constar Micromotor Co. Ltd.
Share on (1429890735):
Product Overview
Description
small electric toy motors,6mm precision coreless motor
 | |||
| CONSTAR MICROMOTOR | |||
 |  |  |  |
| Brushless DC Motor | DC Coreless Motor | Gearmotor | Sonic Motor |
Applications
Mini UAV, remote control toys, aerocrafts, mini household appliances and so on.
Specifications
| -8-3.5 | -11-5.0 | -22-3.4 | -5-3.2 | |||
| 1 | Voltage | V | 3.5 | 5.0 | 3.4 | 3.2 |
| 2 | Terminal resistance | Ω | 8.90 | 7.10 | 2.70 | 3.80 |
| 3 | No-load speed | rpm | 37550 | 58500 | 66500 | 55000 |
| 4 | No-load current | mA | 28 | 45 | 100 | 85 |
| 5 | Stall torque | mNm | 0.33 | 0.54 | 0.57 | 0.42 |
| 6 | Stall current | mA | 393 | 704 | 1259 | 842 |
| 7 | Load torque | mNm | 0.05 | 0.05 | 0.05 | 0.05 |
| 8 | Load speed | rpm | 31780 | 53060 | 60630 | 48460 |
| 9 | Load current | mA | 84 | 106 | 202 | 175 |
| 10 | Max. output power | W | 0.32 | 0.82 | 0.99 | 0.61 |
| 11 | Max. efficiency | % | 57.93 | 59.71 | 56.09 | 51.83 |
Options
Lead wires length, shaft length, special coils, gearheads
Outline Drawing

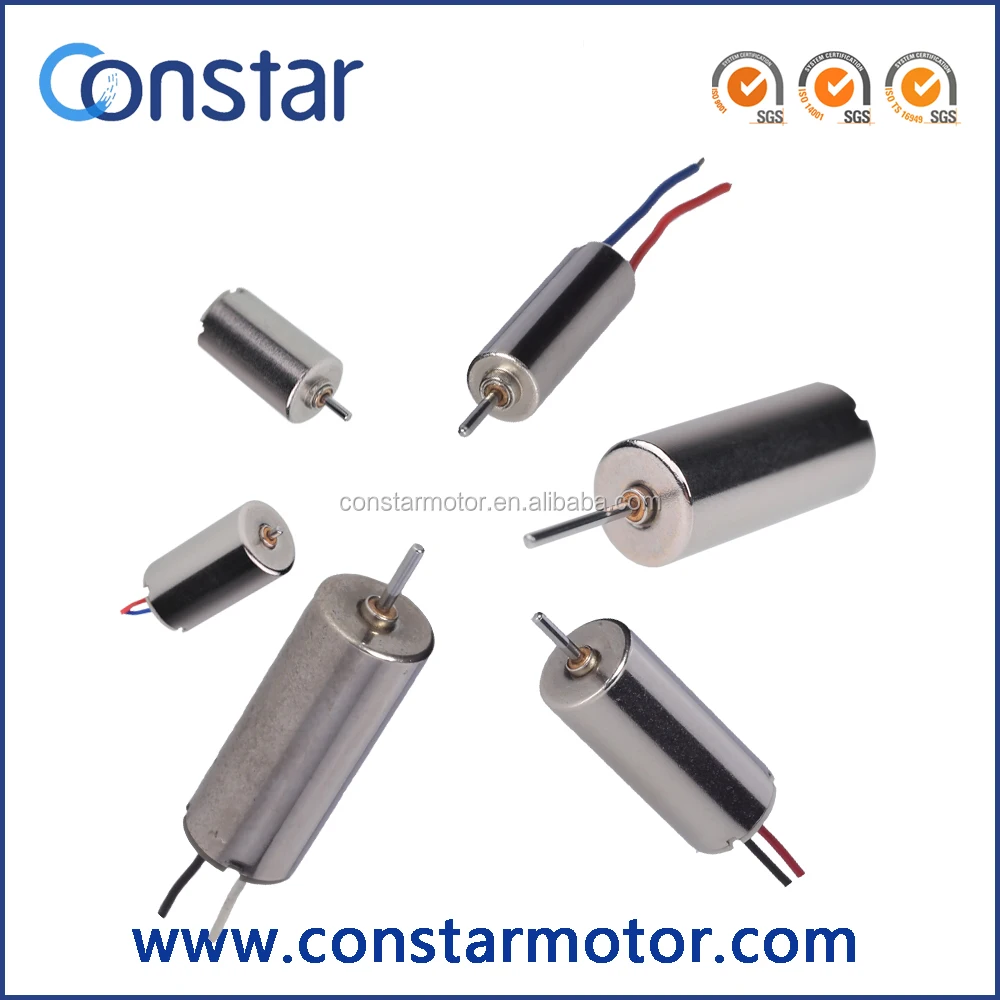

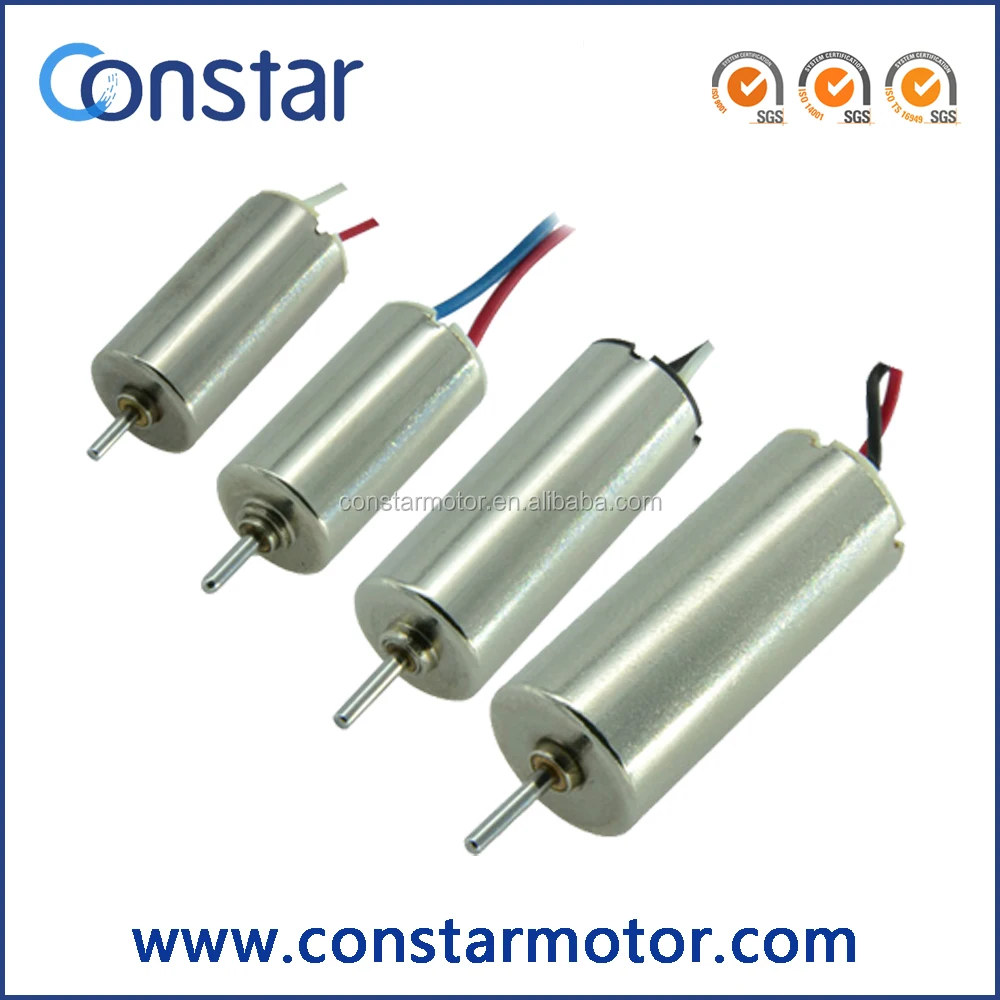

Product Show

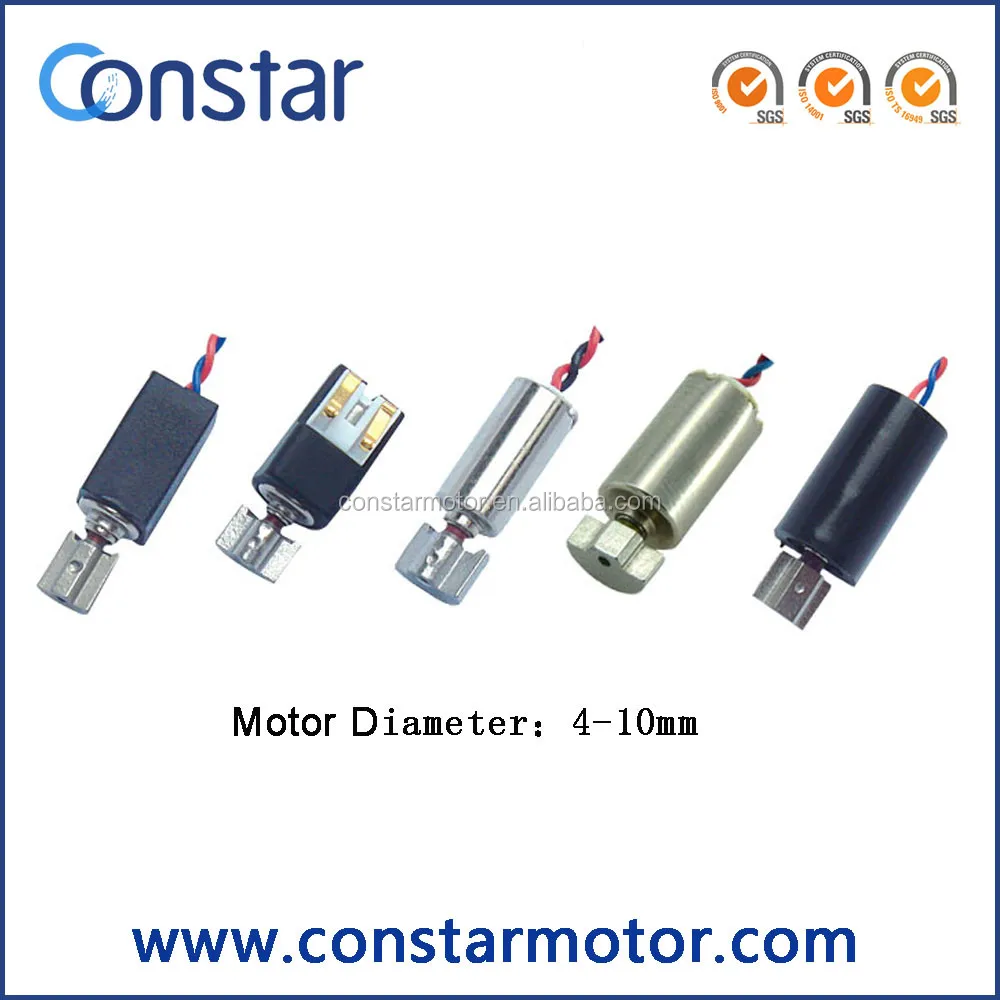

Customized Motor
Customized Motor Solutions
CONSTAR MICROMOTOR specialize in design, custom and manufacture electric motors,including DC Coreless Motor, Sonic Motor, Brushless DC Motor, Gear Motor, Servo Motor, DC Core Motor and Mini Step Motor.All of them can be fully and easily customized . We committed to offer high quality, high performance, cost effective options to meet customers specific demands. Choosing to customize one of the motors in our Product Categories now!
Other Item
| Series | Dimension (mm) | Voltage (V) | Termanal resistence (Ω) | No-load Speed (rpm) | No-Load Current (mA) | Torque Constant (mNm/A) |
|---|---|---|---|---|---|---|
| 0408RN | Φ4*8 | 3.4 | 22 | 58000 | 40 | 0.41 |
| Φ4*8 | 5 | 25 | 78500 | 50 | 0.46 | |
| Φ4*8 | 3.4 | 11 | 75000 | 70 | 0.33 | |
| 0410RN | Φ4*10 | 3 | 45 | 32000 | 15 | 0.69 |
| 0412RN | Φ4*12 | 3.4 | 7 | 68000 | 60 | 0.42 |
| Φ4*12 | 3.4 | 8.3 | 65000 | 55 | 0.43 | |
| 0510RN | Φ5*10 | 3.5 | 15 | 5000 | 30 | 0.58 |
| Φ5*10 | 4.2 | 15 | 55000 | 40 | 0.63 | |
| 0609RN | Φ6*9 | 3 | 14.2 | 34000 | 40 | 0.68 |
| Φ6*9 | 3 | 7.8 | 49000 | 50 | 0.51 | |
| 0610RN | Φ6*10 | 3.5 | 8.9 | 37550 | 28 | 0.83 |
| Φ6*10 | 5 | 7.1 | 58500 | 45 | 0.76 | |
| Φ6*10 | 3.4 | 2.7 | 66500 | 100 | 0.45 | |
| 0612RN | Φ6*12 | 4.5 | 6.5 | 55000 | 60 | 0.71 |
| 0612RN52 | Φ6*12 | 3.7 | 1.7 | 76400 | 110 | 0.44 |
| Φ6*12 | 3.7 | 2 | 73000 | 90 | 0.46 | |
| 0614RN51 | Φ6*14 | 3.4 | 3.7 | 33280 | 37 | 0.94 |
| Φ6*14 | 3.4 | 2.6 | 40850 | 50 | 0.76 | |
| 0615RN55 | Φ6*15 | 3.1 | 2.5 | 36500 | 50 | 0.78 |
| Φ6*15 | 3.1 | 2.2 | 38000 | 52 | 0.75 | |
| Φ6*15 | 3.1 | 1.5 | 47500 | 75 | 0.6 | |
| 0710RN | Φ7*10 | 8 | 7.2 | 78000 | 95 | 0.9 |
| Φ7*10 | 8 | 8.1 | 74000 | 80 | 0.95 | |
| 0714RN | Φ7*14 | 6 | 5.65 | 43300 | 50 | 1.26 |
| Φ7*14 | 7.4 | 6.44 | 42600 | 40 | 1.6 | |
| Φ7*14 | 7.4 | 12.1 | 30450 | 30 | 2.21 | |
| 0716RN | Φ7*16 | 3.4 | 0.8 | 50500 | 110 | 0.63 |
| Φ7*16 | 3.2 | 1.1 | 43000 | 90 | 0.69 | |
| 0720RN | Φ7*20 | 3.2 | 0.97 | 34300 | 80 | 0.87 |
| Φ7*20 | 3.4 | 0.73 | 37160 | 100 | 0.85 | |
| Φ7*20 | 3 | 0.67 | 42370 | 100 | 0.66 | |
| 0820RN | Φ8*20 | 3 | 0.53 | 37000 | 130 | 0.76 |
| Φ8*20 | 3.4 | 0.35 | 51000 | 200 | 0.62 | |
| 0823RN | Φ8*23 | 3 | 0.47 | 34400 | 140 | 0.81 |
| Φ8*23 | 3 | 0.45 | 36700 | 160 | 0.76 | |
| 1013RN | Φ10*13 | 4.5 | 3.6 | 35000 | 70 | 1.2 |
| Φ10*13 | 3 | 20 | 11800 | 15 | 2.2 | |
| 1015RN | Φ10*15 | 4.5 | 4.7 | 26000 | 45 | 1.6 |
| 1020RN | Φ10*20 | 3.2 | 0.4 | 40000 | 170 | 0.7 |
| 1215RN | Φ12*15 | 4.5 | 1.9 | 25000 | 45 | 1.7 |
| Φ12*15 | 4.5 | 2.5 | 21000 | 40 | 2.0 | |
| 1620RN | Φ16*20 | 4.5 | 2.2 | 18500 | 35 | 2.3 |
| 1625RN | Φ16*25 | 6 | 3.1 | 8800 | 25 | 0.7 |
| 1630RN | Φ16*30 | 5 | 3.1 | 7600 | 25 | 6.2 |
| 1718RN | Φ17*18 | 6 | 2 | 19000 | 75 | 2.9 |
| 2233RN | Φ22*33 | 12 | 5 | 10500 | 40 | 10.7 |
| Φ22*33 | 12 | 34 | 5200 | 20 | 20.8 | |
| X0816RN | Φ8*16 | 6 | 5.1 | 43000 | 60 | 1.26 |
| Φ8*16 | 5 | 2.65 | 35700 | 40 | 1.31 | |
| X0820RN | Φ8*20 | 3.2 | 0.63 | 37850 | 130 | 0.79 |
| Φ8*20 | 3 | 0.45 | 46500 | 200 | 0.6 |
