The small and light air mass flow amplifier which is made in Japan

Product Overview

Description

ZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZ

The small and light air mass flow amplifier

 which is made in Japan

ZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZ



 The air saver is an epoch-making energy saving air tool amplifying quantity

 of compressed air of the compressor than 20 times.

 Because It does not use an electrical component, it does not need

 explosion-proof and is safe.

 We do not have to worry about the trouble and can use it.



 It is made by aluminum.

 It is small and light.





Use application

 Disposal

 Drying

 Tube conveyance

 Mist

 Source of supply of the air















     Quantity of big wind.

     High propulsive air saver.

    It is most suitable for a thing needing quantity of big wind.

    For example blowoff,exhaust,ventilation,pneumatic transportation and dry process.



















   The air saver that is most suitable for an air blow.

    Compressed air begins to flow along the cone of the outer surface at speed of

    sound from a gap of the nozzle circumference.

   And the air saver rolls up an outside secondary air.

   And it amplify to wind quantity more than approximately 20 times.



 Material:Aluminum alloy

               Stainless steel



  Noise:10~20Db Reduction



 Air consumption:20~30% cutdown

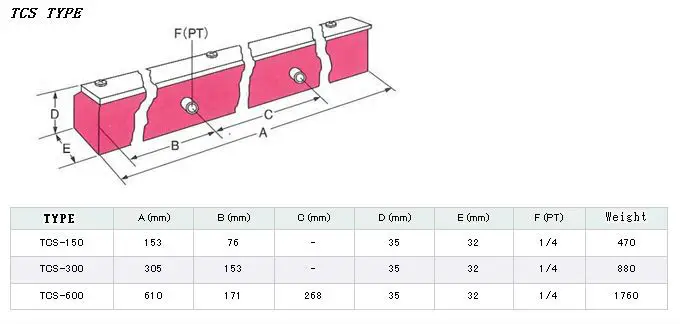

    Equal release air is used for a flat when needed.

     Compressed air is released at speed of sound than a flat thin slit and

    rolls up the air around the discharge mouth and is amplified than 20 times

    of the input consumption.











Since our founding, the company has accumulated 50 years of success and experience.

We can coordinate with more than 3000 domestic manufacturers,

mainly in the field of industrial machinery parts.



Our company home page (in Japanese) also contains information about our products.
