CNC Glass Cutting Machine
- Category: >>>
- Supplier: Jinan Weili Machine Co. Ltd.
Share on (1430328711):
Product Overview
Description
CNC Glass Cutting Machine----WL-CNC 2621
Main Equipment Component
1. X-axes motor: Japan YASKAWA brand servo motor
2. Y-axes motor: Japan YASKAWA brand servo motor
3. Z-axes motor: Japan YASKAWA brand servo motor
4. Rack: Japan KHK
5.Electric proportional valve: Japan SMC
6. Low-voltage component : France Schneider
7. Straight guide rail: Taiwan Hiwin
8. Operation control system : American GALIL
9. Pneumatic components : Taiwan AIRTAC
Main Features
- Imported servo motor, rack and rail, advanced control interface make the machine easy to handle with the high cutting precision.
- High quality bearing and rail are more reliable and endurable.
- Air float cutting table make the loading and unloading of glass sheet easier.
- Buyer's special specifications are available.
- Industrial computer combined with American control card (GALIL) make the operation more stable.

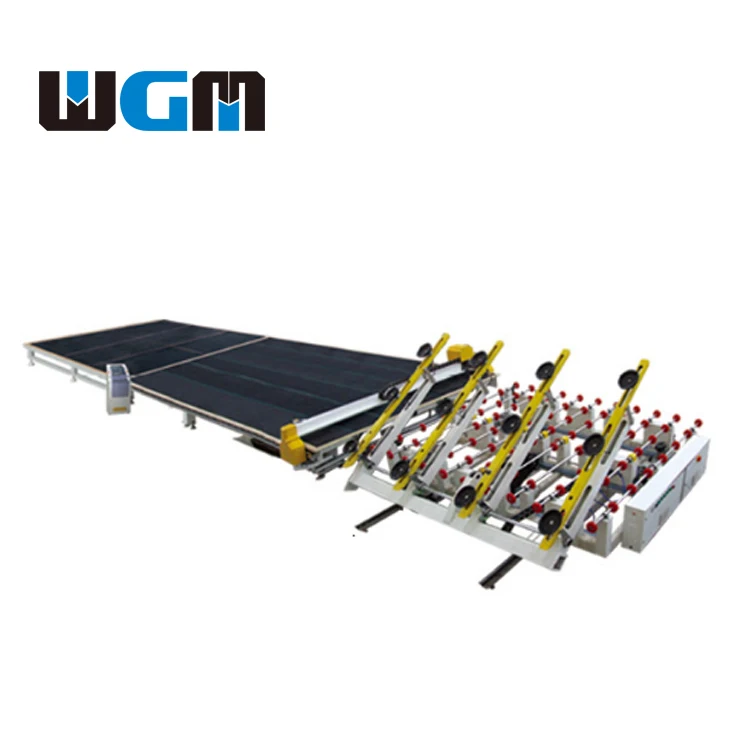

- Glass breaking machine and Glass loading machine are optional.
- Glass cutting optimization software is optional.
- Automatic glass edge finding function.
Main Technique Parameter
Product Name
| Type | Max Cutting Size(mm) | Dimension (L*W*Hmm) | Total Weight (KG) | Cutting Accuracy (mm/m) | Cutting Speed (m/min) | PowerKW | Cutting thickness | Power Supply |
Automatic Glass Cutting Machine | WL-CNC 6033 | 6000*3300 | 7000*4000*900 | 3300
|
±0.2 |
0-120 |
8 |
3-19 |
380V 3-p 50Hz |
WL-CNC 3826 | 3660*2440 | 4700*3200*900 | 2800 | ||||||
WL-CNC 3526 | 3300*2440 | 3608*2500*1350 | 2300
| ||||||
WL-CNC 2621 | 2440*1830 | 3100*2500*1350 | 1800 |

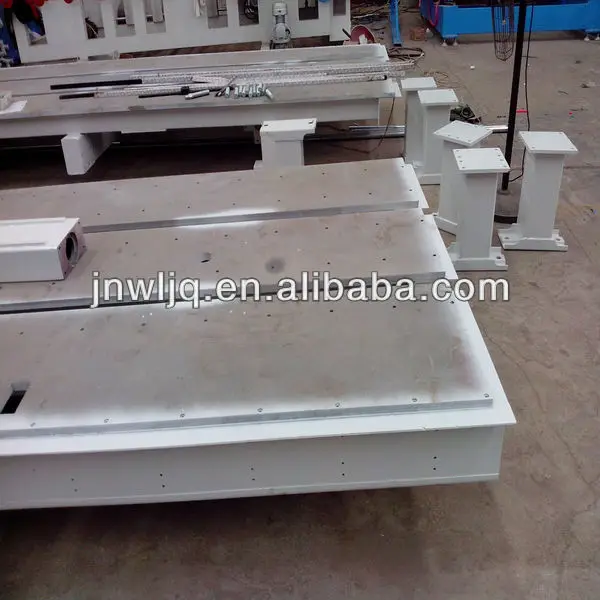

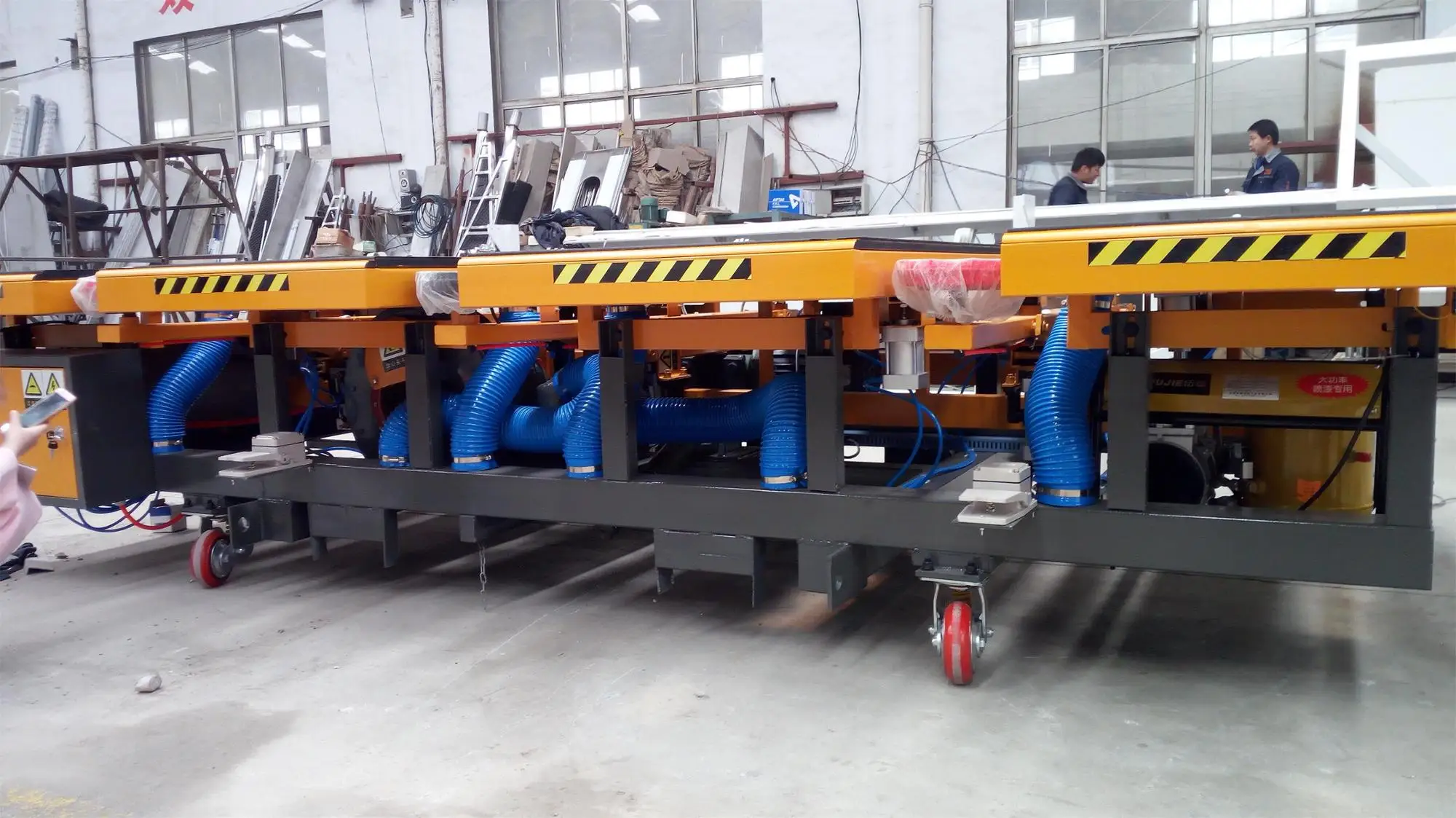

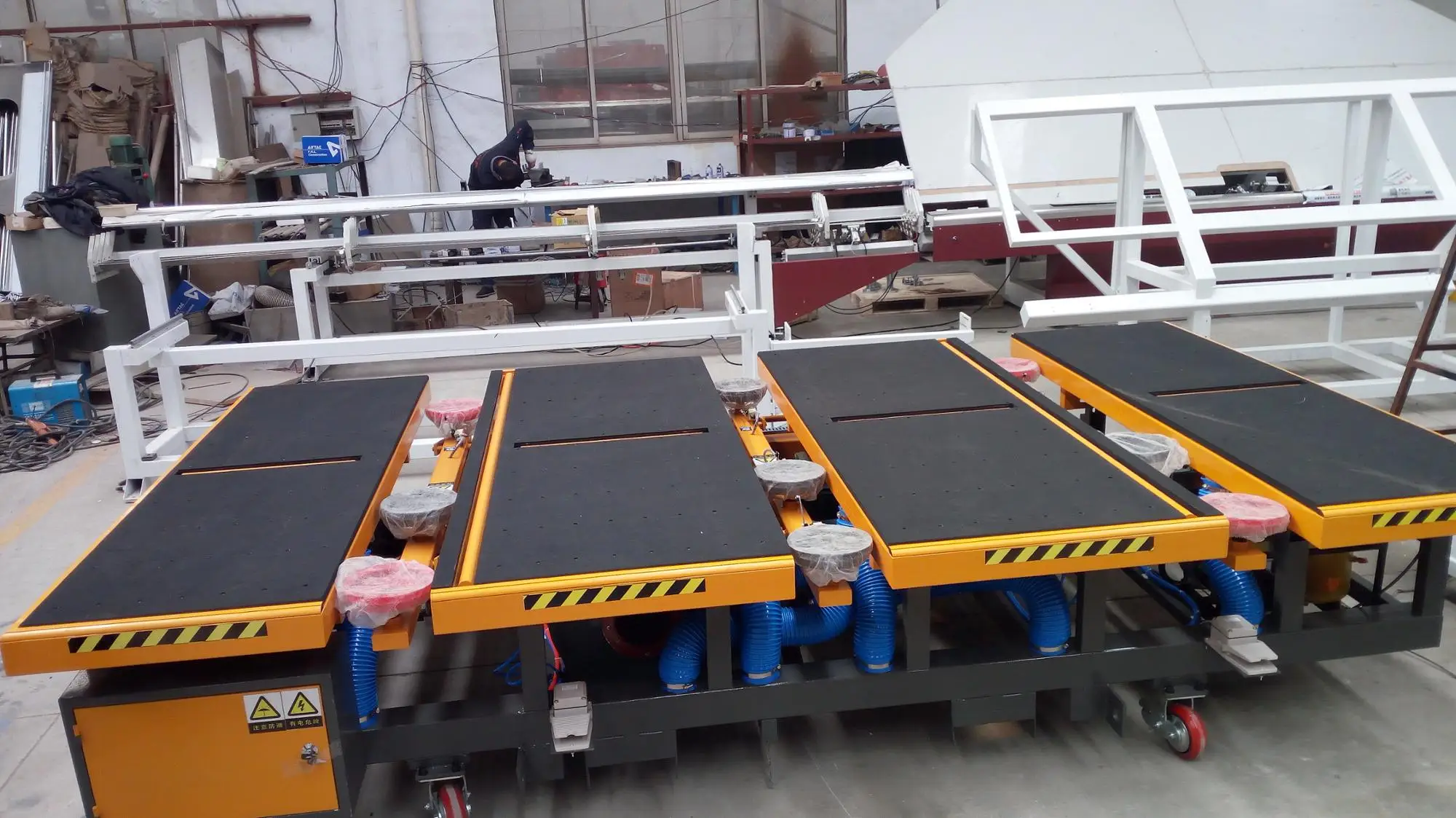

New machine is making in our factory
Adopting PVC board rather than high density board

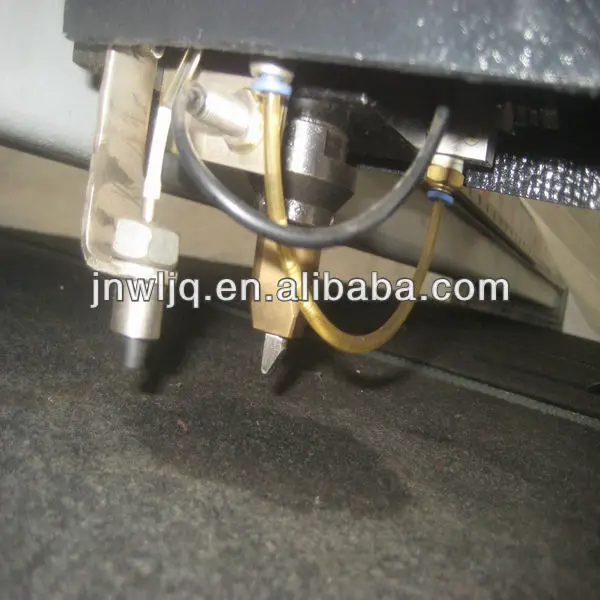

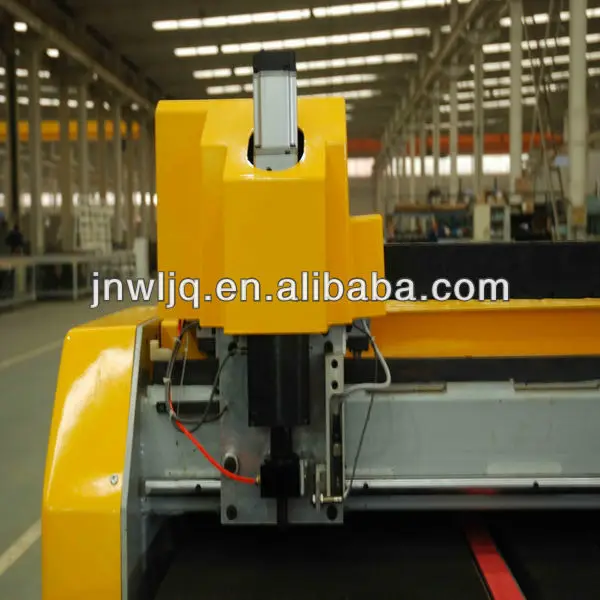

cutter
