PCB & PCBA design and assembly

Product Overview

Description



PCB Design & PCB Assembly & PCBA Manufacturing



1.One-stop Services:



- PCBA Design & Products Design



- Electronic Components Material Purchasing



- PCB Assembling & Manufacturing (SMT & DIP Soldering)



2.Our PCBA technical capabilities:

Items	Specification
Layer	1-12layers
Base material	FR4/CEM 1/CEM3/ FR1/ Aluminum PCB
Board thickness	0.4mm-2.4mm
Copper thickness	0.5-3OZ
Surface finishing	HASL/HASL lead-free/Gold immersion/Silver immersion/OSP
MIN.finished hole size	0.2mm
Solder mask color	Green/Yellow/Red/Blue/Black/White
Size	Accoding to you board
Inner packing	Vaccum packing/ Plastic bag
Outer packing	Standard carton bag
Assembly	Lead-free, or not lead-free



3.Detailed Terms for PCB Assembly:



Technical requiremnts:

- Professional Surface-mounting and Through-hole soldering Technology

- Various sizes like 1206,0805,0603 components SMT technology



- ICT(In Circuit Test),FCT(Functional Circuit Test) technology..



- High Standard SMT&Solder Assembly Line



- High density interconnected board placement technology capacity



Quote requirements:

- PCB gerber file and PCB board specifications

- BOM list (Components type, package, quantity)

- Clear pictures of PCB or PCBA board sample

- Test method for PCB/PCBA



NOTE: If needing PCB design, pls tell us your requirements of PCB.

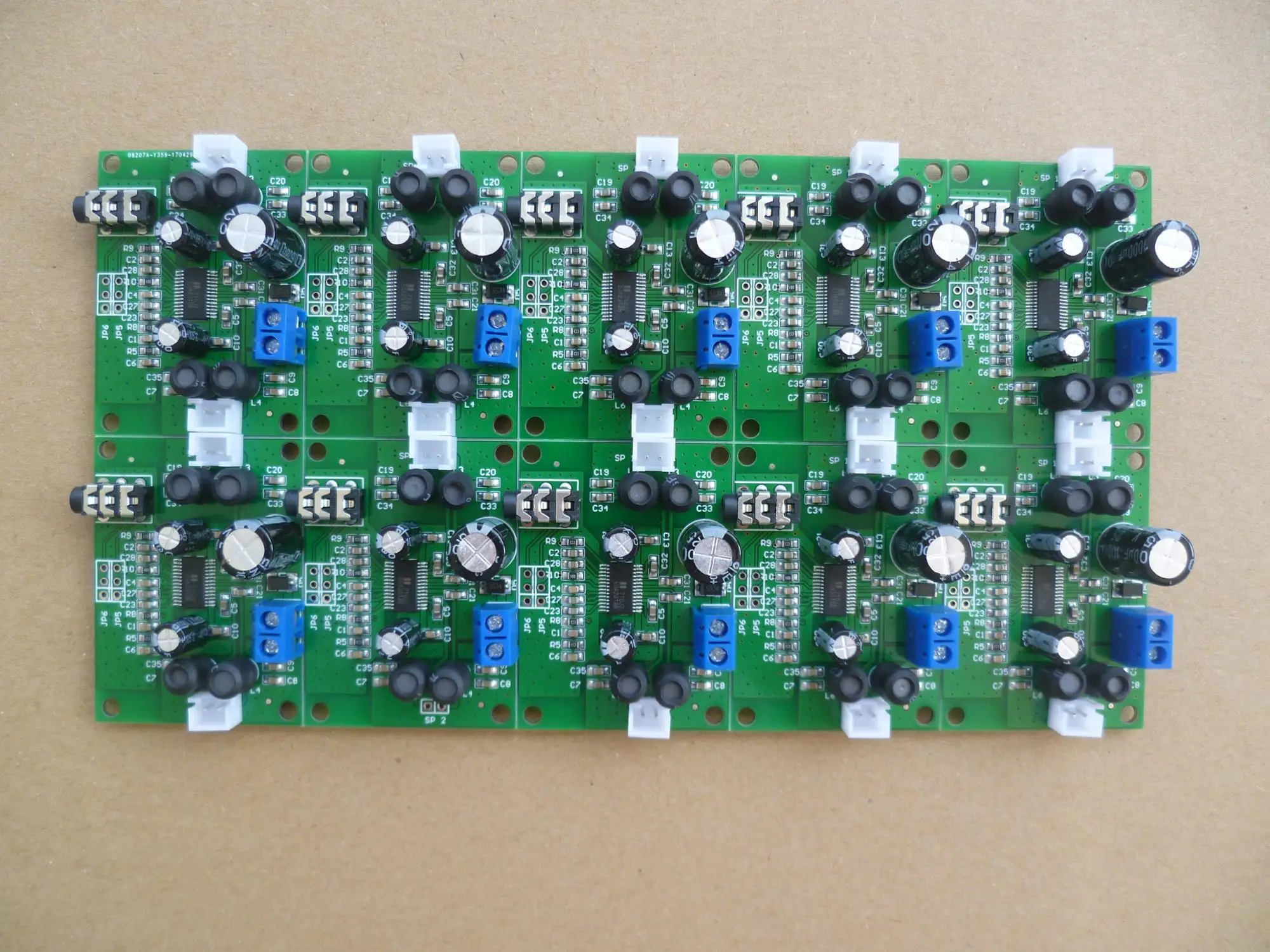

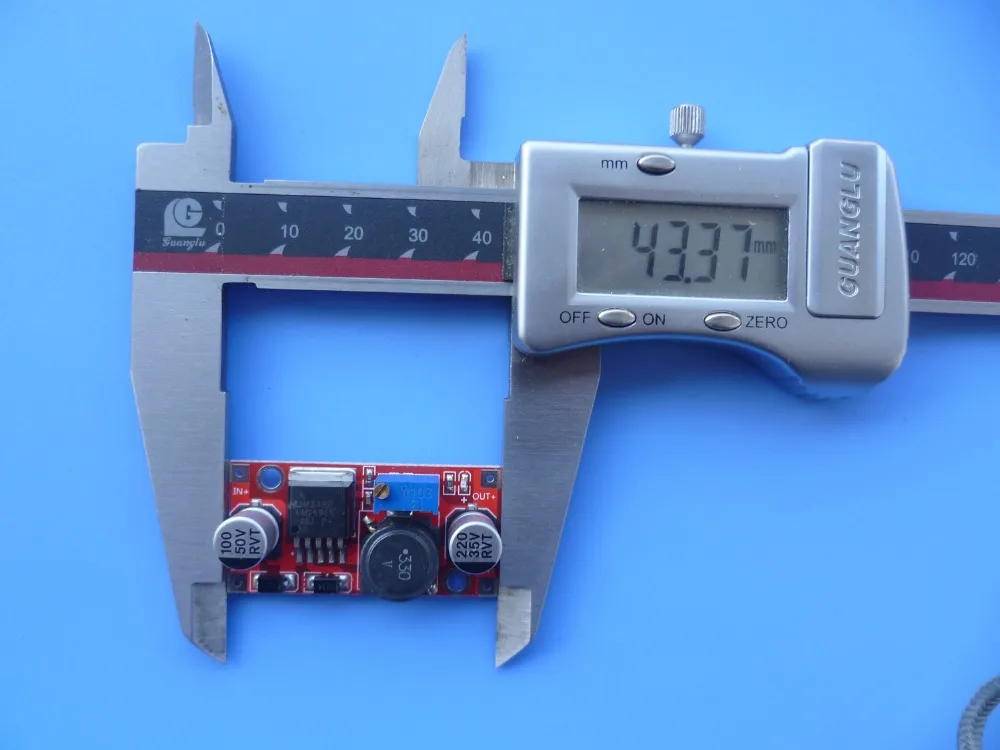

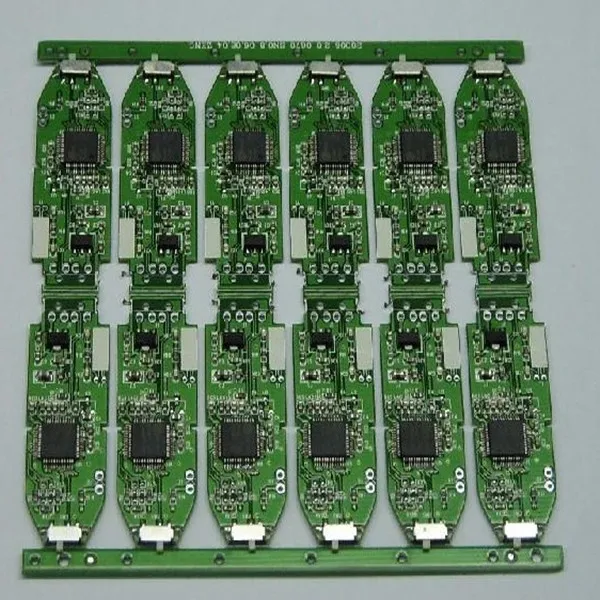

4.Some of Our PCBA products

5.View of the Workshop
