valve Seat Cutting kit SGM500

Product Overview

Description



.Fit sunnen machine VGS20


.1” ball head

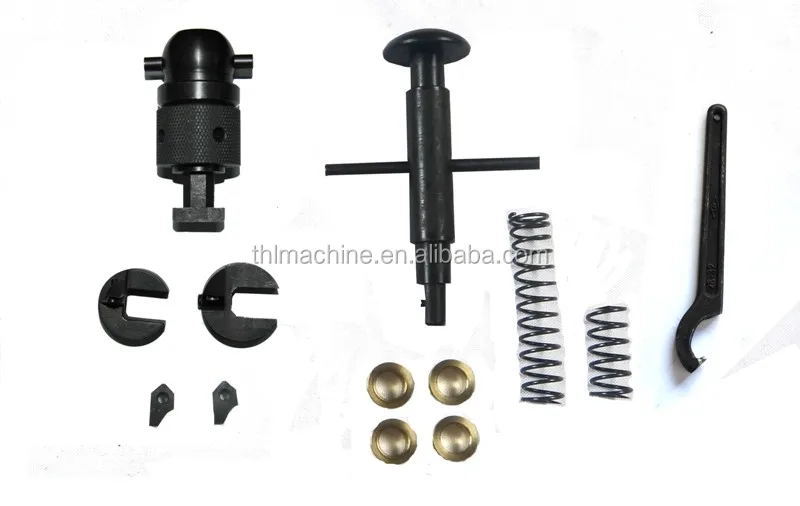

SGM-700   .Fit.236" /5.99mm pilot Kit Includes: Part No. Descriptions SGM-1020 Cutter Body0.55-1.4 in.(14-35.5mm) SGM-1035 Insert Holder Assy. 0.55-0.85 in.(14-21.5mm) SGM-1040 Insert Holder Assy. 0.85-1.4 in.(21.59-35.5mm) VSC-717 Insert, 38-45-60,1.5mm VSC-718 Insert, 38-45-60,2.0mm SGM-1200 Pilot Removal Tool VSC-780 Level Bushing PSP-212 Spring, Short PSP-213 Spring, Long VSC-709 Spring Bushing (4) PWMM-7 Spanner Wrench NOTE: When ordering SGM700 separately,setting fixture VSC-400 may be needed. Uses CVP Pilots.

SGM-500   .Fit .389." /9.88mm pilot   Kit Includes: Part No. Descriptions SGM-1025 Cutter Body1.00-1.56 in.(25.4-39.6mm) SGM-1030 Cutter Body1.50-2.5 in.(38.1-63.5mm) VSC-06045 Insert, 30-45-60,1.5mm VSC-08045 Insert, 30-45-60,2.0mm SGM-1045 Insert Holder Assy.1.00-1.25 in.(25.4-31.7mm) SGM-1055 Insert Holder Assy.1.20-1.56 in.(30.5-39.6mm) SGM-1060 Insert Holder Assy.1.50-1.94 in.(38.1-49.2mm) SGM-1065 Insert Holder Assy.1.88-2.5 in.(47.6.1-63.5mm) VSC-400 Setting Fixture PSP-215 Spring, Short PSP-216 Spring, Long VSC-509 Spring Bushing (4) PWMM-8 Spanner Wrench PWMM-9 Spanner Wrench SGM-1015 Cutter Body Wrench SGM-1100 Pilot Removal Tool

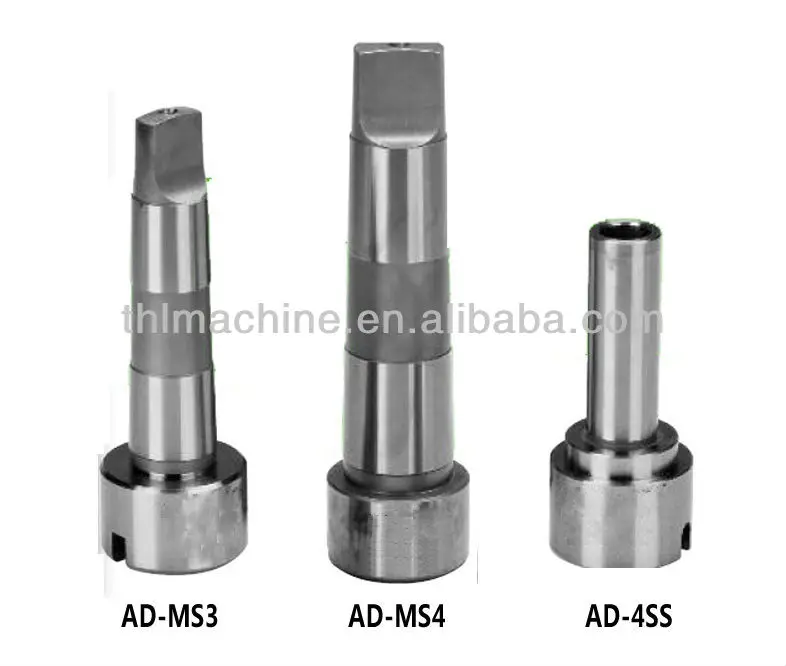

ADAPTERS	DESCRIPTION
AD-MS3	#3 Morse Taper Drive Adapter
AD-MS4	#4 Morse Taper Drive Adapter
AD-4SS	Bridgeport & DCM Drive Adapter
