solar water geyser approved CE/SK/SRCC/CCC/ISO9001

Product Overview

Description

Zhejiang Younn Solar Water Heater Co.,Ltd

Solar water heater systems supply an average 80-90% of household annual water heating needs,with nearly 1/3 of the average electric or more  than 1/2 of gas bill devoted to heating water,a solar water heater system is the best choice and smart investment you can make for your house and for the enviroment.

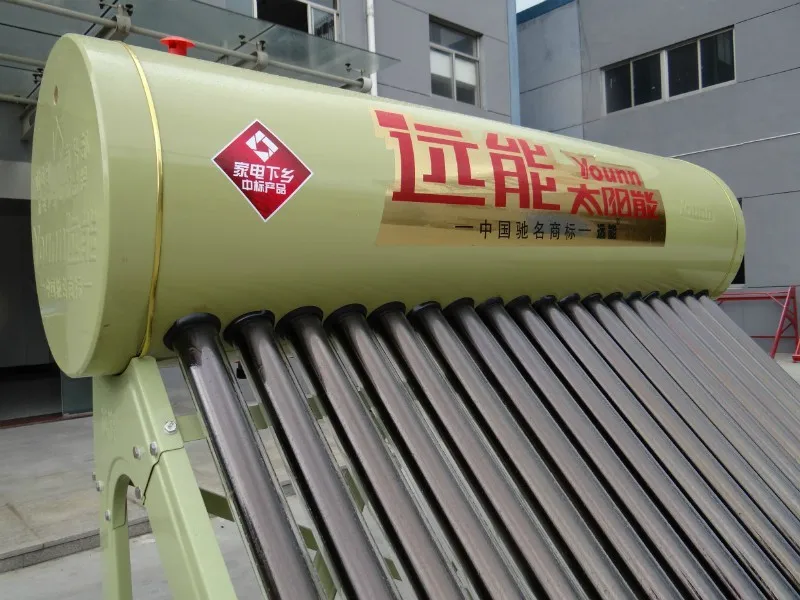

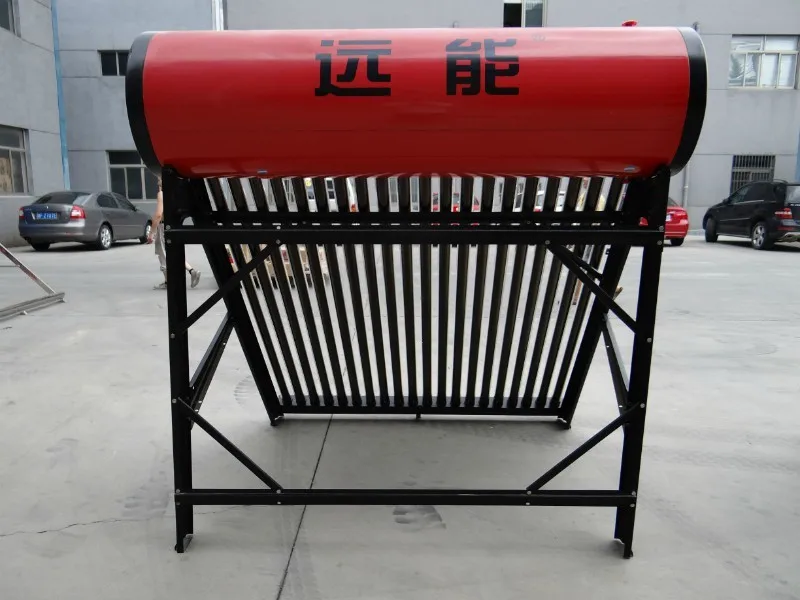

unpressurized vacuum tube solar water heater.



Model	Capacity(L)	Tube(pcs/mm)	CBM(m³)	20/40/40’(sets)
YN-FC-18	180	18/¢58-1800	0.624	41/86/108
YN-FC-20	200	20/¢58-1800	0.681	38/79/99
YN-FC-24	240	24/¢58-1800	0.819	31/65/83
YN-FC-30	300	30/¢58-1800	0.996	26/54/68
YN-FC-36	360	36/¢58-1800	1.207	21/44/56



	18 tubes	20 tubes	24 tubes	36 tubes
Total capacity	180L	200L	240L	360L
Tank capacity	135L	160L	190L	270L
The number of suitable bathing	2-3 person	3-4 person	4-5 person	5-6 person

Detail description

1. Inner tank: stainless steel SUS 304-2B 0.31mm

2. Vacuum tube: AL-N-AL or ALN/AIN-SS/CU coated 47-1500/58-1800

3. Outer tank: Galvanized Steel/Stainless SteelSUS304-0.4mm

4. Frame: coated galvanized steel-10cm; stainless steel SUS-1.2cm

5. Insulation: polyurethane 50/60mm

6. Heat Preservation:72Hours

7. Electrical heating USD 5.and controller USD 25. as you need

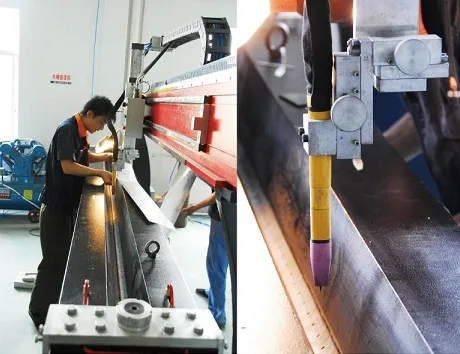

Younn solar water heater Co.,Ltd has an experienced staff. Every processis strictly controlled and tested to ensure quality.











Our company has passed SK,SRCC,CE,CCC,ISO9001 certificate
