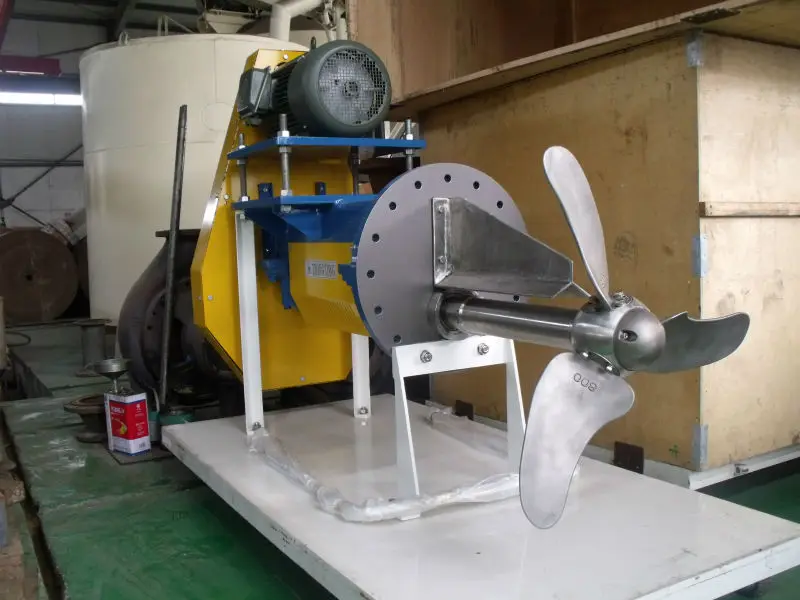

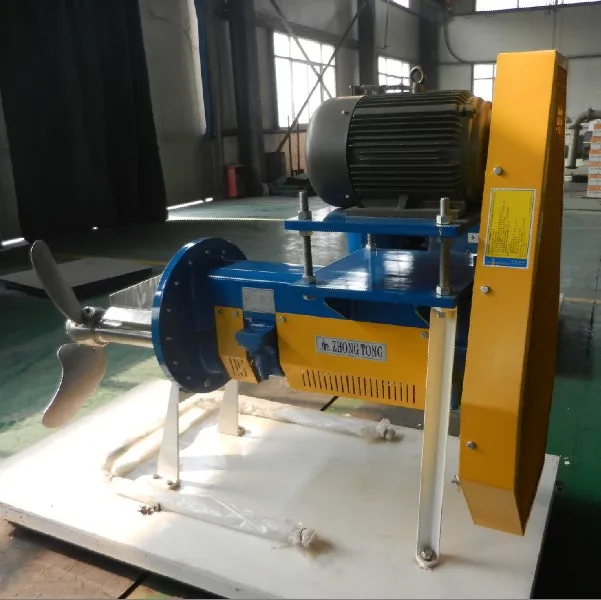

High Efficient Paper Pulp Agitator for Paper Making Machine

Product Overview

Description

Pulp Chest Agitator







Low consumption/High efficiency



Agitator for Mixing of Paper Pulp :
1.Its volume is small
2.the mixed time is short
3.the agitation effect is good

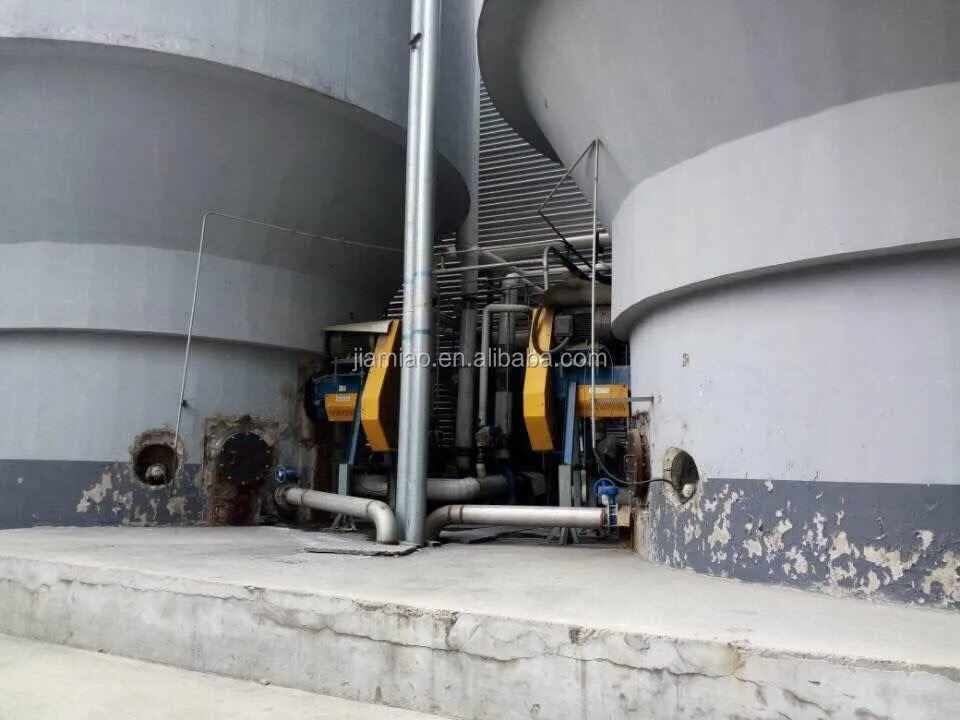

The equipment is used to stir pulp cyclically in square pulp pool .By using the equipment the pulp liquid is maintained  in suspension condition, so it ensured that the uniform distribution of paper components  in pulp.and  it is also advantageous to  full reaction of the chemical liquid.

Application: designed for all kinds of fibers in chests or storage towers up to a consistency of 6.5%.



1.Main Features:

1. Materials:All the parts connected with the medium are made of stainless steel.

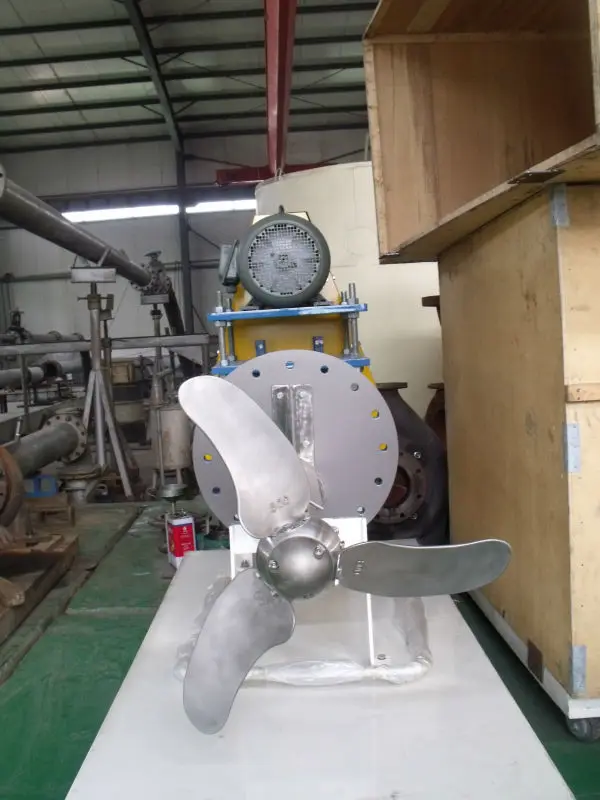

2. Blades:The agitator blades can be easily adjusted to meet different needs.


3. Guide Plate:A strong guide plate protects the shaft and improves mixing efficiency and avoids the entanglement of impurities as well.


4. Sleeve:Shat protection sleeve prevents shaft from wearing and corrosive.

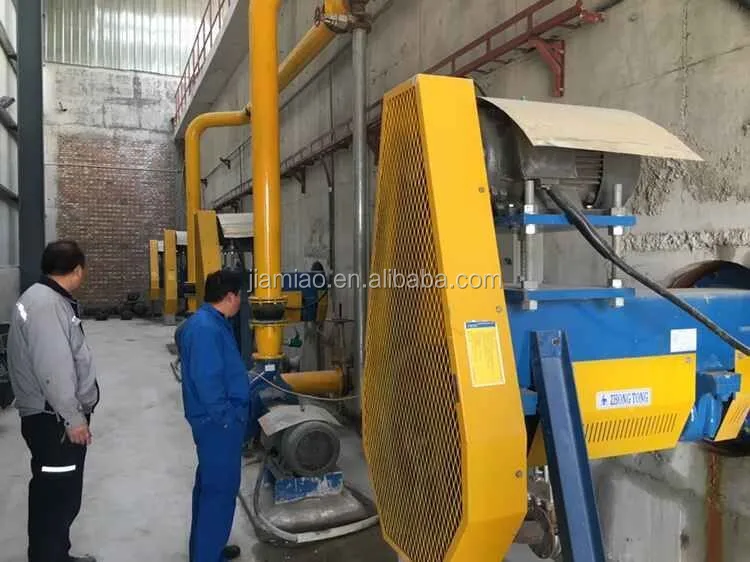

5. Drive:Belt transmissions easily and steady and be used tensioner fixed pulleys and easily assemble and disassemble.

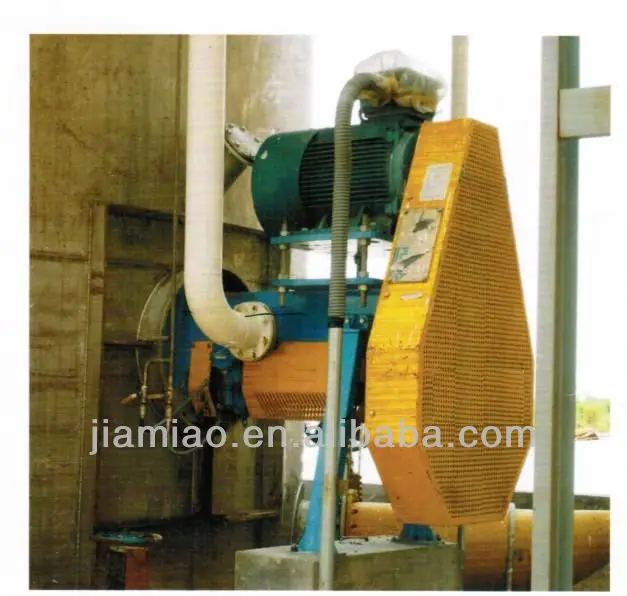

6. Foundation: For most sizes agitator(dia.≤1300mm)is fixed on the wall of the chest and no nees of foundation.


7. Avaliable Seals:The seal casing can be equipped with several eal types to meet the requirements of different applications. Packing can be replaced from the outside without emptying the chest.

2.Technical Data:

Item	Dia of impeller(mm)	Min speed(rpm)	Max speed(rpm)	Max Power(kw)	Motor speed(rpm)	Weight(kg)
1	600	320	400	11	1000	380
2	800	220	308	15	1000	400
3	1000	184	260	30	1000	800
4	1300	165	200	55	1000	980
5	1600	120	180	75	1500	1600
6	2000	80	130	110	1500	2280
