power supply battery backup cctv standby ups with full avr 500va to 1500va

Product Overview

Description

power supply battery backup cctv standby ups with full avr

500va to 1500va



power supply battery backup cctv,ups for computers, power ups battery backup, computer ups,home ups backup systems

feature:

1.  3-step booster-bucker avr for ac-brownout protection.

2.  cpu control, pwm tech and min internal battery 7ah for ac-blackout protection,

3    RJ11/45 for input surge voltag protection;

4.  3-sep battery charge control for battery protection, over-charge, over-dsicharge/battery low;

5. advanced cpu control circuit, high rating components for output over-temperature, over-load, short-circuit protection.



power supply battery backup cctv,ups for computers, power ups battery backup, computer ups, home ups backup systems,

offline ups, standby ups

specification



power supply battery backup cctv		500va	650va	800va	1000va
CAPACITY		300W	390W	480W	600W
INPUT
Voltage	Nominal Voltage	110/120 VAC or 220/230/240 VAC
	Acceptable Voltage Range	90-145 VAC/150-290 VAC
Frequency Range		50 Hz/60HZ
OUTPUT
AC Voltage Regulation (Batt. Mode)		±10%
Frequency Range (Batt. Mode)		50 Hz or 60 Hz
Transfer Time (Typical)		2-6 ms
Waveform (Batt. Mode)		Modified Sinewave
BATTERY
Battery Type & Numbers		12 V 7 Ah x 1	12 V 7 Ah x 1	12 V 9 Ah x 1	12 V 7 Ah x 2
Back up Time(at a PC load		8 minuters	10 minuters	20 minuters	30 minuters
Typical Recharge Time		10 hours to 90% after complete discharge
INDICATORS
AC Mode		Green LED lighting
Battery Mode		Yellow LED lighting
Low Battery at Battery Mode		Yellow LED flashing every second
Fault		Red LED lighting
Battery Fault at AC modes		Yellow LED flashing three times every 2 seconds
Battery Week at AC modes		Red LED flashing every 2 seconds for 30 seconds
Overload		Red LED flashing every twice every second
ALARM
Battery Mode		Sounding every 4 seconds
Low Battery		Sounding every second
Fault		Continuously sounding
PHYSICAL
Dimension, D X W X H (mm)		295*95*140
Net Weight (kgs)		5.5	6.2	6.8	10.5
ENVIRONMENT
Humidity		0 to 90% Relative Humidity(Non-condensing)
Operating Temperature		0°Cto 40°C



 power supply battery backup cctv,ups for computers, power ups battery backup, computer ups, home ups backup systems,

standby ups, offline ups

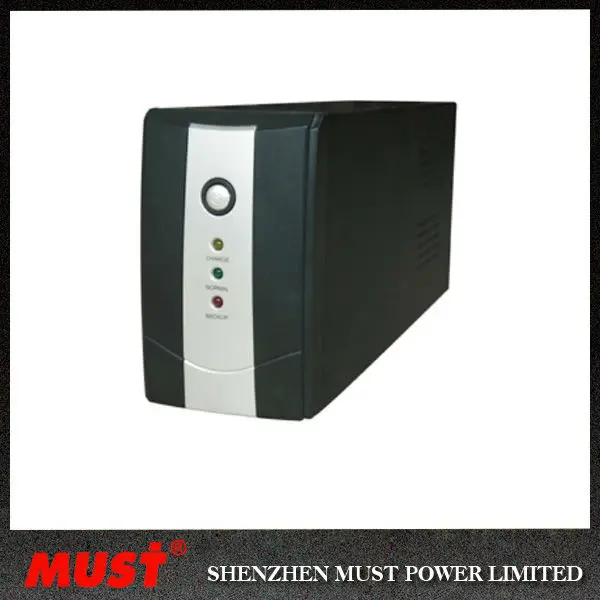

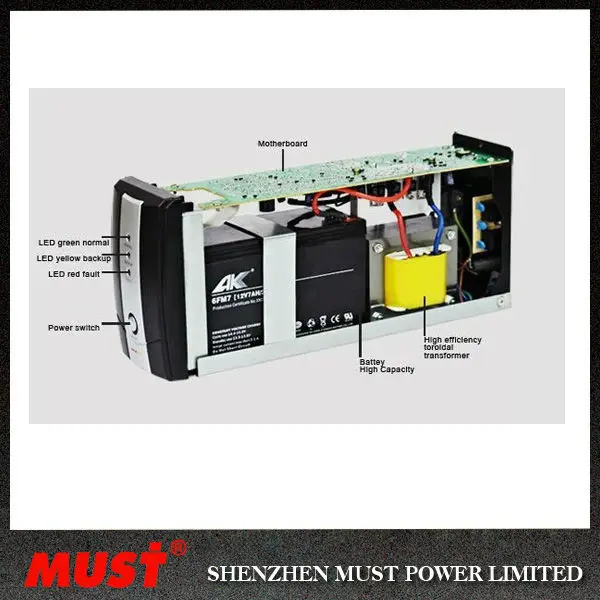

 photos
