small size stone Crusher for Primary Crushing with ISO, CE



I.CPE Series Jaw Crushers

This series of products in china from 1990 to 2005 during the design of a new generation of jaw crusher, the great crushing ration, unform sizes,easy maintenance and operating cost. It is widely used in mining,metallurgical industry, building material, hightway, railway,water conservancy and chemical industries. Various material with compressive resistance less than 320MPA can be crushed.

II.CPE Series Jaw Crushers are appropriate for

1. Widely applied in mining, road&railway, concrete, chemical and building material industries.
2. Ores and rocks with various hardness
3. Concrete basis and steel structure basis
4. Stationary, half-mobile and mobile applications

III.Main advantages of CPE Series jaw crushers

high reduction ratio, uniform production size, long service life, simple construction, excellent productivity, easy maintenance, low energy consume and so on, they are the priority products as the primary crushing.

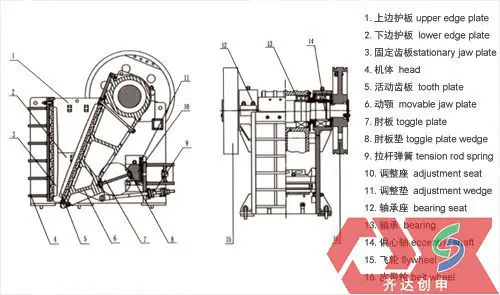

IV.CPE Jaw Crusher Structure Diagram

pe-jaw-crusher-struct-chart

V.CPE Jaw Crusher Specifications

ModelFeed Opening Size
(mm)
Max Feeding Size(mm)Discharging Size
(mm)
Capacity
(t/h)
Eccentric Shaft Revolutions
(r/m)
Power
(kw)
Total Weight
(excluding motor)(t)
Over Dimensions
(LxWxH)(mm)
CPE-250x400250x40021020-805-21300152.81450x1315x1296
CPE-400x600400x60034040-10016-64275306.51565x1732x1586
CPE-500x750500x75042550-10045-1002755510.31890x1916x1870
CPE-600x900600x90050065-16048-12025055/7515.52305x1840x2298
CPE-620x900620x90050095-14550-11225055/7514.32540x1876x2338
CPE-750x1060750x106063080-140115-208250110282450x2472x2840
CPE-800x1060800x1060650100-200136-229250110302610x2556x2800
CPE-870x1060870x1060670200-260288-33625011030.52660x2556x2800
CPE-900x1200900x1200750100-200144-304200110503335x3182x3025
CPE-1000x12001000x1200850195-265315-342200110513435x3182x3025
CPE-1200x15001200x1500950150-350300-800180160100.94200x3732x3843
CPE-1500x18001500x18001200220-350450-10001802801225160x3660x4248
CPEX-150x750150x75012018-488-25320153.51380x1658x1025
CPEX-250x750250x75021025-6013-35330224.91545x1667x1330
CPEX-250x1000250x100021025-6016-5233030/376.51530x1992x1380
CPEX-250x1200250x120021025-6020-60330377.71900x2192x1430
CPEX-300x1300300x130025020-9020-8530075111570x2320x1724

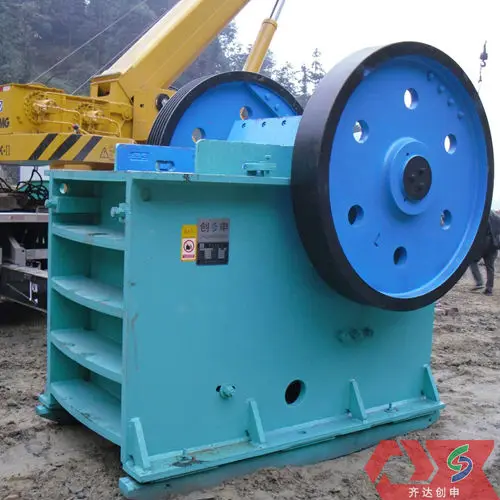

pe jaw crusher 17

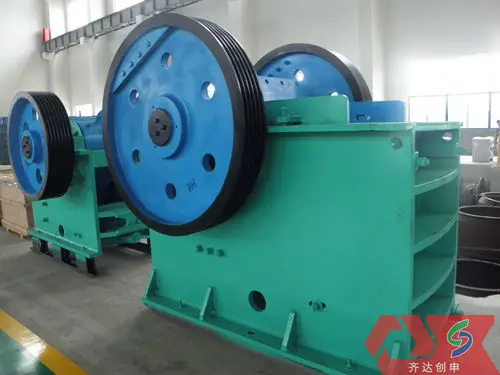

pe jaw crusher 19

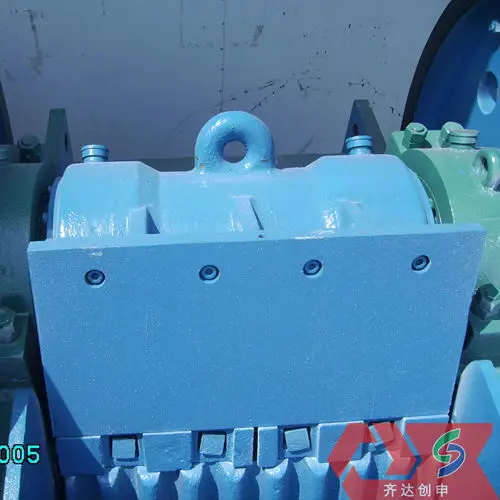

pe jaw crusher 12

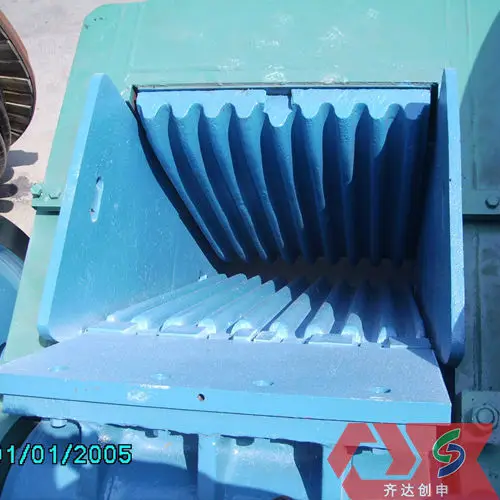

pe jaw crusher 11

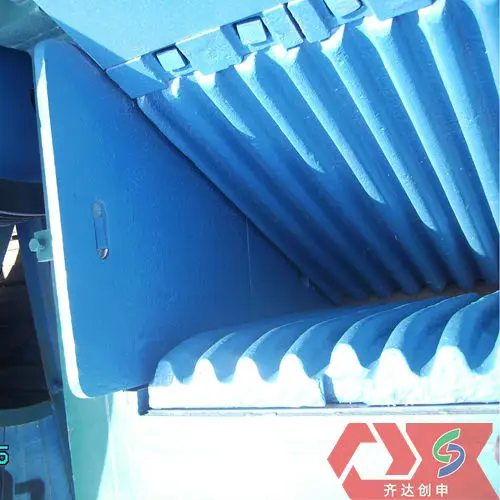

pe jaw crusher 13

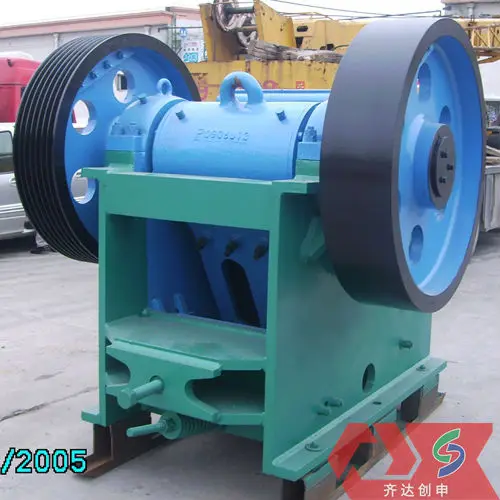

pe jaw crusher 10

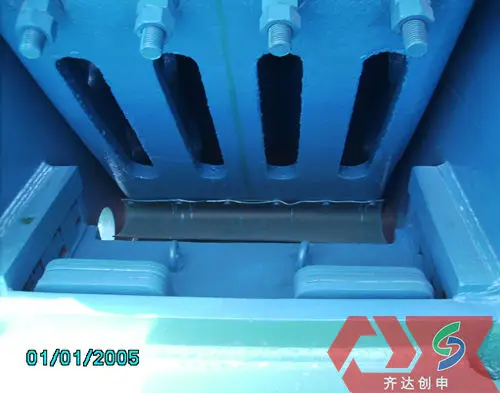

pe jaw crusher 14

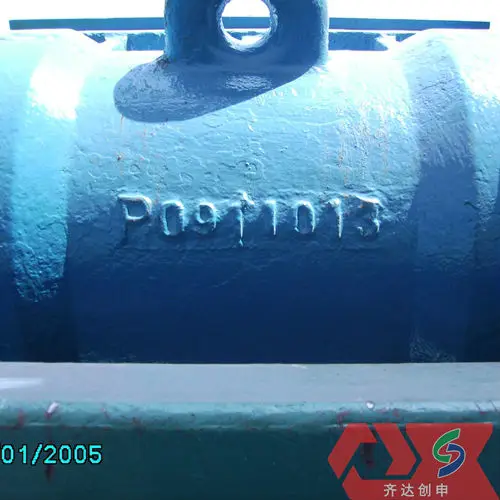

pe jaw crusher 15

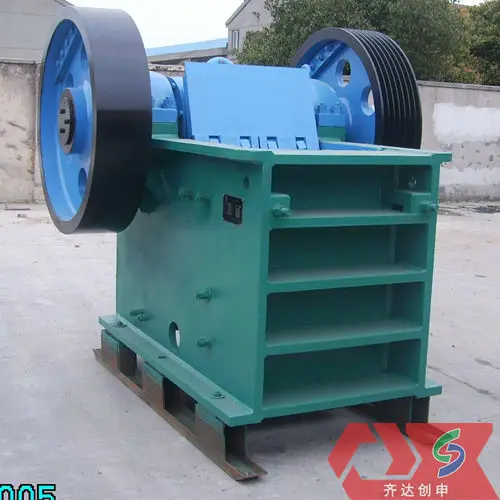

pe jaw crusher 8

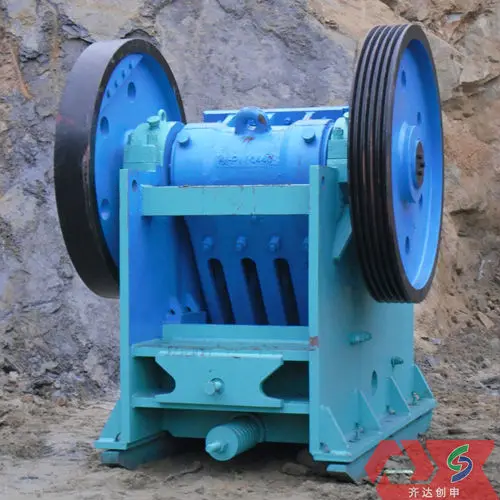

pe jaw crusher 16

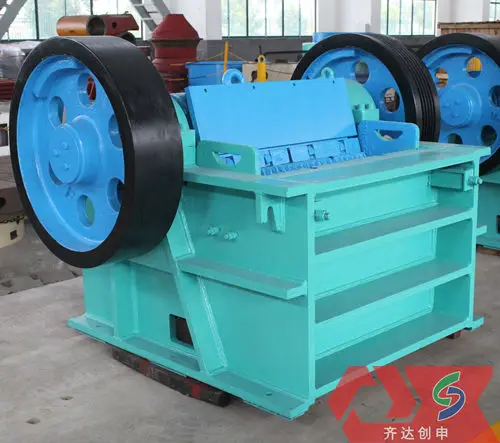

pe jaw crusher 5

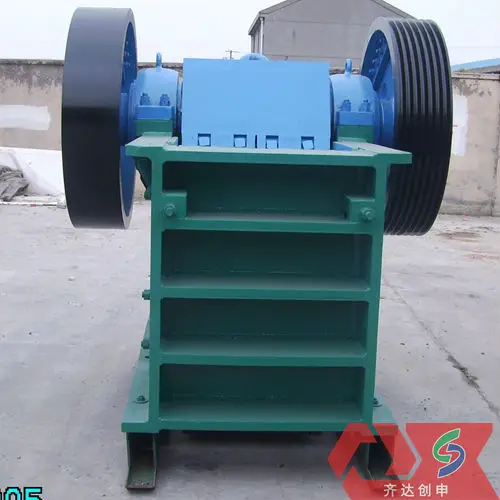

pe jaw crusher 7

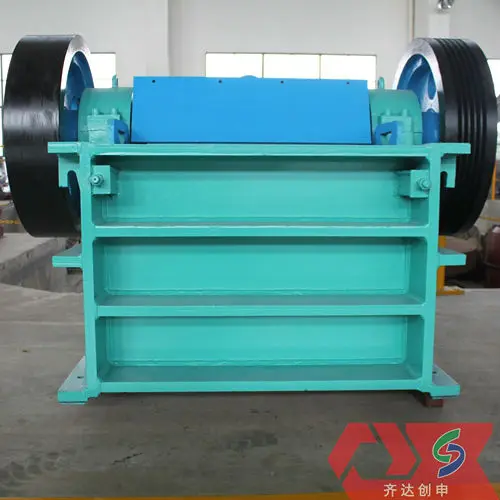

pe jaw crusher 2

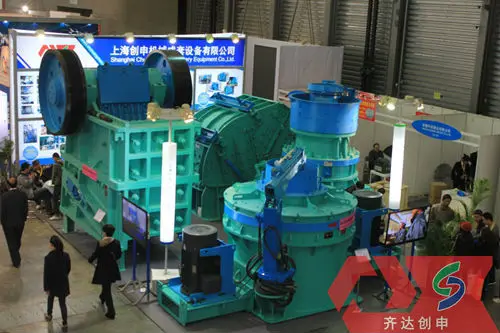

IMG_3980
