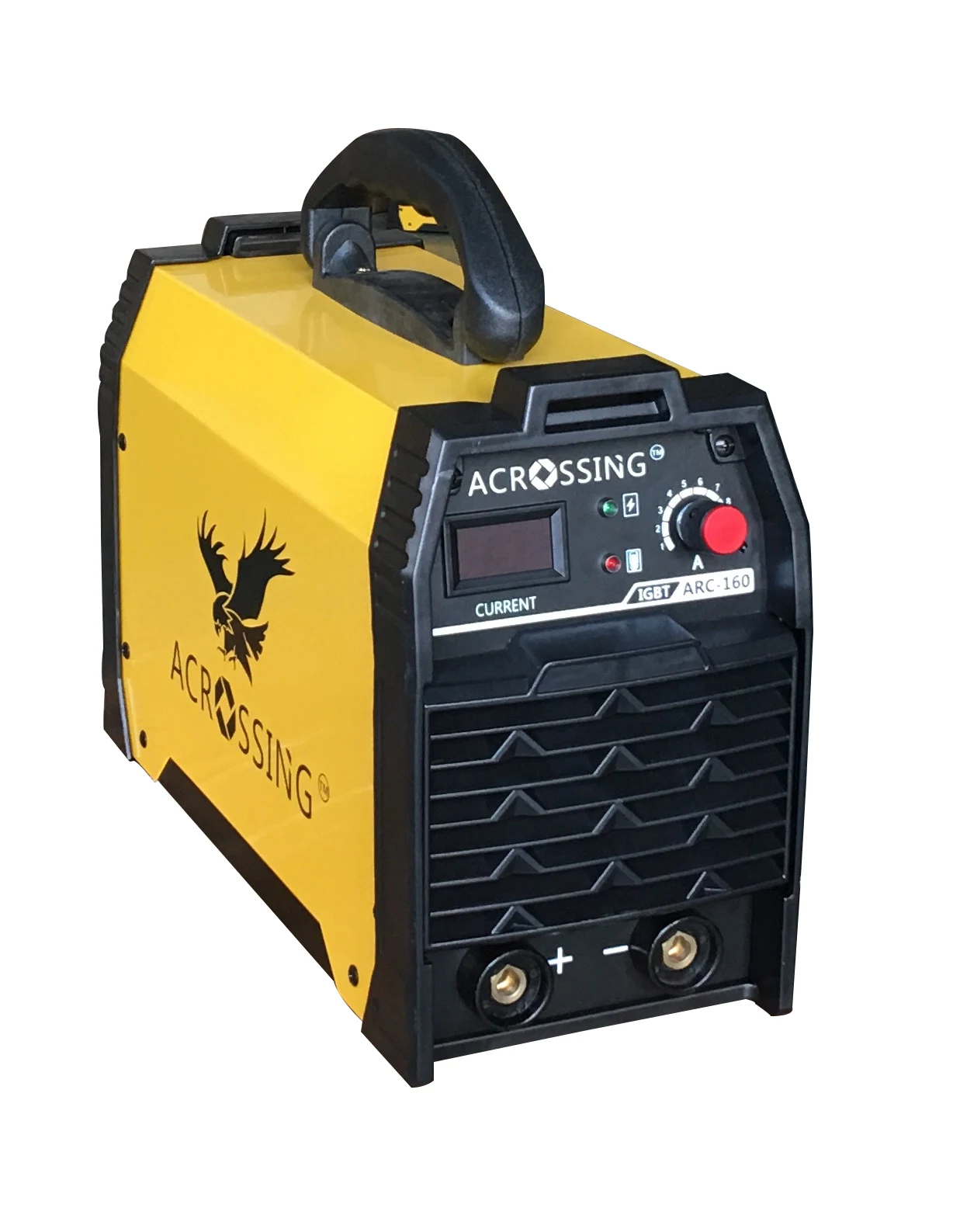

ARCOSSING Brand ARC 160 220V INVERTER ARC MMA Welder welding machine

Product Overview

Description

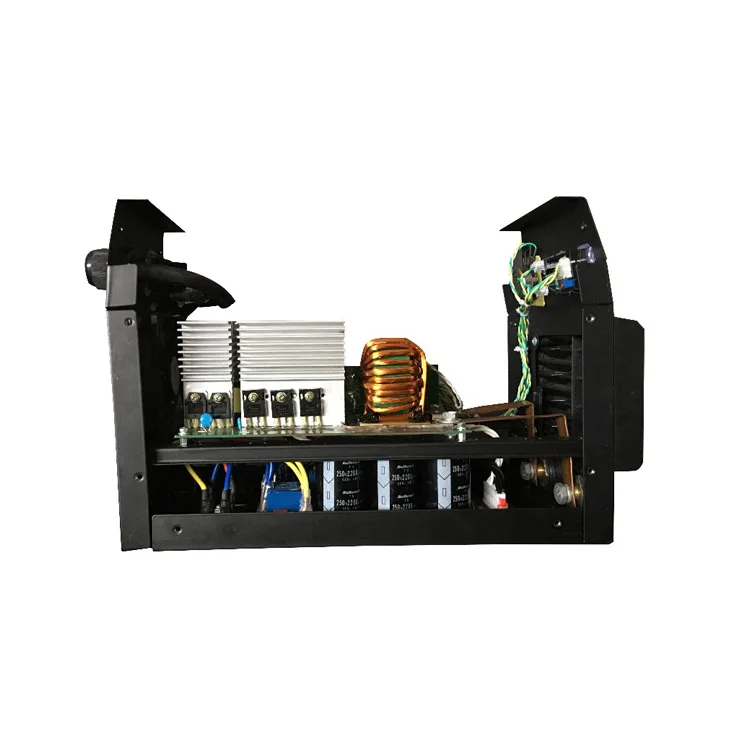

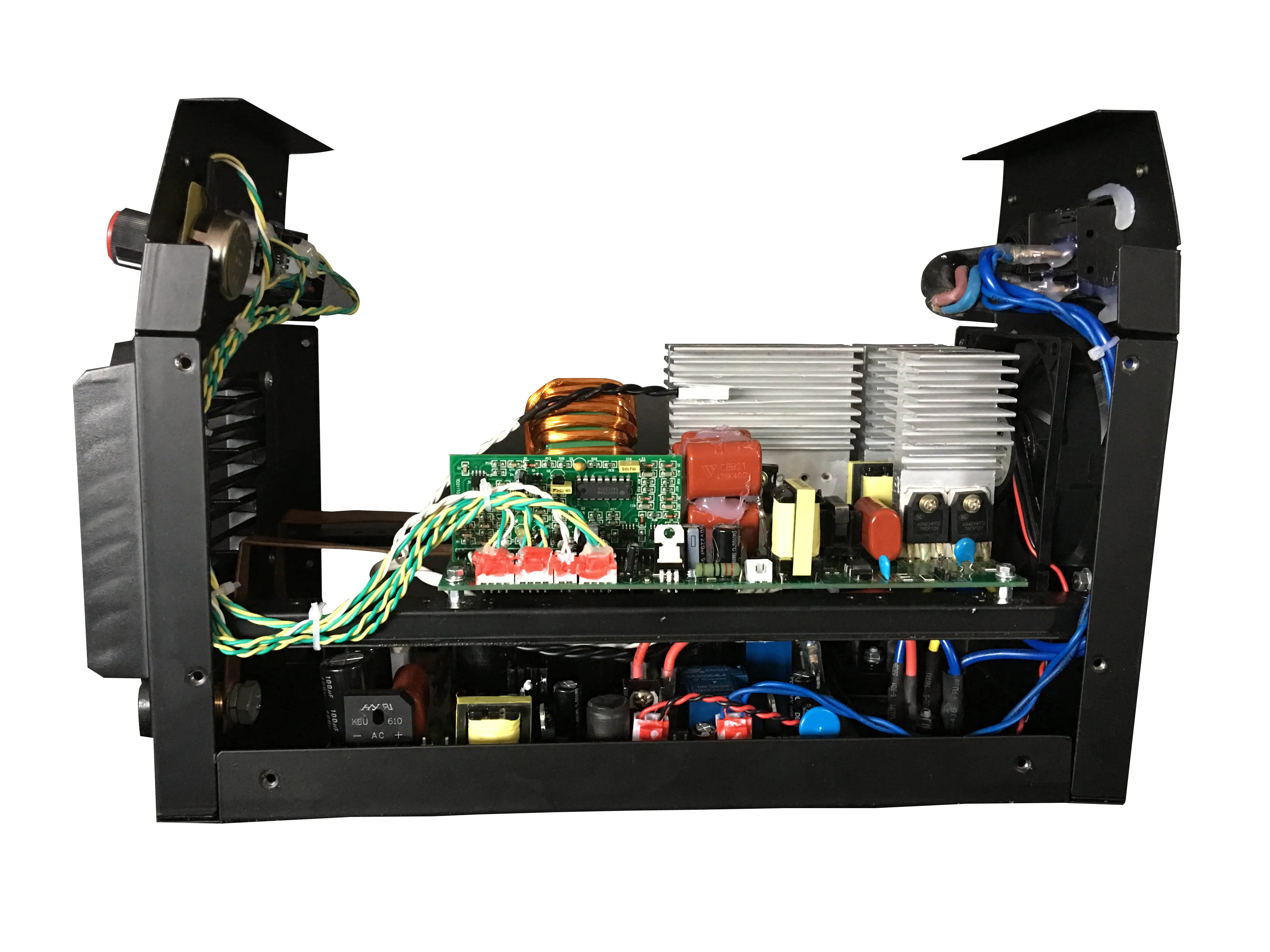

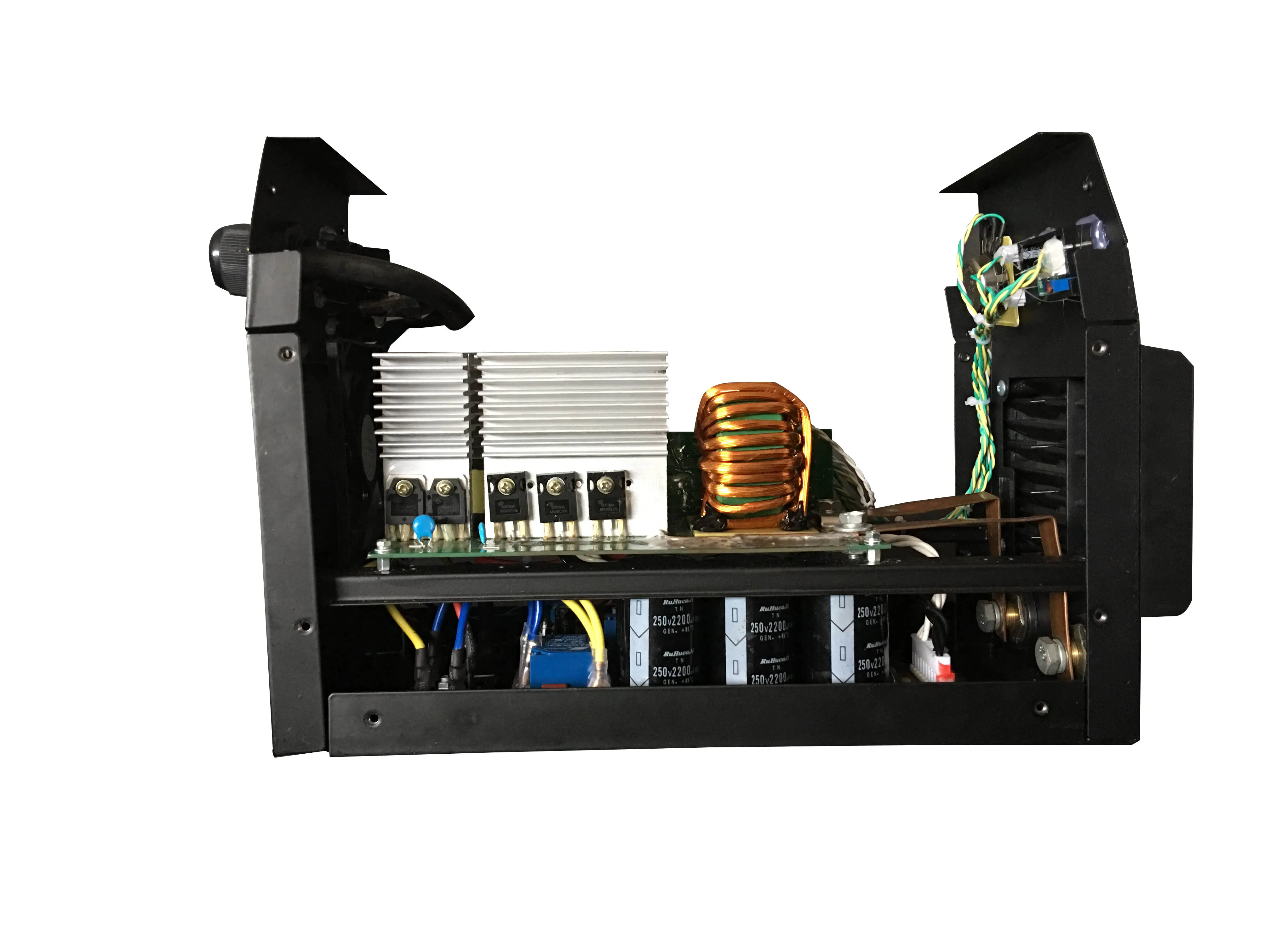

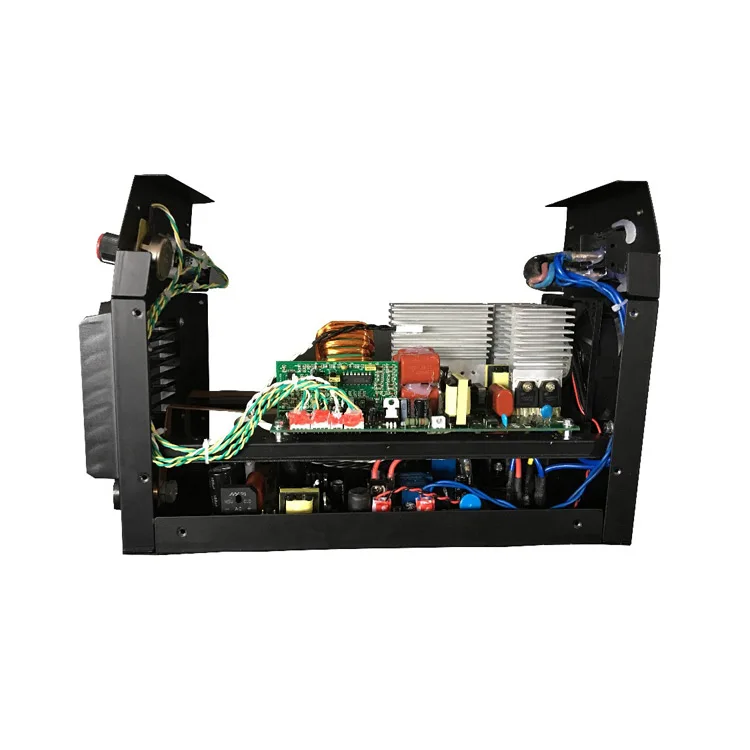

MMA inverter machines are for electrode welding. We supply both IBGT and Mosfet machines according to the customer's requirement.  Our machines have the following charactors:

1. small volume, light weight, efficient energy-conservation

2. easy to start ARC.

3. stable ARC and little spatter

4. good welding quality
5. over-load and over-heat protecting

6. one year warranty

7. OCV availabel





Item	Unit	ARC120 (IGBT)	ARC160 (IGBT)	ARC200 (IGBT)
Power Supply	V	AC220±15%	AC220±15%	AC220±15%
Input Power Frequency	Hz	50/60	50/60	50/60
Input Power Capacity	KVA	3.3	4.7	6.5
Output Current	A	20-120	20-160	20-200
No-load Voltage	V	65	65	65
Duty Cycle	%	35	35	35
Power Factor	cosΦ	0.93	0.93	0.93
Efficiency	%	85	85	85
Protection Class	----	IP21S	IP21S	IP21S
Insulation Class	----	F	F	F
Dimension	CM	40*21.5*29	40*21.5*29	40*27.5*34.5
QTY for 20 FEET CONTAINER	PC	650	650	550
