New design model solar collector made in china

Product Overview

Description

Zhejiang Younn Solar Water Heater Co.,Ltd

Integrated Non-pressurized solar water heater



Product material:



Detailed key specification

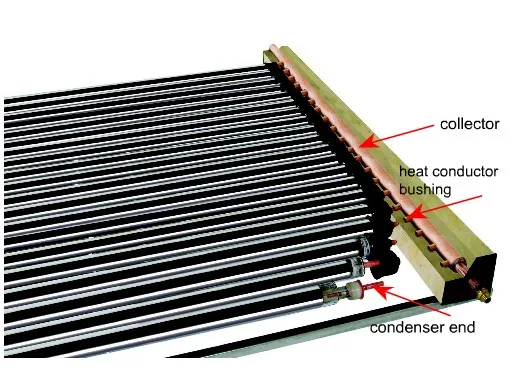

Tube type	Vacuum tube/copper tube
Tube specification	58-1800-10/20/25/30
Tube material	Borosilicate glass

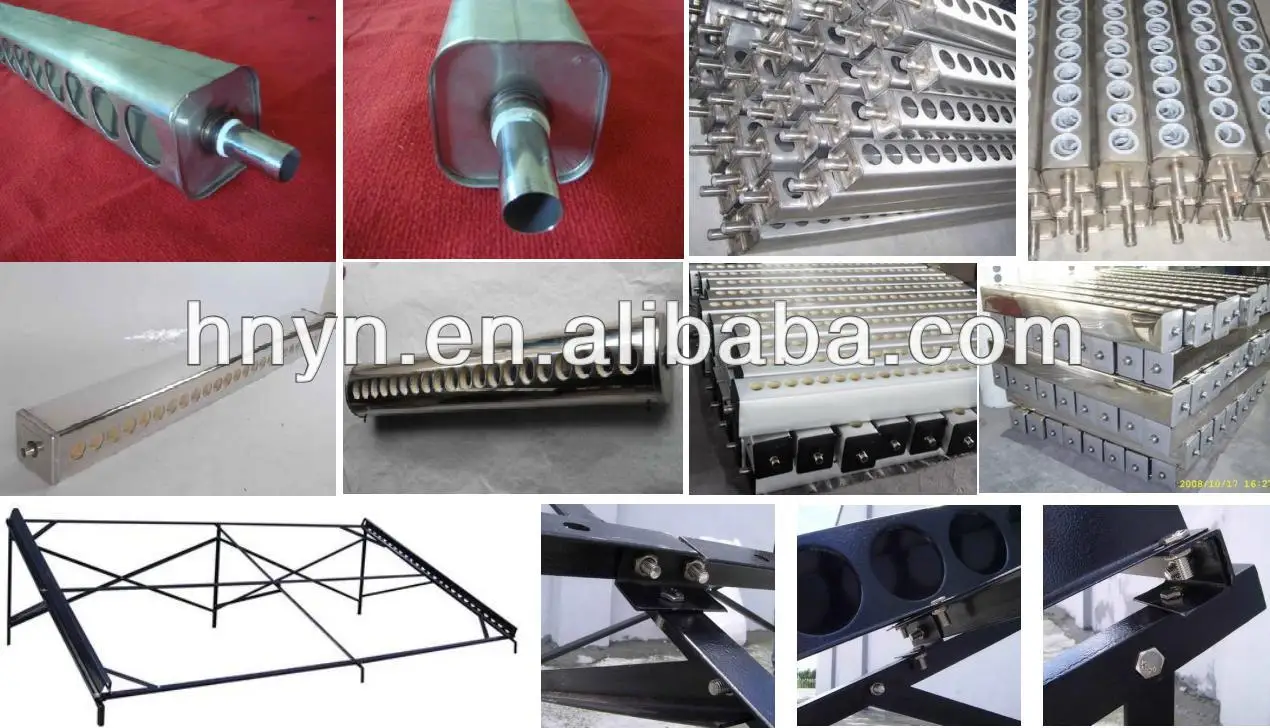

Frame	Coated galvanized steel-1.5mm;stainless steel SUS304 -1.2mm
Insulation layer	Polyurethane 50/55mm;rock wool 50/55mm
Heat preservation	72 hours
Anti-freezing	>-35degree
Hail resistance	25mm

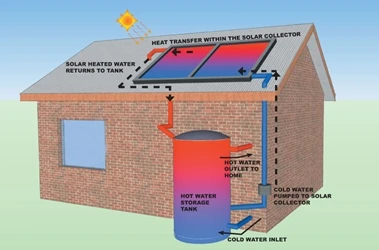

Heating system type	Thermosyphon (passive)
warranty	3 years















Younn Solar water heater system features

1. Reasonable price and reliable solution, Simple structure, Easy installation
2. High efficiency
3. Withstands water pressure no more than 0.1MPa
4. Operated without any power supplying
5. Electric heater can be used as back up in rainy days
6. Hot water can be used directly, or can be used as a pre-heated

7. with first-class teaching, class design, first-class technology, first- class equipments, first-class service, and building first-class quality

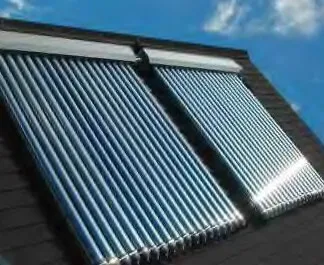

8. designing for flat and inclined roof.

Younn Solar Water Heater Co.,Ltd pass certification
