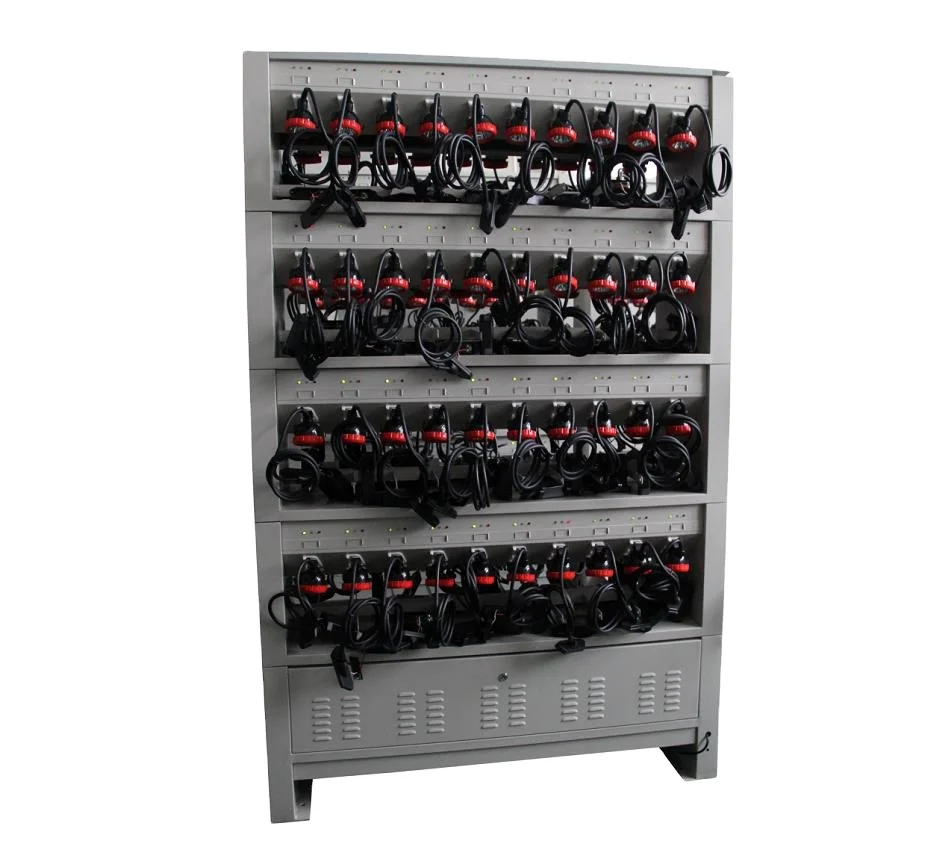

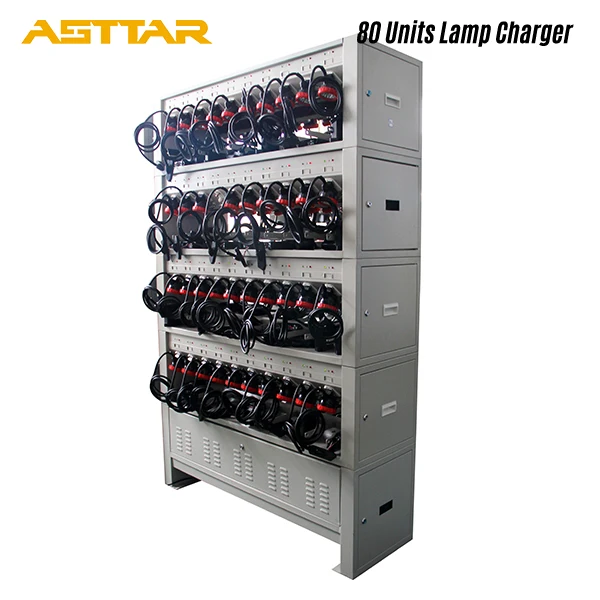

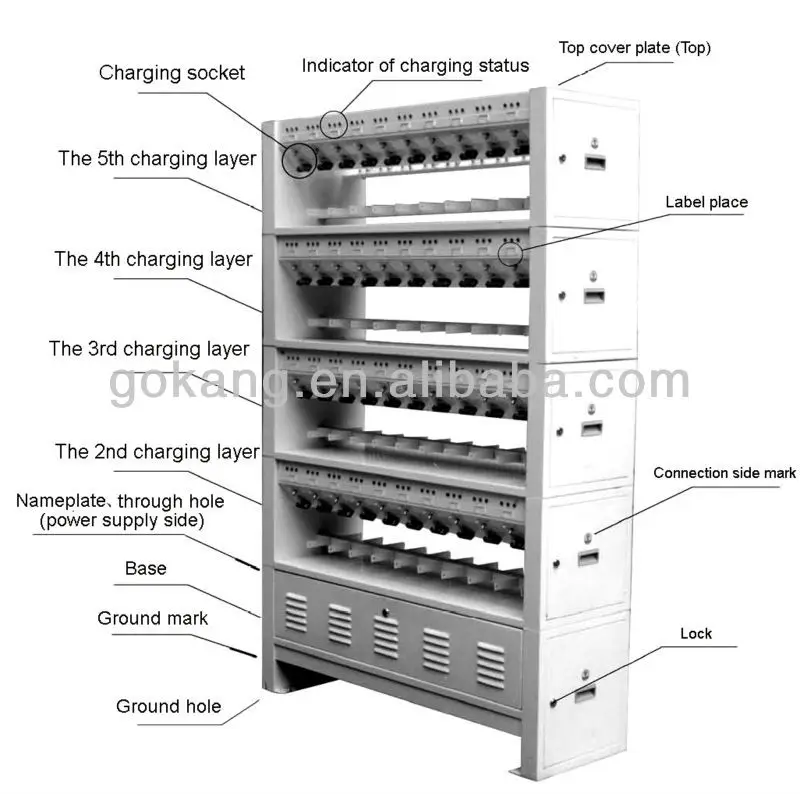

KZC80A Rack charger for Miner's Cap Lamp
Application
It is a special charger for LED miner’s cap lamp, adopts power switch circuit, double color indicating light, it has high mechanical intensity, wide range of voltage, clear to show the charging status, convenient to use, safe and reliable etc.
Main specification
|
Item |
Main specification |
|
Rated input voltage |
85-250V/50Hz |
|
Rated output voltage |
DC(6±0.5)V |
|
Max charging current |
1000mA per cap lamp |
|
Charging quantity of each layer |
20pcs |
|
80pcs |
|
|
Max. power |
640W |
|
Base size |
1160×380×400 |
|
Rack charger size |
1160×380×350 per layer |
|
Overall size of rack charger |
1160×380×1820 |
|
Weight |
|
|
Working conditions |
working temperature:(0-40)°C, relative humidity≤90%, no conductive and explosive dust; well ventilated |


![]()
