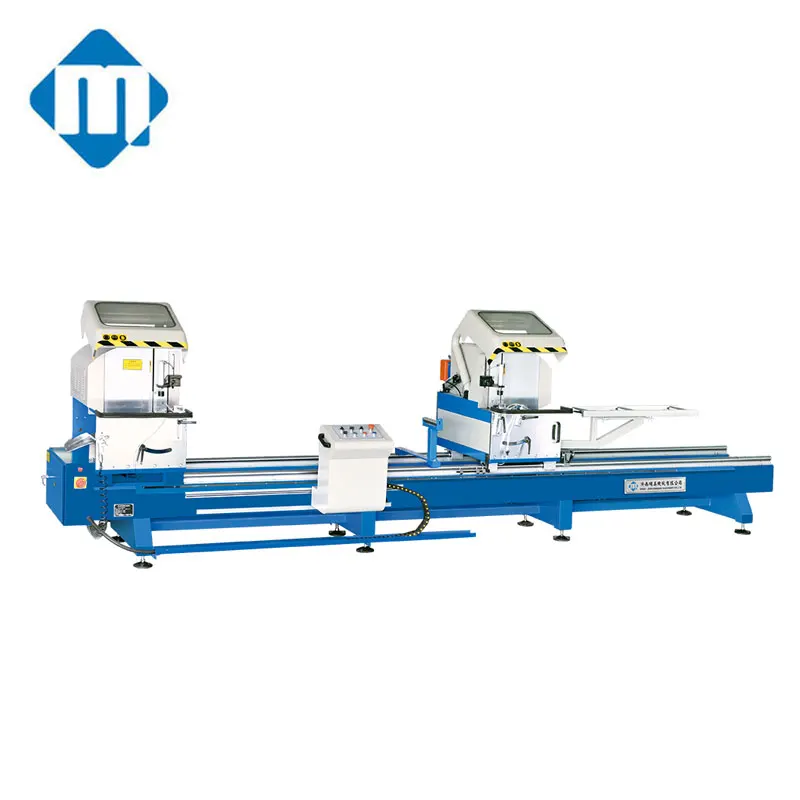

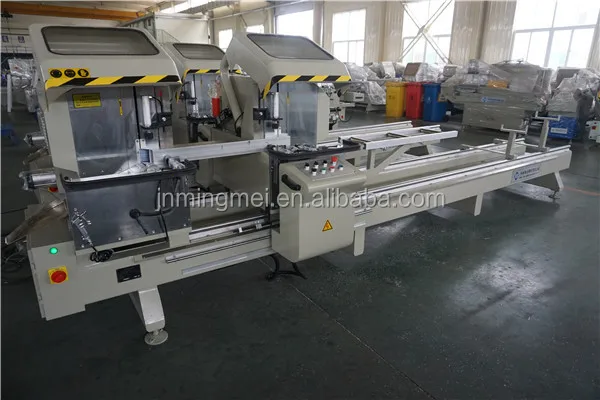

Mingmei Factory Supply CNC Precise Aluminum cutting Saw / Precision double head cutting saw JZ2B-500*4200 with CE certificate
Product Description
Feature
1. The system adoped the mitsubishi Touch screen man-machine interface, can support the USD mouse, quick responsea and easy operation. (SIEMENS system optional).
2. Imported carbides blade is of accurate processing and high endurance.
3. Saw blade rotates smoothly due to the high accurate spindle
4. Uniform speed feeding and smooth motion is due to air hydranlic damping cylinder.
5. The feeding system adopts the imported linear guide pair, with high accuracy and stability
6.Two saw heads are adjustable and cut the profiles in 67.5°, 45°, 90°
7.Auto open and close shield maked the operation safety.
8.Right head feeding adopts high lead ball screw with high accurate driving, locating and smooth working.
9.This machine uses the CNC control technology, profiles of different specifications can be
completely processed under the expected size.
10. Vertical and horizontal clamping cylinder.
11. Spraying cooling system.
Parameter
Air Pressure
0.5~0.8MPa
Saw blade specification
60L/min
Input Voltage
380V 50Hz or As Customer need
Input Power
5.9Kw
Air comsuption
80L/min
Motor rotary
2800r/min
Cutting width*height
120~160, 130~200
Cutting lenth
400-4200mm
Saw blade specification
Ø500×Ø30
Cutting angle
90° 67.5° 45° 22.5°
Overall size
5530*1700*1950mm
Weight
2250kg
Main accessory
Saw blade
Japan wagen
Solenoid valve
GermanyFESTO
Cylinder
PC(FESTO Joint Venture Brand)
Motor
AnhuiSanyang (Best Chinese Motor Brand)
Air Filter Device
STNC
Electrical Button and Switcher
Schneider
AC Contactor and Circuit Breaker
Schneider
Approach Switch
Japan Omron
Linear bearing system
Linear (South Korean brand)
Controlling System
Taiwan Delta
Standard accessory
Saw blade
1pcs
Work piece supports
2set
Air Gun
1pc
Complete tooling
1set
Certificate
1pc
Operation Manual
1pc
Detailed Images
Certifications
Packaging & Shipping
Company Information
Customers
Our Services
Remarks
1. All the electrical elements,Circuit breaker protection and AC contactors are schneider or other world famous brand.
2. International CE standard high flexibility, high shielding cables.
3. Warranty time: 1 year
4. Quotation Valid: 90 days
5. Payment terms: 30%T/T as deposit, 70% balance made before shipment by T/T
6. Delivery time: 30 days upon receipt of 30% deposit by T/T
7. After sales service:
1)24 hours service on Internet and Telephone, free instructions and problem solving
2) Free training to make sure a master of the operating of the machine for the person who come to our factory 3)User-friendly English manual or operating video for machine using and maintaining
4) on-the-spot training, installation and repairing can be met if required.
