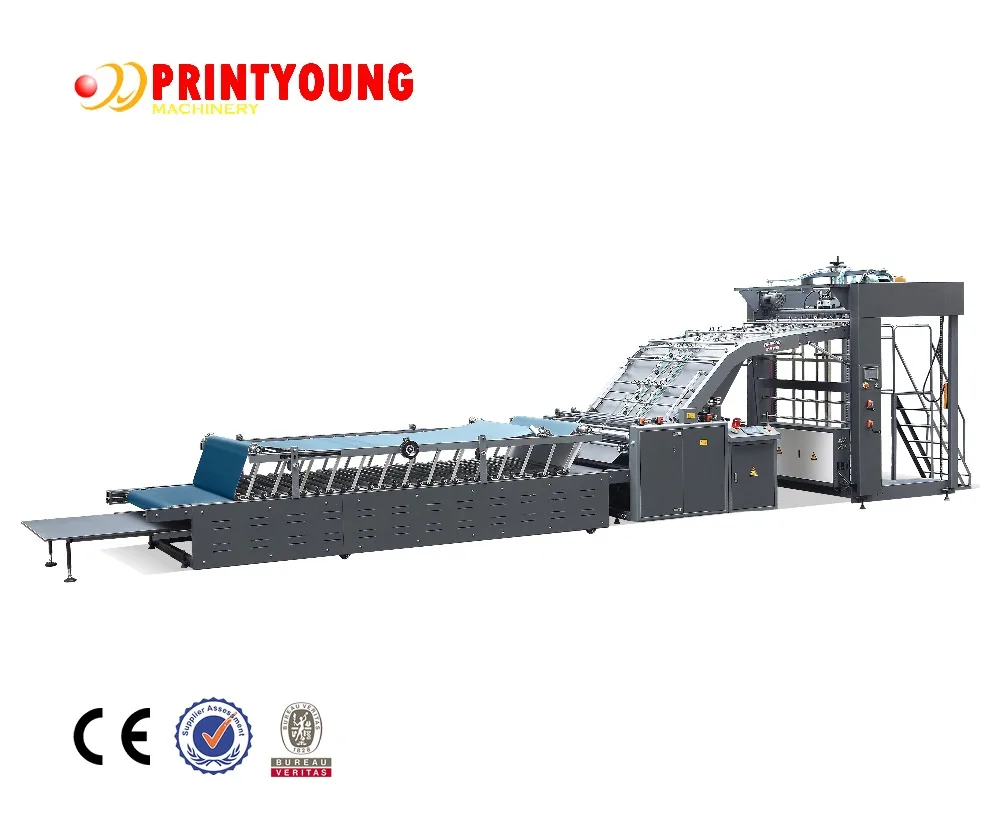

YB D Series Automatic & Manual Flute Laminating Machine

YB-D Series Automatic & Manual flute Laminating Machine

Brief Introduction:

Manual & Auto Laminating machine, according to the actual production of users to select manually or automatically paper feeding, such as large volume / paper smooth, available feeder automatic paper feeding, otherwise can choose to manually paper feeding, regardless of the long working ,short working ,quality sheets and bad paper.

Feature:

1. Manual /Auto two function universal model;

2. Long working, short working;

3. Quality paper, bad sheets;

4. Flute laminating, cardboard laminating;

5. cardboard to cardboard ( option );

6. Small quantity working  -- Manual Feeding

7. Big quantity working   -- Feeding Feeding

8. Curve top sheets – Manual Feeding

9. Filmed Paper

Function Introduction:

1) Unique front gauge positioning system, positioning accuracy, the bottom paper never exceed, top paper exceed can be adjusted.

2) Equipped with high precision and high speed feeder system, strengthening paper feeding device, feeding smoothly.

3) Bottom paper using suction automatic feeding, according to main machine running speed, automatic tracking continuity

4) Imported electrical components ensure the stability of the electrical system. PLC tracking technology, automatic fault alarm

5) Fully automatic glue supplement system, can automatically replenish the loss of the glue, and cooperated with the glue recycling;

6) The scientific design of the roller line speed make sure the uniformity of the glue, at the same time to avoid glue being threw off during high speed running

7) Floating type movable pressing belt, ensure that the laminated paper will not be crushed and also ensure the sheets smooth straight;

8) Independent water tank control cycle, ensure the bottom paper back dry and clean, and cleaning glue rollers, glue collecting tank ,back glue tank at the same time;

9) Single side adjustment of the pressure roller, and equipped with a pressure gauge, with the record of the data, easy adjustment when change the size of bottom paper

Specification:
