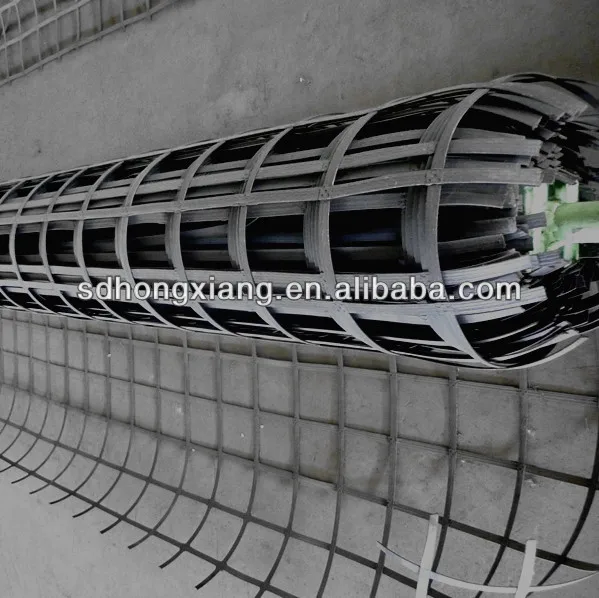

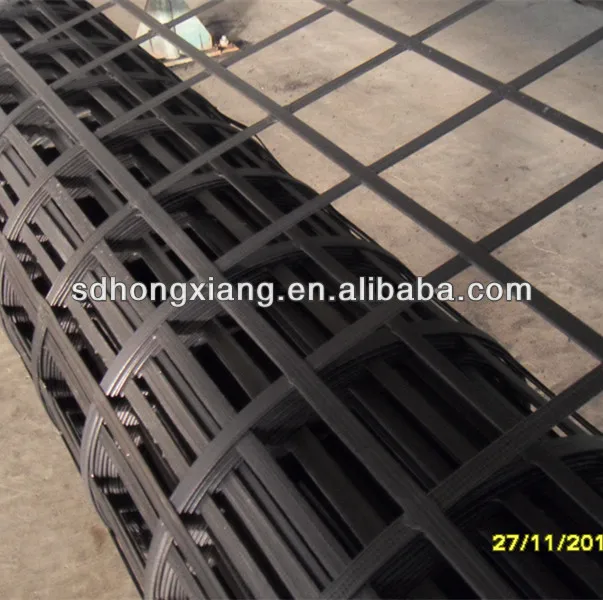

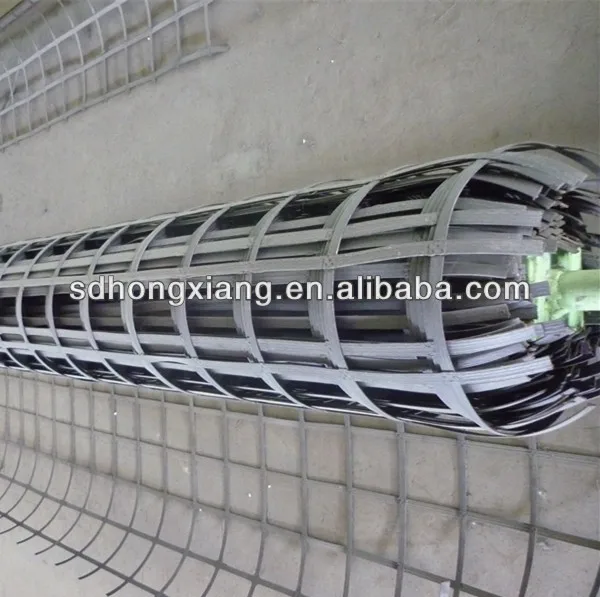

The steel plastic composite geogrid uses high tensile wire (or other fiber) specially handled
and polyethylene (PE) with other assistance. Then squeeze it out and make it become composite
highstrength antipull belt and the surface has rough embossing then it is reinforcement earthwork belt.

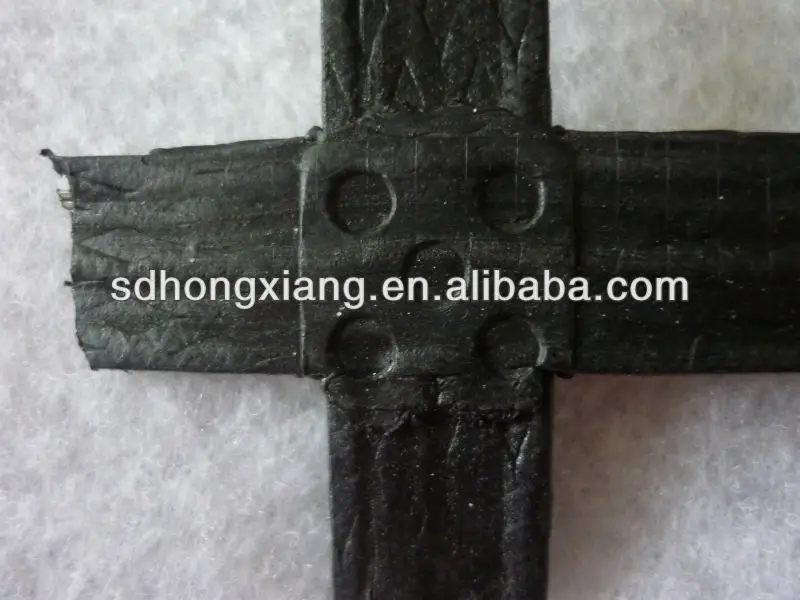

Warp knitting vertically and horizontally using this single belt and welding the joint using a special welding
techology to molding is reinforcement geogrid.
Features
1.High tensile strength in both the warp and weft directions
2. Low elongation
3.Excellent temperature range
4.Good anti-age and alkali-resistance
5.Reduce construction cost, extend service life of road and prevent deflection cracks.
Application
1.Road surface reinforcement of road, ralway and airport road
2.Maintenance, reconstruction and widening of the old road surface
3.Reinforcement of soil roadbed, irrigation channels and water dams
4.Strengthens, the bridge connection surface
Product Specifications and Technical Parameters
Item
Specifications GSZ
Tensile yield strength per long meter KN/M ≥
Longitudinal
30
40
50
60
70
80
90
100
125
150
Horizontal
30
40
50
60
70
80
90
100
125
150
Yield elongation rate%≤3
Longitudinal
3
Horizontal
3
Tensile strength when elongation rate is 2% KN/M≥
Longitudinal
30
40
50
60
70
80
90
100
125
150
Horizontal
30
40
50
60
70
80
90
100
125
150
Welding spot stripping strength ≥N
30
Remarks
Special specifications, manufacture as contracts or agreements. Usually, length of one roll is 50m and width of the extent is 26m.
NOTE:THE SPECIFICATION CAN BE CUSTOMIZED ACCORDING TO THE CUSTOMER’S NEEDS
Our Services
Quality assurance
1.On a regular basis or as per your request,we entrust national testing agencies to conduct quality inspections
2.Strictly in accordance with the ISO9001-2008 international quality system standard,we monitor and manage the whole process throughout production,quality testing,and measurement to ensure product quality
3. For quality-related construction delay or substandard construction(except for damage or losses due to customer’s responsibility or irresistible natural disasters),we have refunding,replacement,and repair services.We will respond to customers’ feedbacks on quality issues within 24 hours.
After-sales service
1.In order to provide customers with comprehensive technical support,we will provide technical and other related information upon request in a timely manner.
2.In required,we will appoint specialized technicians to the construction site to give technical trainings to construction people,and offer technical guidance throughout the whole construction process.
3.For damage due to shipment and delivery,after we receive the complaint,we will check the issure through provided pictures and videos.If our responsibility is confirmed,we wil offer free replacement.
4.When the construction is completed,as your request,our technical staff may participate in the final acceptance.
