Ophthalmic Microscope / Eye Operation Microscope / Eye Surgery Microscope

Product Overview

Description

Roslane Meditech offers various models of Export Quality Ophthalmic Microscopes, at most affordable price, as per the buyer's need.



Here, we are submitting, the Ophthalmic Microscope, Models ROM-6, as per the specifications given below:

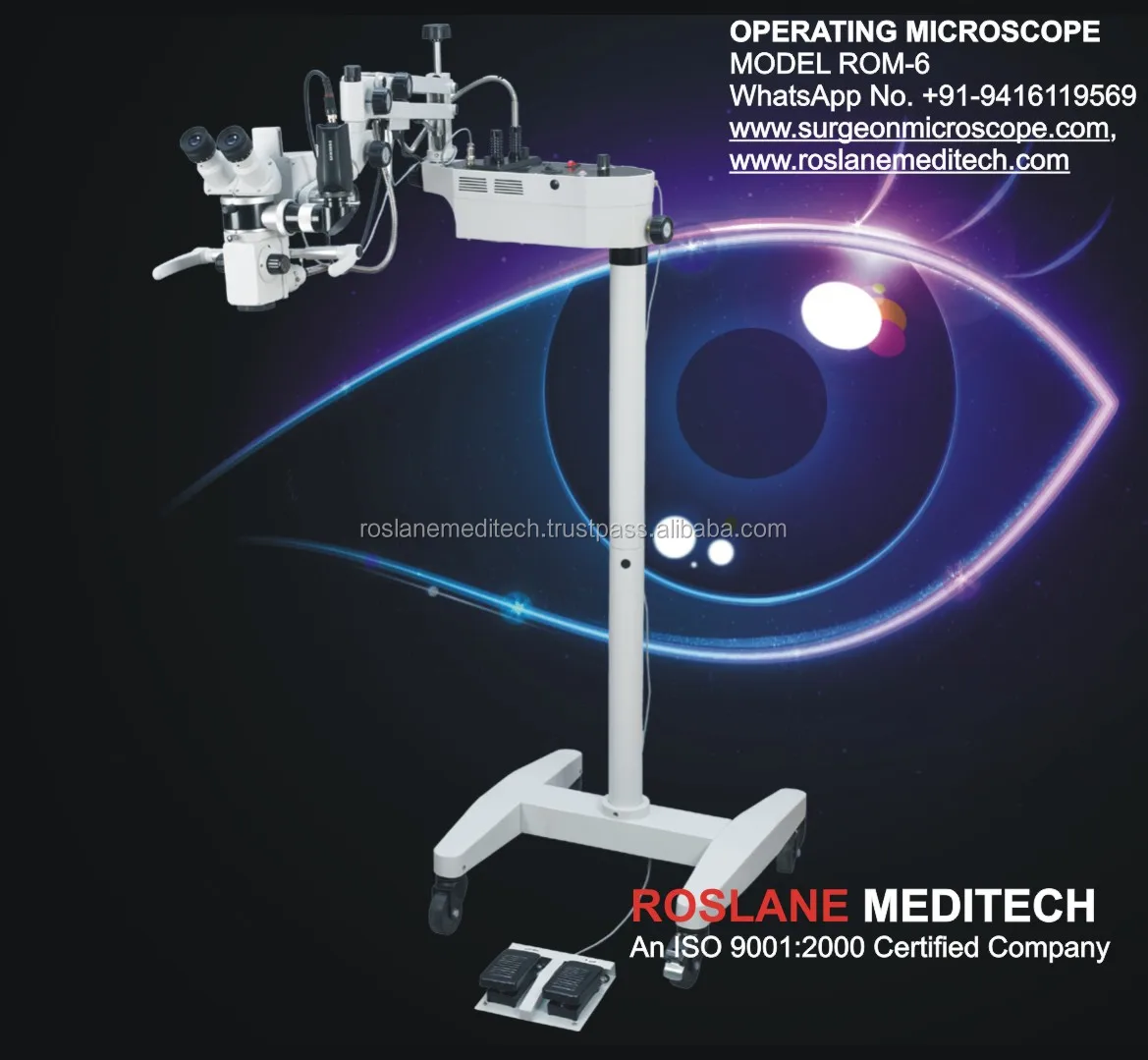

Ophthalmic Microscope, Model ROM-6



TECHNICAL SPECIFICATIONS:-

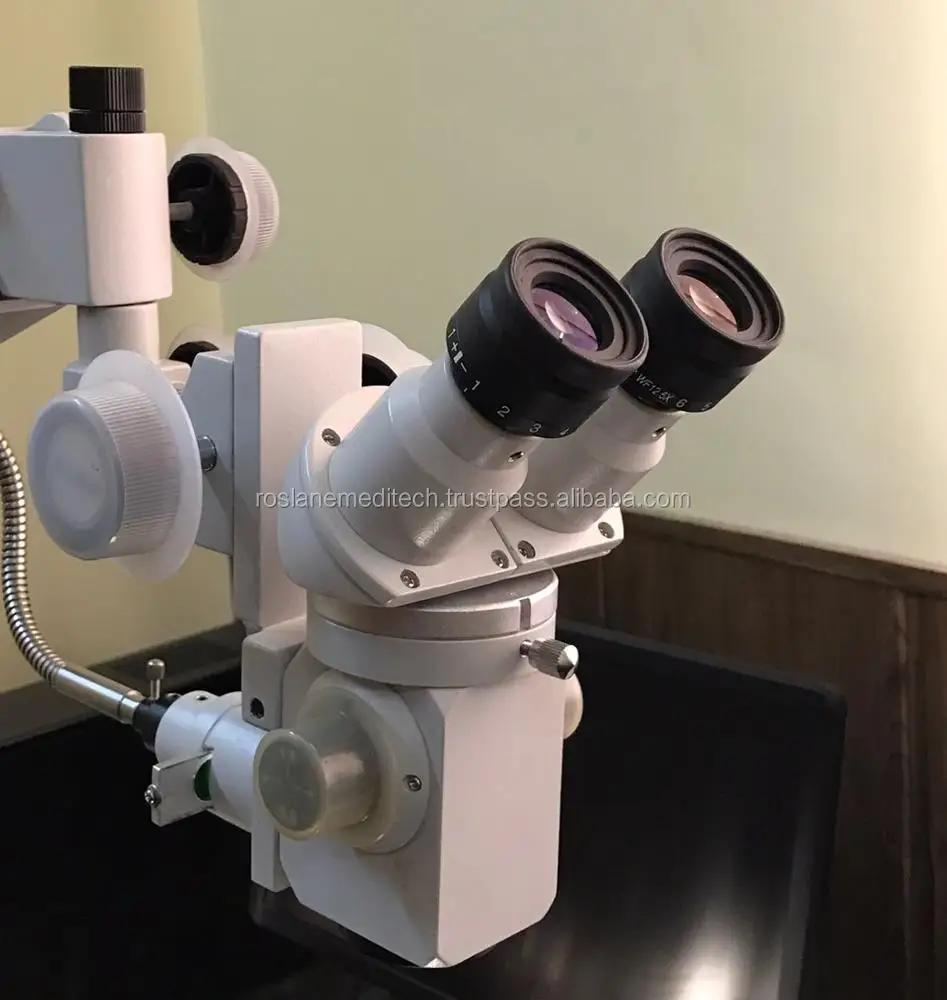

MICROSCOPE SECTION
Binocular Tube      : 45 degree inclined
Eye Pieces             : 12.5x/16mmDioptric Adjustment
Magnification Changes    : 3 Step Changer & 5 Step Changer
Total Magnification            : 7.5x,12.5x & 20x & 5x, 7.5x,12.5x,  20x & 30x

Objective            : F=175/200
Working Distance  : 175/200mm
Interpupillary Distance  : 55mmto 75mm
Adjustment Fine Focusing : Motorized Foot Focusing System

ILLUMINATION SECTION
Type     : By Optical Light Guide System
Light Source            : 24V/250W Halogen Lamp
Illumination Control  : Continuous Adjustment
Field of Illumination            : 70mm
Filter     :  Cobalt Blue, Red-Free,Heat Absorbing Filter

STAND SECTION
Type     : Floor Stand
Vertical Range of Counter Balanced Arm :400mm.

GENERAL INFORMATION
Base Size            : 600mm x 550mm
Weight  : 50kg Approx.
Height   : 1550mm
Electrical Power : AC 220V /110V

OPTIONAL ACCESSORIES
1.Beam Splitter with Camera Mount
2.CCD Camera
