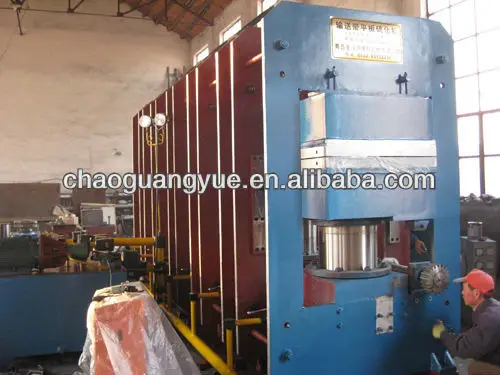

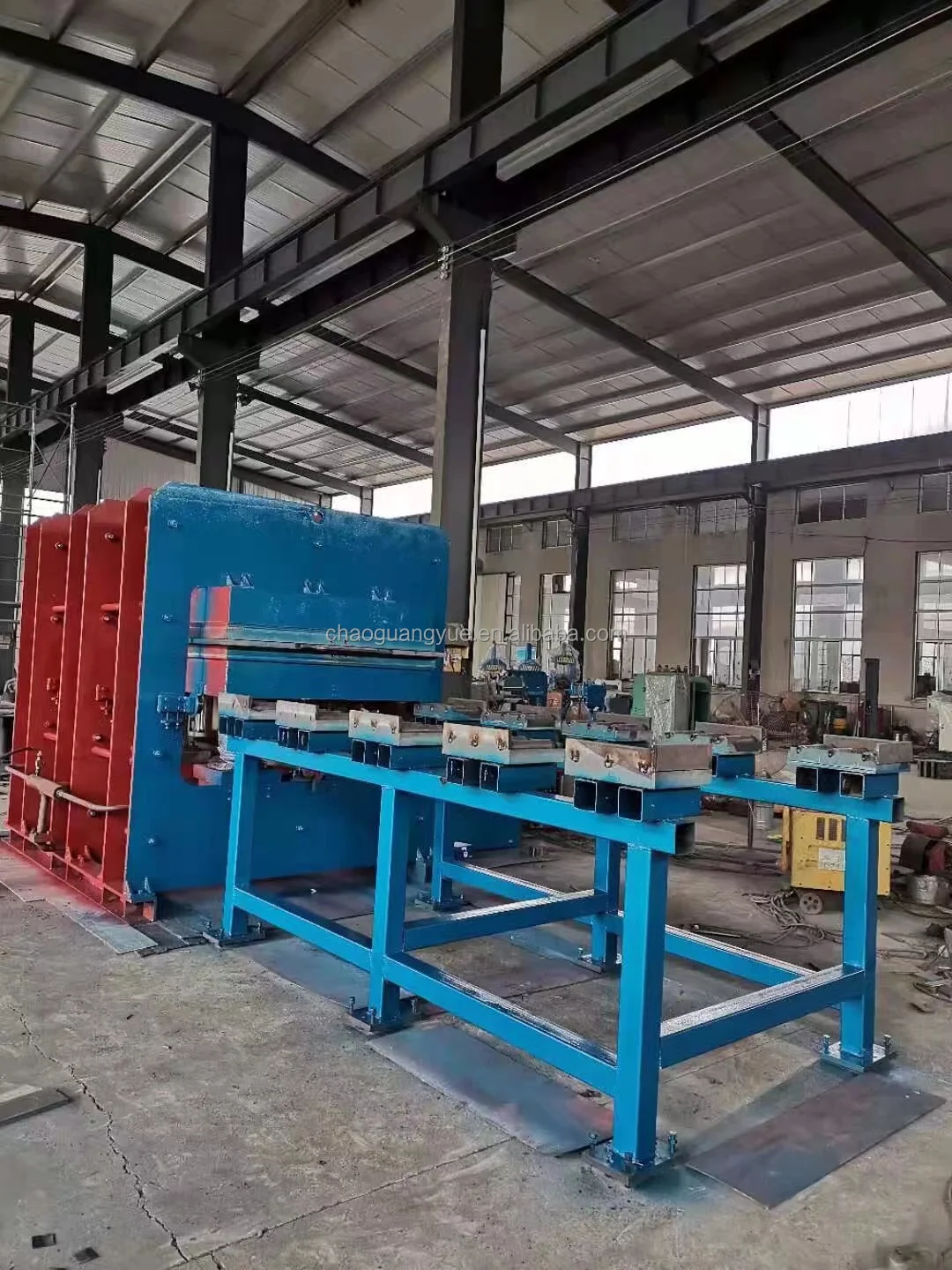

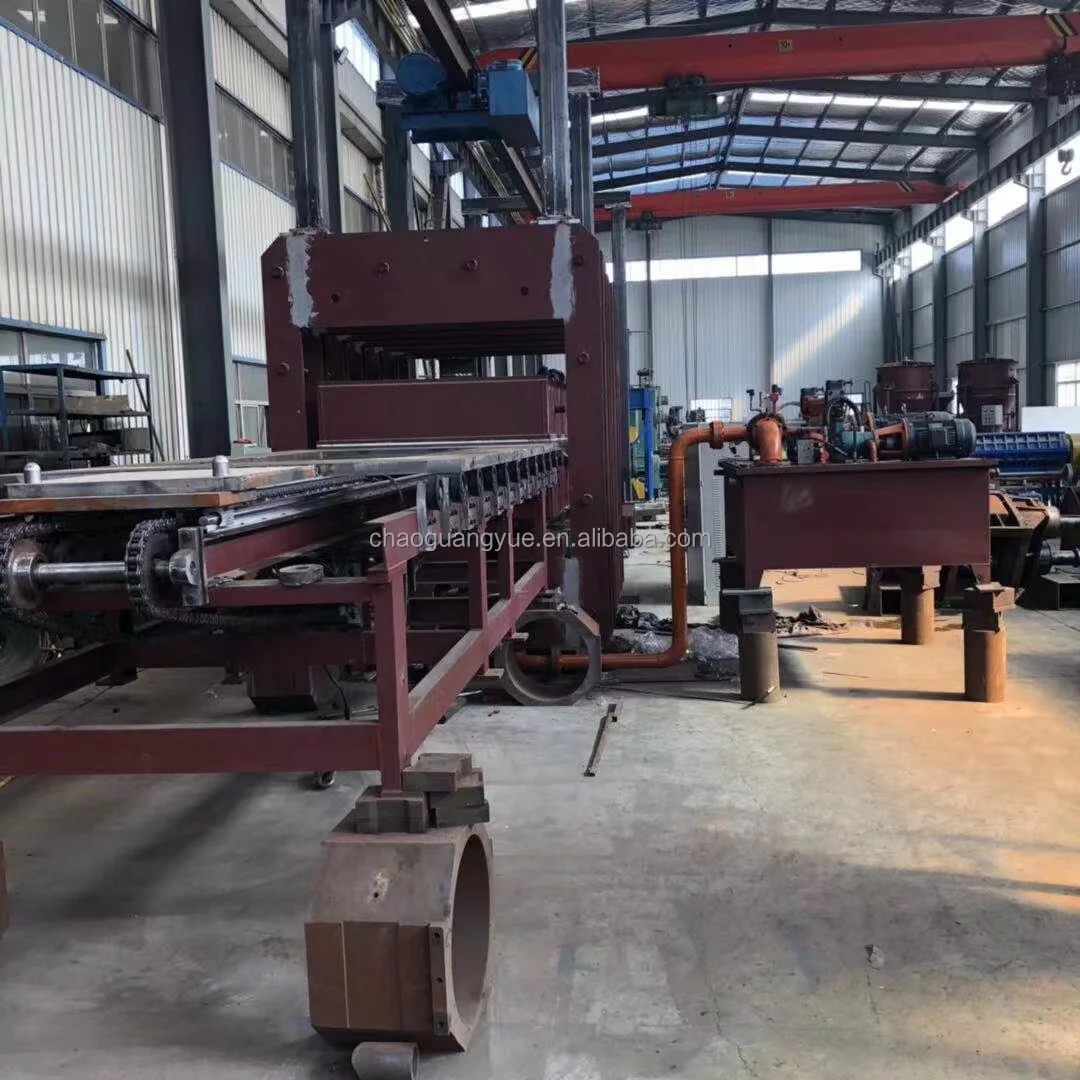

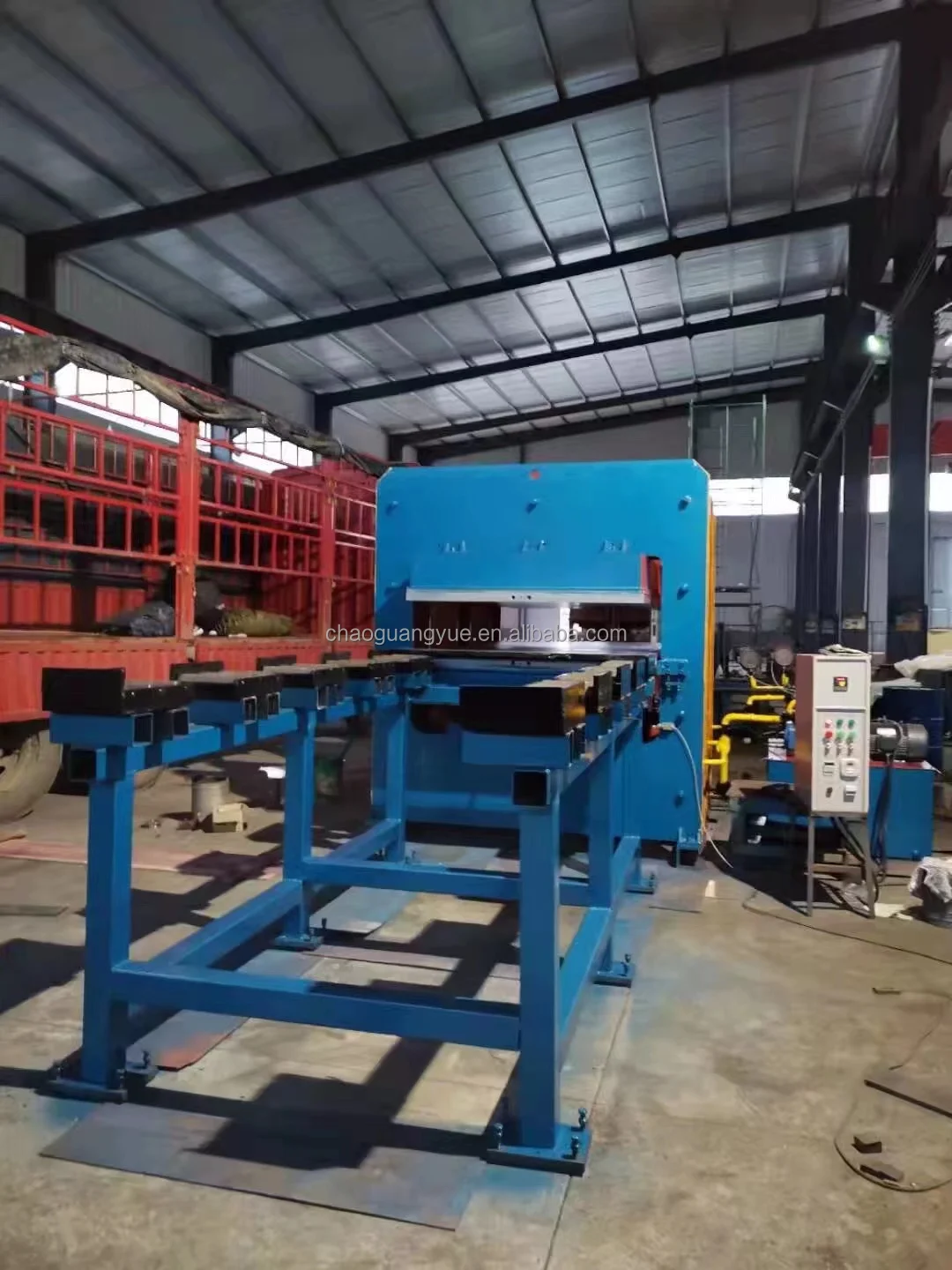

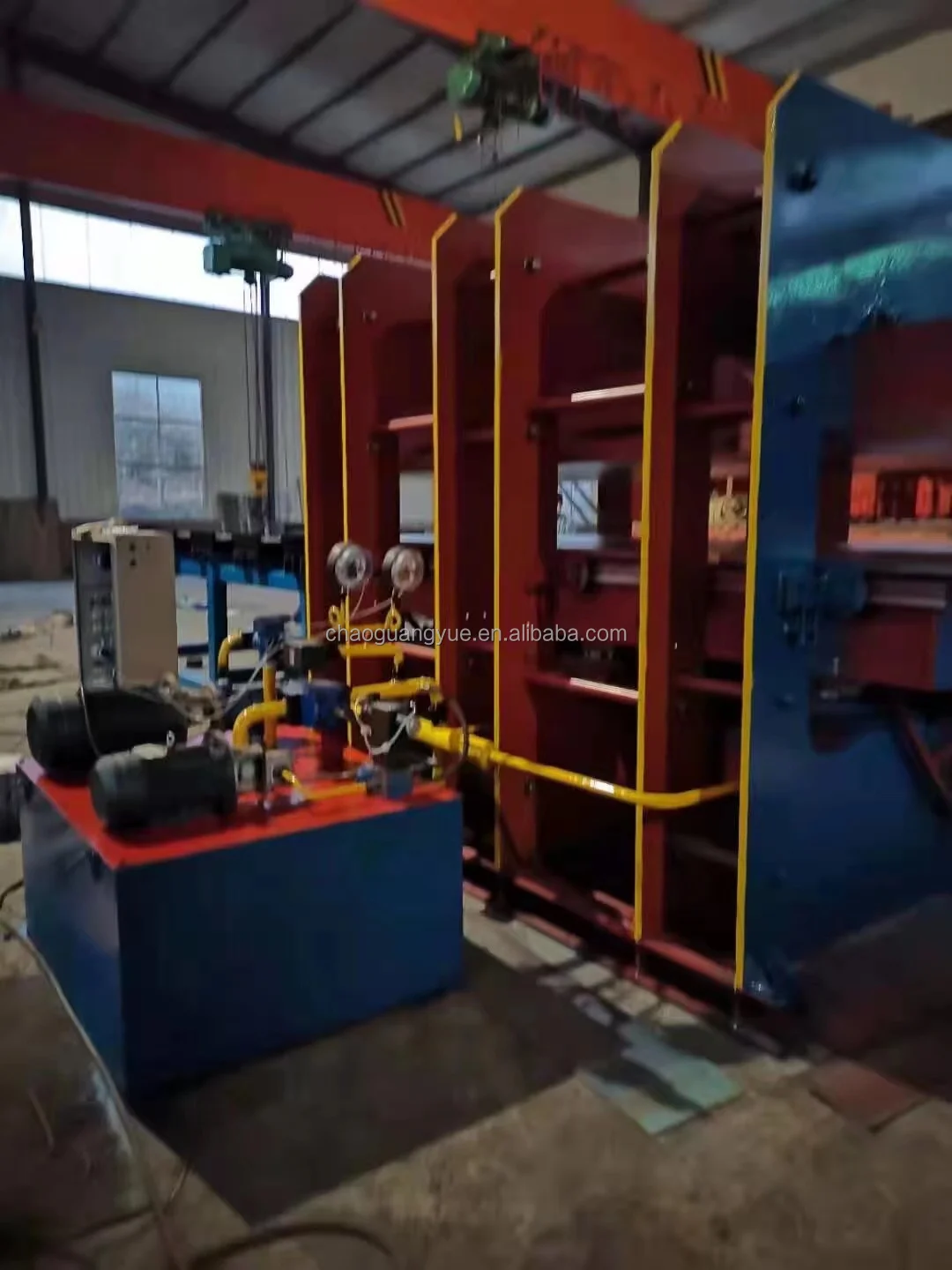

CE ISO certification portable conveyor belt hot vulcanizing machine

Product Overview

Description

CE ISO SGS certification portable conveyor belt hot vulcanizing machine



1. Application





It is mainly in use of vulcanizing various kinds of rubber pattern products.







2. Features about the rubber plate vulcanizing machine:







1) The body use frame type, mainly consist of top crossing, plate, table, piston, hydraulic cylinder and



frame. We put asbestos board between plate and top crossing, table, for its good heat insulation.



Use polyurethane material sealing ring between piston and hydraulic cylinder with good sealing



property. The piston material is chilled cast iron, hydraulic cylinder material is ductile cast iron,



weldment between top and bottom crossing



2)  Put holder and oil cylinder at the side of plate, push-off and reseting moulds are finished by oil



cylinder moving when using. There is not ejecting holder in manual ejecting mould structure ,but still



convenient when using



3)  Hydraulic system is consist of unipump, operating valve and control system



4)  Electric system is consist of oil pump motor and vulcanizing timing. When working pressure reach



22.1 mpa, electro connecting pressure gauge control, time relay on the faceplate is used for setting



vulcanizing time.  When reach the setting time, it will warn automatically,  push TA button can remove

warning





3. Technical parameter



Parameters/version	XLB400*400*2	XLB500*500*2	XLB600*600*2/4
Mould closing force	0.5	0.8	1.0
Hot plate spacing	125	125	125
Hot plate layer	2	2	2/4
Plunger stroke	250	250	250/500
Heating way	Electricity/steam	Electricity/steam	Electricity/steam
Main motor power	2.2	2.2	2.2
The thermal power	3kw/board	3kw/board	7.5kw/board
Size(l*w*h)	1600*400*1440	1450*690*1818	1880*780*1660
Weight(kg)	1500	1800	2500/3100
Platen unit area pressure	3.13	2.52	2.78

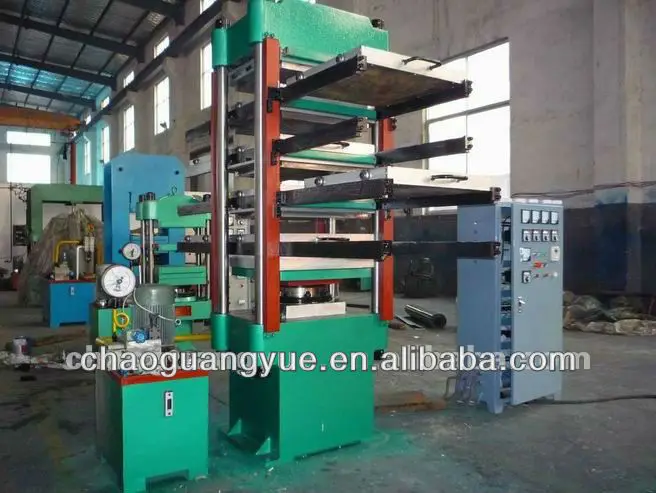

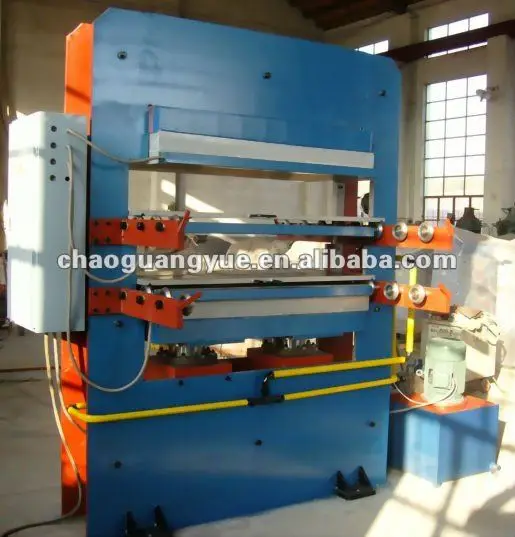

the four column and frame type rubber vulcanizing machine

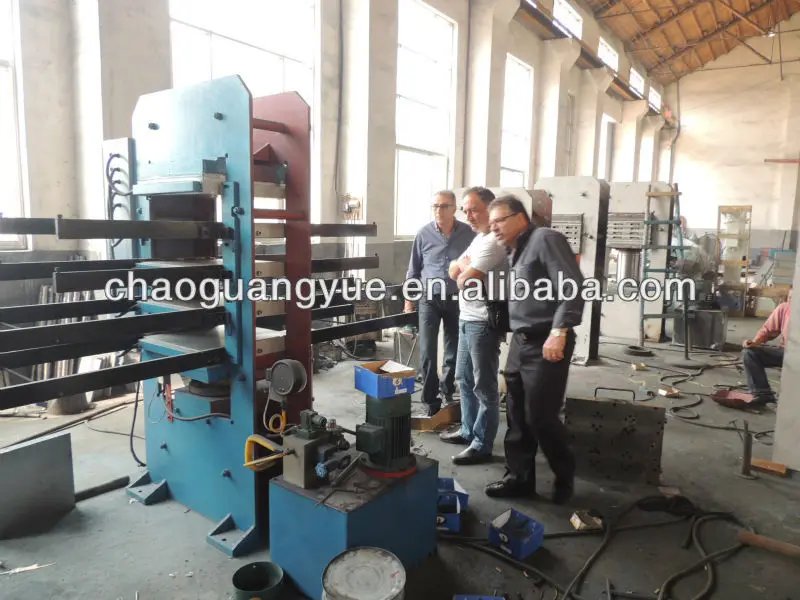

this is rubber floor vulcanizing machine ,it can produce all kinds of rubber floor  from the rubber powder ,we also rubber powder production line

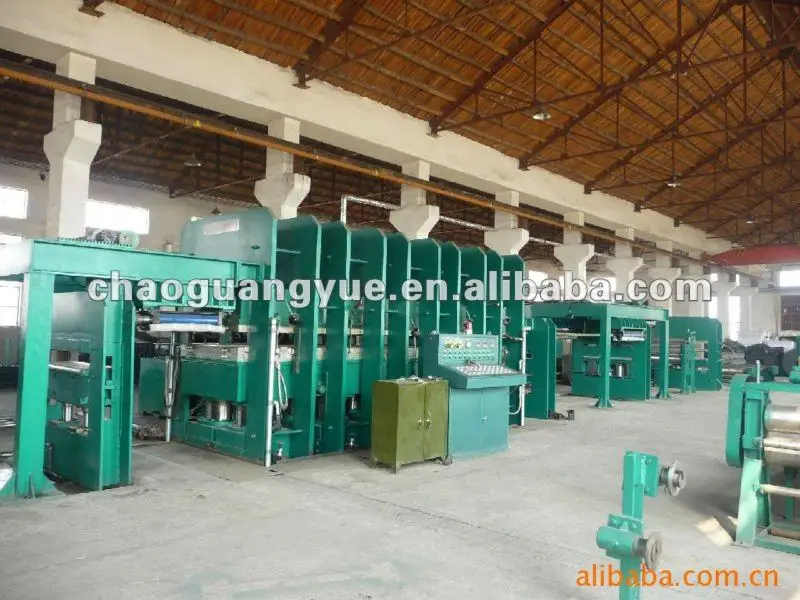

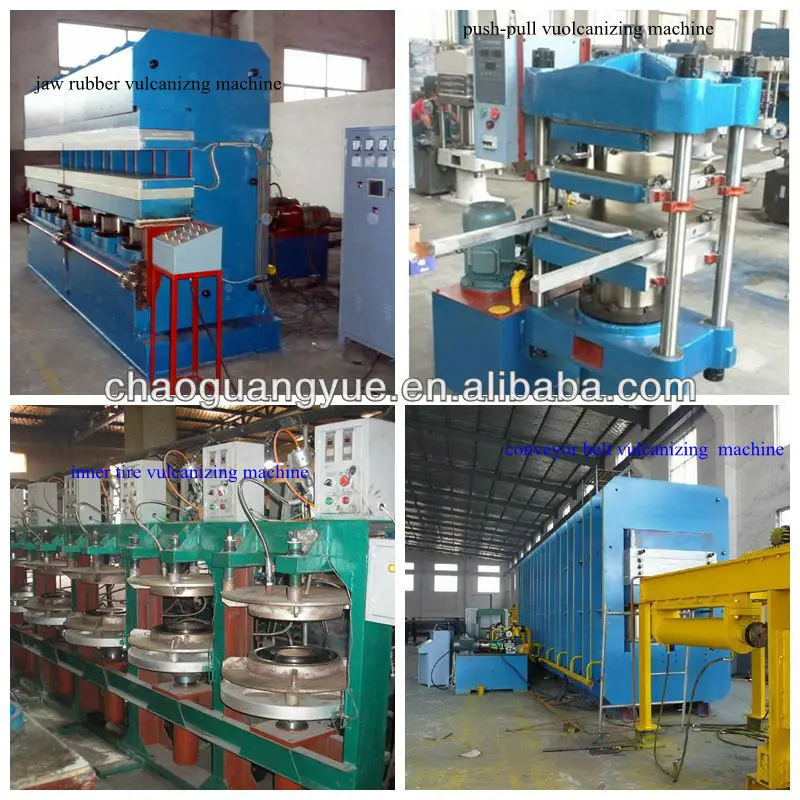

we can produce all kinds of rubber vulcanizing machine
