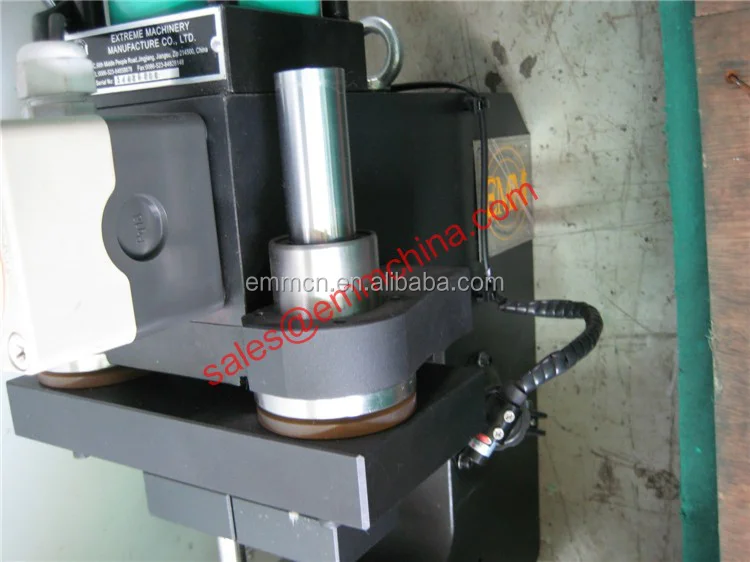

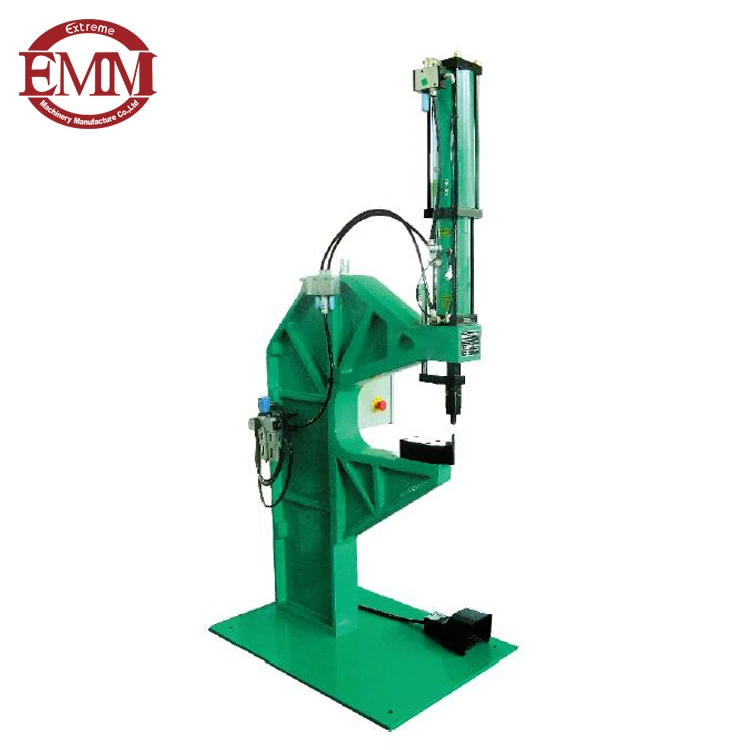

EMM EEC08 Hinge Pedal Pressure Clinching Machine

Product Overview

Description



Hello, thanks for your trip here, this is EMM :)   How do you like this product ? please feel free to send us inquiry, it would be great if you can leave your contact information as well, this will make our communication much more effective.



EMM EEC08 Hinge Pedal Pressure

Clinching Machine

Product specification





Type	Riveter with pressurized oil-air cylinder
Model	EEC08
Total travel	100 mm
Power travel	10 mm
Max oil pressure	6 bar
Max. force	76 KN
Control system	STE-01-F-08
Power supply	220V/60Hz
Control electrical source	DC24V
Power	50W
Rated minimum pressure	3 bar (Below this pressure equipment action will be difficult)
Rated  maximum pressure	6 bar (Higher than the air pressure equipment will be damaged)
Gas spring set air pressure	0.5bar(Below this pressure equipment will return difficult, higher than the air pressure  equipment will be smaller output)
Evironment temperature	-5~40°C Non-condensate
Atitude	<=1200m
Rlative humidity	<=85%



Features

1. rivet one workpiece at a time.



2. the exact alignment of die.



3. integral cast steel structure.



4. improve the working environment and prolonging the die life.



5.apply the relay logic circuit control and the pure compressed air drive system



6.It comes with the foot pedal for starting up.The hydraulic sensor  well controls the press fitting quality and the returning of upper die.Meanwhile,the power stroke realizes self locking.



7.The solid cast construction of the rivet machine safety guarantees  the high accuracy of upper and lower dies

during riveting,The 500mm throat depth makes it applicable for connecting various specifications of metal plates.



Packaging &shipping

Packaging Details	wooden pallet and wrapping film
Shipping	30 working days after receiving the deposit

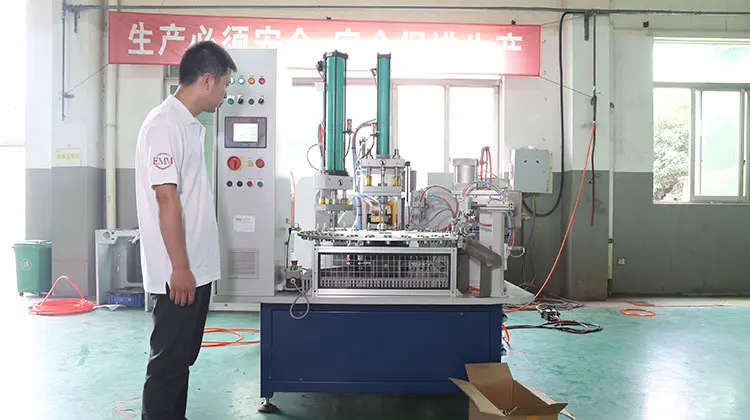

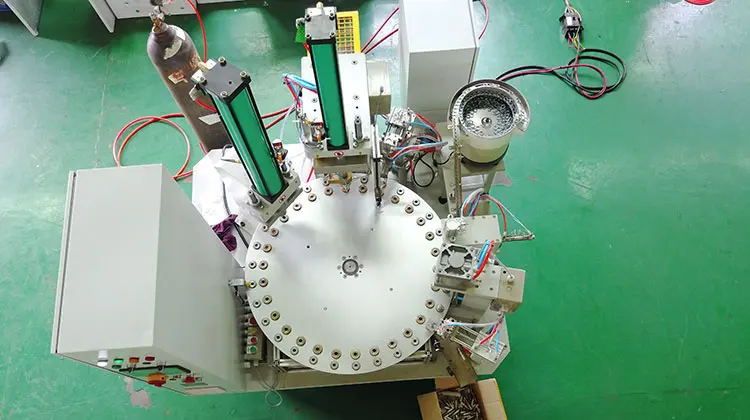

                     Spark plug riveting machine                                              Top view of spark plug riveting machine

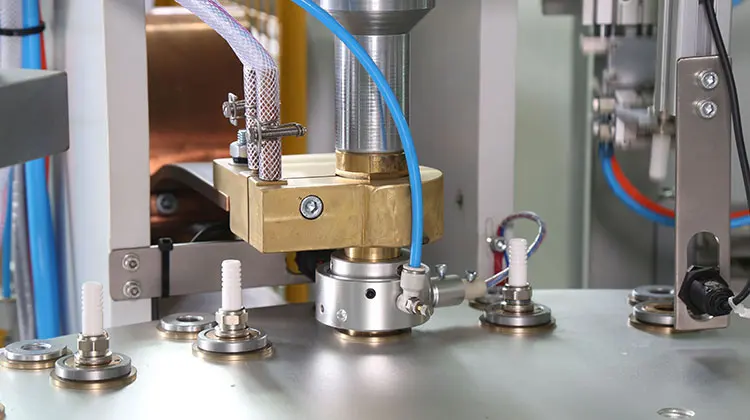

                                 Cold riveting                                                                       Hot riveting(nitrogen protection)

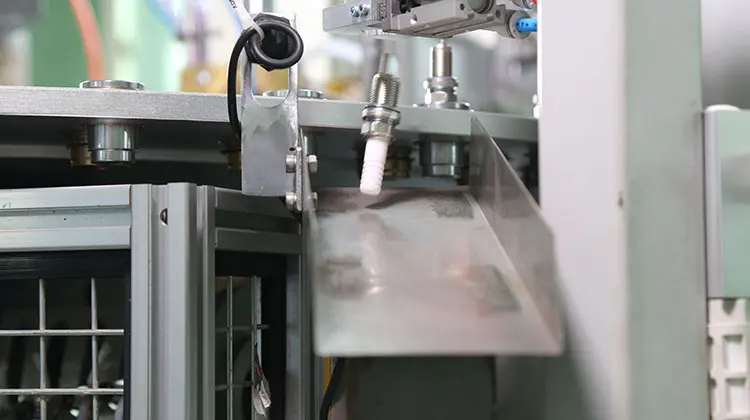

              Automatic feeding pressing washer                                                          Automatic blanking
