residential latent and sensible heat recovery ventilation hvac system

Product Overview

Description

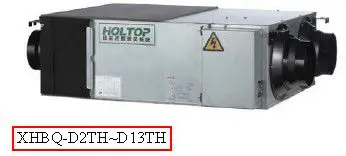

Production Details of TH Silent Designed Series HRV ERV

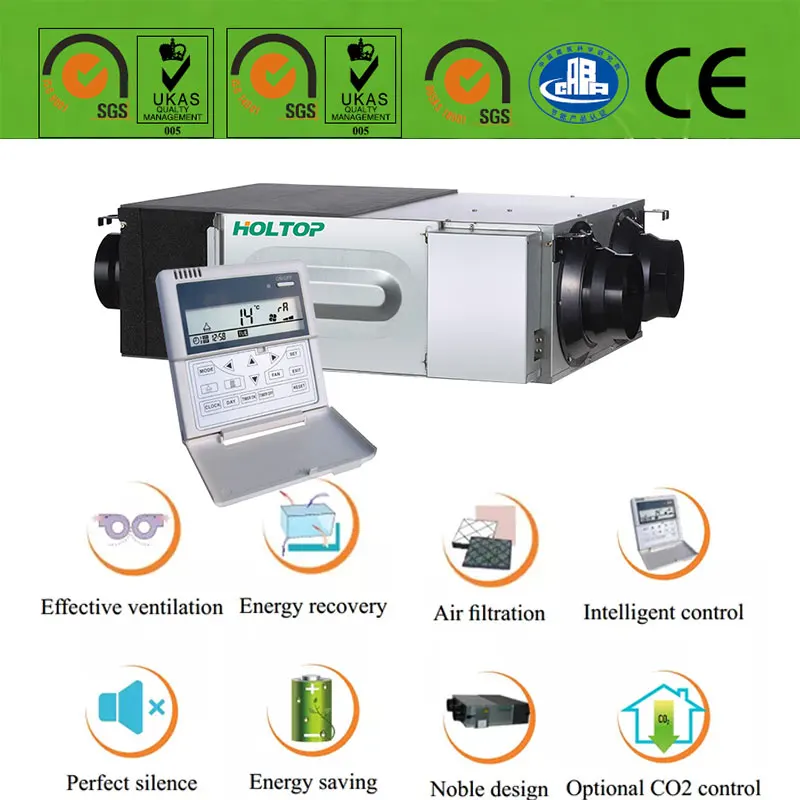

Features of HOLTOP Heat and Energy Recovery  Ventilator(TH Silent Designed Series)

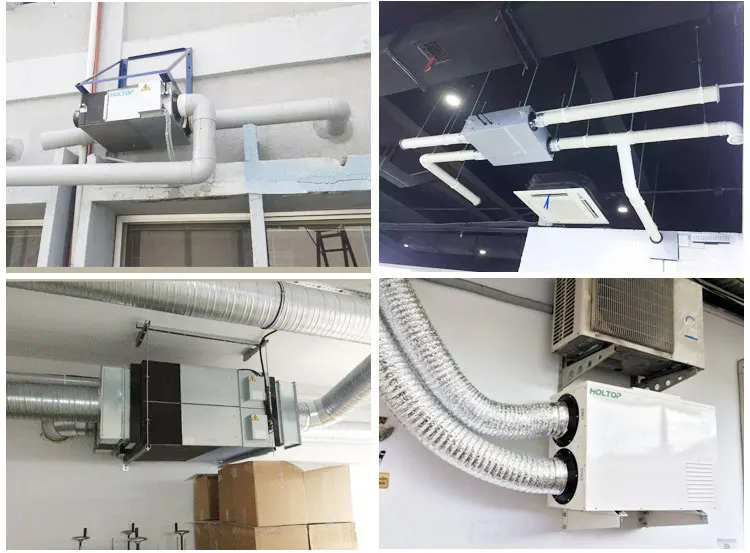

Ceiling/Suspended Installation
Perfect silence designed
Airflow from 150-1300m3/h
Heat or energy recovery
Quiet operation
Double filters
Easy installation to ceiling
By-pass function

Two-way air ventilation

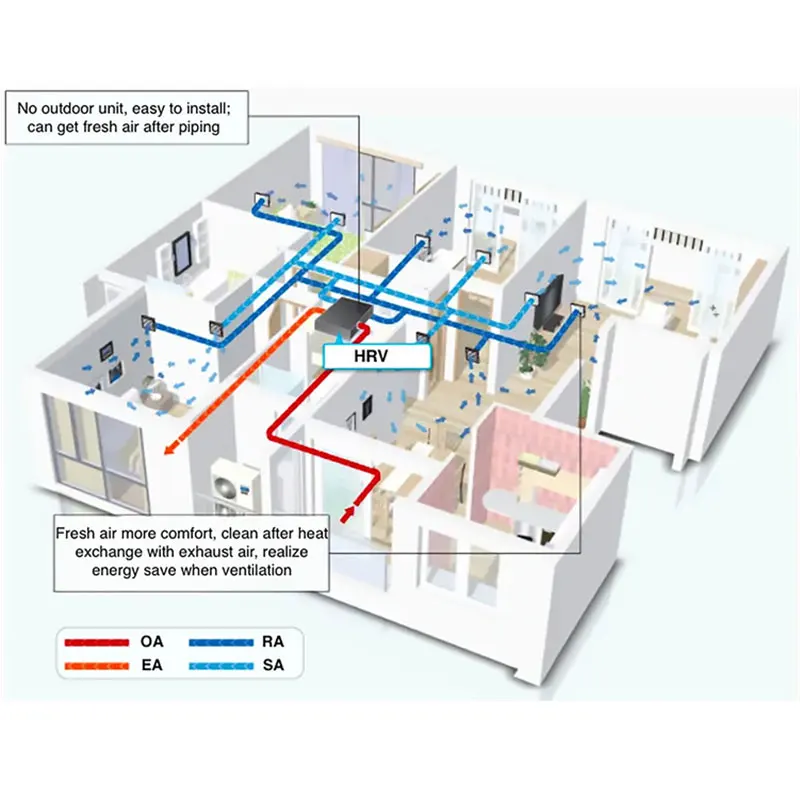

Application  of HOLTOP Heat and Energy Recovery Ventilator (TH Silent Designed Series)
Suitable for household, meeting room, laboratory, office, computer room, dining and gym places etc.

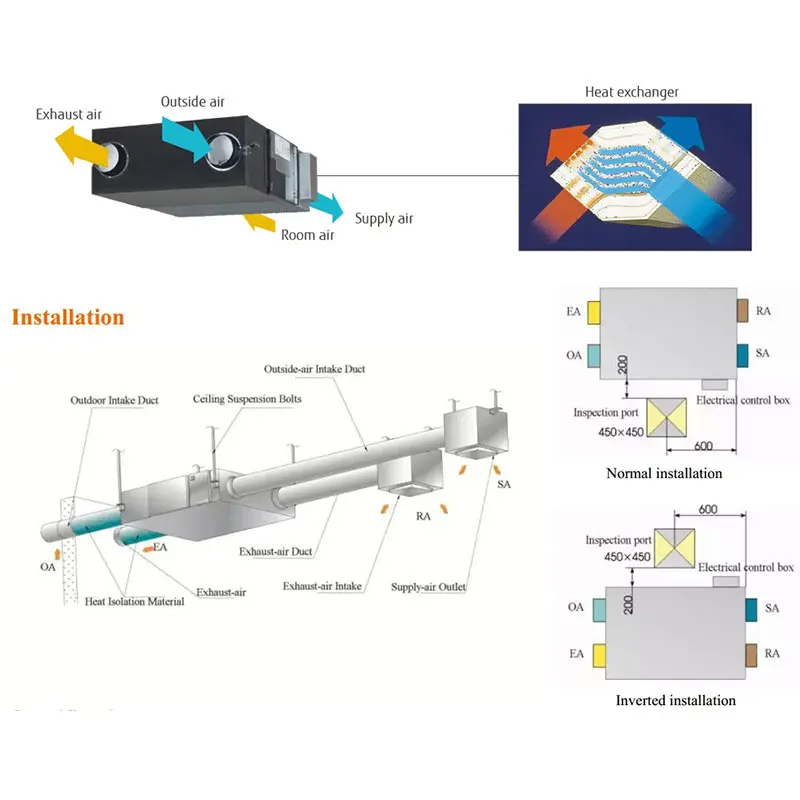

Energy Saving Principle of HOLTOP Heat and Energy Recovery Ventilator ( TH Silent Designed Series)

It can expel the stale air indoor out of room, meanwhile supplying the fresh air outside into the room, by using the advanced heat/energy recovering technology, the energy can exchange taking advantage of the difference of the temperature and humidity between indoor and outdoor air. By this means, it can not only solve indoor pollution problem, but also save energy.

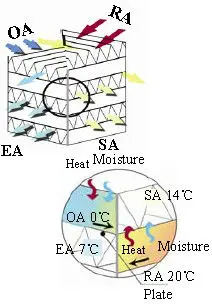

 Heat Exchanger Used in Heat and Energy Recovery Ventilator ( TH Silent Designed Series)

Cross flow total heat exchanger is made of ER paper which is featured by high moisture permeability, good air tightness, excellent tear resistance, and aging resistance.The clearance between the fibers is very small, so only the moisture molecules of small diameter can go through, the odor molecules of larger diameter are unable to pass through it. By this means, the temperature and humidity can be recovered smoothly, and prevent the pollutants infiltrating to the fresh air.



Features of crossflow plate fin total heat exchanger
1. Made by third generation E.R. paper
2. Structured with flat plates and corrugated plates.
3. Two air streams flow crossly.
4. Fire retardant and mold resistance, certified by national authority.
5. Total heat recovery efficiency up to 70%.

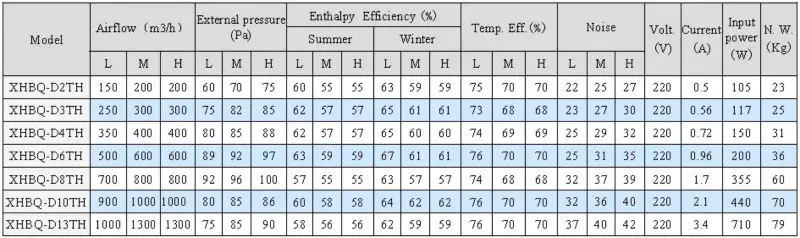

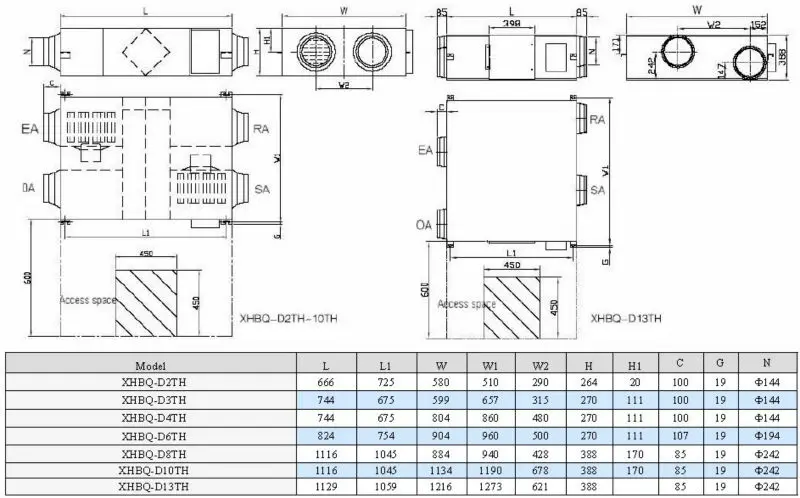

 Specifictions and Dimension of HOLTOP Heat and Energy Recovery Ventilator ( TH Silent Designed Series)

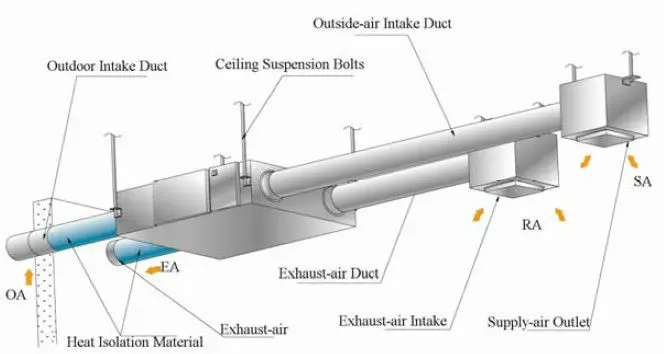

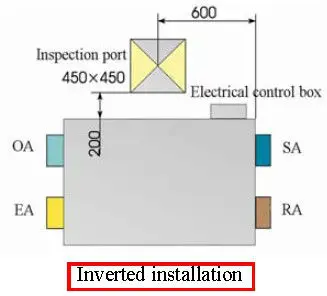

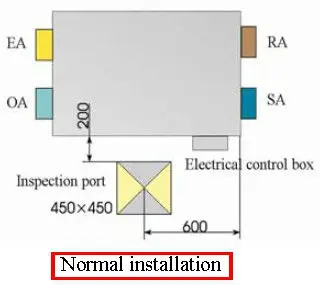

 Installation of HOLTOP Heat and Energy Recovery Ventilator(suitable for all HOLTOP Ceiling or Suspended Type Ventilator)

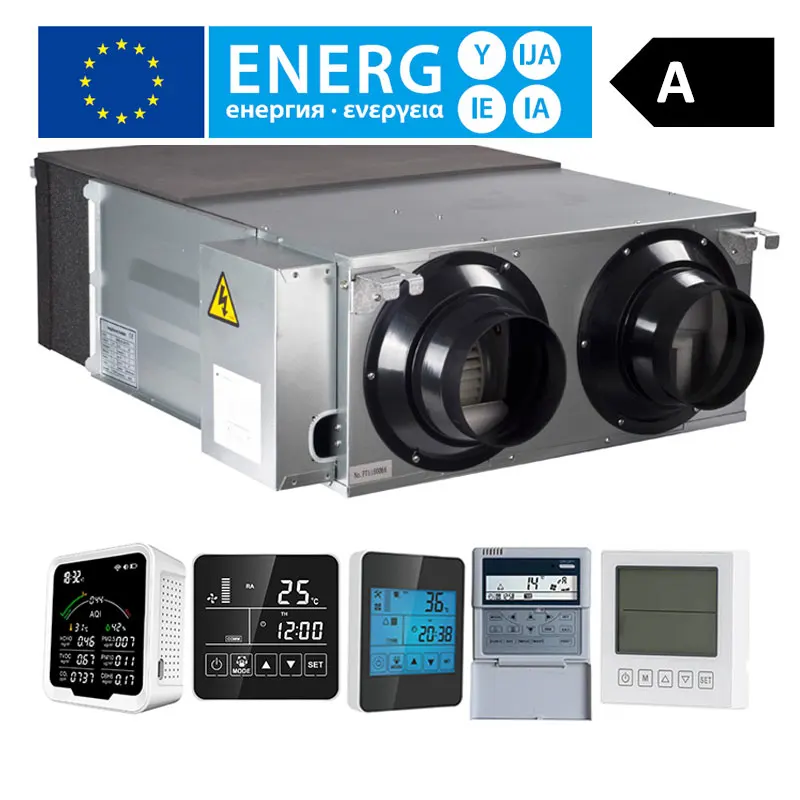

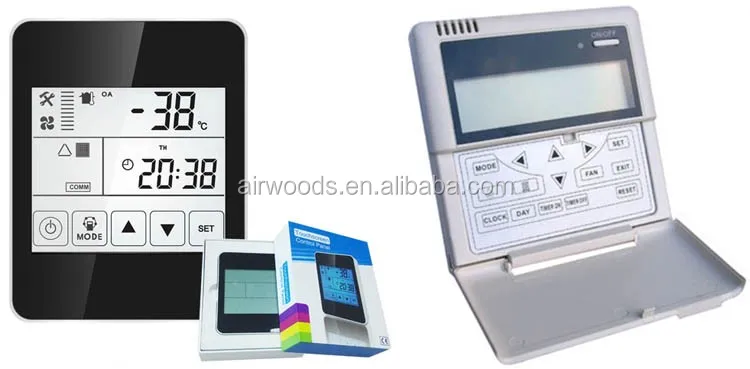

Controller for HOLTOP Heat and Energy Recovery Ventilator

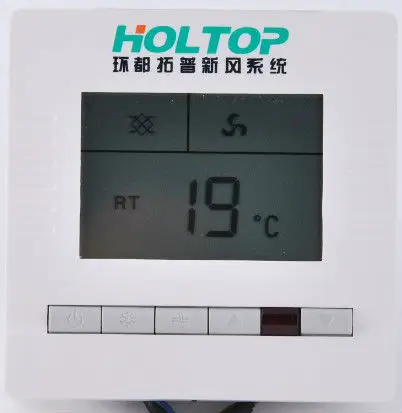

Standard Type- HDK-08

1. LED Display
2. 3 Speeds
3. Switch of normal ventilation and energy recovery
4. Indoor temperature measurement
5. Temperature value revision





Intelligent Type(Optional)

1.Temperature LED display.

2.Automatic bypass
3.Electrical heater
4.Defrosting
5.External ON/OFF
6.CO2 concentration control
7.Smart alarm
8.Data memory
9.Weekly timer
10.Airflow adjustment







About Beijing Holtop Artificial Environment Technology Co., Ltd

 1). Founded in 2002, Holtop is the leading and biggest Heat Recovery Ventilator manufacturer in China specializing in the   production of air to air heat recovery equipments, its product range mainly covers:

 1) Heat & Energy Recovery Ventilators.

 2) Rotary & Plate Heat Exchangers.

 3) Air Handling Units.



 2) Covering an area of more than 30,000 square meters and annual production ability of heat recovery equipment reaches 100,000 sets, Holtop owns numeral control machines, national approved labs, and has successfully passed the certifications of ISO9001, ISO14001, OHSAS18001, CE and EUROVENT.



 3) Due to good quality and best service, Holtop wins cooperation with many big brands like Midea, LG, Hitachi, McQuay, York,Trane and Carrier, etc.,details as below. What is more, Holtop is the qualified supplier for Beijing Olympics 2008 and Shanghai World Exposition 2010.





A View to HOLTOP Factory.



Our Service Promise

1) Repy your enquiry within 24 hours.

2) Best quality and service.

3) Experienced  sales manager answer all your questions smoothy in English.

4) Can offer professional techincal support to clients.

5) Exclusive and unique solution can be provided by our experienced engineer.

6) Special discount will be offered to you.



More information, pls feel free to contact sales manager  Mr. Jack Chen, or visit website: www.holtop.com



Thanks for your visit our website and wish you good business!
