1200 vertical box muffle furnaces 8L

Product Overview

Description

Main specifications of box muffle furnaces:

BOX-1200 is the most cost effective bench-top high temperature muffle furnace made by SHIBO. The furnace consists of high quality alumina fiber brick and OCr27Al7Mo2 Wire.The furnace temperature is controlled by high precision SCR (Silicon Controlled Rectifier) digital controller with accuracy at +/-1C and 50 segments programmable up to 1200C or 2192F. It is an ideal tool for materials annealing and sintering in your research laboratory.



Products character of box muffle furnaces:

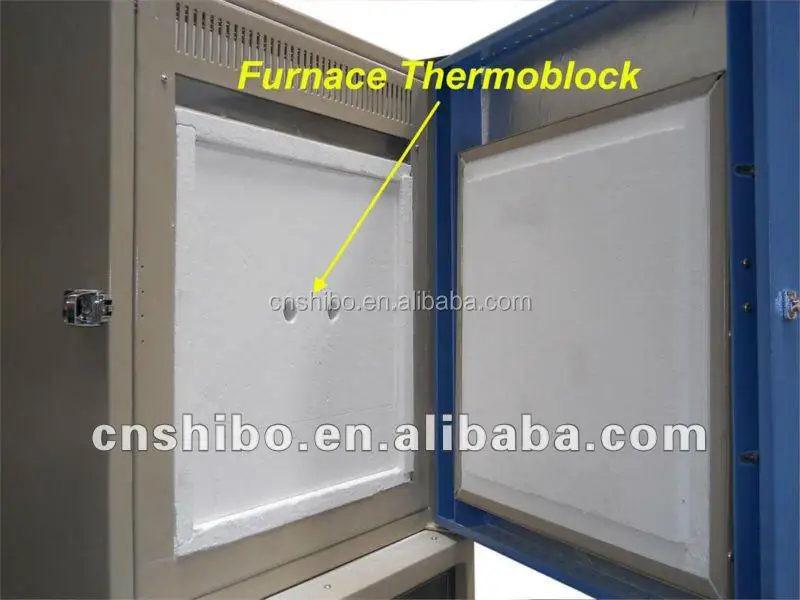

1) Chamber: high purity ceramic fiber, clean, light weight, good thermal insulation, faster heating,         saving energy.

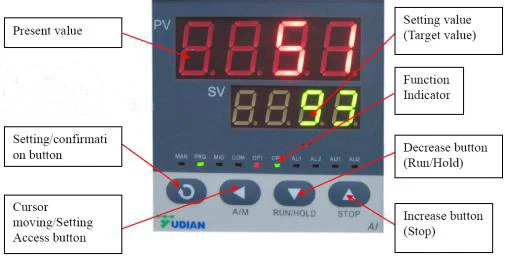

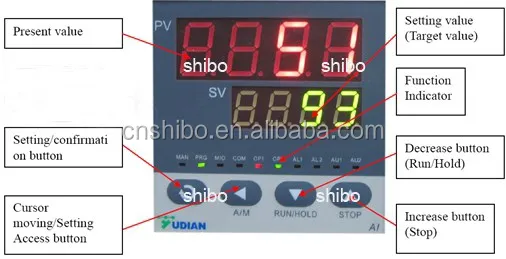

2) Temperature control: PID automatic control with 50 programmable segments for precise control
3) Heating rate:0-20℃/min(suggestion:≤10℃).
4) Over current protection and temperature alarm.



Mainly Specification for the BOX-1200 muffle furnaces
Furnace structure:	Double layer steel structure with fan cooling.
	high purity alumina fiber ceramic insulation.
Chameber Size:	200(W)*200(H)*200(D)mm (8*8*8inch)
Max. temperature	1200°C
Wok temperature:	1100°C
Temperature control:	50 segments programable and PID auto control

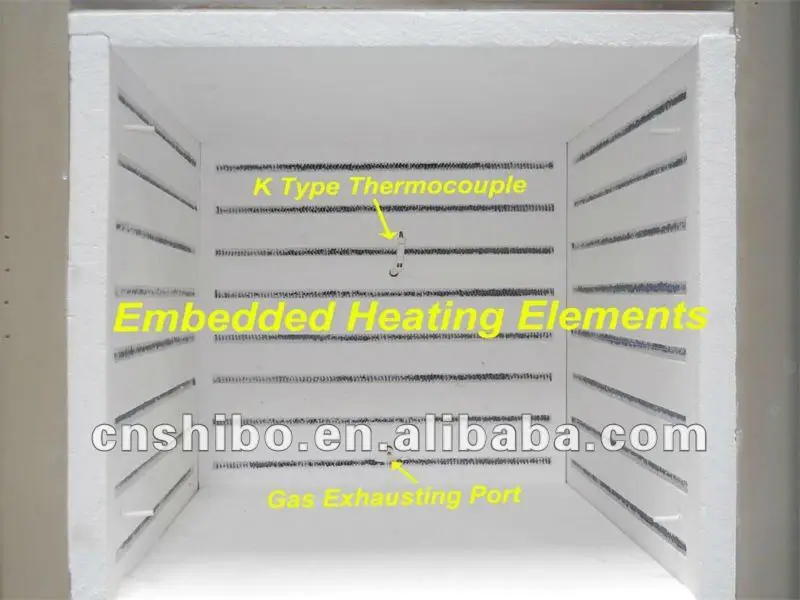

Heating elements:	High performance OCr27AlMo2 heating wires
Thermocouple:	Long Life K Type Thermocouple
Heating rate:	0~20°C/min
Temperature accuracy:	+/-1°C
Wok voltage:	AC220V, 50/60HZ single phase or as your requirement
Warranty:	1 year warranty
Certificate:	CE certified
Optional items:	PC data recorder, Exhauster port, Quartz observation widow, Over temperature controller



 Our standard sizes for the 1200 box muffle furnace:

Model	Chamber size(W*H*D mm)	Max.Temperature
BOX-1200	150x150x150mm (6"x6"x6")	1200.C
BOX-1200	150x150x200mm (6"x6"x8")	1200.C
BOX-1200	200x200x200mm (8"x8"x8")	1200.C
BOX-1200	200x200x300mm (8"x8"x12")	1200.C
BOX-1200	250x250x300mm (10"x10"x12")	1200.C
BOX-1200	300x300x400mm (12"x12"x16")	1200.C
BOX-1200	350x350x400mm (14"x14"x16")	1200.C
BOX-1200	400x400x400mm (16"x16"x16")	1200.C
BOX-1200	500x500x500mm (20"x20"x20")	1200.C

 For other sizes, we can make as your requirement.



Usage: Sintering ceramic samples, University labs, science and research Institute, annealing, etc
