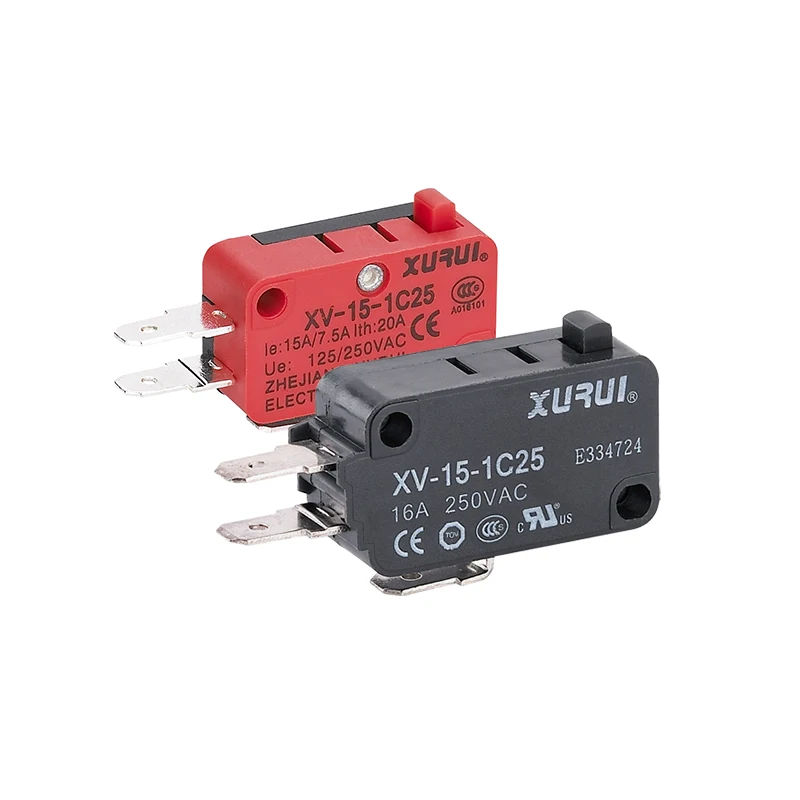

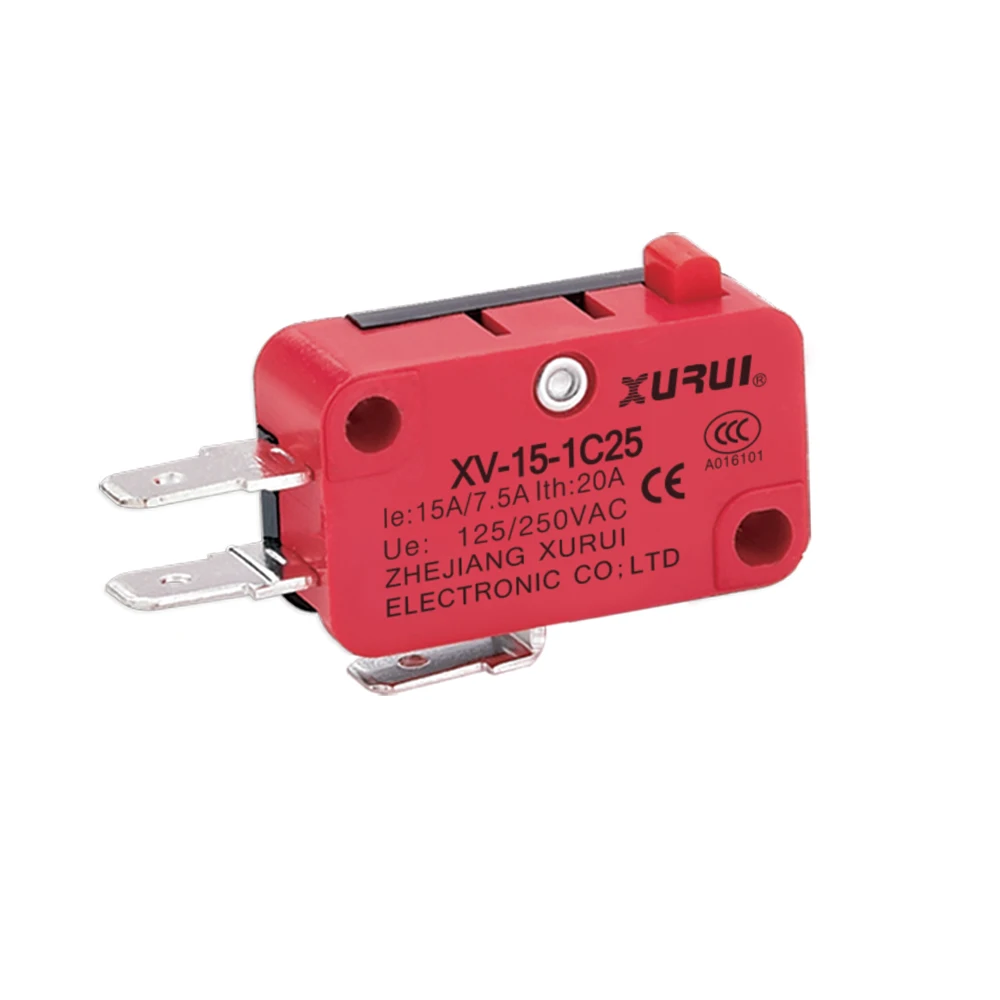

V 15 1C25 (UL,TUV,CCC,CE,RoHS) 15A/250VAC 3 pins Snap Action Omron Micro Switch
- Category: >>>
- Supplier: Zhejiang Xurui Electronic Co. Ltd.
Share on (1448857586):
Product Overview
Description
Features
- Adopt thermosetting plastic or thermoplastic.
- Small contact gap, snap action, high sensitivity and small operating travel.
- Variety of levers.
- Widely used in appliance, electronic equipment, automatic machine, communication equipment, car electric, apparatus and instrument, electro motion tool etc.

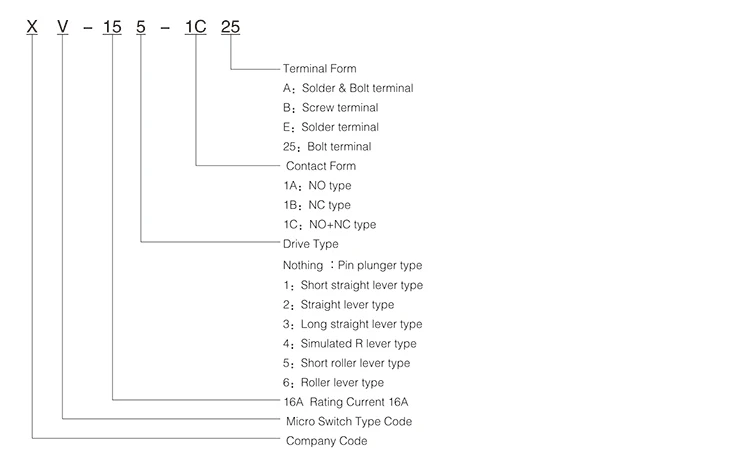

Model & Meanings
Contact Forms
Specification
| Item | Data | |
| Operating Speed | 0.1mm - 1m/s | |
| Operating Frequency | Mechanical | 600 times/min |
| Electrical | 30 times/min | |
| Insulation Resistance | 100MΩ(above) DC500V | |
| Contact Resistance | 25mΩ(initial value) | |
| Withstand Voltage | Non-connection Wire | 1000VAC |
| Every Terminal | 1500VAC | |
| Vibration | Misoperation | 10-55Hz Amplitude 1.5mm |
| Impact | Durable | 1000 m/s² |
| Misoperation | 300 m/s² | |
| Life | Electrical | 100,000 above |
| Mechanical | 1,000,000 above | |
| Protection Degree | IP40 | |
| Operating Temperature | -25 ~ +80 ℃ | |
| Operating Humidity | <85% | |
Rating
| Ue(V) | Ie(A) | Ith(A) |
| AC-250 | 16 | 20 |
Mounting Hole Dimensions & Structure

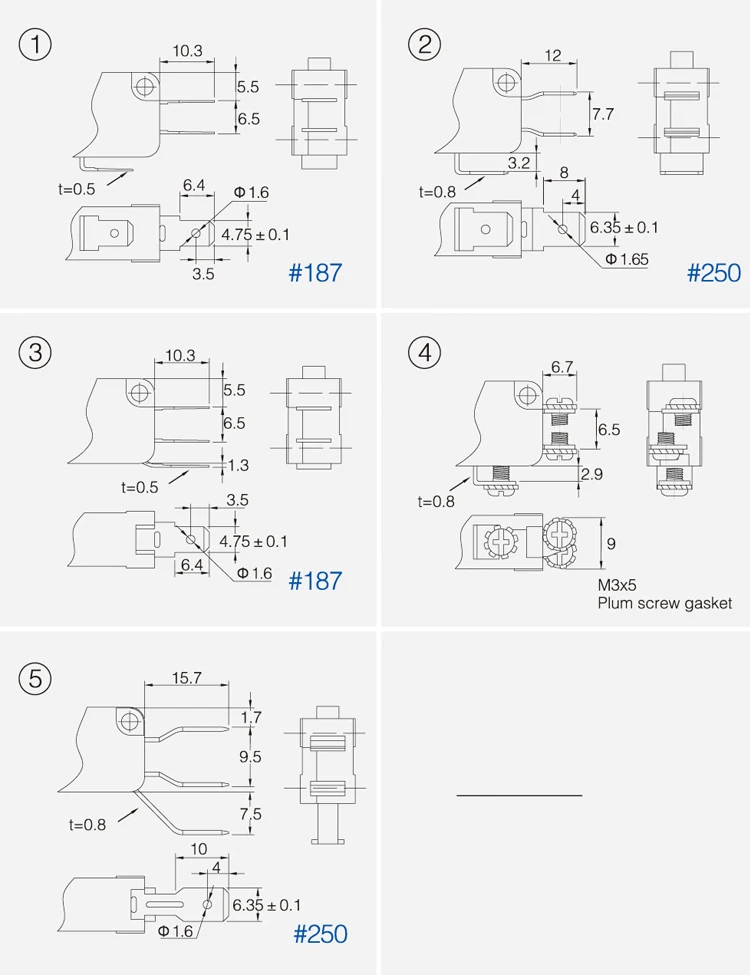

Terminal Forms

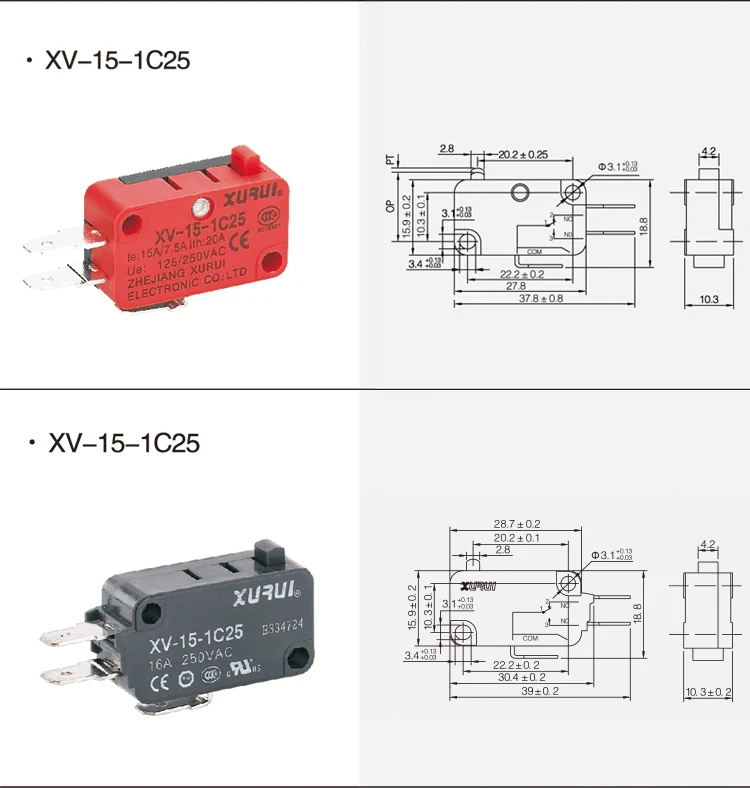

Dimension & Operating Characteristic
| Model | XV-15-1C25 |
| OF max. | 200g(1.96N) |
| RF min. | 50g(0.49N) |
| PT max. | 1.2mm |
| OT min. | 0.6mm |
| MD max. | 0.3mm |
| OP | 14.7 ± 0.5mm |
Certifications
Why Choose Us
- Quality Assurance: We offer replacement if you receive defective or wrong items in 12 months from the shipping date.
- Supplied directly from factory with more than 16 years experience.
- Short Delivery Time: Stock in 2 days, order as short as 7 days.
- Small order welcome.
- Payment by Paypal, Western Union is supported.
Company
Zhejiang Xurui Electronic Co., Ltd, established in 2002, is specialized in the research, development, production of industrial products.
Xurui has a modern workshop covering more than 2,000 square meters. There are about 120 employees, incuding more than 10 years experienced technicians.
Main Products: 1. Micro Switch; 2. Limit Switch; 3. Toggle Switch; 4. Foot Switch; 5. Solid State Relay; 6. Reed Switch; 7. Proximity Switch.
Main markets: Europe, America, Australia, Asia, Middle East and so on.
