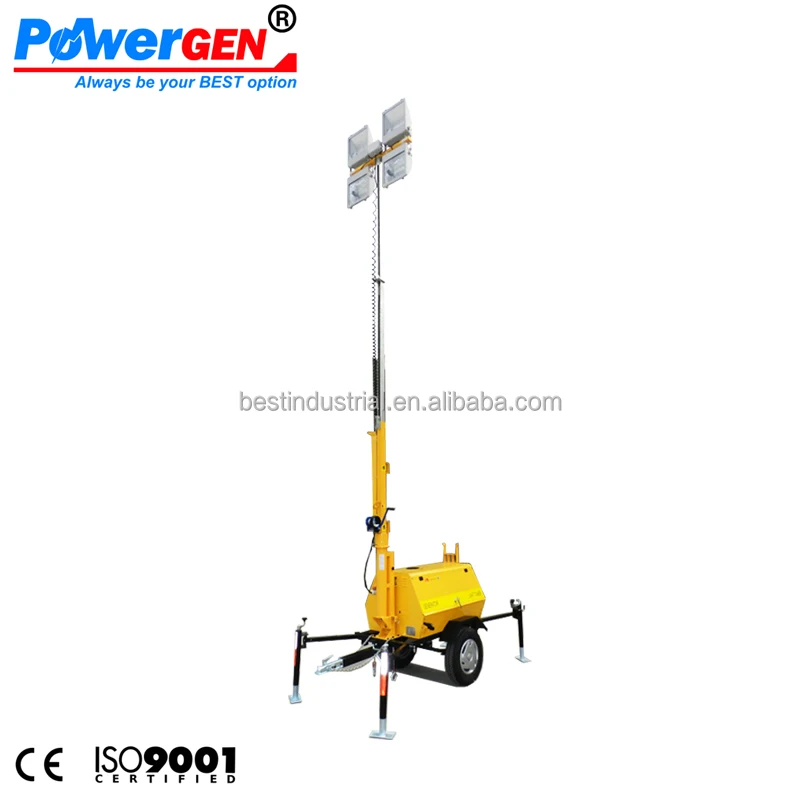

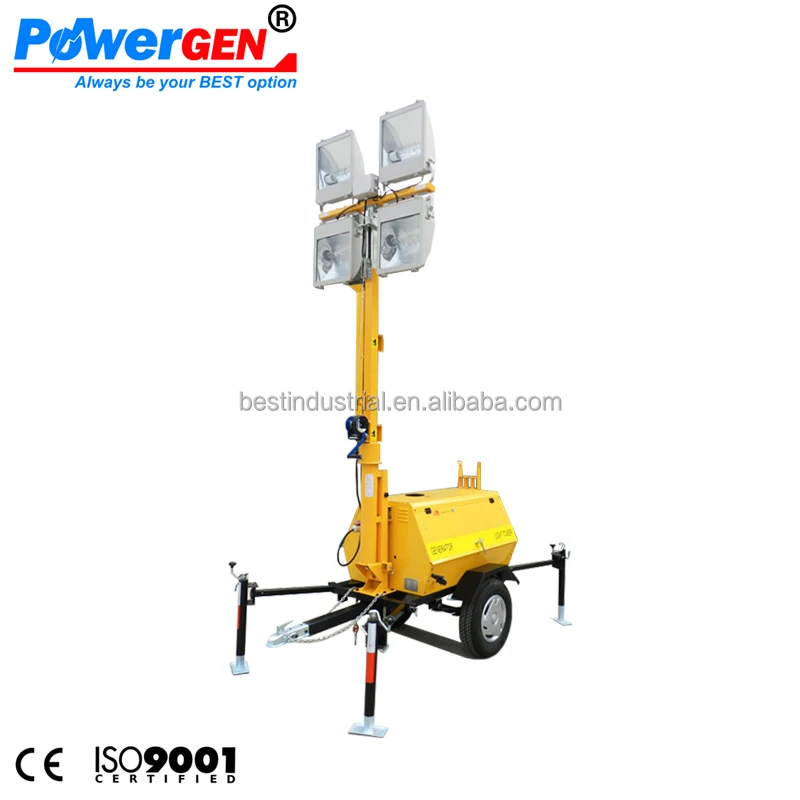

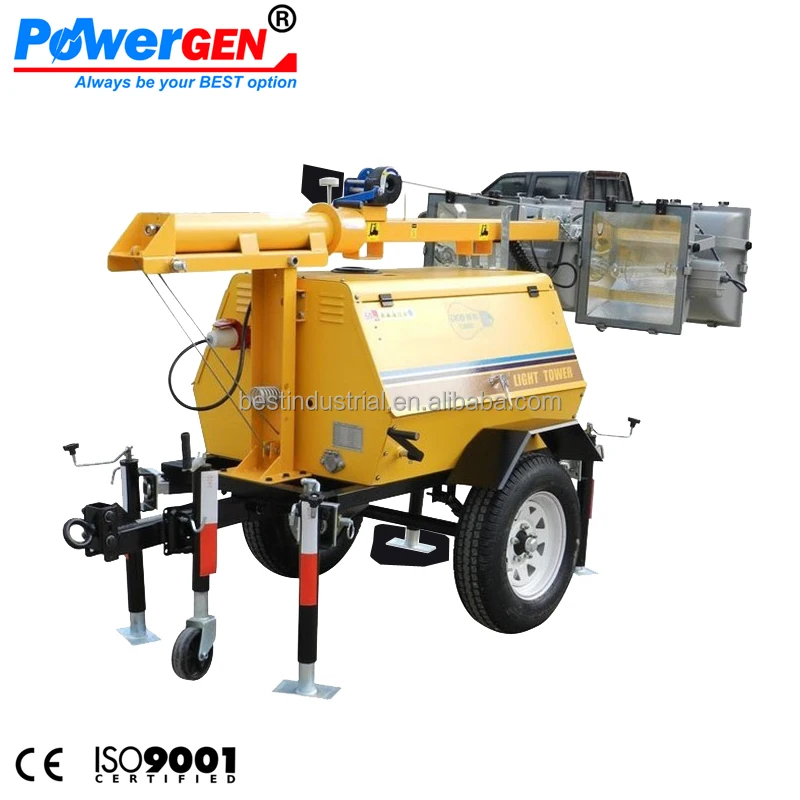

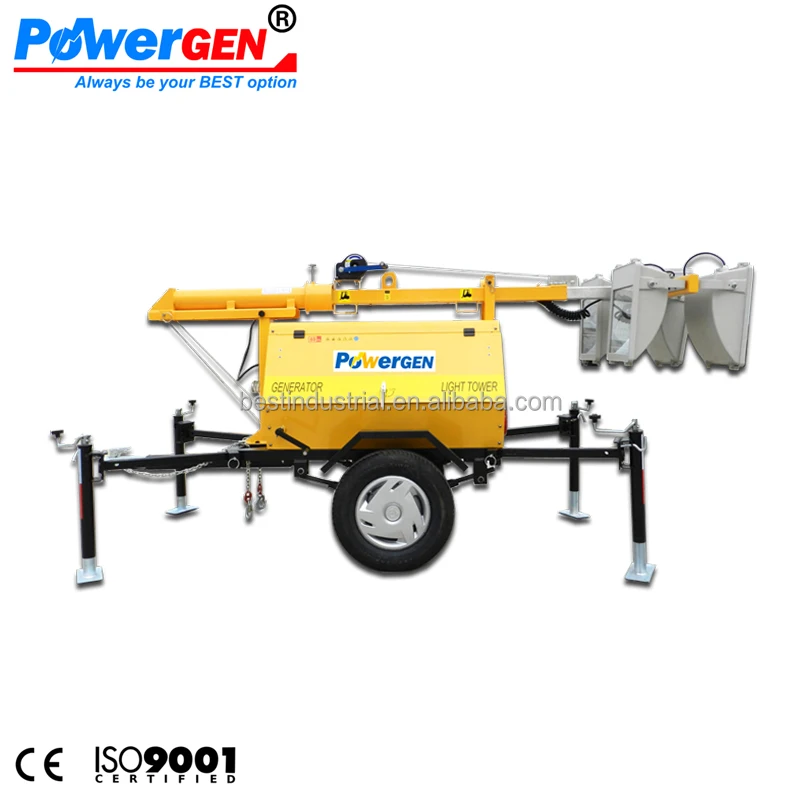

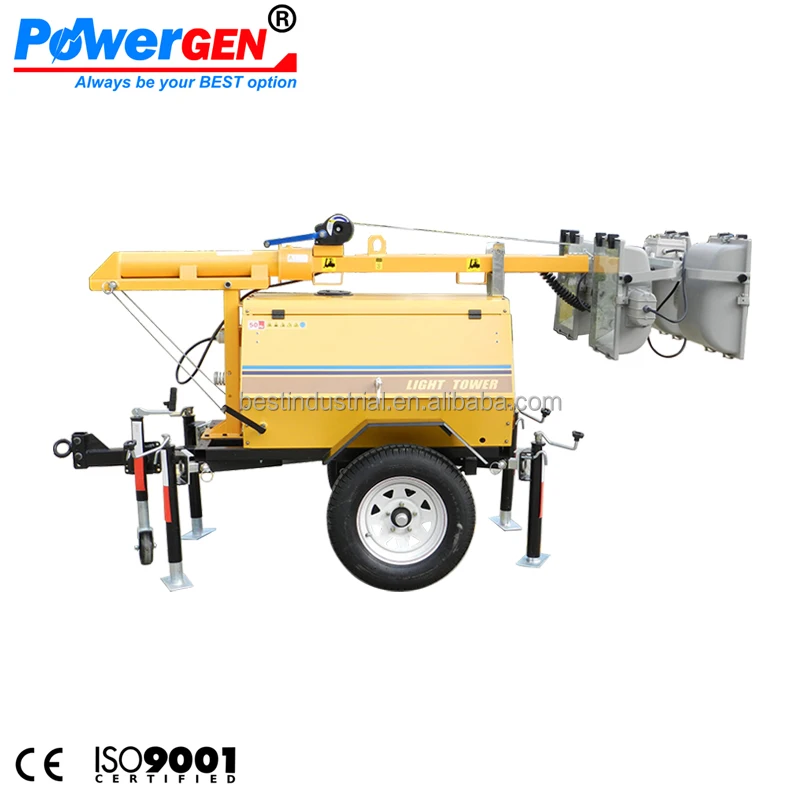

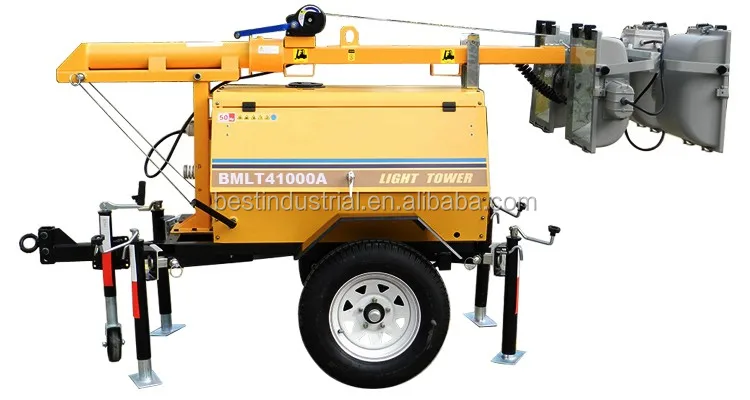

POWERGEN BMLT41000A is a towable lighting tower with 4x1000W metal halide floodlights and a trailer mounted soundproof diesel generator 5KW. Ideal for medium sized working areas, BMLT41000 is extremely easy to be handled by a single operator.
Specifications
\t
LIGHTING
\t
Lamps Power
\t
W
\t
4x1000
\t
Lamps Type
\t
\t
Metal Halide
\t
Ilum. Area (5 lux min.)
\t
m2
\t
1600
\t
Lumen
\t
Lm
\t
4x110000
\t
Housing Material
\t
\t
Galvanization Reflector Housing (Round or Square Shape)
\t
Lifetime of Lamp
\t
Hours
\t
5000
\t
Working Temperature
\t
oC
\t
less than 85
\t
Protection Class
\t
\t
IP54
\t
MAST
\t
Max. Extention
\t
M
\t
8
\t
Mast Type
\t
\t
3-Sections, Telescopic
\t
Rotation
\t

\t
358 degrees non continuous
\t
Lifting system
\t
\t
Manual Winch
\t
GENERATOR
\t
Type
\t
\t
Trailer Mounted Soundproof Diesel Engine Generator Set
\t
Model
\t
\t
BD-G5ST
\t
Voltage
\t
V
\t
110-240
\t
Rated Power
\t
KW
\t
50Hz: 5.0KW; 60Hz: 5.5KW
\t
Max. Power
\t
KW
\t
50Hz: 5.5KW; 60Hz: 6.0KW
\t
Engine
\t
\t
Single Cylinder, Air-cooled, 4-Stroke, Diesel
\t
Engine Model
\t
\t
BD186FAE 10HP
\t
Engine Speed
\t
RPM
\t
50Hz: 3000;  60Hz: 3600
\t
Starting System
\t
\t
Electric/Key Start
\t
Alternator
\t
\t
2-pole, Brush, with AVR
\t
Fuel Tank Capactiy
\t
L
\t
50
\t
Fuel Consumption
\t
L/Hr.
\t
1.85
\t
Electric Panel
\t
\t
Voltage meter, Circuit breaker, Oil Alert, Key Starter, 4 switches for 4 lights
\t
Power Outlet
\t
\t
2
\t
TRAILER
\t
Tow Hitch
\t
\t
Ball hitch, Ring hitch or NATO hitch
\t
Wheel
\t

\t
2
\t
Wheel Size
\t
inch
\t
13
\t
Brake System
\t

\t
Manual
\t
Anti-wind Capacity
\t
KM/Hr
\t
< 100
\t
DIMENSIONS & WEIGHT
\t
Dimensions (LXWXH)
\t
mm
\t
2340 X 1100 X 1150
\t
Net Weight
\t
Kgs
\t
530
\t
Container Loading Qty
\t
PCS
\t
20GP : 10 ;  40HQ: 20
Detailed Image

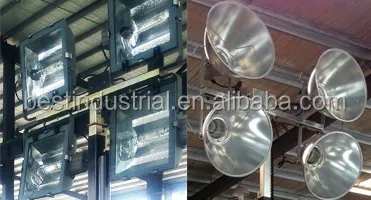

Metal Halide Lights 4x1000W

(Shape : Round or Square)

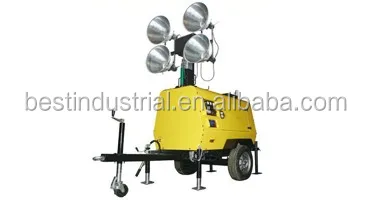

Trailer Generator

(Soundproof canopy, 2-wheel)

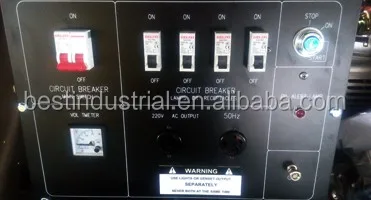

Elecrical Control Panel

(customized available)

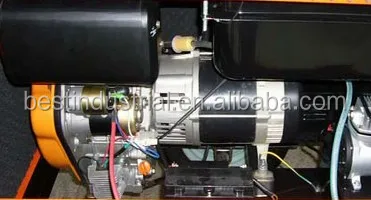

Engine & Alternator
Diesel engine 186FAE 10HP, Brush alternator 6KW AVR

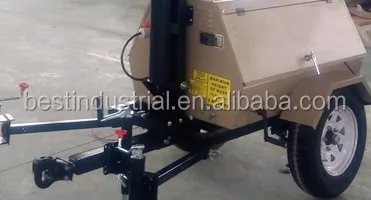

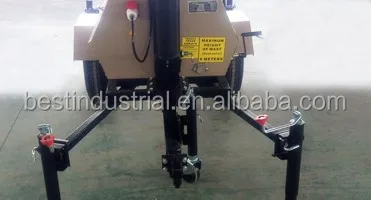

Front Side

2x Front Outrigger, 1x guide wheel, 1x Hitch

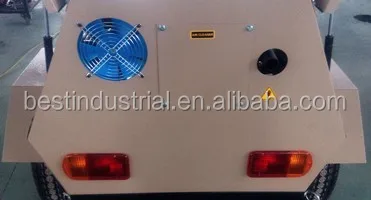

Rear Side

Tail Lights, Coolng fan, Muffler,  2 x Rear Outrigger

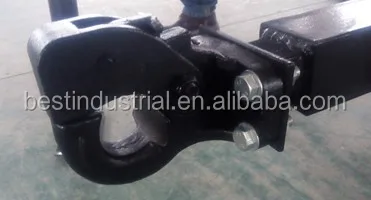

NATO Hitch

(Other types available: Ball hitch, Ring hitch)

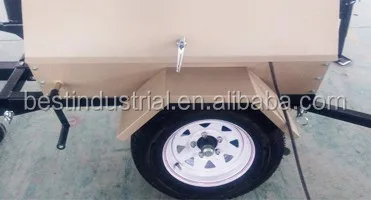

Wheels & Doors
14 inch wheels, Lockable Doors

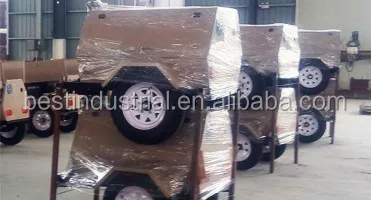

Packaging
\t
Separated Packaging: Each part of the lighting tower is quite well packaged to prevent any possible damage.

1. Packaging of Generator (Iron framed)

2. Packaging of Mast (Palleted)

3. Packaging of Lights (Wooden crate)

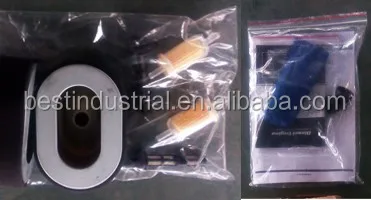

4. Spare parts & manuals

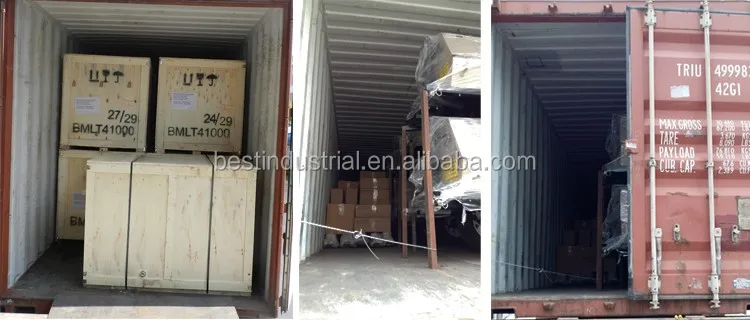

5. Container Loading

Optional

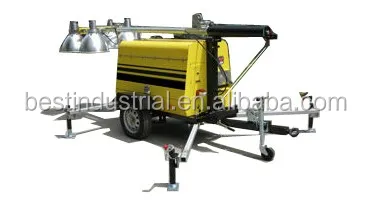

Kubota Engine D1105-BG Mobile Light Tower 4X1000W

(Manual Winch Mast 9m) click to know more!

Kubota Engine D1105-BG Mobile Light Tower 4X1000W
(Hydraulic Mast 9m) click to know more!

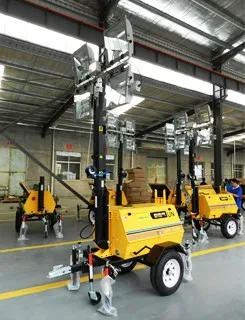

Assembly Line
