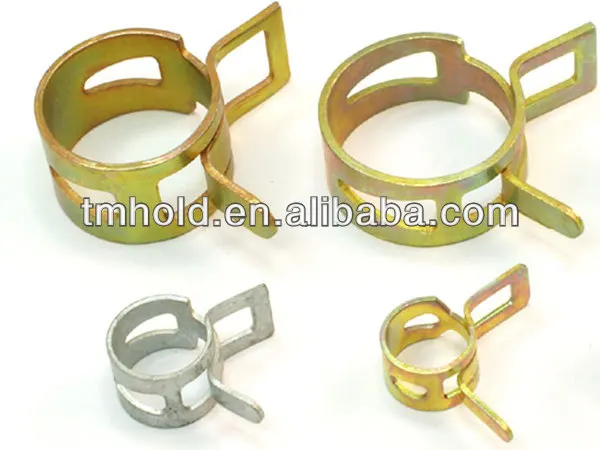

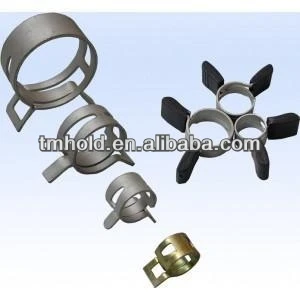

5mm Spring Band Hose Clamp For Fuel oil pipe

Product Overview

Description

  5mm Spring Band Hose Clamp  For Fuel oil pipe

Feature



•Expand with hose in response to temperature shifts

•Cannot be over tightened



•Can be installed automatically eliminating Carpal Tunnel Syndrome, a nerve disorder of the hand and wrist

  •Less time for assembly



•Resulting in lowered production costs



Material



•65Mn & 70 spring steel & stainless steel



Bandwidth

•6mm,8mm,10mm,12mm

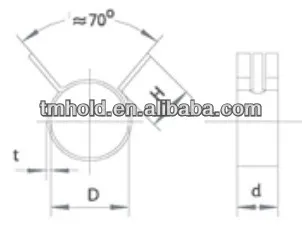

Specifications



Size	reference sizes	W1	Bandwidth(mm)	thickness of band(mm)	pcs/carton
7.0	7.6	THQ683B70	6.0	0.6	5000
8.0	8.6	THQ683B80			5000
8.5	9.2	THQ683B85	8.0		5000
9.0	9.7	THQ683B90			5000
9.5	10.3	THQ683B95		0.8	5000
10.0	10.8	THQ683B100			5000
10.5	11.4	THQ683B105			5000
11.0	11.9	THQ683B110			4000
11.5	12.4	THQ683B115			4000
12.0	13.0	THQ683B120			4000
12.5	13.5	THQ683B125			4000
13.0	14.0	THQ683B130			3500
13.5	14.6	THQ683B135			3500
14.0	15.1	THQ683B140	10		3500
14.5	15.7	THQ683B145			3500
15.0	16.2	THQ683B150		1.0	3500
15.5	16.7	THQ683B155			3500
16.0	17.3	THQ683B160	12		3500
16.5	17.9	THQ683B165			3000
17.0	18.4	THQ683B170			3000
17.5	18.9	THQ683B175			3000
18.0	19.4	THQ683B180			3000
18.5	20.0	THQ683B185			2800
19.0	20.5	THQ683B190			2800
19.5	21.1	THQ683B195			2800
20.0	21.6	THQ683B200			2800
20.5	22.2	THQ683B205			2000
21.0	22.7	THQ683B210			2000
23.0	24.8	THQ683B230		1.2	1000
24.0	25.9	THQ683B240			1000
25.0	27.0	THQ683B250			1000









APPLICATIONS: REPAIRS TO AUTOMOTIVE FUEL LINES, SMALL ENGINES, SMALL APPLIANCES, VACCUUM CLEANERS, AIR HOSES, BEVERAGE MACHINES ETC.





 We also accept make to  order against your drawing or samples

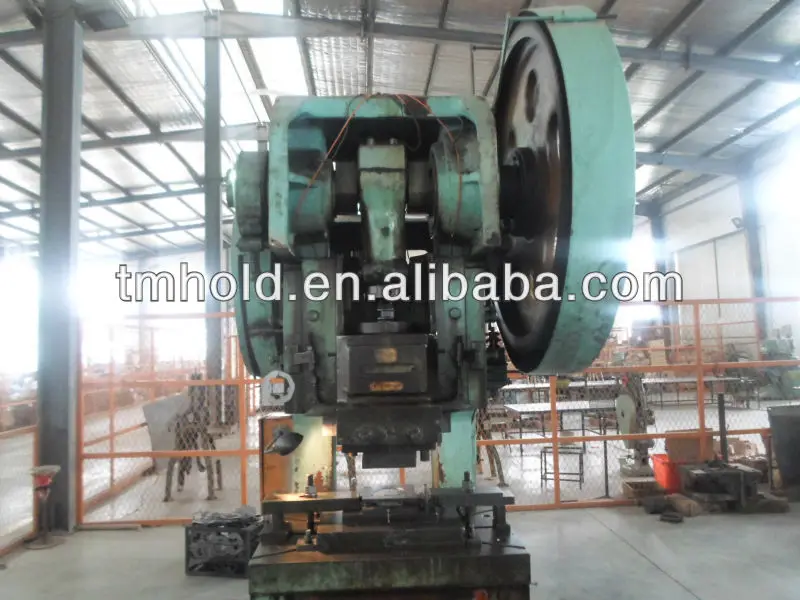

Processing

 UTV certification
