Baotu ctcp plate cheap price high quality beautiful color

Product Overview

Description

BT-2 ctcp plate

  Features



First Class Aluminum Substrate - Excellent Long Run Length
The first class aluminum base of Baotu's CTCP plate maintains an even surface, exact dimension and all kinds of physics and mechanical capabilities.

Compound Halftone Frame and Oxidation Layer - Exact Dot Reproduction
The multi-layer compound halftone frame and close-grained oxidation layer on the surface ensures exact dot-reproduction and excellent endurance.

Hydrophilic Managing Substrate - Excellent Ink-water Balance on Printing
Baotu UV-CTP plates adopt hydrophilic managed substrate to not only ensure the firm combination between sensitive layer and substrate but also improve the balance between water and ink so that it prevent from scum when machine idle and during printing.

Excellent Coating Component - High Sensitive Speed
Baotu UV-CTP plates adopt excellent coating component to keep the plate well-proportioned coated, with high sensitive speed, fine dot-reproduction and long run length. These make Baotu CTCP plate fit for top grade commercial printing and newspaper printing.

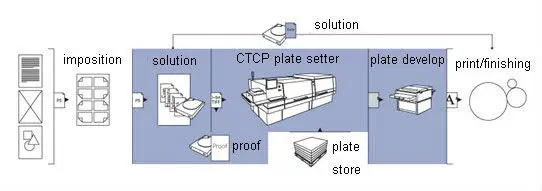

Working Principle

Technical specification







Technical Data	Brand	Baotu
	Thickness	0.15 - 0.40mm
	Sensitive Wavelength	410 nm
	Photosensitivity	45-55mj/cm2
	Dot Reproduction	2% - 98% at 200 lpi
	Degree of surface roughness	0.40-0.60um
	Oxide layer of mass per unit area	2.5-3.50g/m2
	The photosensitive layer mass per unit area	1.90-2.00g/m2
	Run Length	50,000 - 80,000 actual run length may vary according to press, ink and paper condition.
Plate Developing Condition	Recommend Developer	Baotu developer or any other type of positive conventional plate developer
	Developer Concentration	powder to liquid =1:4 (automatic) powder to liquid =1:6 (manual)
	Developing Temperature	23 - 25 degree Celsius
	Developing Time	30 - 40s
Plate Baking Condition	Baking Temperature	230 - 250 degree Celsius
	Baking Time	5 - 8 min
	Run Length after Baking	150,000 - 250,000
Detailed Information	Safe Light	yellow
	Shelf Life	18 months under recommended storage conditions (10 - 30 degree Celsius, relative humidity: 40% - 60%, stacking height less than 1.5 meters)
	Package	0.15mm - 100 sheets per carton 0.30mm -  50 sheets per carton
