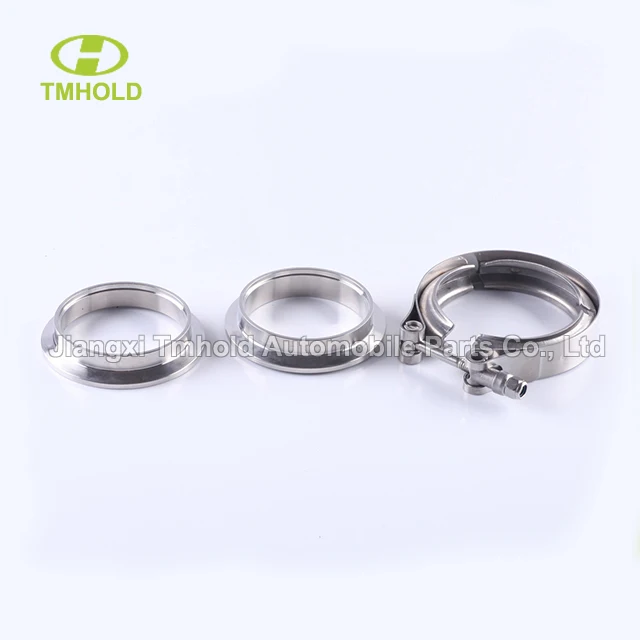

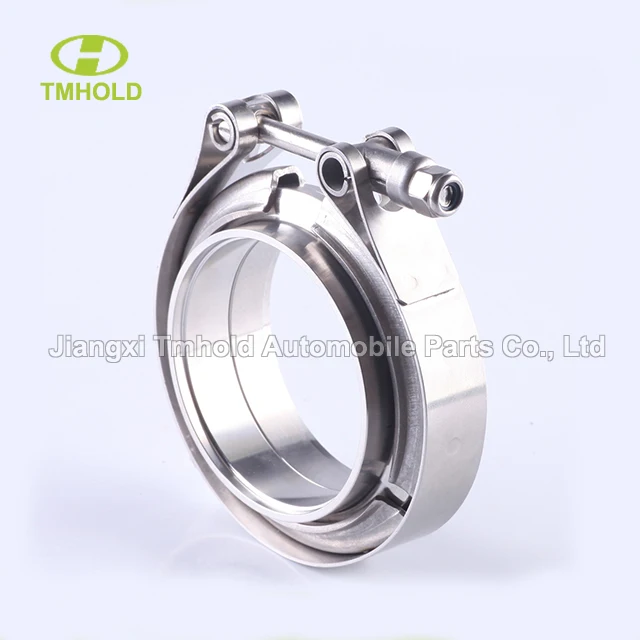

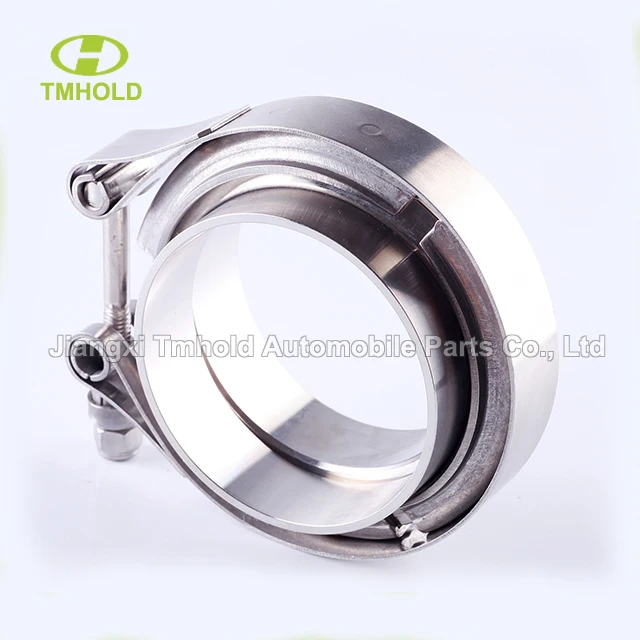

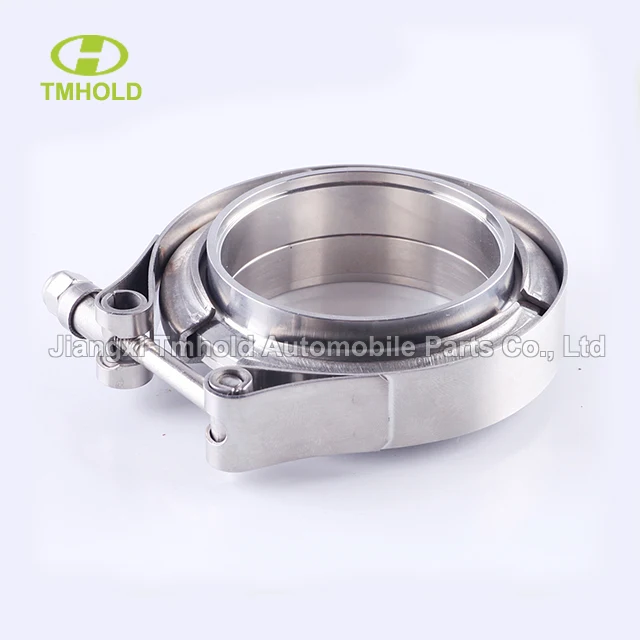

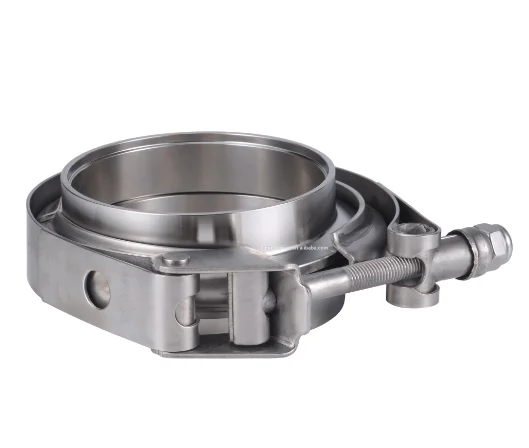

3.0 inch stainless steel turbocharger v band clamp with turbo/blow exhaust wastegate flanges

Product Overview

Description











• Extra Heavy gauge precision formed retainers


• 0.05rounded edge flat outer band for added strength


• 431 stainless steel heat treated T- Bolt for superior strength & thread life at elevated temperatures


• Silver plated 347 stainless “Tall Beam” style nut for maximum longevity


• Clamps are date coded for traceability


• Common sense size numbering – Clamp # equals nominal flange clamping diameter or O.D.


• Both Quick Release Latch & T-Bolt styles available in many sizes





1)size:from 2.0 inch to 12 inch


2)material:304ss or 316ss


3))one v band clamp with two flanges

4) v Clamp made for 8 years



5) bandwidth:19mm,22mm,25mm



6)V band Couplings offer effective fastening solutions in a wide range of applications including pumps, engines, exhaust systems, filters, and food and chemical processing equipment. Because V-Band Couplings can be easily assembled and disassembled, they are often used on equipment that requires frequent service or maintenance,The most adaptable and reliable way to bond your exhaust components is to use a V-band assembly Kit. With a V-band kit, you manage to install and change your exhaust parts with no trouble, as well as maintaining the durability and strength of an exhaust .











Item No.	Clamp size(inch)	Screw(mm)	Bandwidth(mm)	Flange inner size(mm)	Net weight(clamp)/g	Net weight(flange)/g	Material	Surface
THV200	2.0'	M6	19	51.6	140	104	SUS 304	Polished
THV225	2.25'			57.9	149	114
THV250	2.5'			64.3	158	122
THV275	2.75'			70.6	176	133
THV300	3.0'	M8	25	77	231	150
THV325	3.25'			83.3	254	163
THV350	3.5'			89.7	263	171
THV400	4.0'			102.4	179	192
THV500	5.0'			127.8	329	238
THV1000	10"	M10		254	697	448
THV1200	12"			304.8	799	556
