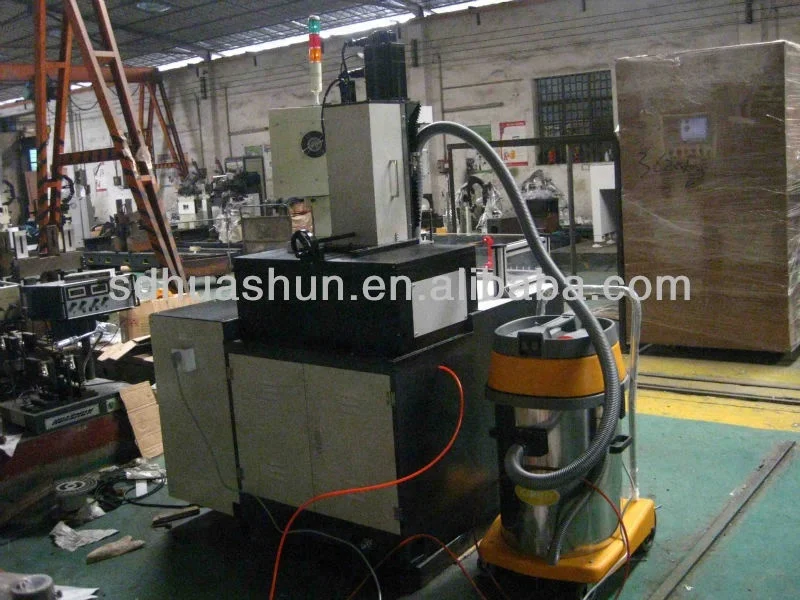

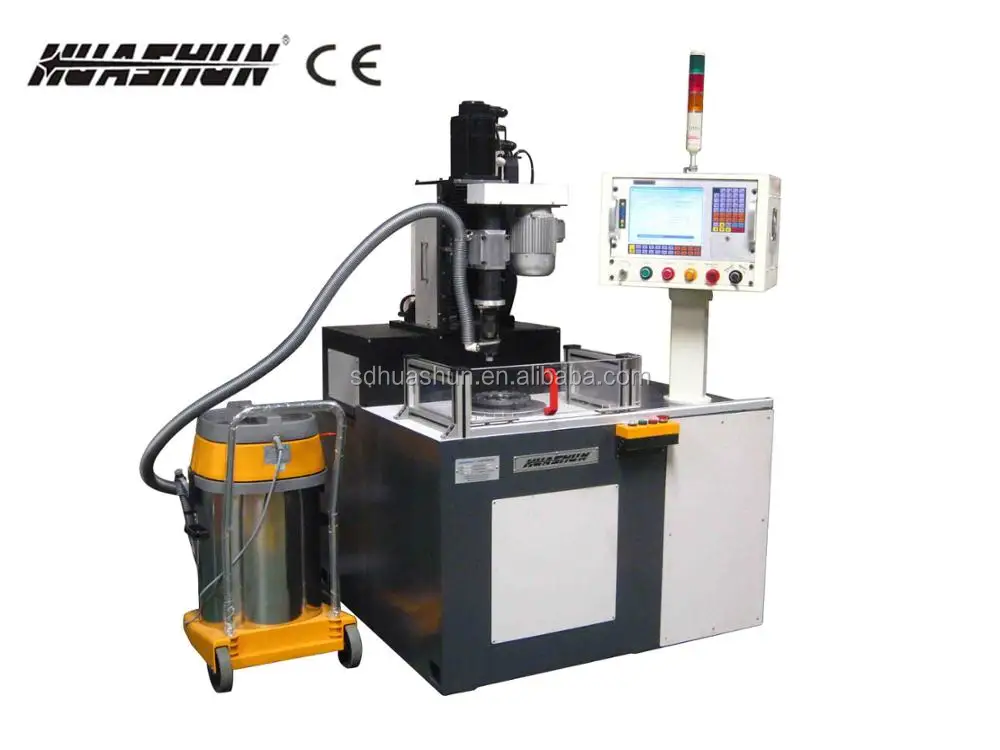

HUASHUN HJ30Z W full automatic balancing machine with auto drilling for fly wheel

Product Overview

Description

Technical Parameters

Type of balancing machine	Single -plane Vertical balancing machine
Specifications/type	HJ30Z-W
Max. mass of works(kg)	30
Max. dia. of works (mm)	600
Balancing speed (r/min)	900(adjustable)
Power of unit head(kw)	0.5
Power of main shaft(kw)	3KW servo motor
Working time (min)	1.5-2.5
Min. achievable residual unbalance amount emar(g.mm/kg)	≤5
Unbalance reduction ratio (%)	≥90

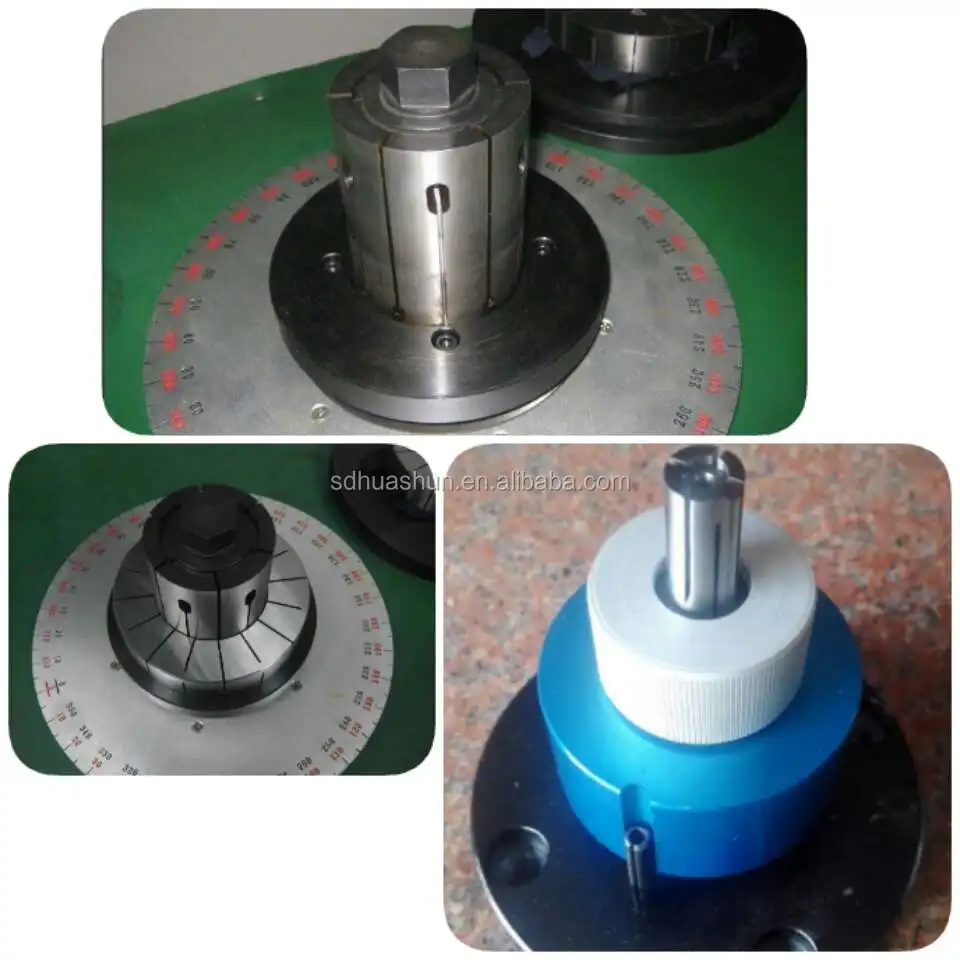

Leading & Unique technology in the industry—pneumatic clamping solution

High precision internal expansion chuck

Repeatability precision ≤ 0.01mm

  Speed ≤ 3000rpm

  Life > 100000 times

  Min expansion & clamping inner hole dia. 5 mm

  Rotation radial flee movement ≤ 0.01mm

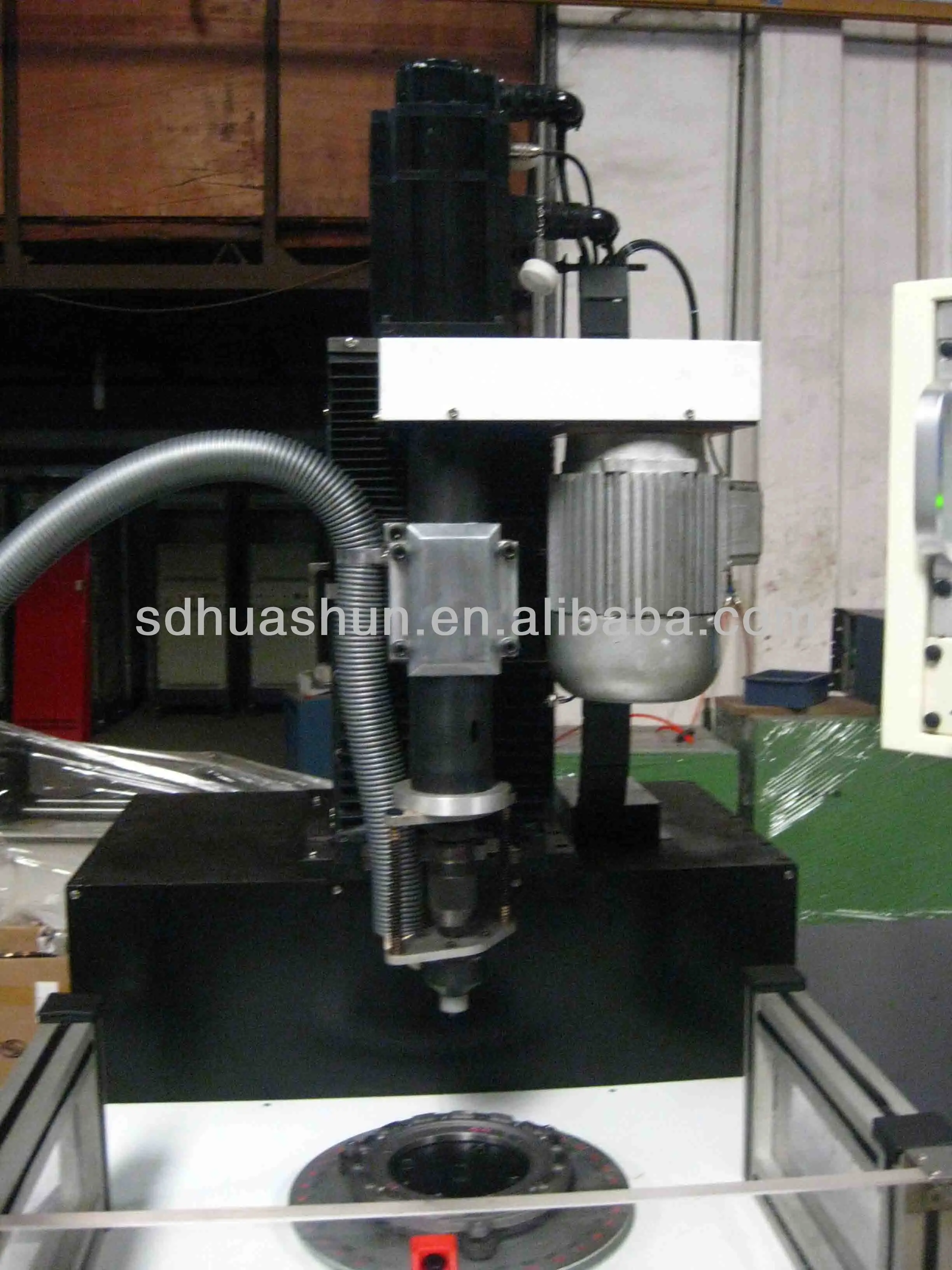

Structure :

1.Functions: automatically locating, automatic division, automatic depth control, magnitude compensation

2.Correction methods: disk milling cutter or twist drill

3.Drilling controlled by: digital servo motor or step motor

4.Drilling magnitude compensation: linear compensation controlled by computer

5.Correction Position: Y or Z directions

Application Areas:

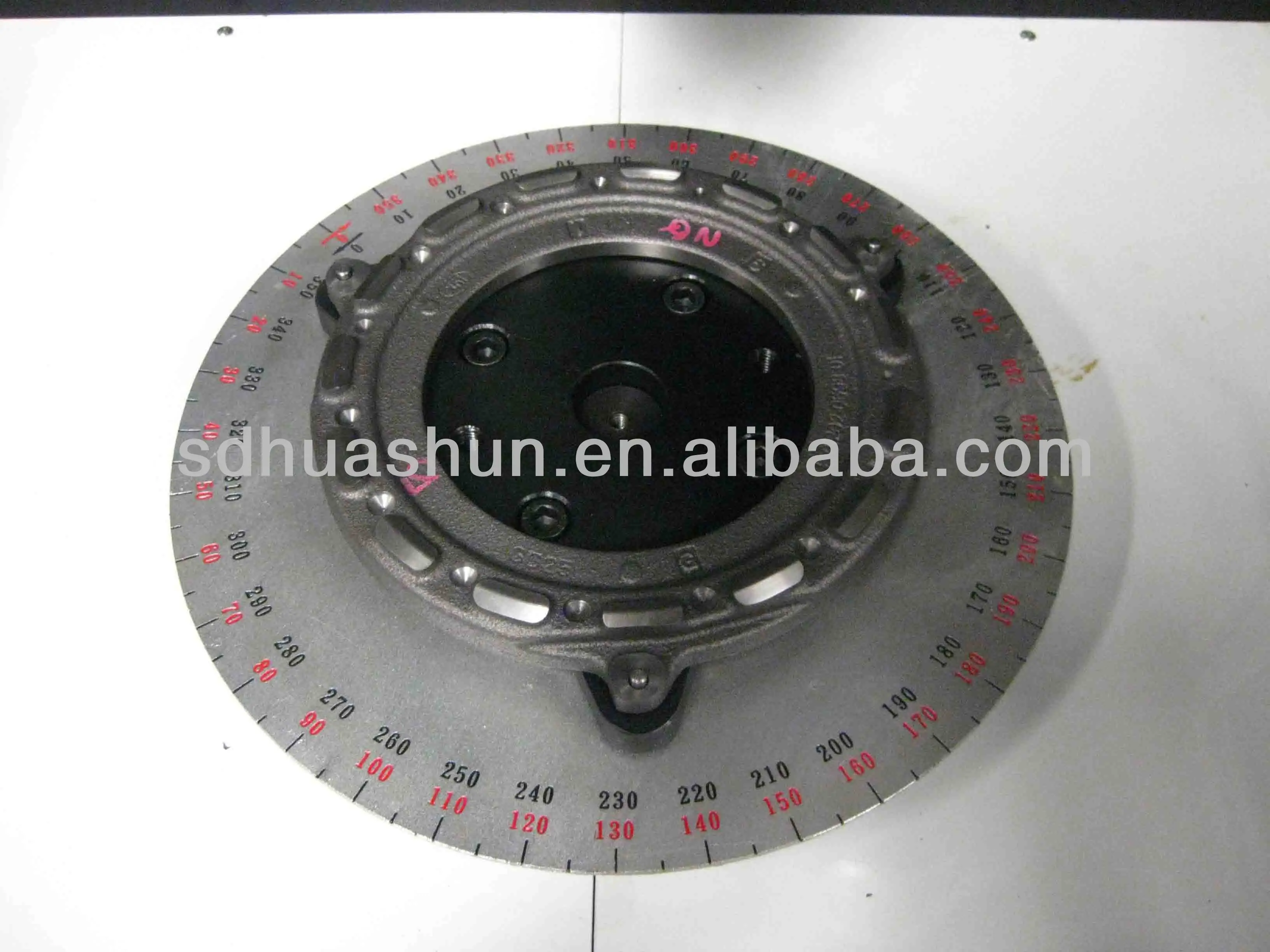

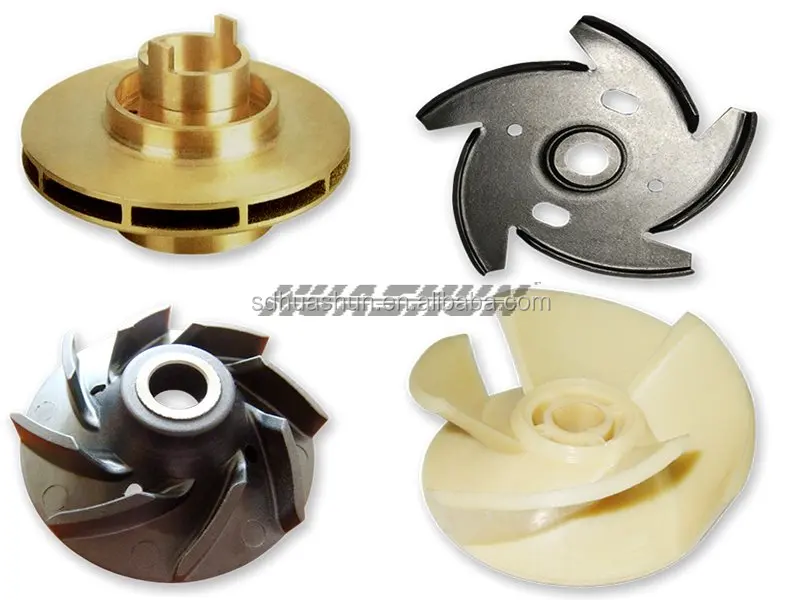

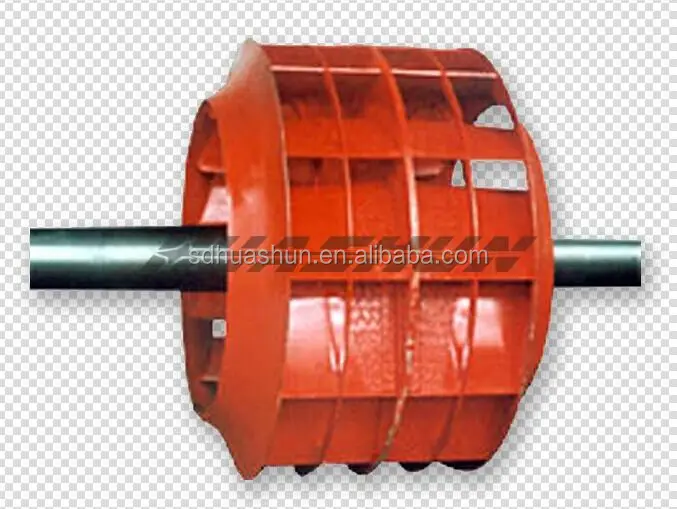

Brake drum, fly wheel, chuck, impeller, etc.
