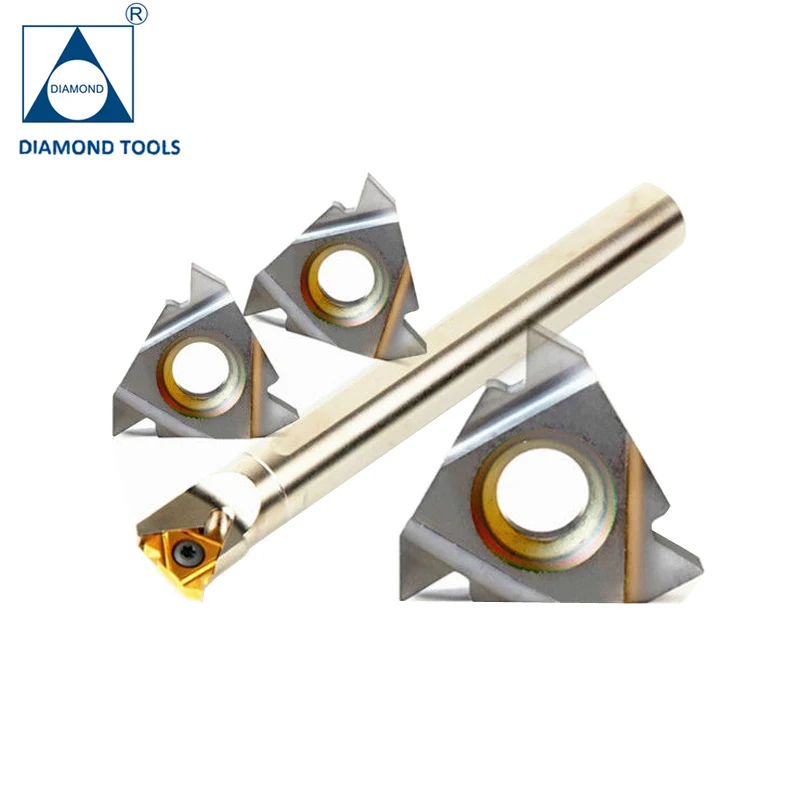

SNR/L0016M16 internal carbide threading insert tool cnc turning tool holders

Product Overview

Description

Chengdu Diamond Tools Co., Ltd: 26 Years professional Manufactuer:



SNR/L 0016M16 internal carbide threading insert tool cnc turning tool holders  :



1.Application: Our carbide threading inserts cnc lathe tool holders are good for Low carbon steel, medium-carbon steel, High carbon steel, Alloy steel , Adjusting quality steel, Stainless steel, Cast steel, Cast iron,Aluminium alloy and copper alloy machining



2.Advantage Features for cnc turning tool holders:

    A. Full profile design ensures the precision of threads.

   B. Rake face feature: Smooth rake face design makes the chip removal more fluency.

    C. Cutting edge process feature: . Uniform horning cutting edge design ensures inserts with  small cutting force .



Free samples:

 cnc lathe tool holder will be provided free of charges for your trial testing, since seeing is believing.



Quality guarantee:

Strictly quliaty control processing in factory. and we promise to return back your payment or replace the products all at our costs in case of any problem.

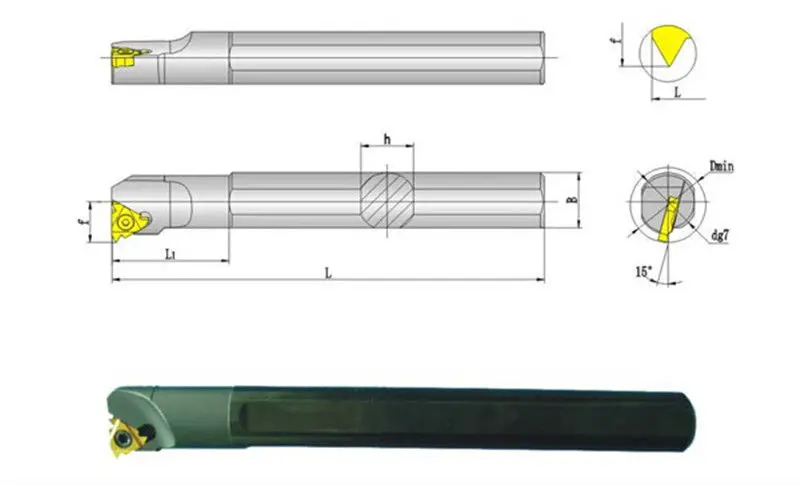

Specifications of internal carbide threading insert tool cnc turning tool holders:







No.	Model Number	d	f	L	h	D min	B	L1	insert	screw	wrench
1	SNR/L0010H11	10	7	100	9	12	9	25	11IR/LΟΟΟ	M2.5	T8
2	SNR/L0012K11	12	9	125	11	16	11.5	32
3	SNR/L0016M16	16	12	150	15	20	15.5	32	16IR/LOOO	M3.5	T15
4	SNR/L0020P16	20	14	180	18	25	19	40
5	SNR/L0025M16	25		150	23	30	24	40
6	SNR/L0032S16	32		250	30	37	30	55
7	SNR/L0050U16	50		300	47	60	47
8	SNR/L0032S22	32		250	30	37	30	55	22IR/   LΟΟΟ	M4.0	T20
9	SNR/L0050U22	50		300	47	60	47





More carbide inserts and tools in factory:



Factory & Imported Equipments and customers visiting:





Why us Diamond?

•   26 years experience in the cutting tool industry
•   Grinding and inspection equipments imported from UK, Germany and Japan
•   Full stock available for urgent demands
•   ISO, TUV and SGS certificates
•   Response within 12 hours in 365 days
•   Sample for testing before ordering
•   FREE after-sale service



Return Policy:

1. In case you receive the shipment in bad condition, we can make a refund or replace the products as our costs to you.

2. In case your machining productivity is unsatisfactory, pls feel free to send us feedback, we improve our tools according to your working piece and machining condition, and then resend you the samples free for further testing.



Welcome to our factory for visiting and inspection, as the saying goes: seeing is believing.

Email us at fuyuanzhou at cndiamond.com.cn for any assistance!
