WiFi Smart Home Control Switch for two loads

Product Overview

Description



WiFi Smart Home Control Switch for two loads



Features:



i106 is a web edition upgrade product of intelligent switch, based on preserving the switch function of BRT-106, we increase the module of wireless access Internet system, makes the switch not only can be controled directly by using button panel (as well as the remote controller) when we in a short distance to the switch, but also can control the switch through the Internet network system using a mobile phone, pad, and personal computer.



i106 is also a Keypad Remote Switch. It controls ON/OFF of 2 loads, and usually used to Drawing Room, Office and Meeting room, to control the fan and lights.



• Operates on L & N inputs and fits in a standard wall box;
• Each switch can control 2 loads.
• The Remote can control 3pcs 2 loads wall switches;
• With LCD Display, you can set accurate Delay off time for any load.
• One button switches off all loads function;
• Good for AC motor and all types of lights;
• Wallplate uses flame resistance ABS-V0 material for safety;
• Classical 86 series design and easy installation.

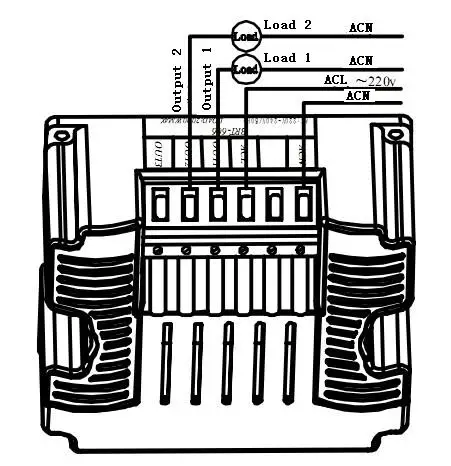

  Wiring Diagram:





Specifications:

Voltage	220~240V/50or 60Hz	Operating temperature	0°C~55°C
Load Power	2000W(Max)	Relative humidity	Non-condensing 20-90%
Remote Control	RF	Remote Distance	≥20m
Installation hole spacing	60mm	Matching wall box	75*75*50mm
Switch dimension	86*86*43mm	Remote control dimension	107*36*14 mm
Switch weight	112g	Remote control weight	31g
