Промышленная система фильтрации воды с обратным осмосом

Product Overview

Description

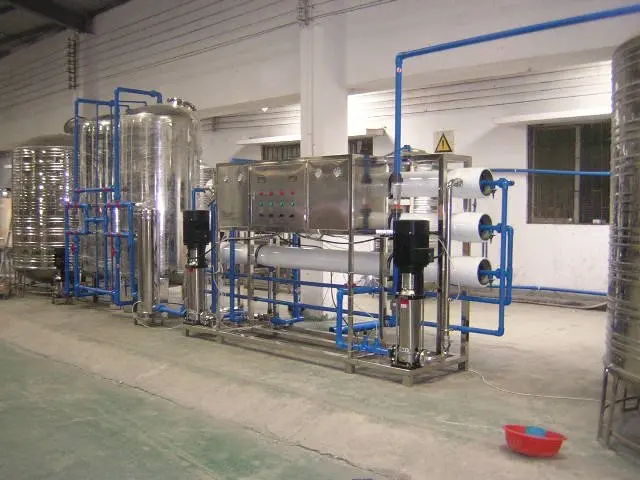

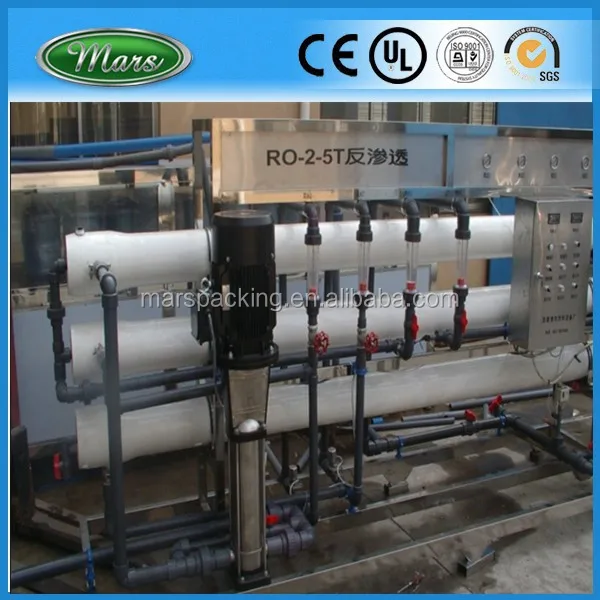

Industrial Reverse Osmosis Water Purification Filtration System



A. Description:

industrial water filter, the raw water is underground water, first goes by pre-treatment, then by RO treatment. Through those treatments, can remove dissolving salt 99% and harmful materials, like particle, colloid, organic impurities, heavy metal ions, bacteria, viruses and heat source, etc. the system salt rejection rate gets 96-98%, outlet water conductivity gets ≤10μs/cm².



B. Process:

Raw water+ raw water tank +Raw water pump+Quartz sand Filter + Carbon Filter + softener filter(Optional) +security filter+High Pressure  Pump+ Reverse Osmosis system +pure water tank+UV sterilizer(ozone generator) +precision filter+ water supply point



C. Water Osmosis Reverse Parameters:

1. capacity: 500L/H

2. rated power: 1.5Kw/H

3. voltage: 220V/50Hz, 380V/50Hz

4. desalting rate:>=97%

5. water recovery rate: 50-70%

6. conductivity of raw water: ≤400μs

7. conductivity of pure water: ≤10μs







Water Osmosis Reverse Main Parameters

Model No.	Capacity        (M3/H)	Power (kw)	Recovery Rate      (%)	Total land area               LX W X H (mm)
RO-250	0.25	1.5	50	2500X1000X2800
RO-500	0.5	1.5	50	2500X1000X2800
RO-1000	1	2	50	3500X1200X2800
RO-2000	2	4	50-60	6500X1500x2800
RO-3000	3	4.5	55-65	7500X1500X2800
RO-4000	4	6.5	55-65	7500X1500X2800
RO-5000	5	11	60-70	10000X2500X3500
RO-6000	6	11	60-70	10000X2500X3500
RO-8000	8	18	60-70	10000X3500X3500
RO-10000	10	20	60-70	10000X4000X3800
RO-20000	20	30	70-75	15000X5000X5000
RO-30000	30	40	70-75	20000X6000X5000
RO-50000	50	50	70-75	30000X8000X5000



Item No.	Equipment Name	Place of origin	Quantity
1	Raw water pump	Domestic	1 pc
2	Quartz sand filter	KAI YUAN	1set
	A. Tank Material: FRP/Stainless steel
	B. Manual/Auto control valve
3	Activated carbon filter	KAI YUAN	1set
	A. Tank Material: FRP/Stainless steel
	B. Manual/Auto control valve
4	Security filter	KAI YUAN	1set
	A.material:stainless steel/PVC
	B.PP filter cartridge: 5μm
5	High-pressure pump	CNP	1 pc
6	Reverse osmosis water system  Capacity: 0.50m3 / h, maximum working pressure: 1.5MPa, desalination rate: 97%, system water use efficiency: ≥ 50%	KAI YUAN	1set
	A. Membrane components 4040 Material: SUS-304	Domestic	2 pcs
	B. Membrane LCLE-4040	USA Dow	2 pcs
	C. Stainless steel rack		1 pcs
	D. Panel flow meter		2 pcs
	E. Instruments, meters,conductivity meter		1 batch
	F. Inlet water solenoid valve		1 pc
	G. Dense water solenoid valve		1 pc
	H. Dense water regulating valve SUS304		1 pc
	I.Pressure fittings, pressure pipe		1 batch
	J. Valves, U-PVC pipe		1 batch
7	Electronic Control System	KAI YUAN	1set
8	Filler
	A.quartz sand	Domestic
	B.activated carbon	Domestic
9	Scene valves, U-PVC pipe	Domestic	1 batch







D. Water Osmosis Reverse Functions:

1. Raw water pump: provide pressure to quartz sand filter/ activated carbon filter

2. Quartz sand filter: get rid of turbidity, suspended mater, organic matter, colloid ect.

3. Activated carbon filter: remove color, free chloride, organic matter, harmful matter and so on.

4. Micron filter: prevent any deposition of large Particles, most of the bacteria, and viruses going into RO membrane, the accuracy is 5 um, for holding back any large particulates such as large iron, dust, suspended matter, impurity.



5. High pressure pump: provide high pressure to RO membrane(at least 2.0Mpa)

6. Manually wash RO membrane;

7. Manually wash RO memebrane with chemicals on machine;

8. Machine automatically stops when high water level of purified water, and runs when low level;



9. Multi-stage pumps protect the machine when lack of water;

10. Protection in such cases as no power, lower pressure, higher pressure, shot circuit, creepage, etc.



E. Water Osmosis Reverse Service:

1. Installation guideline.

2. We can manufacture machines according to your requirement, welcome OEM.
