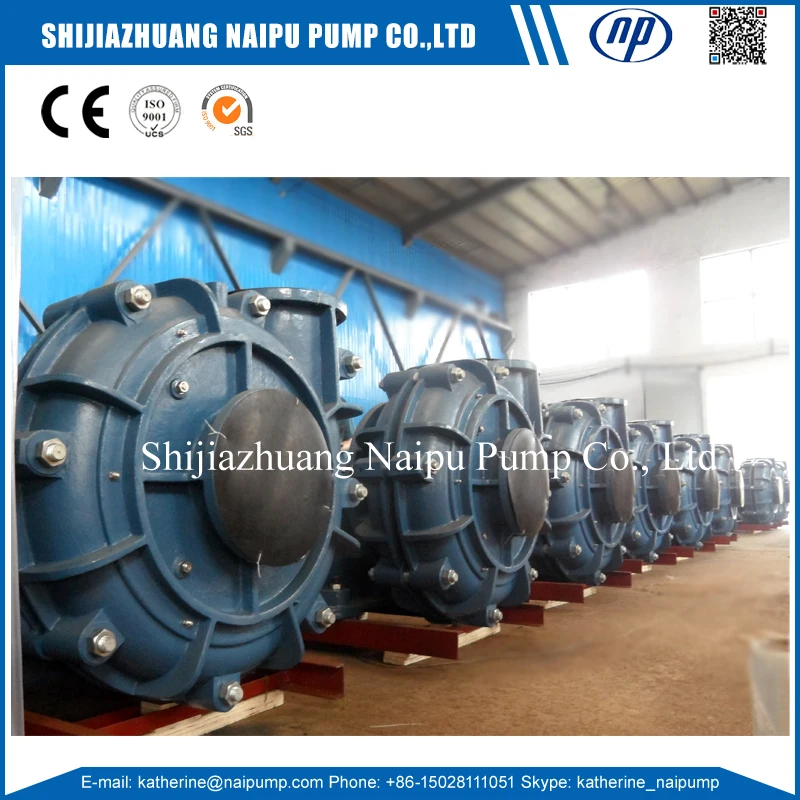

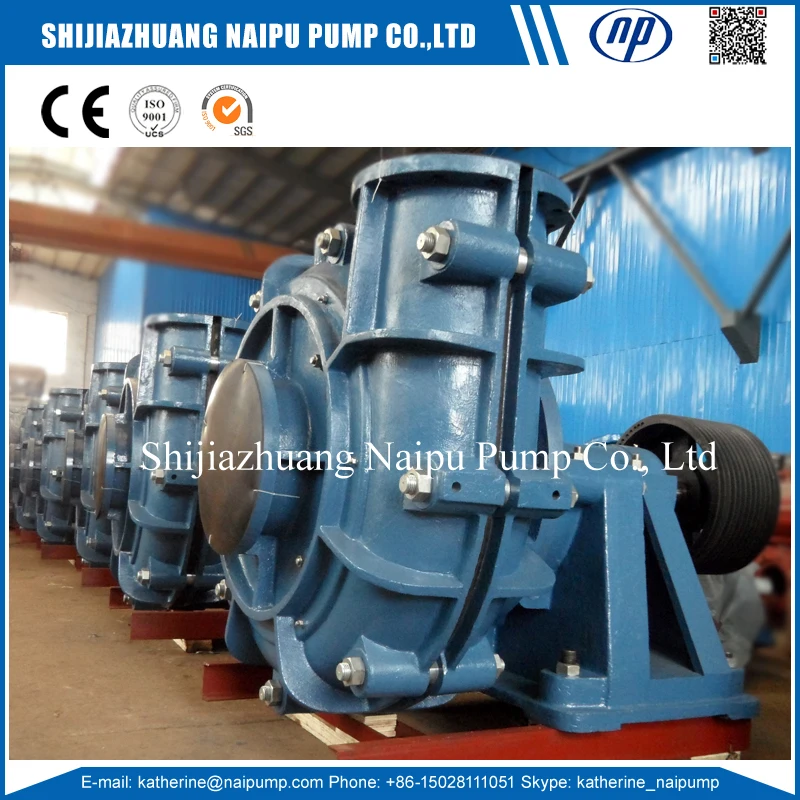

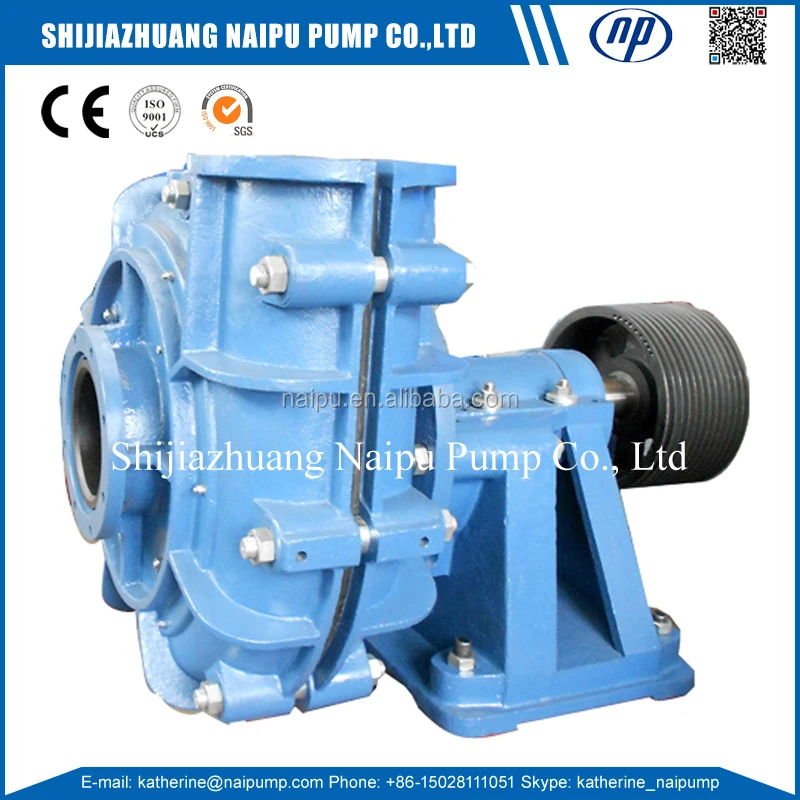

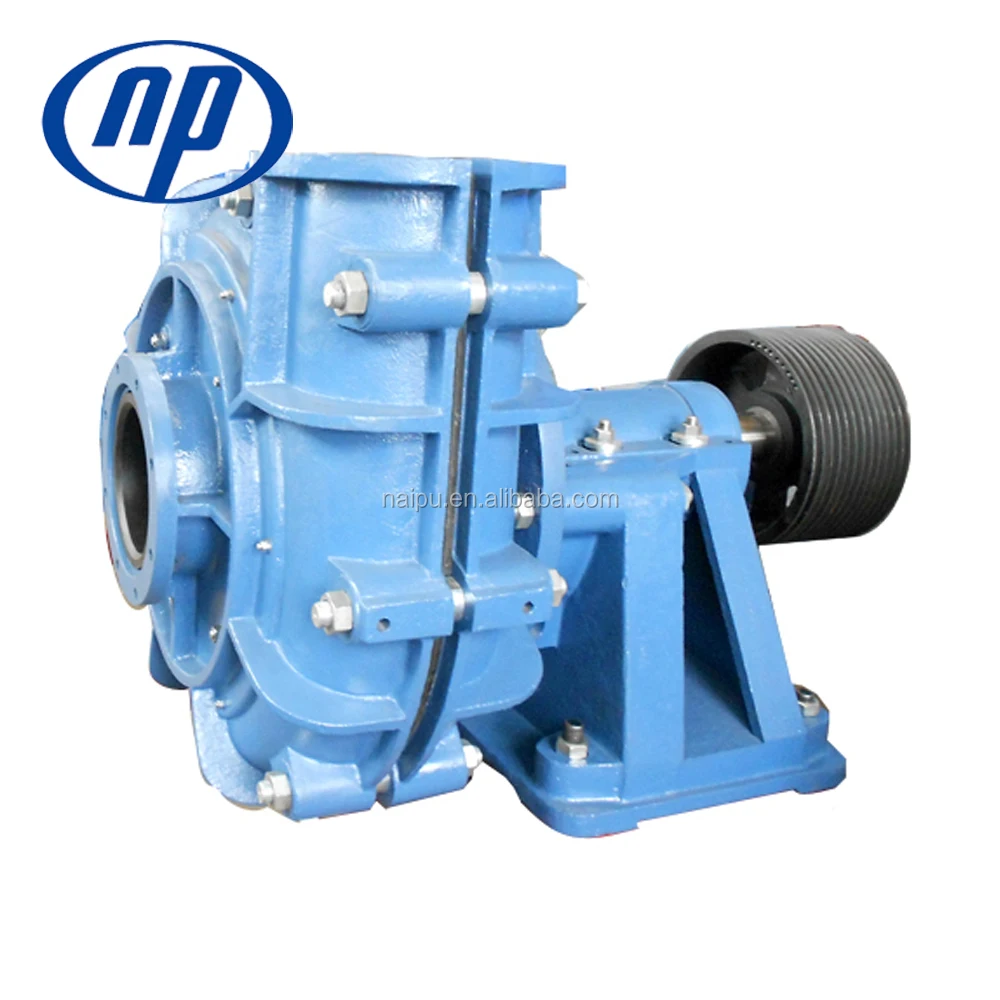

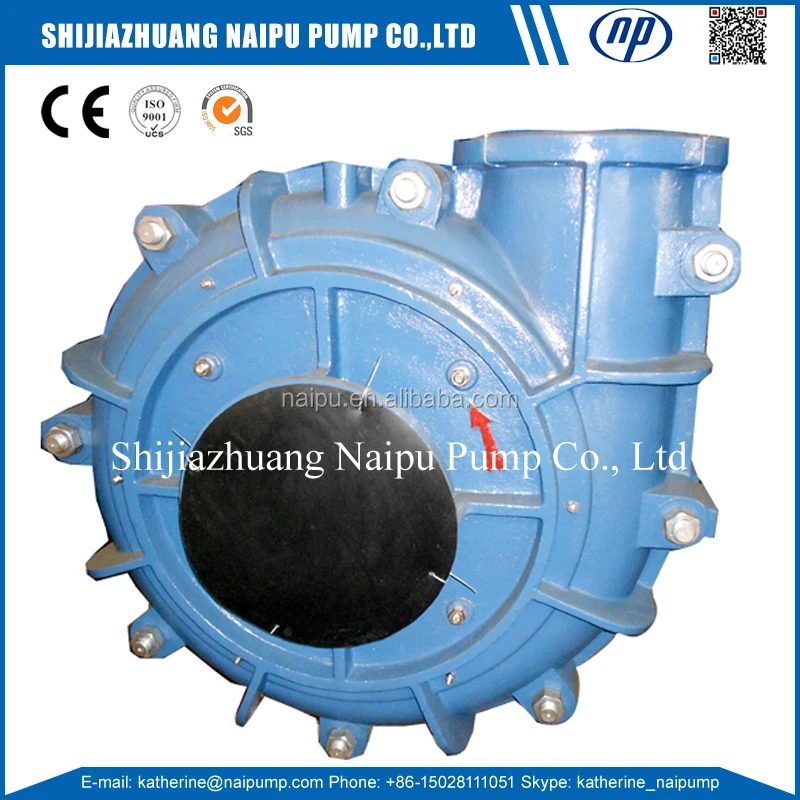

12X10 F HA Circulating Slurry Pump for Flue Gas Desulfurization System
12X10 F - HA Circulating Slurry Pump for Flue Gas Desulfurization System
12X10 F - HA Circulating Slurry Pump for Flue Gas Desulfurization System
12X10 F - HA Circulating Slurry Pump for Flue Gas Desulfurization System
12X10 F - HA Circulating Slurry Pump for Flue Gas Desulfurization System
12X10 F - HA Circulating Slurry Pump for Flue Gas Desulfurization System
12X10 F - HA Circulating Slurry Pump for Flue Gas Desulfurization System

12X10 F HA Circulating Slurry Pump for Flue Gas Desulfurization System

Share on (1455634516):


Price:$18,000.00

Quantity:


Product Overview

Description


12X10F - HA Circulating Slurry Pump of the Flue Gas Desulfurization System



Product Description


NPAH(R) slurry pump advantages





Slurry Pump designed for a wide range of heavy duty, can be interchanged with world famous brand. Interchangeable rubber


and metal design allow best material choice for any application.





Naipu is more than a slurry pump manufacturer. We help customers select the type, size and operating speed of pumps that


will perform at the Lowest Cost of Ownership.





Slurry Pump Typical Applications





· High density slurry transfer;


· Thickener underflow recirculation;


· Reagent dosing;


· Froth flotation;


· Cyanide processing etc.


· Mill discharge;


· Cyclone feed;


· Tailings





Slurry Pump Major Advantages


· Long wear life


· High efficiency


· Excellent suction performance


· Ease of maintenance


· Large sphere passage




 AH Slurry Pump Structure


NPAH SLURRY PUMP PERFORMANCE PARAMETERS














































































































































Type



Allowable Mating Max. Power(Kw)



Clear Water Performance



Impeller



Capacity/Q m³/hr



Head/m



Speed/rpm



Max Efficiency/%



NPSH/m



Nos of Vane



Impeller Diameter/mm



1.5X1-NPAH



15



12.6--28.8



6--68



1200--3800



40



2--4



5



152



2X1.5-NPAH



15



32.4--72



6--58



1200--3200



45



3.5--8



5



184



3X2-NPAH



30



39.6--86.4



12--64



1300--2700



55



4--6



5



214



4X3-NPAH



30



86.4--198



9--52



1000--2200



71



4--6



5



245



6X4-NPAH



60



162--360



12--56



800--1550



65



5--8



5



365



8X6-NPAH



300



360--828



10--61



500--1140



72



2--9



5



510



10X8-NPAH



560



612--1368



11--61



400--850



71



4--10



5



686



12X10-NPAH



560



936--1980



7--68



300--800



82



6



5



762



14X12-NPAH



560



1260--2772



13--63



300--600



77



3--10



5



965



16X14-NPAH



1200



1368--3060



11--63



250--550



79



4--10



5



1067



18X16-NPAH



1200



2520--5400



13--57



200--400



85



5--10



5



 1370




Detailed Images

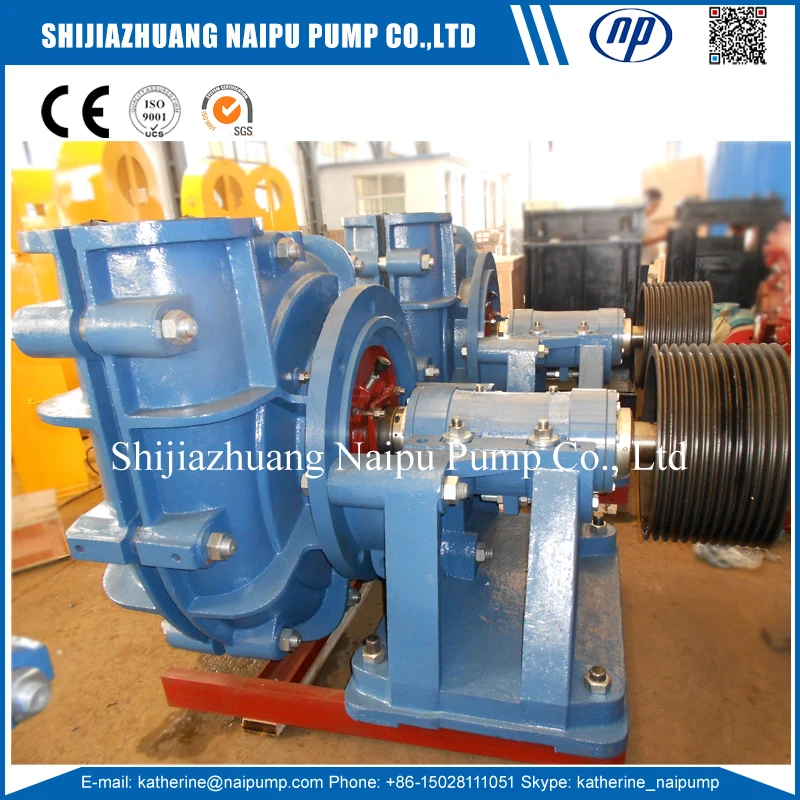

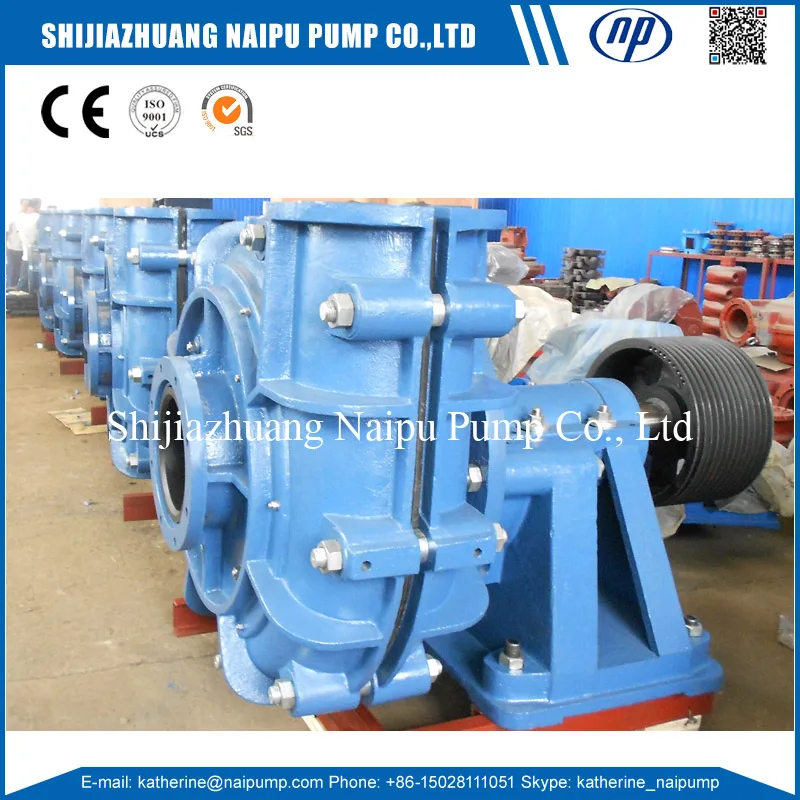

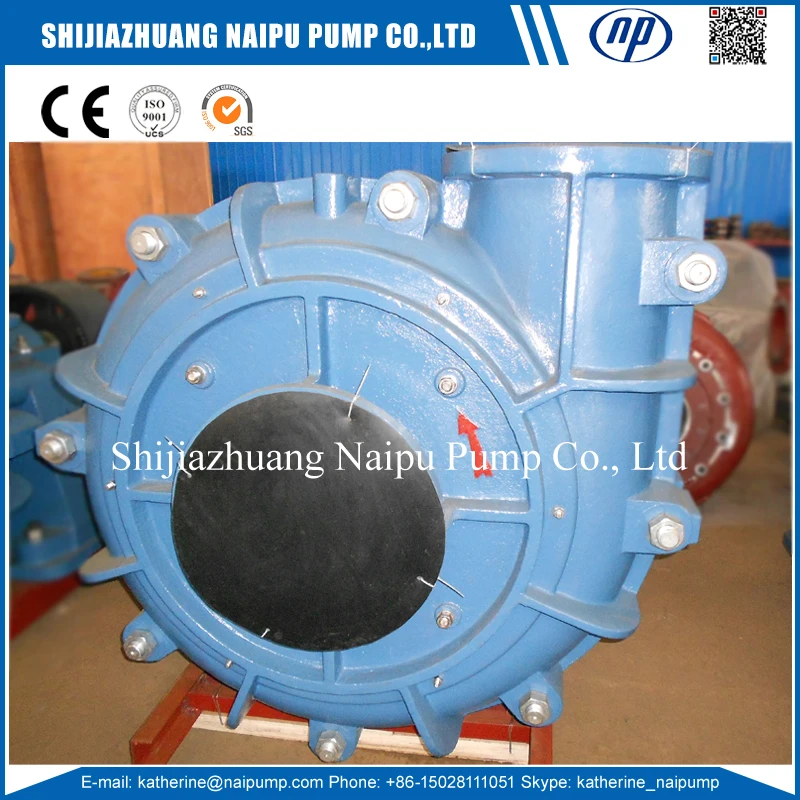

 10 inches Slurry Pump.jpg10-12 Warman Pump.jpg10 inch Warman Pump.jpg12X10 Slurry Pump.jpgS21 Rubber Slurry Pump.jpg





Certifications


CE, SGS, ISO9001 Certification










NaiPu Main Pump Model

































































































































NPAH(R)



L(R), M



HH



SP(R)



G



AF Series



1.5/1B-NPAH(R)



20A-L



1.5/1C-HH



40PV-SP(R)



6/4D-G



2QV-AF



2/1.5B-NPAH(R)



50B-L(R)



3/2D-HH



65QV-SP(R)



8/6E-G



3QV-AF



3/2C-NPAH(R)



75C-L



4/3E-HH



100RV-SP(R)



10/8F-G



6SV-AF



4/3C-NPAH(R)



100 D-L



4/3X-HH



150SV-SP(R)



10/8S-G



8SV-AF



6/4D-NPAH(R)



150E-L



6/4F-HH



200SV-SP



12/10G-G







6/4E-NPAH(R)



300S-L



6/4X-HH



250TV-SP



14/12G-G







8/6E-NPAH(R)



10/8 R-M



6S-H







14/12T-G







8/6R-NPAH(R)



10/8 E-M



8/6S-H







16/14 G-G







10/8F-NPAH(R)







8/6X-H







16/14TU-GH







10/8X-NPAH(R)







6S-HP







16/14H-GH







12/10ST-NPAH(R)







8/6S-HP







18/16G-G







14/12ST-NPAH(R)







8/6X-HP







18/16TU-GH







16/14TU-NPAH(R)























20/18G(TU)-NPfAH(R)





























Related Products


Naipu pump produce many kinds of centrifugal slurry pump for mining, sand and other solids slurry transporting.

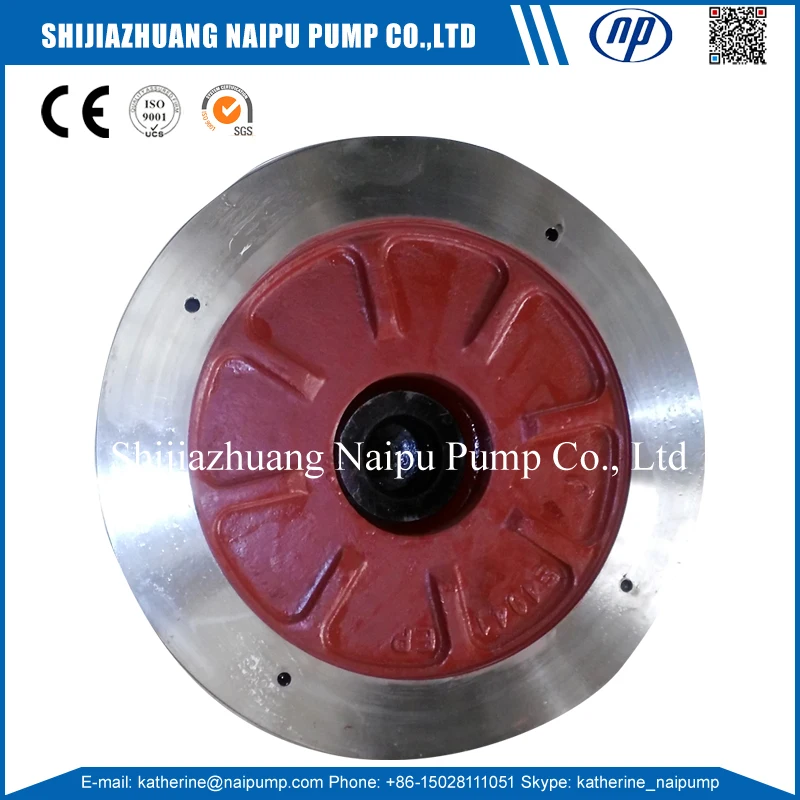

Volute Liner E4110EPA05Warman Pump Back Liner
D3036HS1R55 linerWarman Slurry Pump.jpg




slurry pump.jpg





Company Information


Shijiazhuang Naipu Pump Co., Ltd is a professional manufacturing enterprise of slurry pumps and spare parts. Which own Mould Workshop, Casting Workshp, Machining Workshop and Assembly Workshop.





Various requirement for materials in the market, Naipu offering wet end part material as following. Metal NR55, A07, A12, A33, A49, A61 and etc. Rubber R08, R26, R33, NR55, S01, S21, S31, S42 and etc. Special materail: U01, EPDM, PU, CR, Hastelloy 276-C, Ferralium and etc.



Given customer's special request for abrasion and erosion in pumping environments, we can supply the material according to customer's material formula or sample to meet your need.





Naipu is willing to undertake any OEM(Original Equipment Manufacture) order for pump and mining equipment accoring to the drawing or sample.







Factory





Packaging & Shipping


Packaging details





1. Outside package: standard export wooden cases.


2. Inner package: Stretch film.
