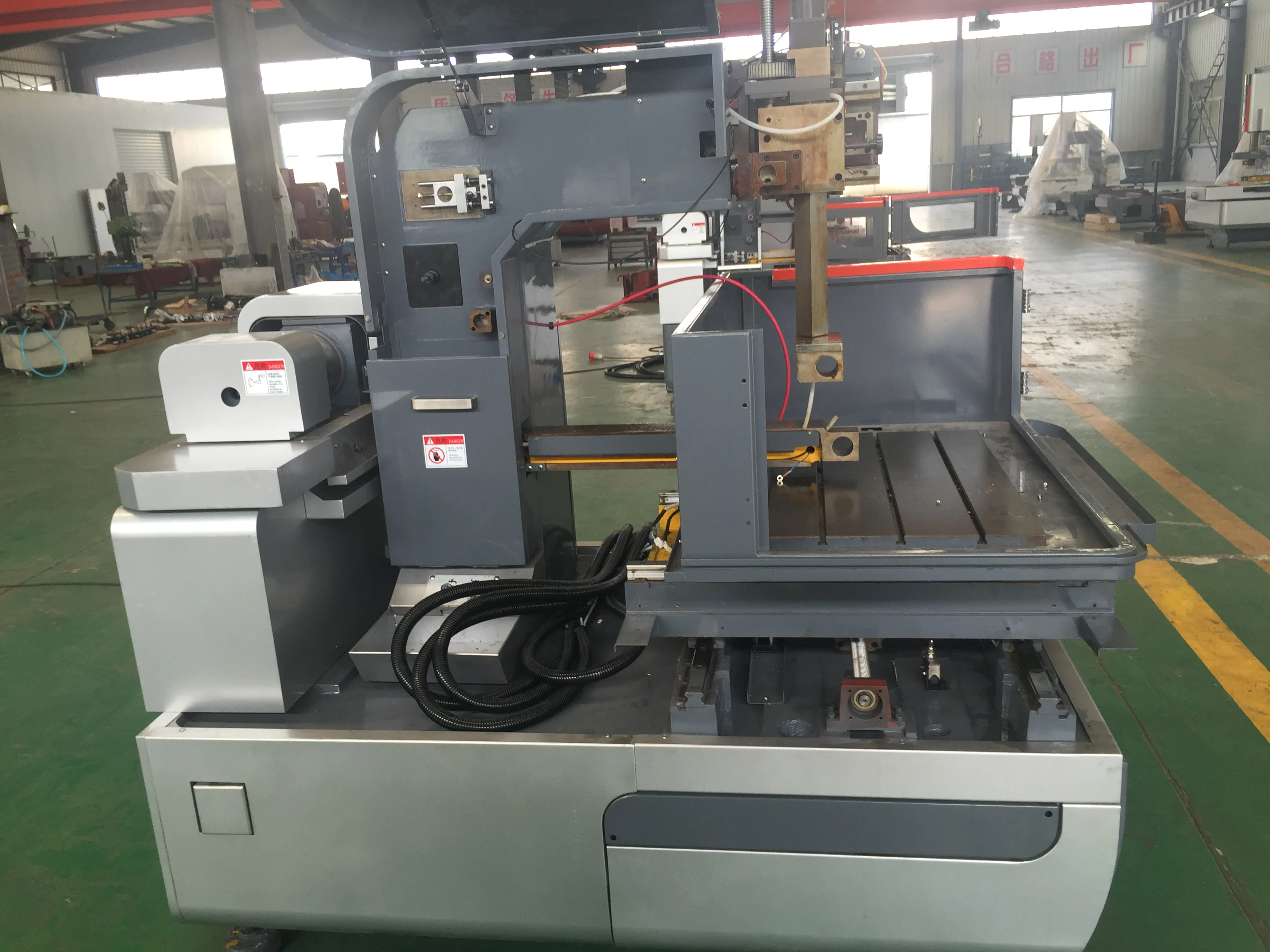

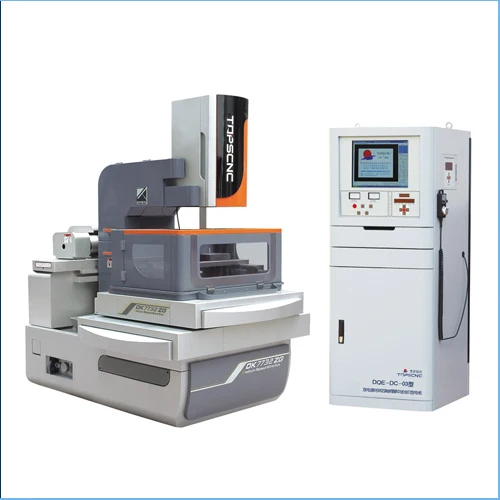

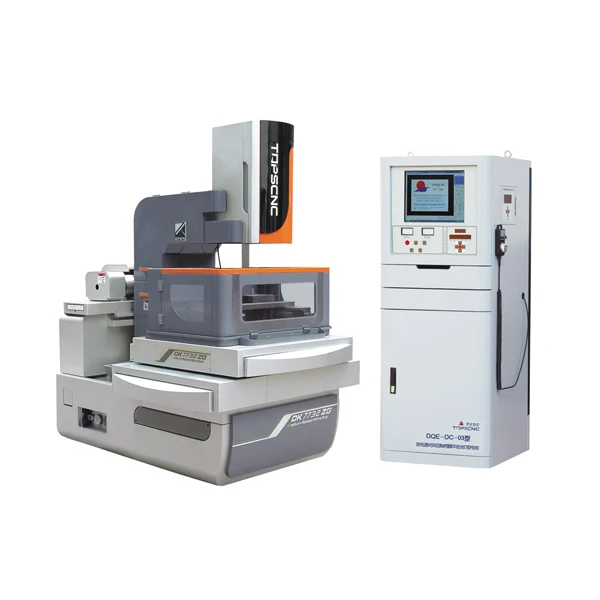

ZG series cnc multi cutting wire cut edm machine

Product Overview

Description

Technical parameter/Model	Unit	DK7732ZG	DK7740ZG
Table size (W*D)	mm	740×460	840×540
Table travel (X*Y)	mm	320×400	400×500
Max.workpiece dimension	mm	800x500	900x600
Table size(U*V)	mm	±30×±30
Max. workpiece weight	kg	600	1000
Max. thickness of workpiece	mm	300
Max. taper angle/workpiece thickness		±6°/80mm
Molybdenum Dia.	mm	φ0.15~φ0.25mm(φ0.18mm recommend)
Max. wire feed rate	m/sec	1~11.4m/sec  frequency adjustable
Machining precision	mm	≤0.015
Max. machining speed	mm2/min	≥220
Surface roughness	μm	one time Ra≤2.5,three times Ra≤1.1 five times Ra≤0.9
Linkage control axis number		X,Y,U,V
Max.trip wire cylinder	m	250
Z-axis control		electronic control
Motor type		X,Y,U,V-axis all servo motor drive
Axis controlled		4 axis simultaneous
Min. control pace	mm	0.001
Power supply		380VAC/50Hz
Max. working current	A	12
Power consumption	Kw	0.56
Work liquid		JR3A
Water tank	L	90
FiLtering mode		Paper filter/Italy pump

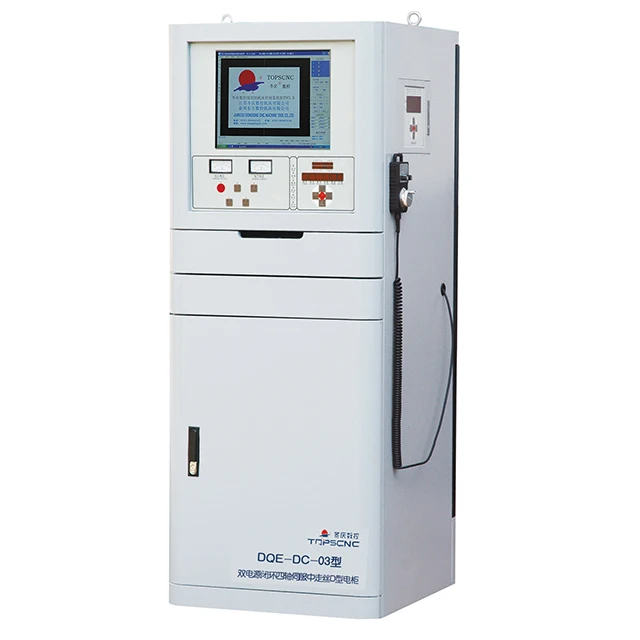

Controller		DQE-DC-03
Machine weight	kg	2200	2600
Machine dimension	mm	1800×1300×2030	1900×1400×2060

1.Bed with resin sand casting, two high-temperature heat treatment, effective control of the deformation of the machine

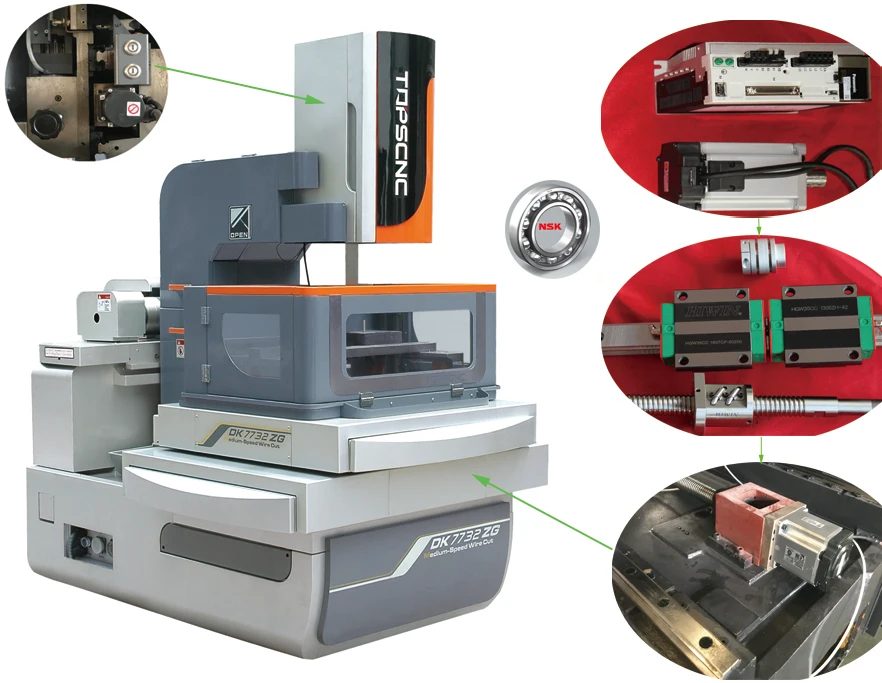

2.Imported precision linear guide, imported double nut precision ball screw, long time to maintain mechanical accuracy

3.C-type structure, two-way constant tension tight wire, instantaneous control tension (invention patent)

4.Independent suspension of three-axis combination T-slide taper device (invention patent)

5.Automatic focus lubrication, timing settings, automatic recovery of waste oil

6.Noise-free drawer-type slide guard (invention patent)

7.Four-axis backlash compensation and pitch compensation, grating full closed loop, to ensure the cutting accuracy of the machine, positioning accuracy and repeat positioning accuracy

8.The use of low-voltage, unimpeded, constant current high-frequency power supply for processing cutting, making the cutting efficiency, surface roughness, molybdenum wire loss and other technical indicators in the leading domestic level

9.Using a small pulse width, high current constant pressure source for processing repair knife, greatly enhance the stability of multiple cutting, consistency and process indicators

10.X.Y.U.V axis with servo motor, equipped with 4-axis hand pulse, making the machine moving convenient, fast

11.Fully enclosed cover, unique and stylish design (appearance patent)

Company Information

Founded in 1958 and developed more than half a century, Jiangsu Dongqing CNC Machine Tool CO. Ltd., has now became a forge ahead modern enterprise for production of CNC machine.



The R&D, production and marketing are the main component of the company. As shown on the website, the main product of the company covers five series, CNC milling machine & vertical machining center, CNC engraving machine, CNC wire cut EDM, Die sinking EDM and Micro hole drilling EDM.



The company has always engaged in improving the quality, function and performance of CNC machine in the past several years. It has successfully passed identification of ISO, CE, SGS, TUV & Bureau. “Innovation, development and win-win situation” makes TOPSCNC enjoy high reputation in this line.



TOPSCNC people wish to share success with you in the future!



TOPSCNC Customer

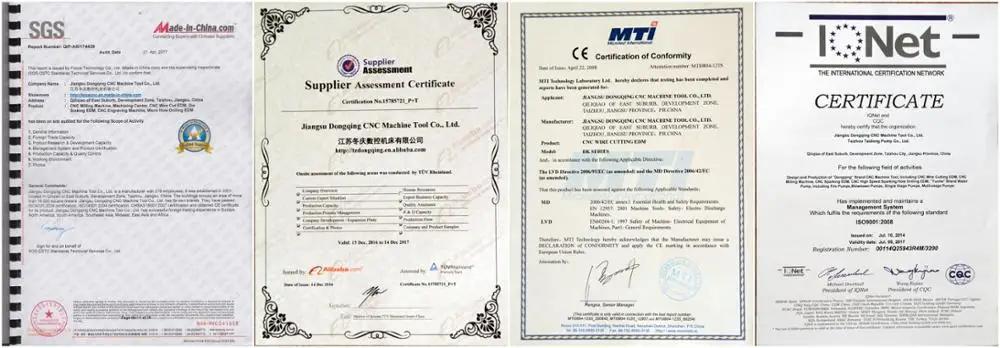

Certificates
