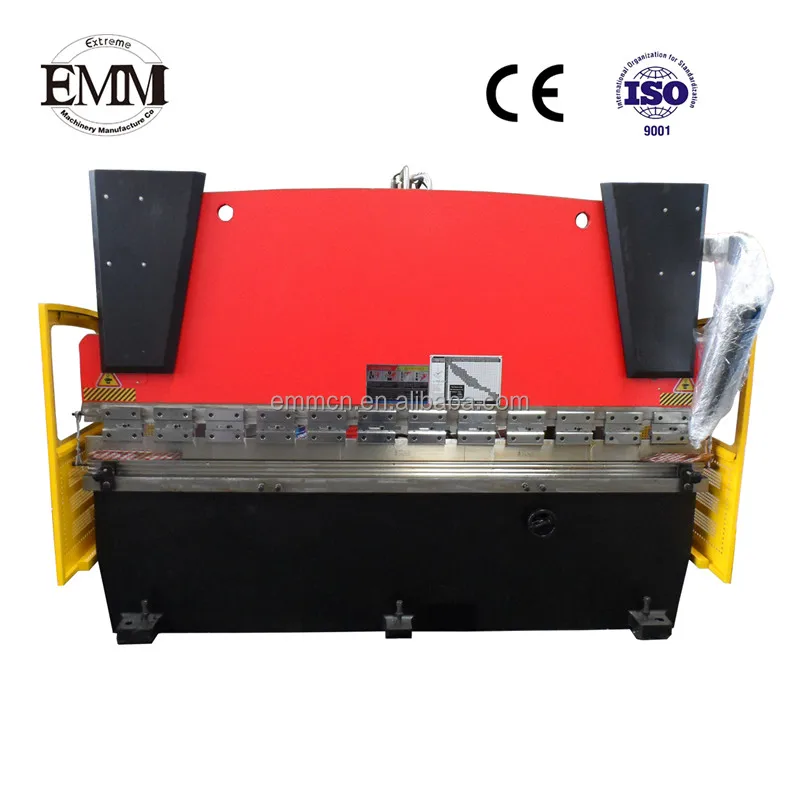

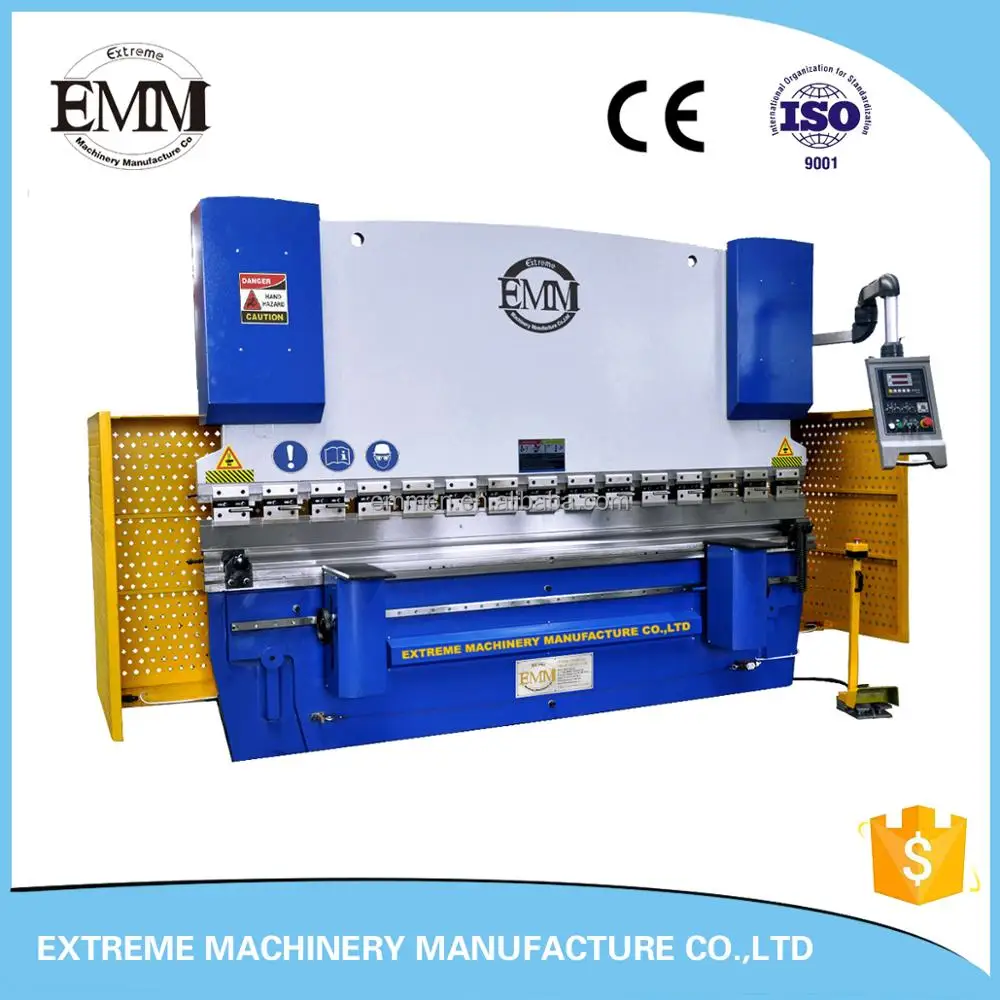

wc67k series cnc automatic universal metal sheet bender for press brake

Product Overview

Description

  Product Description

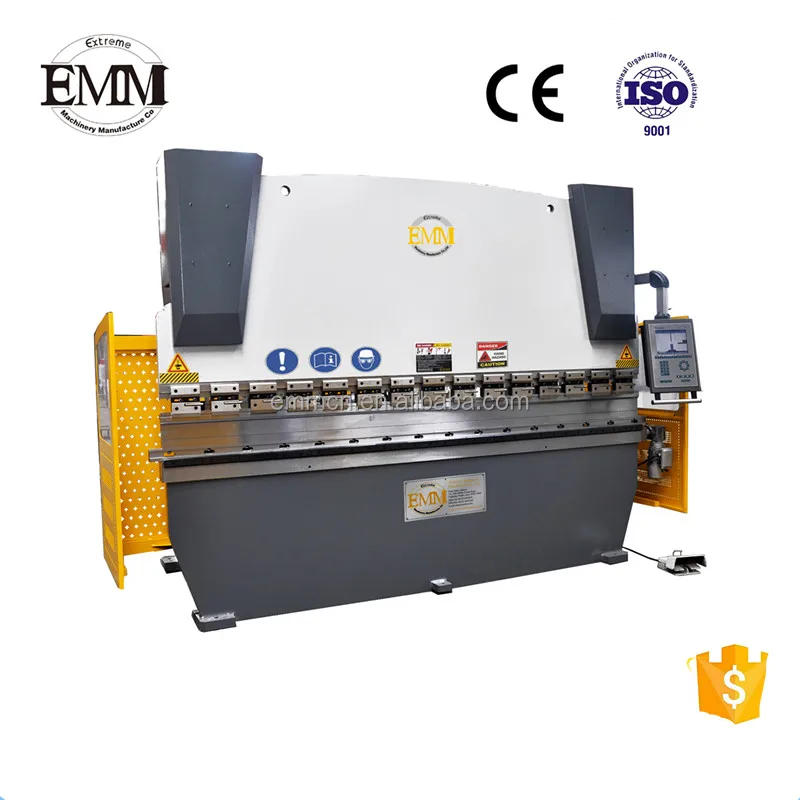

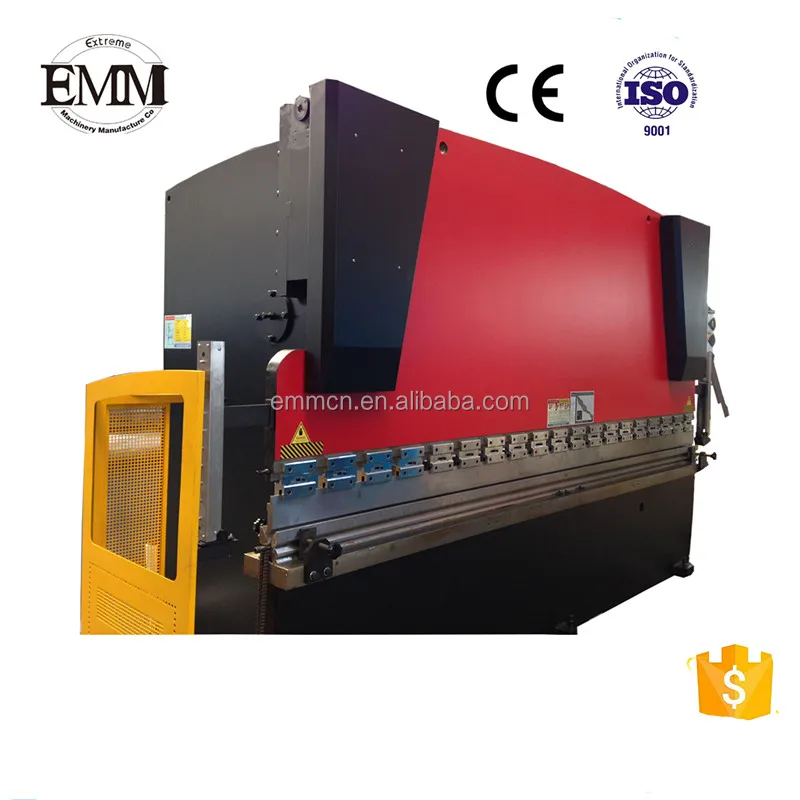

Model:  wc67k series cnc automatic universal metal bender for press brake

And ISO 9001:2000

We can desigh the suitable upper and lower die according to customers' proposal.

hydraulic sheet metal bending press brake machine introduction

This machine is high-efficiency and high-precision in bending sheet metal. Using different kinds of upper and lower dies can bend all kinds of work pieces. One slider travel makes a sheet bending and the complicated shape work piece may be achieved through bending many times.



Overall structure

a ) Using UG (finite element) analysis, through computer aid design, with nice appearance.

b ) The machine structure is welded with steel plate, with sufficient strength and rigidity. The hydraulic drive prevents
the machine from serious overload operation accidents caused by the change of sheet thickness or bad choice of
lower die cavity. Additionally, this machine is also featured by the steadiness of work, convenience of operation, and reliable safety.

c) The mechanic block is equipped in the oil cylinder to ensure the fixing accuracy when the slider travels to the bottom dead point and so as to assure the consistency of bending angle in bulking production.
d )Using German technology to eliminate internal stress.

e )   Entire frame using striking grit to get rid of rust and spout anticorrosive paint.

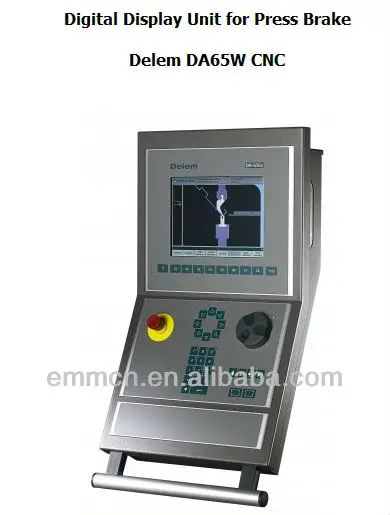

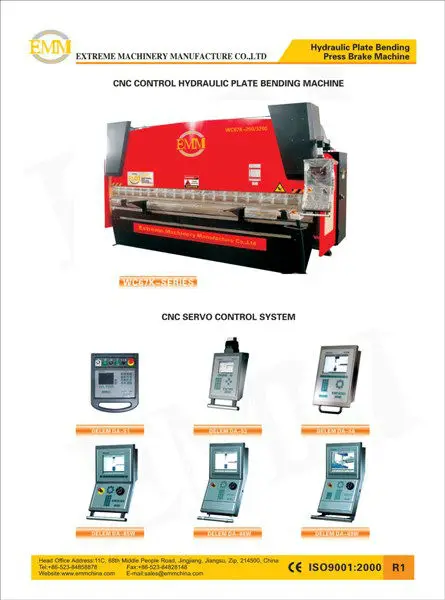

control system

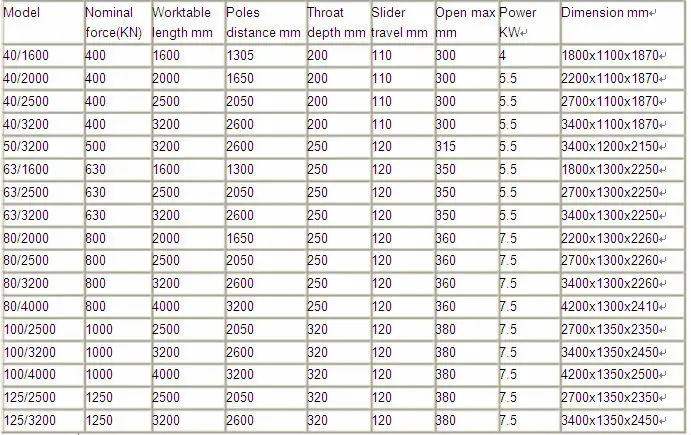

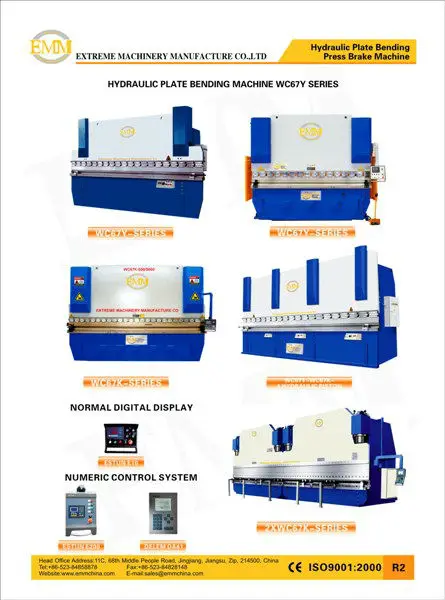

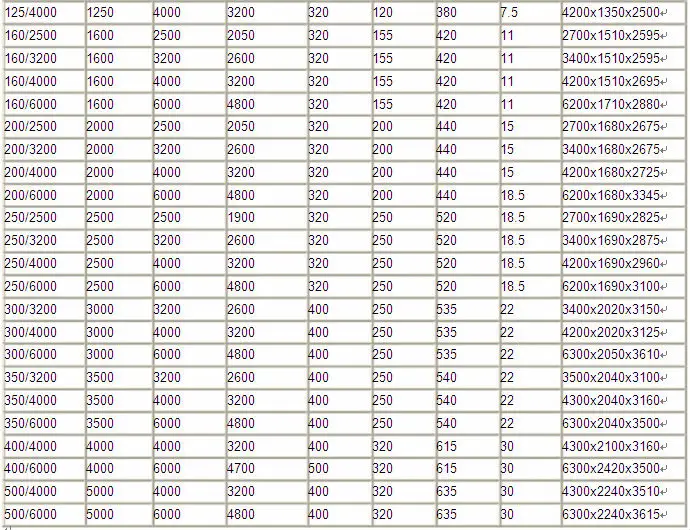

diiffernet models
