kus Diesel rpm meter CMHB BN 4KL
- Category: >>>
- Supplier: Dongguan Zhengyang Electronic Mechanical Ltd.
Share on (1456660051):
Product Overview
Description
Product Name:
TACHOMETER CMHB-BS-4KL

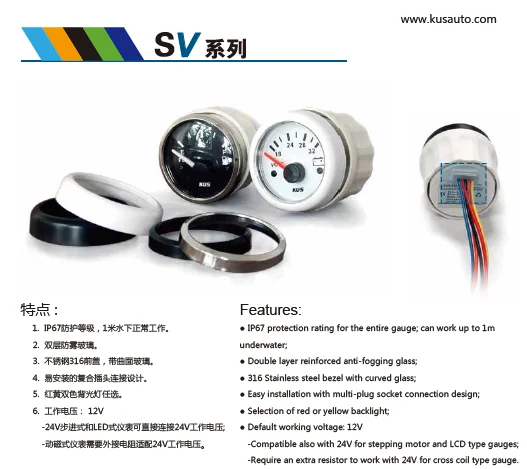

Features:
IP67 protection rating for the entire gauge; can work up to 1m
underwater;
Double layer reinforced anti-fogging glass;
316 Stainless steel bezel with curved glass;
Easy installation with multi-plug socket connection design;
Selection of red or yellow backlight;
Default working voltage: 12V
Compatible also with 24V for stepping motor and LCD type gauges;
Require an extra resistor to work with 24V for cross coil type gauge.

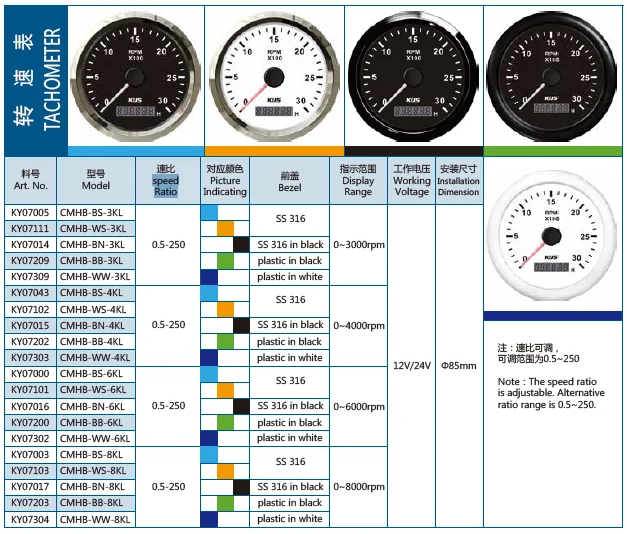

Specifications
- Working voltage: 12/24V
- Working current: <60mA
- Diameter: Φ85mm (3 3/8")
- Indicating range: 0~3000rpm; 0~4000rpm; 0~6000rpm; 0~8000rpm.
- Speed ratio: 0.5~250.0 or 1.0~10.0
Product Photo
Back side:
Warranty
Within one year after shipment, except for improper installation and operations by user.
Workshop
Certifications
Advantages
FAQ:
Q: What is the connection way
A: the products manual will be packed with the prodcuts.
