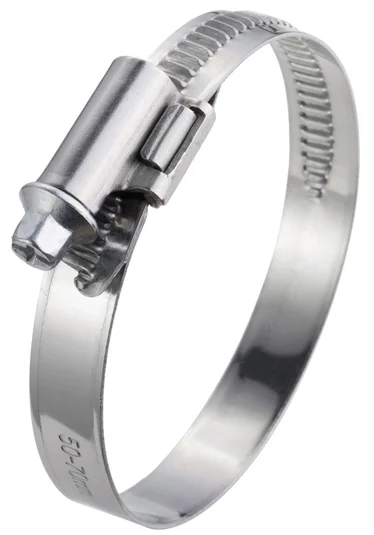

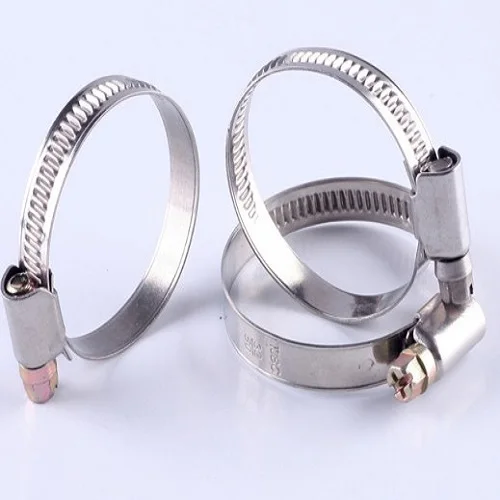

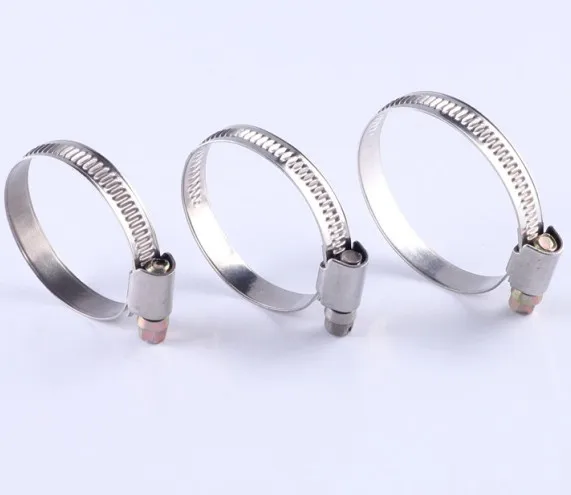

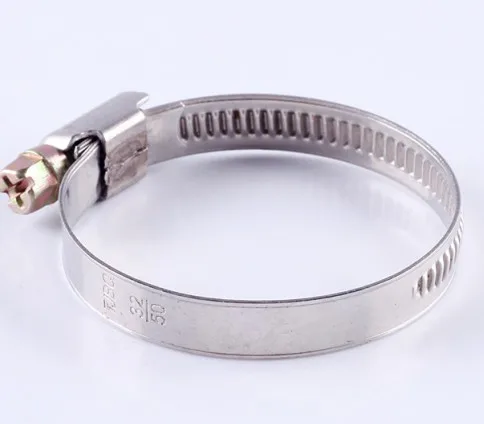

Universal Germany Worm Drive Hose Clamp with wings Stainless Steel Band

Product Overview

Description



1)material:zinc plated steel or stainless steel

2)bandwidth:12mm


3)thickness:0.6mm or 0.7mm


4)size:16mm--160mm





5)usage:for automobile hoses or pipes



6)features:



Multi-range hose clamp



Material grade  W4 All Parts Stainless Steel 1.4301(304)





Chromium VI free: compliant with ROHS, WEEE and ELV Environmental Directives

Clamping range to DIN 3017: 8-16 mm up to 140 - 160mm





 7) APPLICATIONS







• Cooling water lines



• Depressurized as well as pressurized fuel lines and vent lines



• Oil lines



• Connections in sanitary installations



• Connections in engine construction



• Connections in the white goods industry

• Hose connections in commercial vehicles industries





size(mm)	thickness(mm)	material	bandwidth(mm)
16--27	0.6mm	W1 W2 W4 W5	12mm
20--32
25--40
30--45	0.7mm
35--50
40--60
50--70
60--80
70--90
80--100
90--110
100--120
110--130
120--140
130--150
140--160



W1	all parts are galvanized steel
W2	the screw is galvanized steel,others are stainless steel
W4	all parts are 301/304 stainless steel
W5	all parts are 316 stainless steel
