This apparatus is used to test the body surface neuropathy vibration perception thresholds.It could provide local vibration, and with the patient’s reaction to the induction, to auxiliarily diagnose the neural induction system diseases.

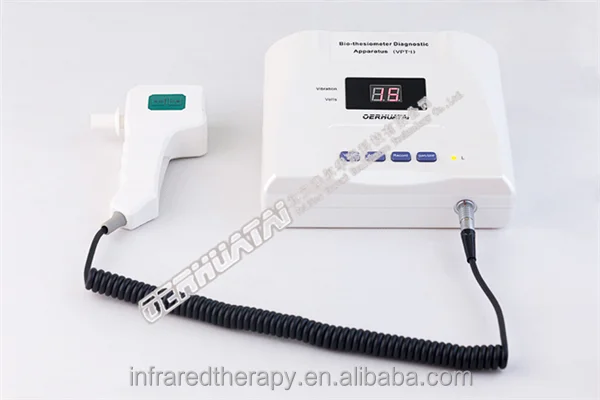

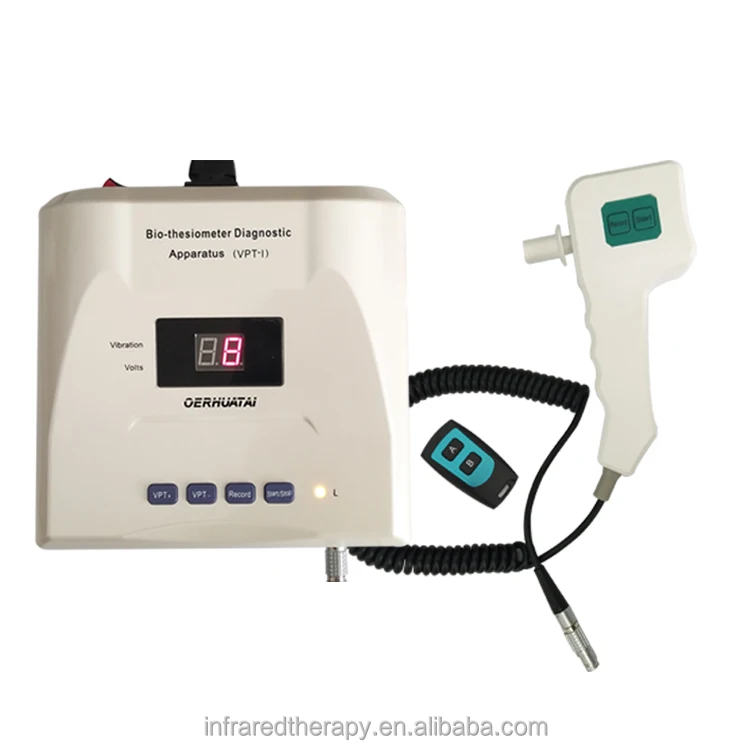

1. Digital menu board 2. Output indicated light 3. Vibration outlet;
4. Operate panel 5. Power switch 6. Output plughole;
7. Power line plughole 8. Testing handle 9. Power line.
C.Main Technical Parameters
(1)Operating Voltage: Alternating Current (A.C.): 220V Power Frequency: 50Hz
(2)Input Power: 50W
(3)Fuse Protector Specification: 3F1A, 250V
(4)Vibration circuit voltage range is between 0V-30V, which is continuous adjustable and stepping 0.6V, error range of ±10% .
(5)Vibration frequency of the vibration probe: 50HZ, error range of 1%
(6)The peak amplitude range of vibration probe is between 0μm -25μm, maximumpeak amplitude range of vibration probe is 25μm, error range of ± 10mm.
(7)Net weight of host apparatus: 5kg±0.5kg
(8)Size of host apparatus: 340mmx275mmx100mm, error range of ±10mm
(9)Net weight of testing handle: 0.4kg±0.05kg
(10)Size of testing handle: 170mmx90mmx40mm, error range of ±5mm
