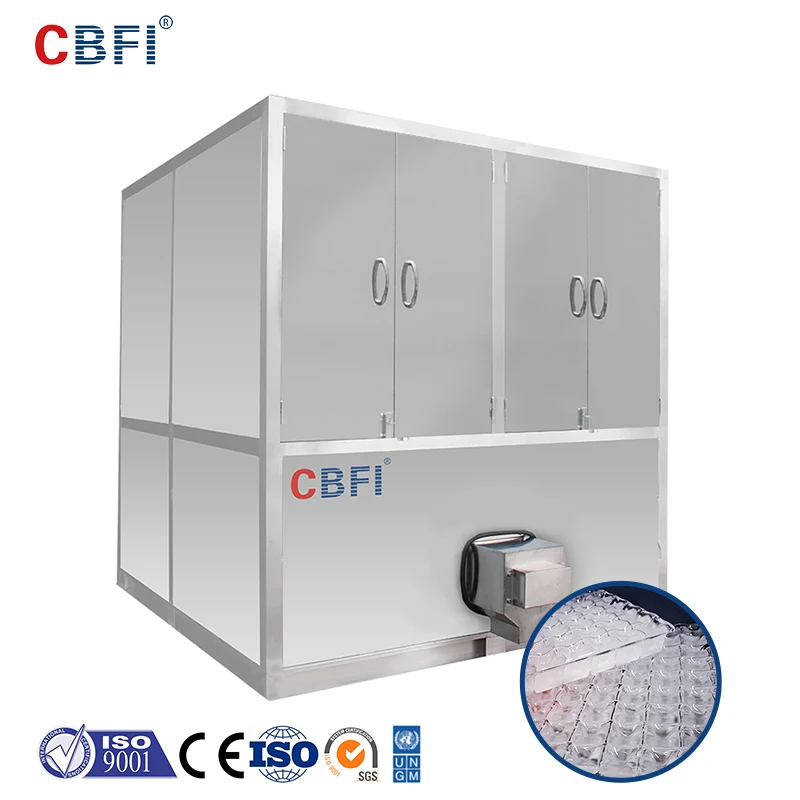

Commercial CBFI Ice Cube Machine for Dubai
- Category: >>>
- Supplier: Guangzhou Icesource Co. Ltd.
Share on (1457986820):
Product Overview
Description
Product Overview
The large-scale edible ice cube machine is a large-capacity ice making machine that produces ice cubes. The ice cube machine is widely used in catering and cold drink shops and other fields.
Highlights
●Safety: The company's ice maker uses SUS304 stainless steel as the main raw material, adopts a special water flow design, and has an automatic cleaning function to ensure that the ice produced is clean, hygienic and edible.
●Available options: different models of ice machines have different output. The company has ice machines with a daily output of 1-20 tons to choose from.
●Stable performance: ice crystals are hard, crystal clear, resistant to dissolution, and can be stored for a long time.
●Available options: different models of ice machines have different output. The company has ice machines with a daily output of 1-20 tons to choose from.
●Stable performance: ice crystals are hard, crystal clear, resistant to dissolution, and can be stored for a long time.
Product Features
1. The ice cube machines all adopt an integrated design, occupy a small area, and have a neat and regular appearance.
2. The core components of the equipment are all the top technical equipment in the industry, with good quality and stable output.
3. The ice produced by this ice maker is a transparent crystal square ice crystal, which is tested by QS and is edible ice, which is widely used in the catering industry.
Product Configuration
We use German Compressor Bitzer compressor and other famous brand components, you can easily acquire spare parts or after-sale service around the globe.
There are three type of molds to choose from. Ice cubes can be customized.Nickeled ice molds is anti-corrosive and sanitary to insure the cube ice is safe and edible.
The evaporator has the characteristics of anti-corrosin, safety and sanitation, large contact area, and accelerated heat and cold exchange with the refrigerant.
The company’s ice machines are made of the best parts, compressors, condensers, expansion valves, and evaporators are all to ensure that the output of the ice machine is stable, the quality is good, and the ice cubes are beautiful in appearance, clean and hygienic, pure and edible.
Product Parameter
3 tons per day large capacity cube ice machine for hotels & restaurants paremeters | ||||||||||||||
Model Parameters | CV 1000 | CV 2000 | CV 3000 | CV 5000 | CV 10000 | CV 20000 | ||||||||
Daily output (T/24 h) | 1 | 2 | 3 | 5 | 10 | 20 | ||||||||
Compressor Power | 4.34 kw | 7.88 kw | 10.58 kw | 21 kw | 42 kw | 73.5 kw | ||||||||
Fan Power of Cooling Tower | 0.18 kw | 0.37 kw | 0.56 kw | 0.75 kw | 1.5 kw | 2.2 kw | ||||||||
Cooling Pump Power | 1.1 kw | 1.5 kw | 1.5 kw | 2.2 kw | 4 kw | 5.5 kw | ||||||||
Unit Size | L (mm) | 1800 | 1630 | 1980 | 2890 | 5730 | 7100 | |||||||
W (mm) | 1000 | 1600 | 1630 | 1780 | 1780 | 2250 | ||||||||
H (mm) | 1700 | 1706 | 1860 | 1860 | 2130 | 2300 | ||||||||
Unit N.W. (kg) | 800 | 1000 | 1200 | 1600 | 3000 | 5000 | ||||||||
1. Size of cube ice: 22*22*22 mm ; 29*29*22 mm ; 38*38*22 mm. 2. Compressor brand: Bizter / Frascold; refrigerant: R22/ R404A; Cooling Method: Water Cooling / Air Cooling. 3. Power Supply: Voltage 380V/3P/50Hz (For non-standard voltage, unit configuration needs to be calculated separately). 4. Operating Conditions: T(water supply):20 ℃, T(ambient):32 ℃, T(condensing): 40 ℃, T(evaporating):-10 ℃. 5. Note: The actual ice production varies due to the influence of the water supply temperature and ambient temperature. 6. The final interpretation of the above mentioned parameter is in Icesource, there will be further notice, if there any technical change. | ||||||||||||||
The main reason for the good quality of the ice machine produced by our company is that the compressor, condenser, expansion valve, PLC controller and other important parts are imported. The equipment has good performance and strong anti-interference ability. The external environment has an impact on the output and ice. The quality of the product has little effect.A variety of models can meet the needs of customers at different levels.
Product Applicaton
Cube ice is widely used in hotels, bars, hotels, canteens, restaurants, convenience stores, cold drinks shops and other places where ice is needed. The size of the ice can be adjusted to meet the different needs of customers for ice.
Contact Us

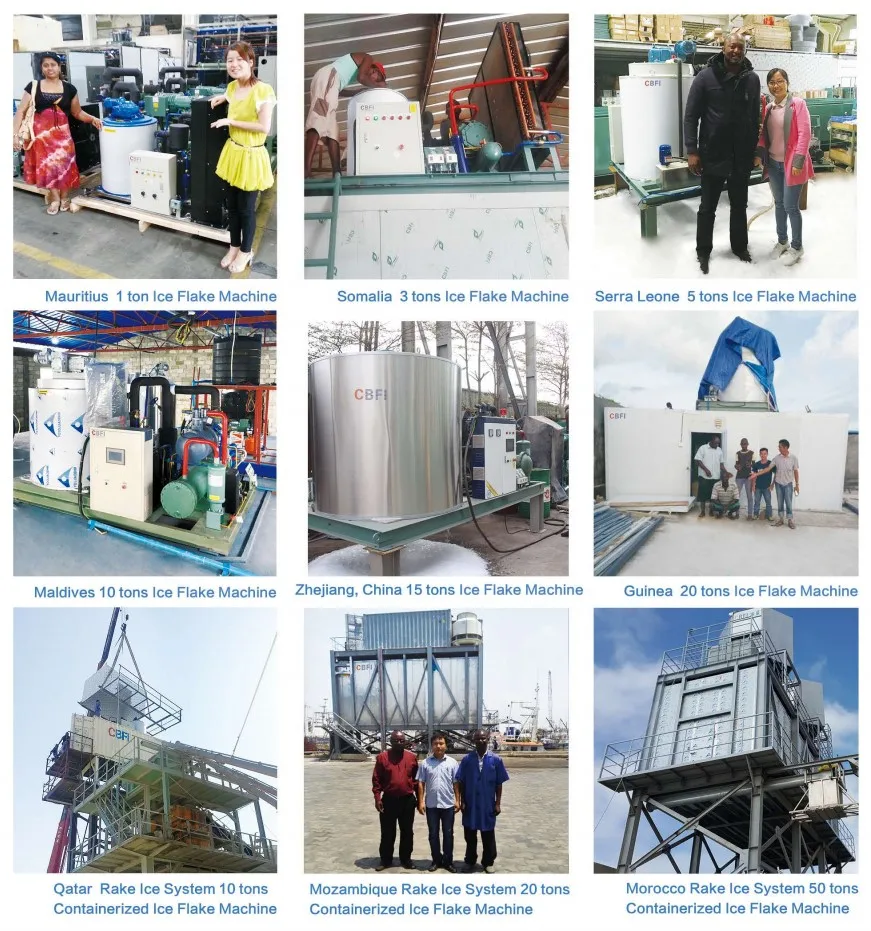

Our Projects
Certifications
CBFI has CE certificate for tube ice machine, cube ice machine, flake ice machine, block ice machine, cold room, cutting ball ice machine, nugget ice machine, and automatic packing ice machine. We also have ISO9001 Quality Management System Certificate, ISO14001 Environmental Management System Certificate, and ISO8001 Occupational Health and Safety Management System Certificate.
Our intelligent cold room unit, mini blast freezer, efficient flake ice machine, cube ice machine are High-Tech Products approved by Guangdong Province.
Our intelligent cold room unit, mini blast freezer, efficient flake ice machine, cube ice machine are High-Tech Products approved by Guangdong Province.
Enterprise Honor
The company has been engaged in the research and development of refrigeration equipment since 2004. At present, the company's research and development team has more than 60 people, and can provide customers with product customization services. Has a number of patented technologies. The equipment is energy-saving, high-quality, high-efficiency, and stable, and has been favored by many domestic and foreign catering, fishery, and medical industries.
You May Also like

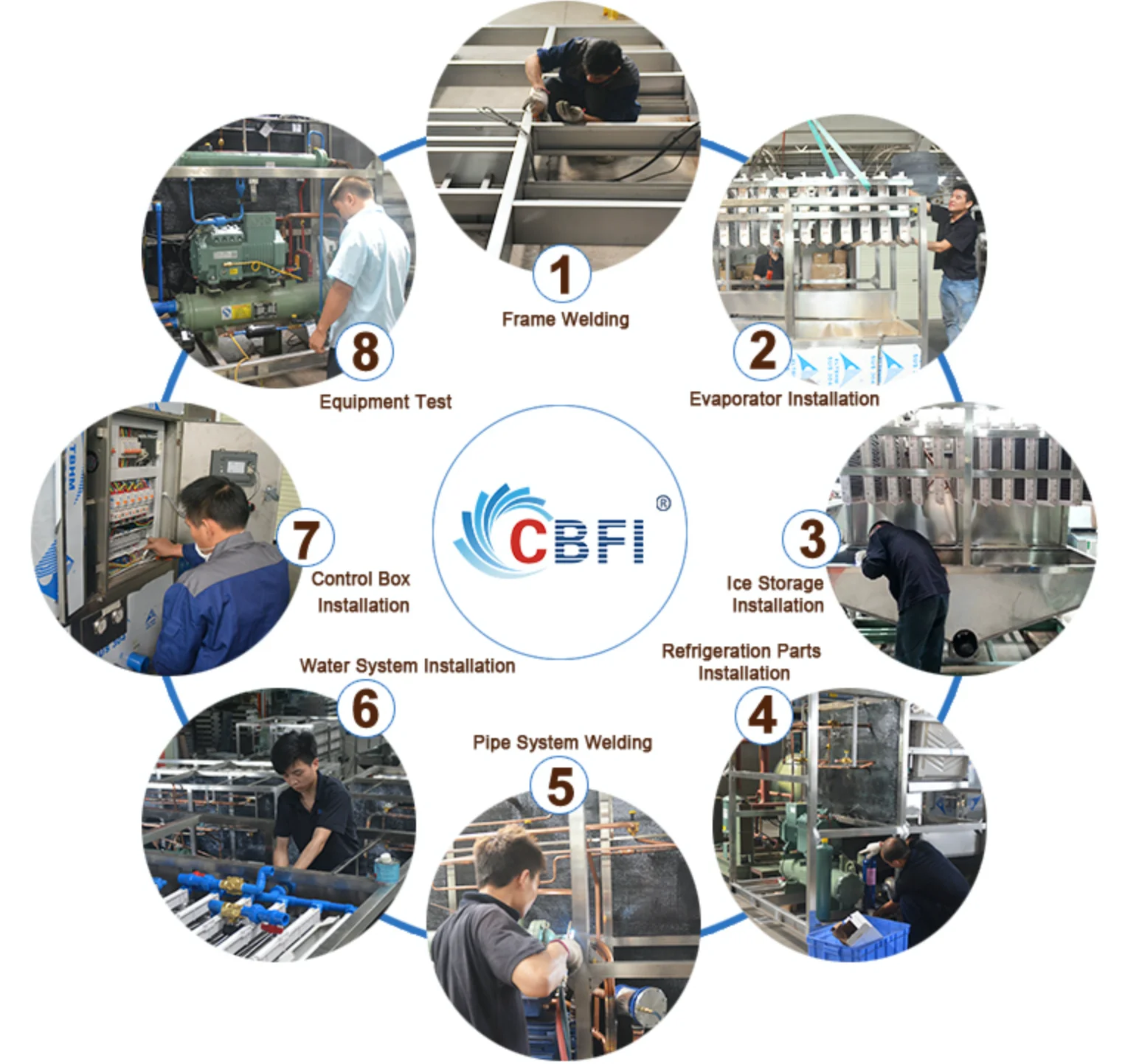

Production Process
Our Company
Guangzhou Icesource Co., Ltd. (trademark CBFI), a pioneer in the large-scale fluorine refrigeration and ice making equipment industry, a large ice plant and cold storage engineering solution service provider, is an innovative and entrepreneurial high-tech enterprise that integrates research, design, manufacture, sales, and after-sales service of a large-scale edible ice making equipment, large-scale industrial ice making equipment, high-end commercial ice maker, complete ice making system and small or large cold storage project.
The main products are various kinds of ice making machine (direct-cooling block ice machine, block ice machine, tube ice machine, cube ice machine, flake ice machine, plate ice machine, pure ice machine and fully automated ice plant). Products are widely used in food, fishery, retail, fruits and vegetables, aquatic products, chemicals, medical, construction, minerals and other fields for cooling, storage and preservation.
The main products are various kinds of ice making machine (direct-cooling block ice machine, block ice machine, tube ice machine, cube ice machine, flake ice machine, plate ice machine, pure ice machine and fully automated ice plant). Products are widely used in food, fishery, retail, fruits and vegetables, aquatic products, chemicals, medical, construction, minerals and other fields for cooling, storage and preservation.
The company has set up showcases in the Philippines and Malaysia, mainly to provide customers with a comprehensive and systematic platform for understanding the company's ice machine. At the same time, it can also provide customers with technical guidance and after-sales service for equipment use.
Our Partners
The company has a dedicated after-sales service team that can help customers complete the installation and use of the ice machine through telephone, video or installation workers to the site. The complete service system from product production, transportation, installation, commissioning to commissioning has enabled our company to cooperate with many companies. Guangzhou Transportation Group, Beijing Olympic Games, World Expo, Master Kong, Wang Lo Kat, etc. are all customers of our company. Rich trading experience is worthy of your trust.
Our Service
1. Installing by the user:
we will tested and install well the machine before shipment, all necessary spare parts, operation manual and CD are provided to guide the installation.
2. Installing by our engineers:
(1) We can send our engineer to assist the installation and provide technical support and train your workers. The end-user provide accommodation and round-trip ticket for our engineer.
(2) Before our engineer arrived in your site, the installation place, electricity, water and installation tools should be ready. Meanwhile, we will provide you a Tool List with the machine when delivery.
(3) All spare parts are provided according to our standard. During installation period, any shortage of parts due to the actual installation site, the buyer is required to afford the cost, such as water pipes.
(4) 2~ 3 workers are required to assist the installation for big project.
2. Installing by our engineers:
(1) We can send our engineer to assist the installation and provide technical support and train your workers. The end-user provide accommodation and round-trip ticket for our engineer.
(2) Before our engineer arrived in your site, the installation place, electricity, water and installation tools should be ready. Meanwhile, we will provide you a Tool List with the machine when delivery.
(3) All spare parts are provided according to our standard. During installation period, any shortage of parts due to the actual installation site, the buyer is required to afford the cost, such as water pipes.
(4) 2~ 3 workers are required to assist the installation for big project.
FAQ
1.Q: Are you add refrigerant in the ice machine?
A:Yes, our equipment is filled with refrigerant, and it can be used as long as it is connected to electricity and water.
2.Q:Do you test the ice machine in your factory?
A: Yes, Our equipment will be tested twice before being put into use: factory inspection and operation test after installation at the buyer's destination to ensure that we provide the best service to customers.In addition, our company can provide a complete set of solutions for the actual needs of customers. Creating value and fulfilling customers is our principle.
3.Q: All your ice machine is based on 380V 50HZ power requirement? Do you have the right power requirement for aboard? Such as 440V 60HZ or 220V three phase that suitable for America?
A: Our ice machine and power, voltage can suitable for your country, please make the power requirement be clear in your order.
A:Yes, our equipment is filled with refrigerant, and it can be used as long as it is connected to electricity and water.
2.Q:Do you test the ice machine in your factory?
A: Yes, Our equipment will be tested twice before being put into use: factory inspection and operation test after installation at the buyer's destination to ensure that we provide the best service to customers.In addition, our company can provide a complete set of solutions for the actual needs of customers. Creating value and fulfilling customers is our principle.
3.Q: All your ice machine is based on 380V 50HZ power requirement? Do you have the right power requirement for aboard? Such as 440V 60HZ or 220V three phase that suitable for America?
A: Our ice machine and power, voltage can suitable for your country, please make the power requirement be clear in your order.
4.Q: Whats the deliver time of your machine?
A:1~5ton, 30 days since the deposit arrived at our account, 5~20 ton, 45 days. (based on the electricity 380V/50Hz/3p, some special design lead time will be longer )
A:1~5ton, 30 days since the deposit arrived at our account, 5~20 ton, 45 days. (based on the electricity 380V/50Hz/3p, some special design lead time will be longer )
