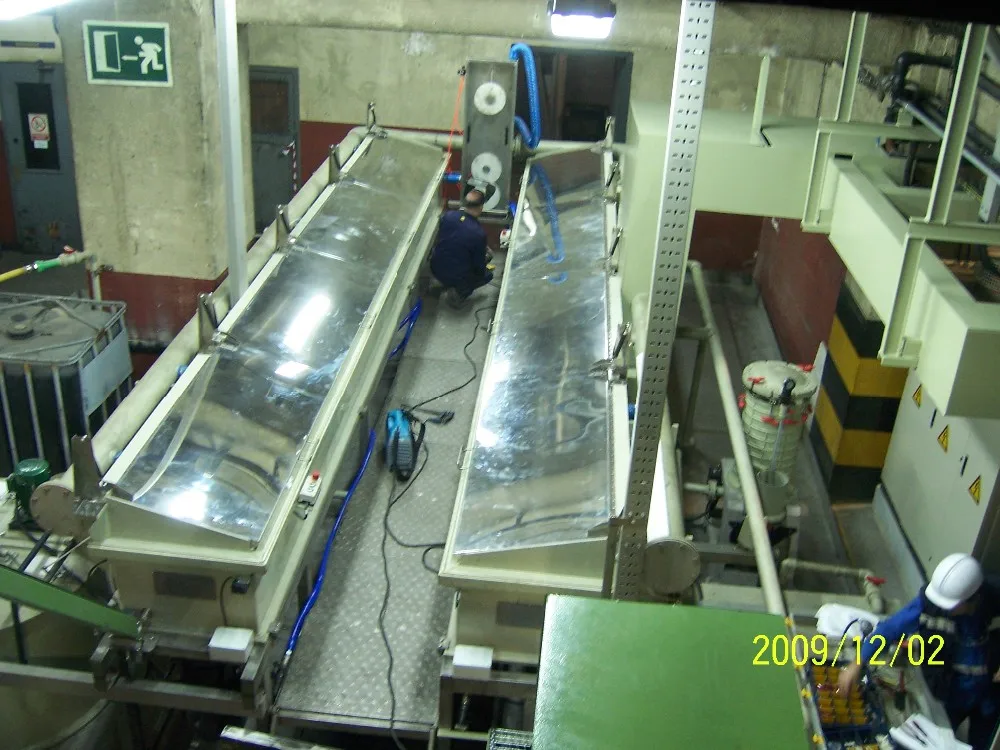

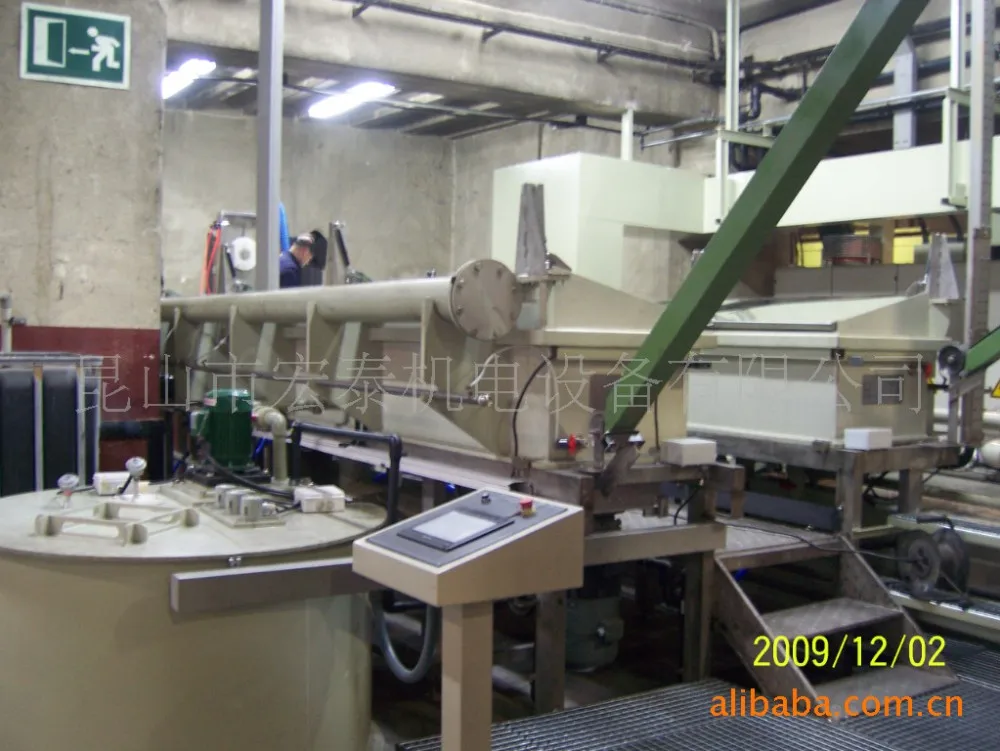

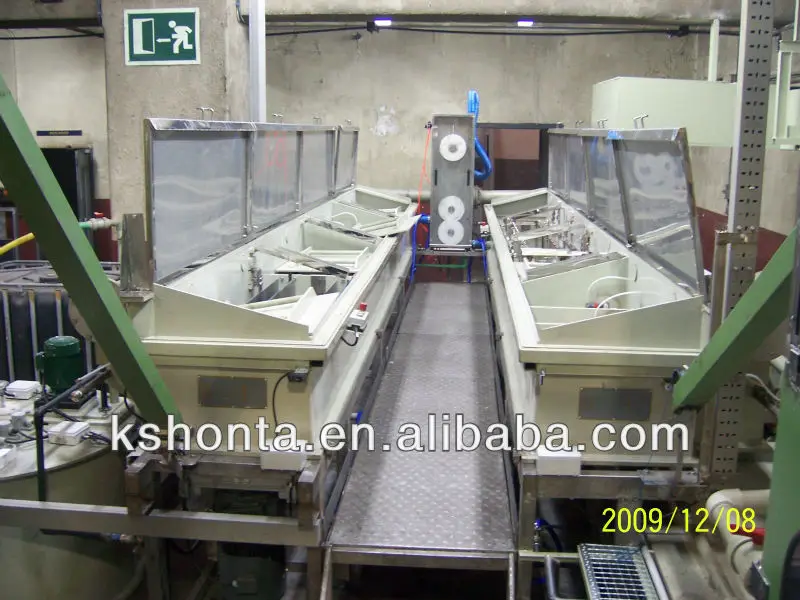

Model HT 6000 Zinc 15 m/s electrolytic wire plating machine Tin/copper etc
- Category: >>>
- Supplier: Kunshan City Hongtai Machinery & Electric Equipment Co. Ltd.
Share on (1458583120):
Product Overview
Description
Product Description
Wire Elextrolytic Plating Lines (Sn , Ni, Ag):
Type of line : HT– 6000 Zinc- 15 m/s
Weight without bath liquids : approx. 8,000 kg
Weight with bath liquids : approx. 12,000 kg
Number of wires : one
Wire speed : max. 15m/s (combined with wire drawing machine or bobbin move motorised pay-off, if with coiler basket, the Max. speed is 5 m/s)
Wire material : Cu
Wire diameter range : 1.2 – 2.6 mm hard 1.2 – 3.0 mm soft
Condition of wire : low grease and free from oxides
Coating material : Sn
Coating thickness : 1 to 25 µm
Coating quality : as per DIN 40500, ASTM B 33
Total installed load : approx. 120 kW
Mains voltage : 3 x 380V / 50 Hz
Control voltage : 24 V DC, 230 V AC
Electric equipment : acc. to VDE and VBG 4
Max. ambient temperature : 45°C (hall temperature)
Plating current : 6000 A, 10 V
Degreasing current : 500 A, 10 V
Immersion length, plating : 140 m
Immersion length, degreasing : 40 m
Groove dia. of current roller, plating : 400 mm, 27 grooves
Groove dia. of current roller, degreasing : 400 mm, 18 grooves
Finished Products
Wire Elextrolytic Plating Lines (Sn , Ni, Ag)
Company Information
Our factory show:
Certifications

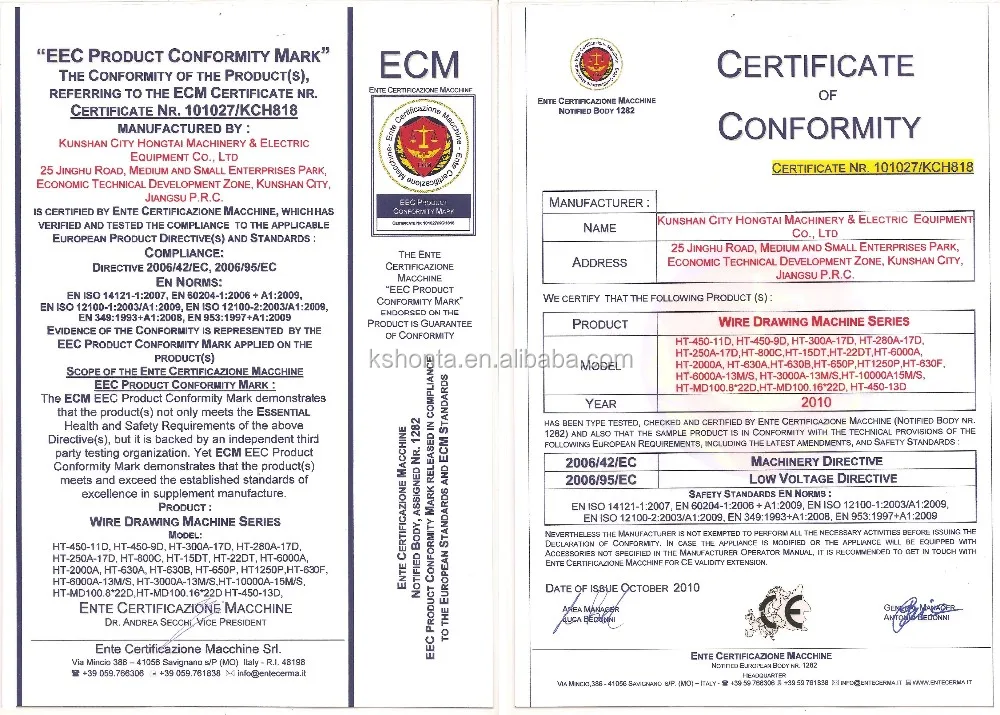

CE for multi wire drawing machine:
Trade show
Exhibition is shanghai city:
Commissioning
Commissioning wire drawing machine in Turkey :
Customer show
Our customers come from different countries around the world.
